Linear Technology Corp.    Milpitas, CA 95035

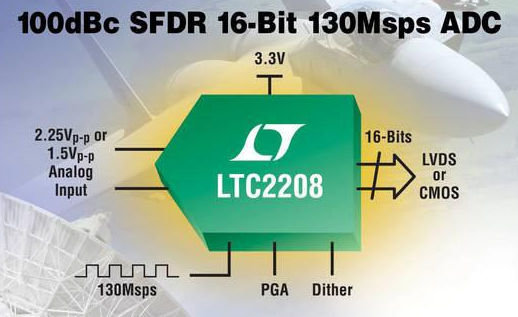

Oct 05, 2005 With spurious free dynamic range of 100 dBc combined with 78 dB SNR, 16-bit Model LTC2208 resolves low-level signals in presence of large interferers and blockers. Offered in speed grades up to 130 Msps, unit includes internal transparent dither circuit, which optimizes SFDR response, and digital output randomizer that minimizes unwanted tones caused by digital feedback. Unit is housed in 9 x 9 mm QFN package and consumes 1,250 mW without need for heatsinking.

TURCK, Inc.    Plymouth, MN 55441

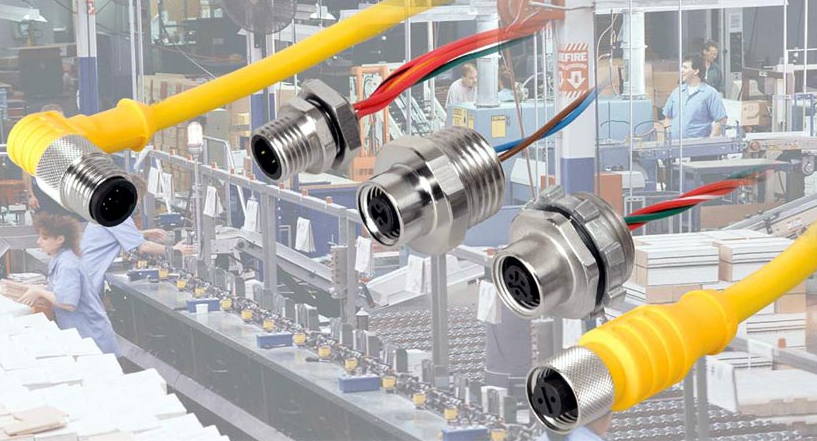

Oct 05, 2005 Offered in standard and custom lengths, microfast (½-20 UNF) cordsets are available with PVC, PUR, TPE, and CPE cable options. Male or female, straight or right angle connectors, offered in 2- through 6-pin configurations, are rated for 250 Vac/Vdc and 4 A. They provide NEMA 1, 3, 4, 6 P, and IEC IP 67 protection. Fully encapsulated mating receptacles have nickel-plated brass housing and ½ in.-14 NPSM, ½ in.-14 NPT, or ¼ in.-18 NPT mounting threads.

Paxar Corp.    White Plains, NY 10604
Oct 05, 2005 Satin weave, single-face, 100% polyester 910RFS Tape is designed for sewn-in care labels that will be home laundered and dry cleaned. Available in standard widths of 18, 24, and 33 mm at 273 yd/roll, tape features fray-resistant coating that lasts for more than 50 home launderings when used with HS1111 ink. When printed, self-sealing labels soften after washing. Tape can be cut with standard printer knife and is thermal transfer printable.

Orelis S.A.S    Miribel 01708  France

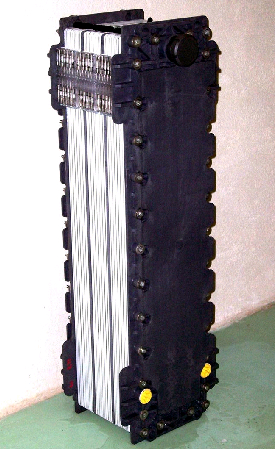

Oct 05, 2005 Intended for ultrafiltration of electrophoretic paint, Pleiade® MP4 consists of stack of separate membranes. Users can see quality of permeate from each membrane though window and isolate individual membranes by means of small valve, eliminating production stoppage. Offering alternative to spiral systems and manufactured from plastics and composites, filter is modular, interchangeable, and resistant to corrosion.

TE Connectivity Ltd.    Berwyn, PA 19312

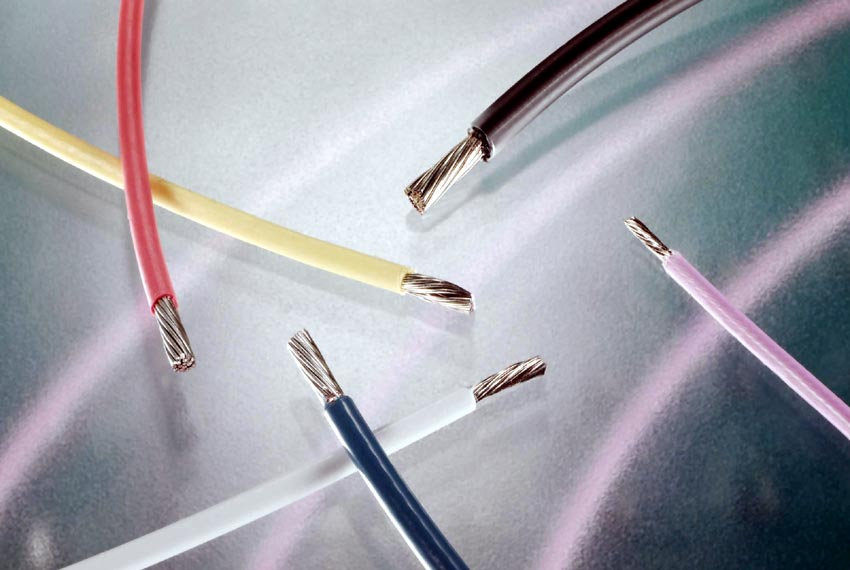

Oct 05, 2005 Available in 10-28 AWG range, Raychem FlexLite MT Wire (UL style 10916) is suited for general purpose use in appliance, electronics, and electrical equipment applications that require 600 V rating. It has average wall thickness of 6 mils and UL-rated operating temperature of 150°C max. Modified fluoropolymer insulation provides mechanical and chemical resistance. Tin plated copper conductor construction is standard, and other conductors are available upon request.

Integra Companies, Inc.    Devens, MA 01432
Oct 05, 2005 Integra Sanitary Gauge Reducers, machined from 316L stainless steel and electropolished to 20 Ra ID surface finish, measure 1.25 in. long and feature one-piece construction with smooth bore to prevent entrapments. Concentric reducers are supplied with single material certification for full traceability and eliminate long cones and welding. Available in 28 combinations of Tri-Clamp sizes from ½-4 in. OD, products are suited for clean room environments.

SICK STEGMANN, INC.    Dayton, OH 45413
Oct 05, 2005 DGS60 incremental encoders are offered in 6 and 10 mm solid shaft versions with servo flange or face mount flange. They are also available with through or blind hollow shafts, with connector or cable outlet and TTL or HTL electrical interfaces. With 60 mm package size and IP67 rating, design accommodates adaptation to suit specific application requirements.

Linear Technology Corp.    Milpitas, CA 95035
Oct 05, 2005 Dual-wire bus multiplexers LTC4305 and LTC4306 provide capacitive isolation when connecting upstream I2C bus to desired combination of downstream busses. Software-controlled LTC4305 multiplexes 2 channels, while LTC4306 splits I2C bus into 4 sub-branches. Each channel can be pulled to supply voltage from 2.2-5.5 V, regardless of IC supply voltage. Downstream channels are provided with alert inputs for fault reporting, and each IC allows for 27 distinct bus addresses.

Star Industries    Fort Worth, TX 76117 1706
Oct 05, 2005 Construction-grade, ½ cu-yd Self-Dumping Hopper handles all types of refuse including broken-up concrete, brick, and block. Safety Chain and Grab Hook secures hopper and keeps it from sliding off forks when traveling or dumping, while Safety Lock prevents inadvertent dumping when traveling over rough terrain. Rope Release allows operator to dump hopper from forklift seat or from ground, away from dump area. Hopper can be used with extendible-reach and straight-mast forklifts.

Pneumadyne, Inc.    Plymouth, MN 55441

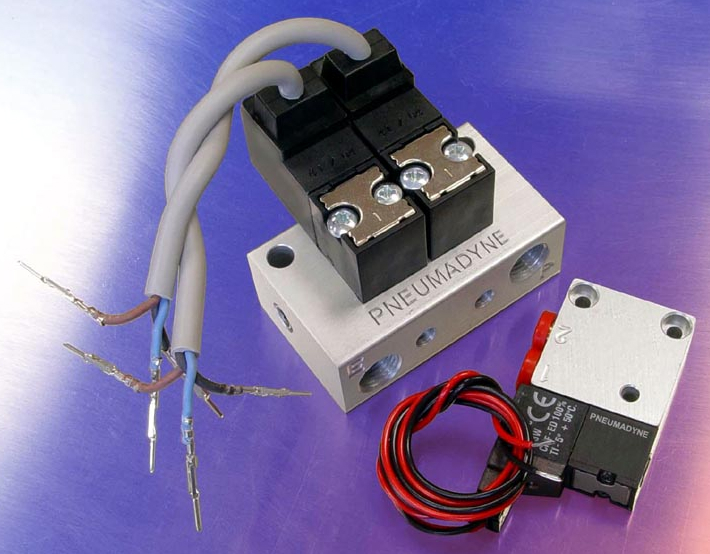

Oct 05, 2005 Suited for applications that require low power consumption, 10 and 15 mm Latching Solenoid Valves do not need continuous power to maintain position. Response times allow momentary pulse to activate and de-activate valves. Direct-acting, 2- and 3-way valves have operating pressure of vacuum to 150 psi. Single to 12-station manifolds are available with 10-32 (F) or M5 (F) threads, and 12 and 24 Vdc are available to fit application requirements.

Elma Electronic Inc.    Fremont, CA 94538
Oct 05, 2005 Type 39 4U EasyPlug features removable fan and filter tray. Type 39c EasyPlug has 9U, 8-slot cPCI backplane with pluggable 47-pin connectors for hot-swapping power supplies. Along with removable fan and filter trays, chassis features optional shelf management modules. With sheet metal design and full pluggability, Type 39c HA family is offered with 1U-4U horizontal-mounting chassis. Enclosures feature side-to-side 200 cfm cooling, 300 mm depths, and rear I/O options.

Pelion Systems, Inc.    Lafayette, CO 80026-2789
Oct 05, 2005 Offered through enterprise suite of integrated software components, Pelion Automotive MPO synchronizes operations within and outside factory to implement demand-driven manufacturing strategies based on combination of Lean, Six Sigma, and Flow Manufacturing principles, algorithms, and techniques. Complementing existing ERP/MRP and APS systems, suite helps manufacturers visualize, define, design, implement, and sustain manufacturing best practices.

Palo Alto Software, Ltd.    London W14 8TH  United Kingdom
Oct 05, 2005 Business Plan Pro 2006 and Business Plan Pro 2006 PREMIER enable users to create type of plan needed for particular situation, including loan documents, new product or service descriptions, financial plans, marketing plans, or complete business plans. Along with SWOT (Strengths, Weaknesses, Opportunities, and Threats) analysis, software includes financial options such as detailed exit strategy, financial risks and contingencies, and automatic Plan Review feature.

LMS    Leuven 3001  Belgium
Oct 05, 2005 Combining deployment of Auto-Recursive Solver with Sub Mechanisms capability, LMS Virtual.Lab Motion v5 provides building block approach to model and simulate complex mechanisms. Auto-Recursive Solver facilitates solving of complex simulation models with series of linked components and high number of contact points between components. Included algorithm computes contact forces and local deformation of flexible body intermittently hitting rigid sphere.

Elite Thermal Engineering    Bothell, WA 98021
Oct 05, 2005 Utilizing DCS technology, Cold Plates enable scalable cooling and mitigate heat-spreading problem of using both heatsink and cold plate. Technology is targeted for cooling high power laser diodes such as those found in material processing lasers, medical research, and high power fiber lasers. All cold plates have mounting patterns for most diodes, and custom patterns are available upon request.

Bookham, Inc.    San Jose, CA 95134
Oct 05, 2005 Utilizing indium phosphide Mach-Zehnder-based modulator and distributed feedback laser, Models LMC10NEJ and LMC10ZEG allow users to extend reach of metro networks to 100 km, while retaining small form factor or equivalent footprint areas with no electronic dispersion compensation or dispersion compensated fiber. Model LMC10NEJ features negative chirp and precision optical power, while Model LMC10ZEG provides zero chirp and dynamic power control.

Surface Guard, Inc.    Aurora, IL 60504
Oct 05, 2005 Designed to protect cool-metal finished building panels, Series 45 features polyolefin film coated with custom formulated, aqueous-based acrylic adhesive. Balanced blend of shear and peel give product ability to bond well to low gloss paint systems, while maintaining surface protection. Series 45 is supplied on 2 or 3 mil polyethylene films in widths from 1-80 in. Clear and tinted films are available.

IFS North America, Inc.    Tucson, AZ 85710
Oct 05, 2005 IFS Applications(TM) 7 component-based business application suite lets companies use its content and processes directly within IBM WebSphere Portal. Users can build scalable portals using IBM WebSphere and include all IFS portlets in enterprise-wide IBM WebSphere Portal. Portals may combine portlets for specific processes in IFS Applications. Simultaneously, preconfigured IFS personal portals may be used for specific roles and tasks.

Emerson Process Management    Austin, TX 78754
Oct 05, 2005 DeltaV Remote I/O is suited for Zone 1 and Zone 2 or Class 1, Division 2 applications. Zone 2 scanner addresses up to 8 discrete or analog I/O cards, which can be targeted to 1-4 controllers, while Zone 1 scanner works with up to 4 intrinsically safe I/O cards that have I/O on each card. Separate I/O cards can be replaced in-field without shutting down module. DeltaV system can have up to 60 remote I/O scanners, and any controller can have up to 16 associated modules.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Oct 05, 2005 Capable of 3.3 and 2.5 V operation, LVDS20 and LVP20 help ensure signal and clock integrity in communications applications and can also serve as translators. Both connect high-speed differential receiver and driver as repeater. Receiver accepts low-voltage PECL signals at rates to 4 Gbps and repeats them as LVDS (LVDS20) or LVPECL (LVP20) output signals. Differential signal path through the devices minimizes EMI and limits added jitter.
