Mark-10 Corp.    Copiague, NY 11726

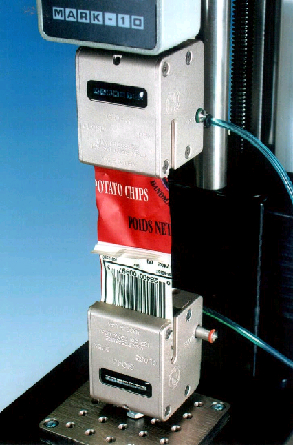

Nov 03, 2005 Fully enclosed Pneumatic Tensile Grip contains serrated interlocking jaws for securing film and paper in applications such as package seal strength testing and elongation testing. Integrated open/close valve facilitates sample engagement and disengagement for repetitive applications. Air connection kit, consisting of tubing and fittings, is also available.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 03, 2005 Utilizing 366 MHz processor, Infoprint® 1512 prints up to 30 ppm (letter) and 28 ppm (A4) with 1,200 x 1,200 dpi or 1,200 x 2,400 resolution. It has Microsoft(TM) Windows(TM) 64-bit system driver and offers wireless networking option. Operator interface has 2-line x 16-character LCD, 5 buttons, and one indicator light. In addition to standard automatic 250-sheet paper feeder and secondary single-sheet multipurpose feeder, optional 550-sheet drawer is available.

Birchwood Casey    Eden Prairie, MN 55344 2138
Nov 03, 2005 Intended for large part finishing and in-place components, Antiquing Gels cling to vertical surfaces and stay where they are applied, without forming runs and drips or bleeding onto adjoining surfaces. After surface is cleaned using solvent cleaners or abrasive pads, user applies layer of antiquing Gel with synthetic paintbrush, allowing Gel to work for 2-10 min. When desired depth of black or brown tone is achieved, Gel is rinsed off with wet sponge and surface is dried.

Tripp Lite    Chicago, IL 60609
Nov 03, 2005 Mountable in 19 in. rack system, B004-008 delivers individual control over all 8 ports using hotkey commands or individual port selection switches on front of unit. It simultaneously supports multiple operating systems and includes built-in PS/2 capability as well as hot-pluggable capability and plug-and-play setup. Auto-scanning feature directs KVM to sequence through all active CPU ports, and video resolution handles SVGA, VGA, and Multisync monitors.

JohnsonDiversey    Sturtevant, WI 53177-0902
Nov 03, 2005 FASTRIP and Butcher's Wild Rapids are low-odor, low-foaming products with short dwell time, suited for applications in 24/7 environments such as retail, health care, and other high-traffic places. Highly concentrated FASTRIP can be used across broad range of dilutions to meet demands of any floor-finish removal challenge. Both products come in packages of four 1-gal containers or one 5-gal container.

Agentek, Inc.    Alpharetta, GA 30005
Nov 03, 2005 Agent Fleet(TM) enables transportation and logistics clients to perform tasks at point of service, facilitate communications across operational silos, and manage enterprise-wide performance in real-time. It delivers interface to collect driver and load data in field and provide visibility into mobile fleet operation. Key areas include digital imaging and signature capture, crossdock planning, proof of delivery, proof of pickup, and handling unit level OS and D exception reporting.

Tra-Con, Inc.    Bedford, MA 01730
Nov 03, 2005 Two-part, thixotropic TRA-BOND 2151 is heat conductive, electrically insulating, and can be room temperature or heat cured. Coefficient of thermal expansion allows bonds to surfaces including metals, silica, alumina, ceramics, glass, and plastics. Product is suited for staking transistors, diodes, resistors, integrated circuits, and other heat-sensitive applications.

Dylon Industries, Inc.    Cleveland, OH 44144
Nov 03, 2005 Water-based Grade AE, applied to metal, wood, concrete, plastic, glass, or ceramic surface, dries into smooth, non-porous graphite layer. Electrically and thermally conductive paint can be used as dry lubricant or as anti-stick agent in oxidizing environments to 500°C and in reducing or inert atmospheres to 3,000°C. Able to be removed by cold water, non-toxic product will not crack, run, or melt at any temperature and does not entrap dirt.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 03, 2005 TotalStorage® SAN Volume Controller Storage Software v3.1 provides flexibility and extended storage virtualization for multiple environments. It lends clustering, SAN boot, and OS support to host server functions and allows up to 1,024 host attachments per SAN Volume Controller cluster for selected SAN fabrics. It can converge up to 4 independent, heterogeneous SAN fabrics into one common virtualized pool of storage as well as configure specific virtual disks individually.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 03, 2005 WebSphere® MQ for HP NonStop Server v5.3 delivers message-oriented-middleware software for application connectivity. It enables Java(TM) Message Service application programming interface and includes Publish/Subscribe function that facilitates getting business messages and transactions to audience. Scalable solution offers MQ workload balancing, national language support, and SSL security authentication facilities.

Allegro MicroSystems Inc.    Worcester, MA 01615
Nov 03, 2005 Designed to drive single-phase, low-voltage bipolar brushless dc motors, Model A1441 uses single Hall element to detect position of alternating pole ring magnet. On-chip charge pump circuit allows use of MOS full-bridge output. Switchpoints of device are chopper-stabilized for precision over operating temperature and voltage. Active braking function and sleep mode can be enabled by external signal. Driver comes in 2 x 2 x 0.5 mm MLP package with 100% tin plating.

RadiSys Corp.    Hillsboro, OR 97124
Nov 03, 2005 Based on microBTX and ATX form factors, Procelerant(TM) Endura EM945G, RB945G, and OP945G support Intel® Pentium® 4 and Intel® Celeron(TM) processors. Each includes Intel® GMA950 graphics controller, x16 PCI Express graphics slot, SATA II, DDR2-667 memory, and options for dual Gigabit Ethernet and IEEE 1394b. Offered with 3.4 GHz Intel® Celeron(TM) or Intel® Pentium® 4 processor, embedded server Model RMS420 includes multiple PCI and PCI Express slots, Gigabit Ethernet, and multiple USB 2.0 ports.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 03, 2005 When paired with PIC microcontroller, stand-alone MCP3905 and MCP3906 analog front ends provide complete solution for single-phase energy measurement. Each IC integrates two 16-bit delta-sigma ADCs, internal voltage reference, and all digital circuitry needed to calculate average and instantaneous real power from voltage and current channels. MCP3905 features programmable gain amplifier with max gain of 16, while MCP3906 has max gain of 32.

MtronPTI    Orlando, FL 32804
Nov 03, 2005 Offered in SMT or through hole package, XO5183 series features close in phase noise performance of -90 dBc at 1 Hz offset for 10 MHz sinewave device; it can be as low as -100 dBc/Hz at 1 Hz offset for special applications. Products, offered from 10-120 MHz, deliver ±10 ppb stability over 0-70°C. Options include voltage supplies from 5-15 V; sinewave or HCMOS output; and -40 to +85°C extended temperature range.

MtronPTI    Orlando, FL 32804
Nov 03, 2005 Hermetically sealed XO5083-022 matches industry standard thru-hole and SMD footprints and delivers phase noise performance of 165 dBc/Hz at 10 kHz offset. Requiring +12 V supply with sinewave output, it has frequency-temperature stability of ±10 ppb over -40 to +80°C. Designed for use in VSAT system, 10 MHz SC-cut based OCXO exhibits yearly aging rate under ±0.1 ppm and is suited for test/measurement applications and telecommunications based stations.

Cherokee International, Inc.    Tustin, CA 92780
Nov 03, 2005 Measuring 11.2 x 4 x 1.61 in., CAR1212 delivers 104 A and supports 12 V bus architectures that power point-of-load converters for low- to mid-power datacom systems. Automatic fan speed control optimizes noise levels in sensitive office-environment applications, while I²C communication provides intelligent monitoring and control of critical parameters. Product also includes under/over voltage protection as well as over-temperature and over-current protection.

Mitutoyo America Corp.    Aurora, IL 60504 9176
Nov 03, 2005 Featuring traverse capability with 0.05 µm resolution, Surftest® SV-3000 CNC surface roughness measuring machine is designed for testing long workpieces. Machine has 800 x 500 x 200 mm measuring envelope, max traverse speed of 200 mm/sec, can comes with SURFPAK® software. Probe arm enables measurement of multiple cross sections and waviness over range, while I/O connection allows for use of transfer and safety devices as well as standard fixtures.

Agilent Technologies, Inc.    Santa Clara, CA 95051

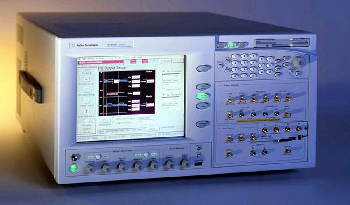

Nov 02, 2005 Suited for testing serial gigabit devices up to 12.5 Gb/s, Model N4903A provides built-in and calibrated jitter compensation for stressed eye testing of receivers. Automated and compliant jitter-tolerance testing covers all serial bus standards. Unpredictable traffic can be analyzed with bit recovery mode, enabling realistic test scenarios. Unit includes built-in CDR, subrate clock outputs, and spread-spectrum clocking that facilitates clock setup.

Paragon Data Systems Inc.    Cleveland, OH 44115
Nov 02, 2005 Monarch® 9855(TM) prints and encodes RFID Smart Labels, tracking and moving merchandise through supply chain. Product automatically writes to RFID chips embedded in thermal transfer bar code labels, tests chip, then prints human-readable and bar code data at up to 12 ips. Printer also verifies all RFID data and overstrikes bad labels to indicate if RFID data cannot be encoded. Utilizing RFID antenna for programming chips, design allows printer to encode labels as small as 1 in. long.

FCI/Burndy Products    Manchester, NH 03108

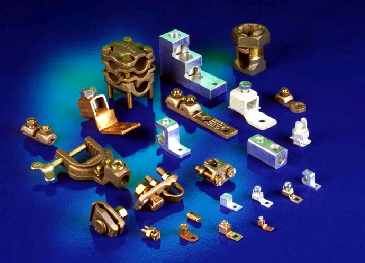

Nov 02, 2005 Made of high copper content alloys, Mechanical Grounding/Power Connectors are suited for direct burial applications in earth or embedment in concrete. Units feature nut and bolt design to provide means for connecting copper cable to various applications.
