Count On Tools    Gainesville, GA 30501

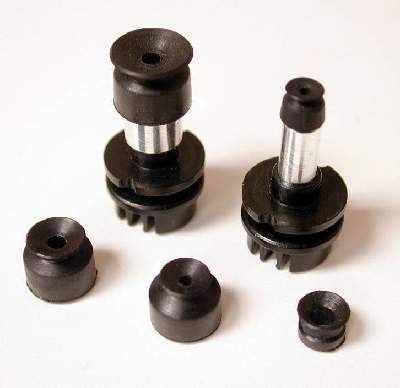

May 09, 2012 Designed for Universal Instruments' Flexjet 2/3/Inline 7 equipment, Interchangeable Cup Nozzles enable users to purchase one nozzle base with multiple tips that can be changed out to accommodate wide array of components with single tool. Series includes H012/H055 Replaceable Tip Nozzle with 2.0 and 3.5 mm cups as well as H013/H056 Replaceable Tip Nozzle with 5.0, 6.0, and 8.0 mm cups.

Parker Hannifin Corp., Parflex Div.    Ravenna, OH 44266 9137
May 09, 2012 Available in 1/8, 3/16, and ¼ in. sizes, Model 518 is designed to withstand harsh environments, both internally and externally. Core material is resistant to permeation of hydraulic fluids, while outer jacket provides abrasion resistance. Special reinforcement package reduces reinforcement diameter, allowing for increase in thickness of PFX cover.

Castell Interlocks, Inc.    Chicago, IL 60601
May 09, 2012 Featuring multi-voltage input with range of 24-220 Vac/Vdc, KSUPS+ only permits access to UPS system once it has been put into safe condition. Inserting and turning key operates 4-pole switch contacts and allows system to run. Key remains trapped and can only be released when signal is received by device and solenoid is energized. Removing key switches contacts to Off state, and key can then be used to open access interlock.

Bio-Chem Fluidics    Boonton, NJ 07005
May 09, 2012 Providing completely inert, non-metallic path for highly aggressive and/or high-purity fluids, Series 038T is suited for analytical chemistry and clinical diagnostic applications involving extremely low flow rates. Series includes bottom-ported Model 038T2B and side-ported Model 038T2S with ¼-28 UNF threaded ports. Offering bi-directional flow, normally closed valves use custom-designed solenoid that consumes 2 W at 12 or 24 Vdc for minimal heat generation.

Drawworks, L.p    Boling, TX 77420

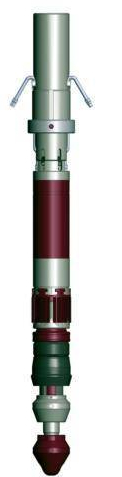

May 09, 2012 With HPFAC High Pressure Fill-up and Circulation Tool, operators can fill-up, circulate, and take flow-back while casing is being run. Tool optimizes safety by eliminating need for personnel in derrick during operations. HPFAC tool can be activated at control panel located on rig floor or remotely by driller. Should casing pressure rise above pre-set limit, tool will set automatically without human intervention.

Pacific Controls Inc.    New Jersey, NJ 08073

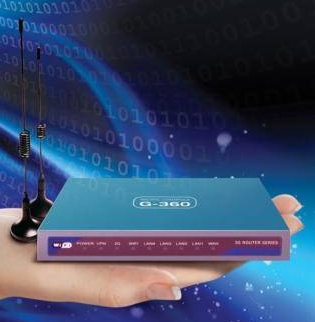

May 09, 2012 Router Integrated Controller G-360 helps system integrators and OEMs realize potential of Cloud-enabled managed services for their products and services. Incorporating router, GPS, and 3G radio, controller connects local measurement and control systems in remote sites to Galaxy Enterprise Service Delivery Platform over 3G cellular radio or direct IP connection. Local connections are supported for BACnet, IP or MSTP and Modbus-TCP, or RTU.

JK Lasers    Bedford, MA 01730
May 09, 2012 Offering alternative to traditional CO2 and Nd:YAG laser sources, Model JK2000FL can be used with different diameter processing fibers from 100-300 µm. Unit can cut 15 mm thick low carbon steel, 6 mm aluminum alloys, and 10 mm stainless steel, as well as weld 8 mm LCS and 304 SS. Offering wall-plug efficiencies of over 25%, laser has detachable plug in, pre-aligned beam delivery fibers which incorporate back reflection protection.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

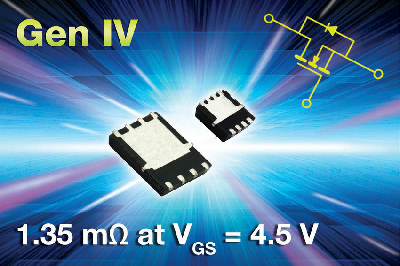

May 09, 2012 Rated at 30 V, TrenchFET® Gen IV Series demonstrates extremely low RDS(on) values down to 1.0 mW at 10 V and 1.35 mW at 4.5 V. Models SiRA00DP, SiRA02DP, and SiRA04DP are housed in 6.15 x 5.15 mm PowerPAK SO-8 package, while Model SiSA04DN comes in 3.30 x 3.30 mm PowerPAK 1212-8 package. All devices offer low Qgd/Qgs ratio of 0.5 or less. Applications include high power density DC/DC converters, synchronous rectification, and synchronous buck converters.

Larson Electronics, LLC    Kemp, TX 75143
May 09, 2012 Equipped with 70 W LED lamp using CREE XLamp MC-E® LEDs, Model Epljh-70led-1224I-100 produces over 6,000 lumens in wide flood pattern. LED assembly is contained within explosionproof aluminum housing with ¾ in. thick thermal shock- and impact-resistant tempered glass lens. Mounting system consists of aluminum J-bracket that adjusts from 26-34 in. Using inline waterproof transformer to convert 120 Vac to 12 V, light includes 100 ft of chemical- and abrasion-resistant cord.

Larson Electronics, LLC    Kemp, TX 75143

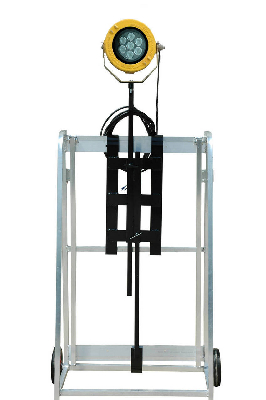

May 09, 2012 Mounted on vertically and horizontally adjustable telescoping pole made of non-sparking aluminum, EPL-PLM-1x150LED-50 has 16 in. dia LED light head that produces 10,000 lm in wide flood pattern capable of illuminating work areas up to 8,000 ft². LED light head, also constructed of non-sparking aluminum, has LEXAN lens and offers 60,000 hr LED lamp life. Approved for Class 1 Division 1 and 2 as well as Class 2 Division 1 and 2 locations, light can mount to walls and other flat surfaces.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 09, 2012 Combining individual pressure gauge and thermometer in one instrument, Series TRI2 features moveable dial with blue pressure markings and red temperature markings. Internal Bourdon tube assembly indicates pressure in both psi and kPa, while bimetal coil assembly measures temperature in both °F and °C. Available in rear and lower connect models, gauges are suited for use on boilers and other hot water applications where space is limited.

Newport Corp.    Irvine, CA 92606

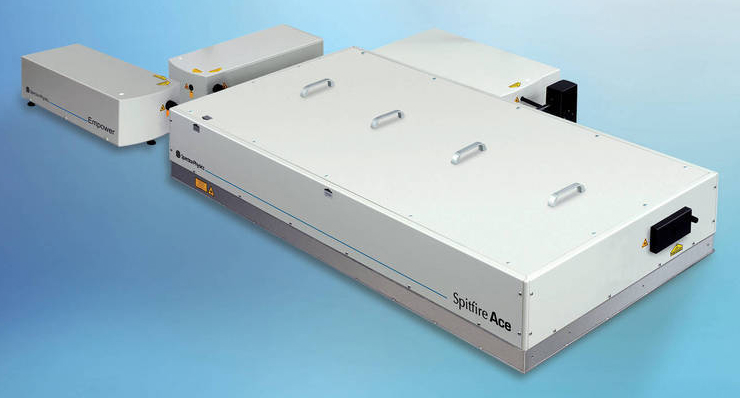

May 09, 2012 Designed for stability, Spitfire® Ace(TM) Power Amplifier delivers 12+ W output at 5/10 kHz and 10+ W at 1 kHz repetition rate. Beam quality, with XP cavity, provides M2 less than 1.45 even at highest energy configuration. Also available, Inspire IR OPO, fully automated IR ultrafast optical parametric oscillator (OPO), tunes gap-free from 1,000-1,600 nm with high power and short pulse widths across full range. Design ensures stability and insensitivity to ambient temperature change.

Kold Ban International Ltd.    Lake In The Hills, IL 60102

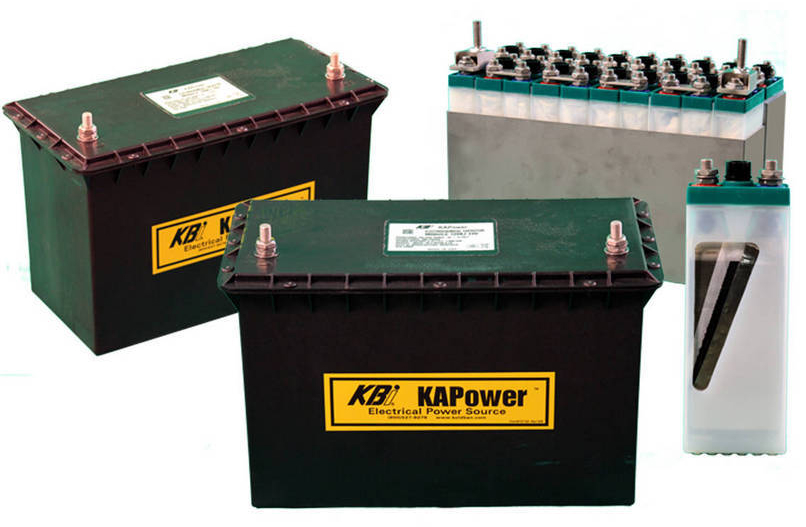

May 09, 2012 Designed using nickel and carbon electrodes, non-conducting separators, and alkaline electrolyte inside each cell, KAPower® Ultracapacitors allow 1-32 L engines to crank regardless of battery state. Physical reaction is used to store and release energy, and asymmetric design lets products experience Faradaic pseudo-capacitive behavior. Able to be fully recharged to 100% capacity in as little as 30 sec, supercapacitors hold energy for upwards of 2 years in-between use.

J-Works,Inc    Ganada Hills, CA 91344

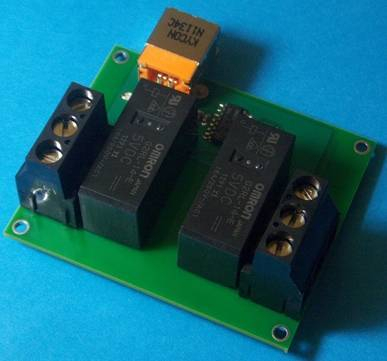

May 09, 2012 JSB2942 series of single pole, double throw (SPDT) 16 A relay modules are controlled over USB and provide host control between common line and normally open or closed relay connection points. Relays are rated at 16 A at 250 Vac, 24 Vdc , and wire connection to relays are made with on-board screw type terminals. Windows interface using either traditional DLL or managed class library is provided, and Linux support disk is also available.

TR Electronic, Inc.    Troy, MI 48083
May 09, 2012 Combining integrated switch, modular construction for mechanical customizations, and extensive parameter configurations via network, CEx58 Series features optional working temperature of -20 to +70°C and IP65 protection class. EtherNet/IP treats network devices as series of objects and uses Common Industrial Protocol to access these objects. CIP offers wide range of messages and services to capture production automation data.

Epicor Software Corp.    Irvine, CA 92618
May 09, 2012 Part of Epicor ERP software, Epicor Cash Collect centralizes credit and collections activities in single database with integrated email, phone dialer options, and full reporting and analysis. Companies can document phone calls, review cash forecasts, track invoice disputes, and keep employees informed through automated communications. Available in cloud or on-premise, software enables customers to choose licensing and deployment option that is best for organization.

Eurocom Corporation    Nepean K2E 7R4  Canada
May 09, 2012 Based on Intel HM76 Express chipset, 11.6 in. EUROCOM Monster 1.0 can support up to 8 GB of DDR3-1600 memory from 2 channels. NVIDIA GeForce GT 650M GPU provides 2 GB video memory, 384 cores, and graphics clock running at 850 MHz. Ivy Bridge Intel Core i7 processors and Sandy Bridge Intel Core i5 and i7 processors are supported for high-end computing. Offering 410 minute battery life, notebook provides 1 TB of storage with SATA-300 or SATA-600 solid state, hybrid, or hard disk drive.

Broadcom Corp.    San Jose, CA 95110
May 09, 2012 Based on StrataXGS® architecture, BCM56545 Series offers integrated and wire-speed application-level visibility and mobility features. App-IQ Web 2.0-ready technology delivers ubiquitous traffic visualization for social networking and peer-to-peer file sharing applications. ICs also provide 48 ports of 1 GbE, 4 ports of 10 GbE, and 80 Gigabit optical QSFP-based stacking performance. With support for thousands of virtual switch ports, IT managers can deploy large base of mobile users and devices.

Broadcom Corp.    San Jose, CA 95110
May 09, 2012 Combining 1/10/40/100 GbE network interfaces, BCM88650 Series enables design of switching platforms with densities up to 4,000 100 GbE ports. Device can process single stream of 200 Gbps, supporting two 100 Gbps full-duplex ports. Deep buffers with distributed scheduling scheme allow hierarchical QOS, transmission scheduling, and flow control schemes, while programmable packet classification engine supports data center, metro Ethernet, and transport applications.

National Instruments Corp.    Austin, TX 78759-3504
May 09, 2012 With full support on LabVIEW Real-Time, NI PXIe-4357 resistance temperature detector (RTD) module is optimized for temperature measurements with Pt100 RTD sensors for thermal monitoring applications. Module integrates sensor-specific signal conditioning with 24-bit delta-sigma ADCs with antialiasing and low-pass filters to sample all 20 channels at 100 S/s/ch and offers typical accuracies of up to 0.09°C. Additional modules can be added to systems to add complementary sensor inputs.
