Mocon    Minneapolis, MN 55428

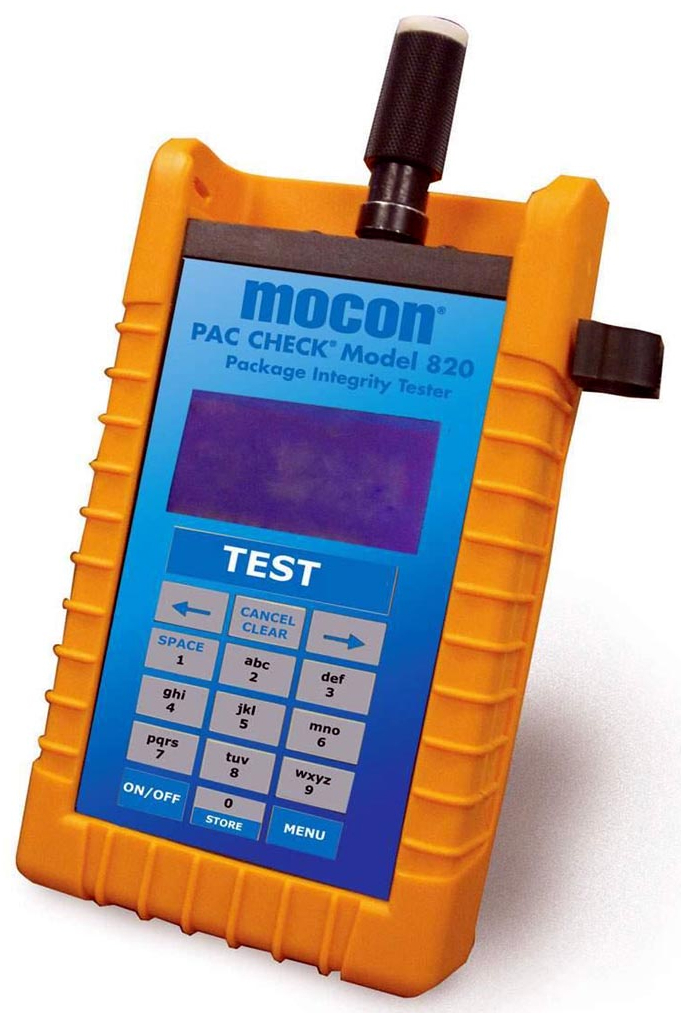

Oct 11, 2005 PAC CHECK® Model 820 Package Integrity Test System measures residual headspace oxygen as well as package leak rate in one analysis. Unit produces absolute leak number based on Poiseuille's law, which yields total hole diameter leak size based on measurements of pressure and flow. It can save up to 400 data points in internal memory and send information to computer via RS-232 data line. Backlit display features 128 x 68 LCD-style graphics.

Aremco Products, Inc.    Valley Cottage, NY 10989

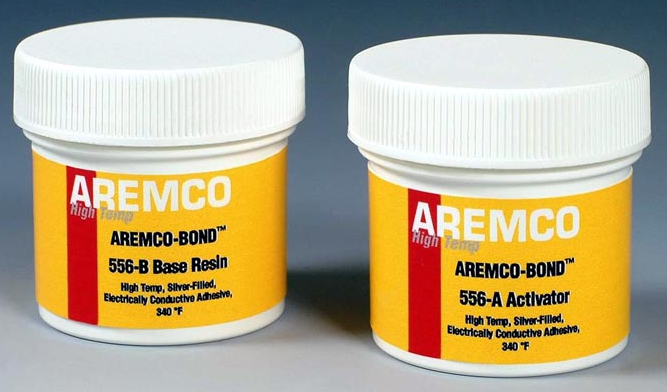

Oct 11, 2005 Formulated using high-purity silver flake, Aremco-Bond(TM) 556 is used to produce electronic and high-vacuum components for applications to 340°F. Product sets at room temperature in 24 hr or can be heat cured in 2 or 4 hr at 210 or 170°F respectively. Silver-filled, electrically and thermally conductive, 2-part adhesive exhibits 0.0052 ohm-cm volume resistivity at room temperature and 65.0 Btu-in/hr-ft²-°F thermal conductivity. Tensile shear strength is 2,500 psi.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Oct 11, 2005 With 7/8 in. dial diameter and depth of 1 7/64 in., Miniature Vacuum Gauge features dual scale for indicating vacuum from 0 to -30 in. Hg. Brass-geared movement contributes to accuracy specification of 3-2-3%, and dual threads allow choice of fitting connections: external 1/8-27 NPT center back brass external connection and 10-32 UNF center back internal connection. Applications include hydrogen fuel cells, medical equipment, aerospace equipment, and industrial robots.

AEC, Inc.    Wood Dale, IL 60191

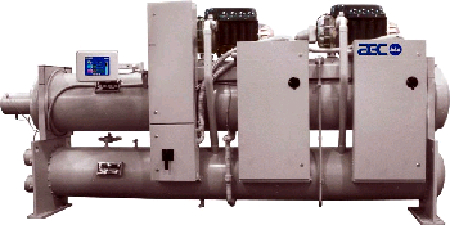

Oct 11, 2005 With 35 in. wide design, Model RTCW features digitally controlled magnetic bearing system consisting of permanent magnets and electromagnets that replaces conventional lubricated bearings. It utilizes 2 independent centrifugal compressor circuits, shell and tube evaporator, and condenser components ranging from 120-190 ton capacity. Touch screen controller allows user to retain cause of current fault and display last 25 fault conditions for troubleshooting.

GE Fanuc Embedded Systems    Huntsville, AL 35803

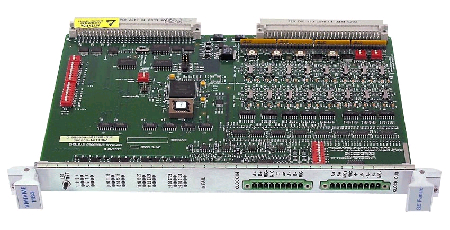

Oct 11, 2005 With 32 channels of optically isolated, digital change-of-state (COS) inputs, Model VMIVME-1184 can be programmed to issue interrupt upon specific state changes. Input voltage is field configurable on channel-by-channel basis and includes 5, 12, or 24-28 V ranges. Available with standard VME or IEEE 1101.10 front panel, board includes LED status indicator for each input, sequence of event monitoring, and ability to store up to 512 state changes if COS logic is enabled.

Directed Perception Inc.    Burlingame, CA 94010

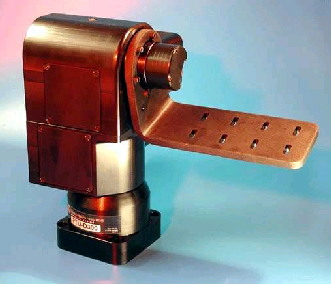

Oct 11, 2005 Featuring all-weather design, computer-controlled, pan-tilt Model PTU-D300 supports fixed and mobile antenna and communications laser positioning applications. Built-in dynamic control capabilities include on-the-fly speed and position command changes at over 30 Hz for real-time tracking. Remote control of unit is provided through RS-232 or RS-485 serial interfaces with multiple software options. Pan and tilt speeds range from 0.00643-50°/sec with accuracy of ±0.00643°.

American Bright Optoelectronics Corp.    Chino, CA 91710

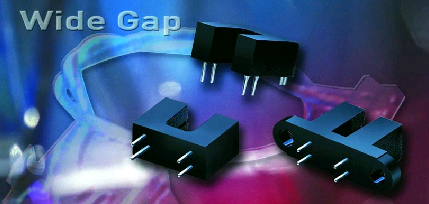

Oct 11, 2005 Available in slotted, actuator, and reflective types, RoHS-compliant Series BPI functions in analog or digital control modes, and provides non-contact IR/optical detection for applications such as copiers, printers, industrial machinery, garage door openers, and photo encoder-based devices. Light beam interruption of actuator units range from 0.35 VOL. Forward voltages of slotted types range from 1.5 V max, with IR of 100 µA, and gap widths from 0.125 in.

GE Intelligent Platforms    Charlottesville, VA 22911
Oct 11, 2005 Providing universal engineering development environment for programming, configuration, and diagnostics of GE Fanuc controllers, Proficy(TM) Machine Edition v5.50 offers tool chest for reusable code and test edit mode for online troubleshooting. It offers IEC 61131-3 Function Block Diagram programming and symbolic IO variable configuration support for PACSystems® family of Programmable Automation Controllers to accelerate application development and speed OEM time to market.

Flexicon Corporation    Bethlehem, PA 18020 8006

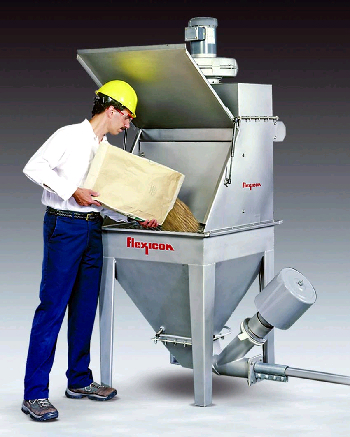

Oct 11, 2005 Mounted on frames with boom and casters for in-plant mobility, Manual Dumping Station collects dust created during manual dumping of powder and bulk solid materials from bags, drums, and other containers. Hopper is configured with non-flow-through pick-up adapter for introducing material into vacuum pneumatic conveyor lines. Vacuum fan draws airborne dust from operator's atmosphere onto 2 cartridge filters. Automatic reverse-pulse filter cleaning allows continuous operation.

GE Intelligent Platforms    Charlottesville, VA 22911
Oct 11, 2005 PACSystems(TM) RX3i Universal Analog Input Module provides up to 30 different types of analog input configurations. Eight channels can be individually configured using Proficy(TM) Machine Edition software for voltage, current, thermocouple, RTD, and resistance inputs. Module includes 6 filter frequencies, full auto-calibration, on-board error checking, open-circuit detection for most input types, configurable CPU interrupts, alarms and rate of change alarms, and status LEDs.

Air Science USA    Fort Myers, FL 33906

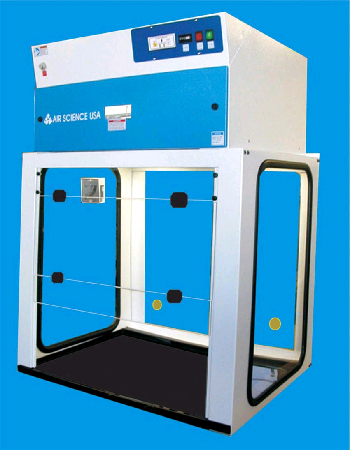

Oct 11, 2005 Portable and self-contained, Purair Ductless Fume Hoods protect lab personnel from harmful powders and chemical vapors, using HEPA filters and activated carbon filtration techniques, while offering 360° visibility. Series consists of 6 models with face velocity of 100 fpm and airflow from 145-440 cfm. Available in widths from 29.5-69 in., units are 27.5 in. deep and 47.5 in. in height.

Agilent Technologies, Inc.    Santa Clara, CA 95051

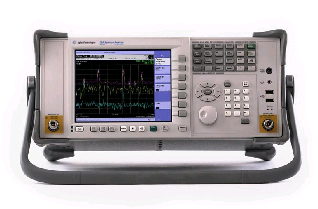

Oct 11, 2005 Available in 3 and 6 GHz models, portable, battery-operated Model CSA incorporates general-purpose spectrum analyzer with internal VSWR bridge and tracking generator, enabling users to characterize single and dual-port devices such as filters, cables, and amplifiers. Auto-tune, auto-scale, and auto-couple functions automatically optimize setup parameters, while connectivity options facilitate remote control, data transfer, and firmware upgrade.

Schneider Electric    Palatine, IL 60067-7399
Oct 11, 2005 Available with 16 or 32 inputs, Telemecanique® Preventa(TM) XPSMC Safety Controller includes library of certified safety functions for applications that must conform to Category 4 of standard EN 954-1. Detailed diagnostics provide in-depth overview of status of inputs and outputs, and identify any faults and their causes. Diagnostics can be viewed by PC connected to controller, PLC, or Magelis® HMI. Multiple controllers can be used to provide distributed safety solution.

Greenlee Textron, Inc.    Rockford, IL 61109

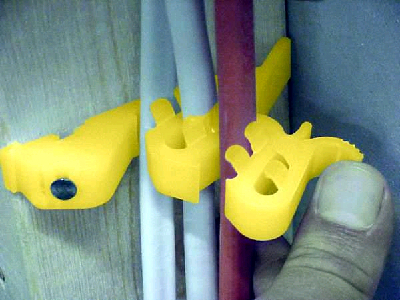

Oct 11, 2005 Made from impact-resistant material, flame-retardant Cable Anchor(TM) secures multiple power, voice, data, and video cables to wood studs and plates using one nail. Holding fingers prevent each cable, regardless of size, from going slack during installation. Anchor positions all cables at least 1¼ in. from edge of studs and plates to meet 2005 NEC 300-4(d) and Canadian Electric Code Part 1, Section 12-516. Bright yellow color makes anchor visible in low light conditions.

Greenlee Textron, Inc.    Rockford, IL 61109
Oct 11, 2005 Designed to help guide and protect cables during installation, Model CR25 is suited for Cat 5, 5e, and 6 cables, as well as small diameter coax, NM, and THHN cables. Units are placed along path of cable installation where bend occurs and at additional points where cable needs to be guided. Accommodating up to 20 cables, Model CR25 includes nylon rollers to protect cable from damage and to minimize force required to pull cables.

Greenlee Textron, Inc.    Rockford, IL 61109
Oct 11, 2005 Made from high-speed steel, Combination Drill/Tap Bits allow users to drill, tap, and countersink metric hole in one motion. Units tap up to 10-gauge metal and have hex shank to ensure strong connection to drill chuck. Back taper beyond tap helps prevent thread damage from over-drilling. Packaged individually or in kits, bits are suited for electrical, HVAC, plumbing, automotive, and DIY end-users.

Greenlee Textron, Inc.    Rockford, IL 61109

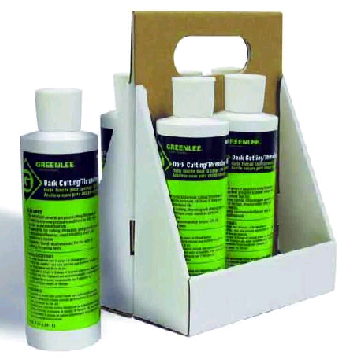

Oct 11, 2005 Packaged in shatterproof bottle with integral leak-proof cap, 462B Dark Cutting/Threading Oil helps drill bits, hole saws, drill/taps, and hole cutters provide smooth cuts when working with mild steel, stainless steel, copper, and aluminum. Thermally stable product does not contain any hazardous compounds and can be cleaned from machined parts with minimal effort.

GE Intelligent Platforms    Charlottesville, VA 22911
Oct 11, 2005 Along with I/O expansion modules and communications options, VersaMax(TM) Micro 64 offers multiple operator interfaces and motion solutions. It provides common software programming and tag database for operator interface and controller. For motion applications, unit supports 4 independent 65 kHz Pulse Train/PWM outputs. Included features are VersaMax Micro 64 high speed counter, memory module, and Proficy(TM) Machine Edition Logic Developer PDA software.

Fluke Corp.    Everett, WA 98203
Oct 11, 2005 Available with 1, 2, or 4 independent or linked channels, 28x series employs direct digital synthesis generator with variable clock sampling technology to reproduce waveforms at any repetition rate. This 40 MS/s generator series comes with Waveform Manager Plus software and is designed for low-frequency manufacturing and service applications. Signal simulation capabilities include arbitrary waveforms, function, trigger, tone and noise generators, and amplitude modulation source.

Bosch Rexroth Corp., Corporate Headquarters    Hoffman Estates, IL 60192-3707
Oct 11, 2005 Variable-displacement, axial piston pump, Model A7VK is designed for high-pressure pumping of polyol and isocyanate used in making polyurethane. Capable of outlet pressure up to 3,625 psi, pump features double shaft seal and flushing chamber that helps identify any inboard seal leakage. Pump displacement can be adjusted manually from 0-28.1 cm³ using integrated display in handwheel. Once adjusted, displacement can be locked to prevent accidental changes.
