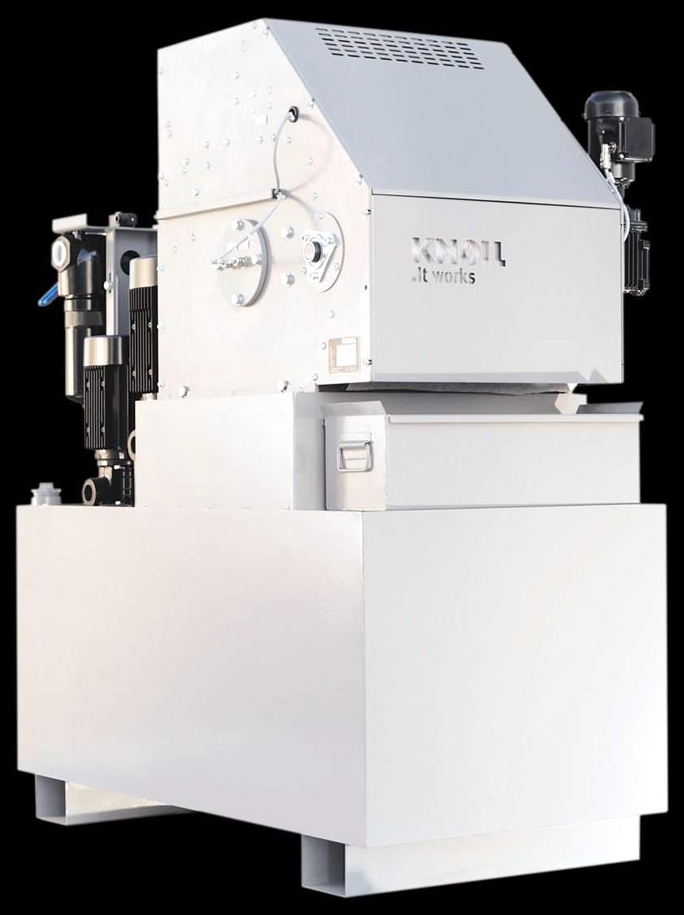

Midwest Tool & Cutlery Co.    Sturgis, MI 49091
Oct 07, 2005 Used in material removal machining operations, compact filter KF is operational as stand-alone unit or supplement to chip conveying systems to increase flow and decrease contamination. Fluid column in contamination section produces specific filtration efficiency and degree of purity while minimizing paper consumption. Available in 5 different widths, filter covers tank capacities from 25-140 GPM and can feature high-pressure coolant capabilities.

Performance Motion Devices, Inc.    Lincoln, MA 01773
Oct 07, 2005 Available in 1-4-axis versions, Magellan(TM)-PCI allows designers to create motion systems using C or C++ programming. It supports dc brush, brushless dc, microstepping, as well as pulse and direction motors. In addition to trajectory generation and servo loop closure, card offers motor output signal generation, servo trace, on-the-fly changes, and commutation features. It accepts input parameters such as position, velocity, acceleration, deceleration, and jerk.

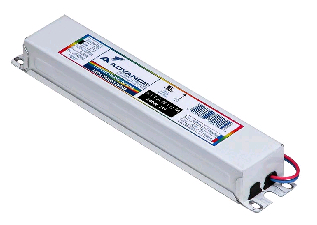

Advance: division of Philips Electronics North America    Rosemont, IL 60018-5603
Oct 07, 2005 Featuring IntelliVolt(TM), Multiple-Voltage technology, 100 W, 24 Vdc signPRO(TM) Model LED-INTA-0024V-41FO operates at any input voltage from 120-277 V, 50/60 Hz. Tested to IP66, damp location-rated unit includes inherent short-circuit protection, power factor correction, and temperature performance down to -40°F. Tightly regulated output of 1% line and 5% load insures consistent light output regardless of line conditions, load levels, and ambient temperatures.

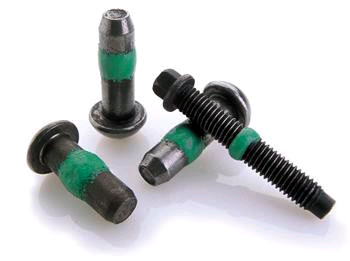

NYLOK Corp.    Macomb, MI 48042 4007
Oct 07, 2005 NYSTAY® Fasteners provide temporary locating patch that holds fasteners in place during transport and on automated production lines. Polymer can be applied to both threaded and unthreaded fasteners, allowing manufacturers to temporarily secure placement of components during interim period prior to final assembly. NYSTAY fasteners can replace previous method of using plastic washers to hold solid rivets.

Harrington Hoists, Inc.    Manheim, PA 17545 1754
Oct 07, 2005 Single-speed Model ED1050S and dual-speed Model ED1050DS are lightweight, compact hoists that are easily installed, transported, and stored. Dual-speed unit includes low-speed adjustment capability from 0-100% of max speed. Both feature double braking system for added protection, heavy-duty motor for industrial applications, friction clutch to prevent overwinding, and corrosion-resistant nickel-plated load chain.

Northwire, Inc.    Osceola, WI 54020
Oct 07, 2005 EnduroFLEX® ERP Cable is compliant with NPFA-79-2002, allowing exposed power trunk and drop cables on machinery up to 40 A. Cable is also TC/Exposed-run and STOOW Service-rated. Available in 3- and 4-conductor models and in gauges from 18-10 AWG, product meets UL1277 crush and impact requirements, and passes -40°C cold bend tests. It also meets UL vertical tray and CSA FT-4 flame resistance, as well as Oil I and II resistance standards.

Storopack Inc.    Cincinnati, OH 45246 1106
Oct 07, 2005 Optimizing production without operator input, AIRplus® Cactus uses dispensing hopper with level sensor to monitor reserve of air pillows, then triggers production when low-level threshold is reached. Cactus Transport provides floor-mounted blower stand with up to 2 transport ducts, allowing 2 different sized pillows to be used. Standard sized hoppers include single outlet, or 10, 14, or 16 outlets. Ducting is available in 10 in. diameter and lengths of 5 or 10 ft.

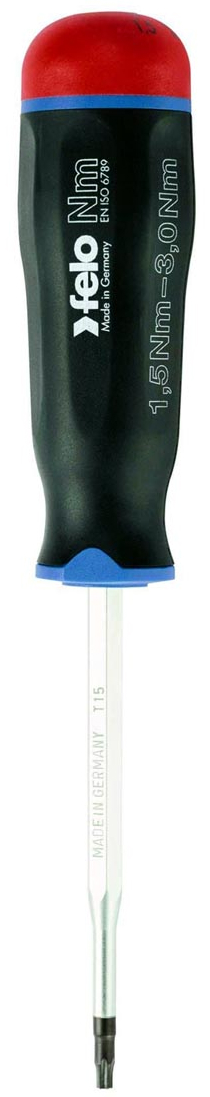

Bondhus Corp.    Monticello, MN 55362 9347
Oct 07, 2005 FELO adjustable torque limiting screwdrivers lets users set torque level at top of handle and then releases tool when preset torque is reached. Available in 3 models, products cover torque range from 5.3-47.8 lb-in. Handle only limits torque when rotated clockwise; full torque is available when handle is rotated counterclockwise.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 Infoprint® Color 1567 is available with serial interface and parallel 1284-B interface cards, while Infoprint 1532, 1552, 1572, and 1585 add decryption card. Decryption card enables sending of encrypted print jobs to printer. Serial interface card lets users connect printer to computer serial port, and parallel 1284-B interface card lets users connect printer to computer IEEE 1284-B parallel port.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 IBM Director v5.10 delivers remote hardware management with suite of integrated systems management tools. It supports various operating systems and network protocols, and provides inventory of hardware features and settings, system health notification, and proactive and automated systems management. Leveraging industry standards allows for integration with other systems management tools and applications, including Microsoft(TM) SMS and Microsoft Operations Manager.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 IBM Tivoli® System Automation for Multiplatforms v2.1 monitors and automates applications distributed across Linux, AIX, and z/OS. End-to-end automation manager uses adapters to learn about applications and their status from platform-specific Tivoli System Automation. Facilitating operations through goal-driven automation, software includes Web-based integrated solutions console, and uses plug-n-play modules for mySAP, WebSphere, and Tivoli Storage Manager.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 IBM Tivoli® Composite Application Manager for SOA v6.0 provides management solution for customers deploying Service Oriented Architecture applications based on Web services. Software can discover, monitor, diagnose, and control Web services implemented using SOAP/HTTP, SOAP/JMS, and WebSphere® Application Server Service Integration Bus. Users can drill down from services to application components and IT resources within Tivoli Enterprise Portal to identify source of bottlenecks.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 IBM Tivoli Composite Application Manager for Response Time Tracking v6.0 follows transaction flow to help identify cause of response time problems. Application tracker helps measure real end-user experience at client level, and audit support for changes to management server information helps track changes for IT compliance. It delivers performance and availability metrics in Tivoli Enterprise(TM) Portal interface to facilitate navigation between response time views.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 07, 2005 IBM Tivoli® Monitoring v6.1 monitors and manages critical hardware and software in distributed environments. It lets users consolidate management of both mainframe and distributed platforms on single console and provides visibility into monitoring infrastructure, focusing on both performance and availability management. With hundreds of out-of-the-box best practices, users can also develop customizable work flows via GUI and access warehouse with reporting capability.

CWAV    Temecula, CA 92589
Oct 07, 2005 Used for testing and controlling electronic circuit designs, USBee AX Test Pod verifies analog voltage levels and digital logic, generating visual representation of signals. Unit relies on USB 2.0 bus to turn existing PC into oscilloscope, logic analyzer, and digital signal generator. Able to stream data to and from PC, device performs all triggering and data storing. For elaborate testing, unit's buffer capacity is able to hold substantial information.

UGS Corp.    Maryland Heights, MO 63043
Oct 07, 2005 Featuring Windows user interface, Femap® v9.1 pre- and post-processing modeling application is integrated with Nastran solver technology and provides customization and automation tools. Associative interface with Solid Edge v18 facilitates geometry transfer in preparation for analysis. Along with direct output of JT files, software features quadrilateral element meshing option, integrated BASIC development environment, and multiple CAD integration capabilities.

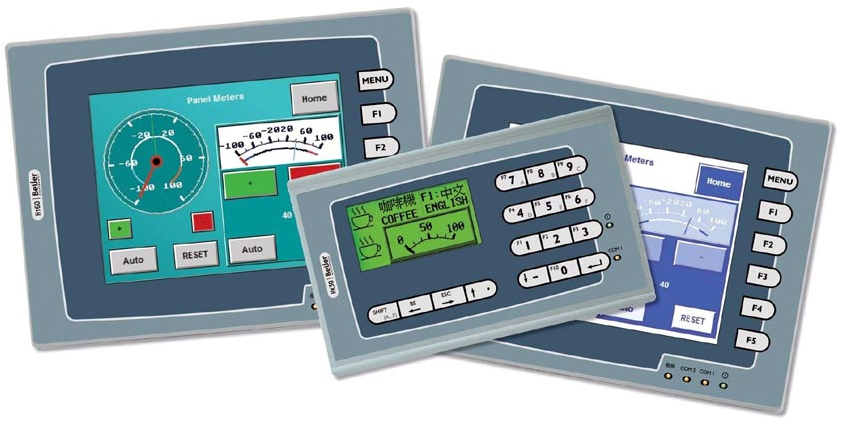

Beijer Electronics, Inc.    Schaumburg, IL 60173
Oct 07, 2005 Offered in 5 basic model variations, H series touch screen, function-key, and hybrid operator interfaces feature backlit HMI screens from 3-10.4 in. with blue mono STN to 256 color TFT LCD displays. Standard versions include alarm and event management features, animated graphics, macro or ladder features, and multilingual support. Plus versions add data and recipe handling capabilities and multi-function port, while network versions also add integral 10 Base T Ethernet port.

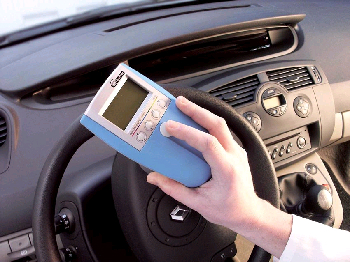

BYK Gardner USA    Columbia, MD 21046 2729
Oct 06, 2005 Developed to meet tight specifications of automotive interior applications, spectro-guide gloss-S measures 45/0 or sphere color and 60° gloss simultaneously. Repeatability of ±0.1 GU for 60° gloss, less than 10 gloss units is guaranteed, allowing gloss control within ±0.3 gloss units. Measurement principle ensures true circumferential illumination, eliminating any influence of measurement direction. Battery-operated unit requires calibration every 3 months.

Applied Motion Products, Inc.    Watsonville, CA 95076
Oct 06, 2005 Providing software selectable resolutions from 200-51,200 steps/rev at speeds up to 133 rps, Series STAC6 includes self-test and auto setup features that measure and configure motor parameters. Demand signal smoothing minimizes extraneous system resonances, while torque ripple smoothing adjusts current waveform to reduce low speed torque ripple. Control options include intuitive graphical programming language as well as high-level language.

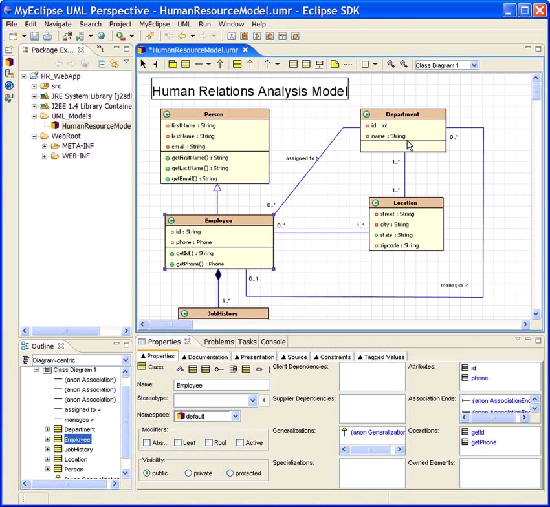

Genuitec, LLC    Plano, TX 75025
Oct 06, 2005 MyEclipse Enterprise Workbench v4.0 provides full round trip UML development, visual web designer, and application-server connector support for Weblogic 9, Websphere 6, and Geronimo 1.0. Users can batch process reverse-engineer any combination of project, source-folder, Java package, or individual class, as well as drag-and-drop any UML artifact from outline view onto any compatible UML diagram. Software includes undo support for all operations.
