Stackpole Electronics Inc.    Raleigh, NC 27604
Oct 10, 2005 Offered in 0402 to 1812 case sizes, Series CB Ferrite Bead Chip Inductors feature impedance from 6-2,700 Ω, currents of 50 mA to 6 A, and dc resistance of 0.02-1.2 Ω. Nickel barrier terminations provide solder heat resistance, even when using high-temperature, lead-free solder processes. Effective in applications ranging from 1 MHz to several hundred MHz, units are suited for EMI and RF suppression, power supply filtering, and isolation for logic devices.

Robohand, A De-Sta-Co Div.    Madison Heights, MI 48071

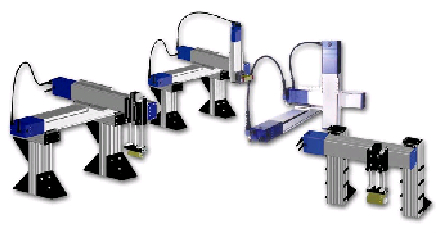

Oct 10, 2005 With DIRECTCONNECT(TM) technology, Smart Linear Actuator Modular Automation System enables integration of pneumatic slides, grippers, and rotaries. It includes weld field immune electronics, on-line web configurator, and Smart Motor technology consisting of integrated motor and drive. Programmable servo slides are available in 3 different models with stroke lengths from 100-1,400 mm and maximum stroke speeds from 1-1,100 mm/s.

Norstat Inc.    Mansfield, OH 44903

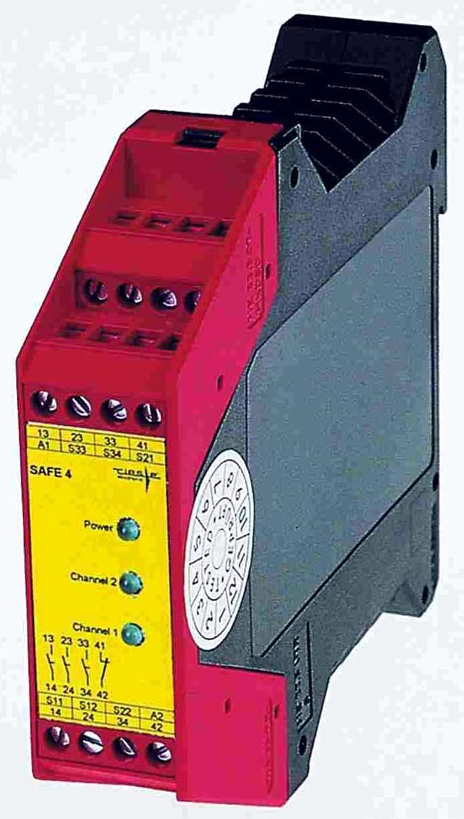

Oct 10, 2005 Designed for monitoring emergency stop and safety gate applications, SAFE 4 series features 3 normally open and one auxiliary normally closed contacts. LED indicators relay state of operation and channel power status. Housed in compact, 22.5 mm package, series includes 24 V as well as 110 and 230 V models and meets safety requirements for applications up to and including Category 4, with CE and TUV or BG approval.

Spiroflow Systems, Inc.    Monroe, NC 28110

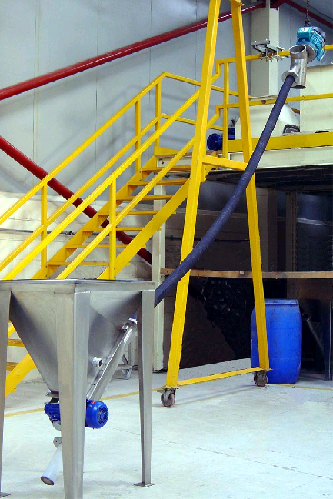

Oct 10, 2005 Carrying material to max distance of 60 ft, RHINOVEYOR(TM) provides throughput up to 5 tons/hr, depending upon material and angle at which it operates. Conveying tube is one long support, while conveyed product acts as lubricant centralizing rotating spiral within tube. Tubes that run empty do not create wear and noise associated with UHMWPE tubes. Conveyor is suitable for handling sintered metals, PFA, pumice, sand, aggregates, silica, cement, and carborundum.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484

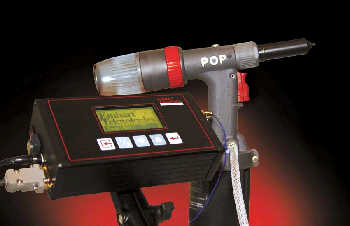

Oct 10, 2005 Integrating into assembly process, SmartSet(TM) System provides instant installation feedback that does not rely on operator skill or attention. Micro-strain sensor takes readings during rivet setting cycle to record variables such as riveting failures and use of incorrect rivet types within application. In RUN mode, system monitors each sequential rivet set and compares results with learned values to determine GO or NO GO result, which can then be downloaded to PC.

Corning Cable Systems    Hickory, NC 28603-0489
Oct 10, 2005 Suited for deploying optical access networks, OptiSheath(TM) Premier FlexNAP(TM) Terminal Distribution System consists of optical cable pre-installed with network access points at customer-specified locations and tethered, environmentally hardened MT connector. FlexNAP cables can pass homes without incurring cost of terminal placement or fusion splicing prior to service being offered or subscribed.

ControlAir Inc.    Amherst, NH 03031 2315
Oct 10, 2005 Offered in aluminum or 316 SS, Type 6000 provides 1-to-1 signal-to-output relay, that when used with positioner/actuator, increases stroking speed of control valves. Integral bypass valve provides system stability while allowing normal positioner airflow and normal valve actuation with small input changes. Max signal pressure of 150 psig to volume booster provides output pressure up to 150 psig with flow capacity of 115 scfm. Temperature limits are -40 to 160°F.

Banner Engineering Corp.    Minneapolis, MN 55441
Oct 10, 2005 Available with in-line or right-angle lens, self-contained PresencePLUS® P4 BCR Vision Sensor reads Data Matrix ECC200 and PDF 417, as well as linear codes such as Code 39, Code 128, Codabar, Interleaved 2 of 5, EAN-8, and EAN-13. Remote TEACH allows sensor to learn features to inspect for, without connecting to PC or shutting down production line. Operating on 10-30 Vdc, system interfaces to machinery or factory networks via 10/100 Ethernet connection or RS-232 serial I/O.

Dwyer Instruments, Inc.    Michigan City, IN 46361

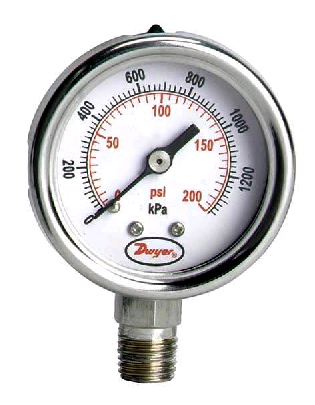

Oct 10, 2005 Available in 1.5 or 2 in. dial sizes, Series SGB has dual English/metric scales with 2.5% full scale accuracy. For chemical compatibility, units are designed with 304 stainless steel housing and 316L stainless steel wetted parts. Gauges are available in many ranges from full vacuum to 4,000 psi. They withstand ambient temperatures to 140°F and process temperatures to 356°F.

Flowserve Corporation    Irving, TX 75039
Oct 10, 2005 Designed to handle seating and unseating force of high-pressure gate and globe valves found in power plants, MT Series is available in torque ranges to 8,000 lb-ft and thrust ranges to 325,000 lb. With ductile iron bevel gears and thrust base housings, units withstand elevated process temperatures. Operator stem nut is shouldered in drive sleeve to capture thrust forces within thrust housing without transferring forces to torque housing.

NKK Switches    Scottsdale, AZ 85260-3420
Oct 10, 2005 Constructed of heat-resistant materials, Series LP01 features short body design with .551 in. behind panel depth and comes fully assembled with translucent, .535 in. diameter white cap as well as red, green, or amber LED. Units have snap action contact mechanism and arc barrier to protect against crossover. Offered in single-pole and double-pole momentary versions, switches are rated 3 A at 125 Vac, 3 A at 250 Vdc, or 30 A at 30 Vdc.

Mocon    Minneapolis, MN 55428
Oct 10, 2005 PERMATRAN-C Model 10 measures carbon-dioxide transmission rate of individual plastic carbonated beverage bottles via non-destructive test that takes as little as 3 hr. It graphically displays projected shelf life based on user-specified loss limit and can be used with plastic bottles from 250 mL to 2.5 L. Internal battery allows portable unit to be placed in environmental chamber for temperature profiling. Data can be downloaded onto PC or printer.

Mocon    Minneapolis, MN 55428
Oct 10, 2005 Designed to measure CO levels in modified and controlled-atmosphere case-ready meat packaging, headspace analyzer, PAC CHECK® Model 333, also measures oxygen and carbon dioxide levels. Unlike analyzers where gas-drawing needle is exposed, Model 333 features Sticky Foot(TM) probe, which houses needle internally for additional protection. Display screen features 128 x 68 LCD graphics, and can be flipped, enabling user to view data in variety of positions.

Toshiba America Information Systems, Inc.    Irvine, CA 92618-1697
Oct 10, 2005 Offering Pan/Tilt/Zoom capability, Model IK-WB21A features 1,280 x 960 SXVGA resolution, 1.4 in. CCD, and networking via 10/100T-Base Ethernet. Integral web server transmits video with audio signals at rates up to 30 frames/sec by means of M-JPEG compression streams. Using web browser, camera images can be remotely viewed and camera's PTZ and multiple presets controlled via desktop PC, notebook, or Internet-ready cell phone on LAN, WAN, Intranet, or Internet.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 10, 2005 Able to integrate into core or edge SAN configurations, QLogic 4Gb 10 and 20 Port FC Switches for BladeCenter enable end-to-end SAN solutions. McDATA 4Gb 10 and 20 Port FC Switches for BladeCenter offer same functionality, but integrate McDATA fabric into BladeCenter architecture. Also available, QLogic 4GB FC Expansion Cards for BladeCenter increase bandwidth connection between BladeCenter server blades and SAN switches. BladeCenter PCI I/O Expansion Unit II is also offered.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 10, 2005 Integrating with Tivoli OMEGAMON and IBM Tivoli System Automation for Multiplatforms v2.1, IBM Tivoli System Automation for z/OS v3.1 can help optimize z/OS application availability, and automate I/O, processor, and system operations. It integrates z/OS into end-to-end automation of heterogeneous on-demand applications. Self-configuration minimizes automation implementation time with 12 add-on policies, policy import and mass update, and GDPS(TM) integration.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 10, 2005 IBM Tivoli® OMEGAMON® DE on z/OS® v3.1.0 consolidates information from OMEGAMON XE products, presenting integrated zSeries® major systems and components in single, customizable view. Alerts may be combined from multiple OMEGAMON XE products to create integrated views of IT resources that comprise specific workload. Software can also pinpoint problems affecting workload. Graphical workflow editor defines automation routines, and policy manager controls automated actions.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
Oct 10, 2005 Based on M32C MCU series, DECOMSYS::NODE< RENESAS > enables user to evaluate FlexRay and gain experience with its applications. Board comes with basic system software, including FlexRay driver, and features 2 MB RAM, 2 MB Flash, 2 FlexRay channels, 2 high-speed CAN, and one LIN interface. Via DECOMSYS::DESIGNER, it is possible to change given bus configuration. On-chip debugging of communication and application software is also possible.

SourceTec Software Co., Ltd.    Wuhan 430074  China
Oct 10, 2005 Featuring cross browser and cross frame support, Sothink DHTMLMenu v6.1 lets users create menus with pre-created effects, themes, and templates. Able to visually design customizable, unlimited-level menus, software features auto hide window elements, auto highlight item capability, and ability to auto scroll long popup menus. Users can also generate menus from database or generate site map according to menu structure.

WinQuota LLC    Minsk   Belarus
Oct 10, 2005 Working with Windows 2000/XP/2003 on Intel x86 and AMD64/EM64T platforms, WinQuota v2.0 offers administrators automatic disk quota management mechanism. It supports Windows cluster solutions and works in multi-domain environment with full support of trustee relationships in domains. Soft quota may be set that, when exceeded, creates log for administrator with user and quota information. Software and hardware quota settings are operated separately from standard UI.
