Richco, Inc.    Chicago, IL 60680

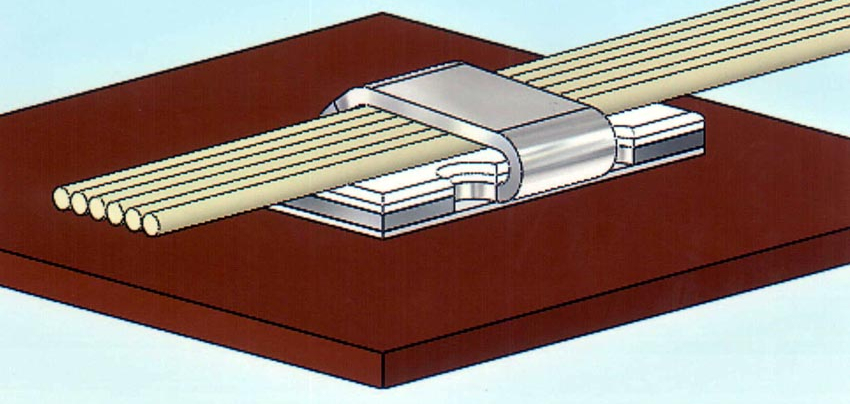

Oct 17, 2005 Designed for low-profile applications, PFC-50M plastic and foam coated aluminum clamp has surface area and arm engineered to accommodate large bundle diameters. Foam on inside of clamp protects cables and fibers, and arm can be formed around range of cable bundle diameters. It accommodates flat, round, or oddly shaped wires and components.

Freeman Technology    Gloucestershire GL20 8DN  United Kingdom

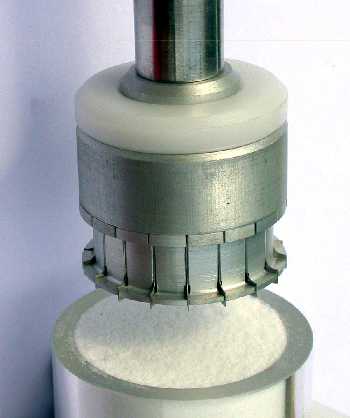

Oct 17, 2005 Conducting array of powder flowability tests, Model FT4 helps characterize flow properties of powder materials and relate them to performance in process. Small volume shear cell can be used to measure volumes down to 3 ml or less, depending on characteristics of powder, making rheometer suited for pharmaceutical actives and materials, such as early stage formulations. Shear testing using FT4 is fully automated, with tests completed in about 40 min.

Arcom Control Systems    Overland Park, MO 66085
Oct 17, 2005 Designed for PXA255 ARM/XScale-based VIPER, QNX Neutrino 6.3 BSP includes drivers for integrated PXA255 graphics controller, Ethernet port, 5 serial ports, onboard 32 Mbyte Flash memory, real-time clock, 256 K battery-backed SRAM, audio codec, PC/104 bus, and TSC1 analog touchscreen controller. With operating temperature of -40 to +85°C, VIPER is suited for applications in industrial control and airborne communication systems.

PennEngineering Motion Technologies, A PennEngineering Company    Harleysville, PA 19438 0003
Oct 17, 2005 Featuring 6-slot design, PITTMAN® Brushless DC Motors incorporate internal Hall sensor feedback for linear speed-torque characteristics, high starting torque, and variable speed control. Units are 2.3 in. in diameter and are available in 4 stack lengths of ½, 1, 1½, and 2 in. Utilizing neodymium iron boron magnets, motors reach speeds up to 8,000 rpm and mount to NEMA 23 standards. Applications include data storage, medical/biotech, semiconductor processing, and automation.

Saelig Co., Inc.    Pittsford, NY 14534

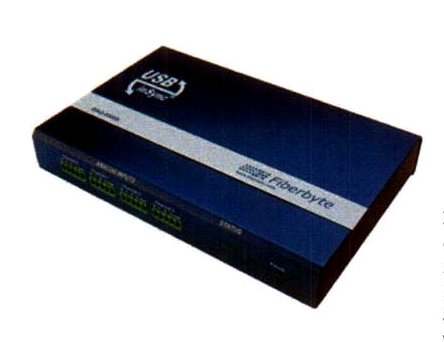

Oct 17, 2005 Four-channel, 16-bit Model DAQ-2500X combines USB-inSync(TM) technology with real-time I/O. USB-inSync(TM) provides USB-synchronizing technology, which allows DAQ-2500X to be expanded with additional modules to yield up to 16 inputs with 1 MB/s data throughput, as well as programmable digital I/O and triggering functions. Four discrete ADCs deliver true synchronous acquisition at 100 kS/s per channel with 400 kS/s continuous data throughput.

Ophir Optronics, Inc.    Wilmington, MA 01887

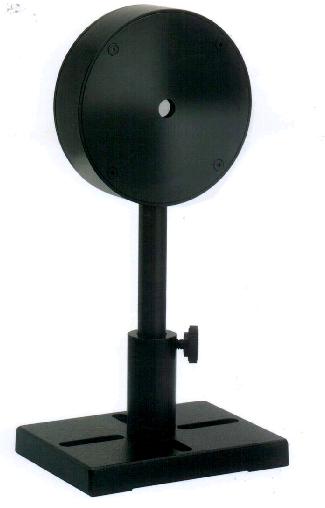

Oct 17, 2005 Designed for measurement of high rep rate lasers, Model PE9-F can measure up to max pulse width of 0.5 µs and provides pulse energy measurements from 0.3 µJ to 1 mJ. Spectral response with metallic absorber is 0.19-12 µm with energy scales of 1 mJ, 200 µJ, 20 µJ and 2 µJ. Operating with Nova II and USB interface only, Model PE9-F features average power of 2 W with max average power density of 50 W/cm².

Dresser Instruments, Dresser Measurement & Control, Dresser Inc.    Stratford, CT 06614-5145
Oct 17, 2005 Engineered to measure static or differential pressure, Ashcroft® CXLdp is available in ranges from 0/0.1-0/25.0 in. H₂O and in accuracies of ±0.8 and 0.4% FS. It includes high over-pressure capability, LED status light, and CE EMI/RFI immunity rating. Multiple mounting options allow unit to be mounted on DIN rail, conduit, or wall. With detachable terminal block electrical connector, transducer can be installed into panel without power interruption.

SunStar Heating Products, Inc.    Charlotte, NC 28236

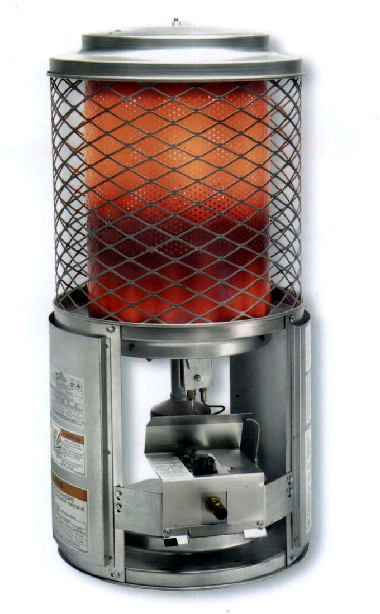

Oct 17, 2005 Cylinder-shaped RCH Series includes 4 models that can heat enclosed area up to 2,500 sq-ft without fans or moving parts. Available in propane gas or natural gas, heaters are rated 95,000 BTU/hr or 100,000 BTU-hr, respectively. Units also come in manual or thermostatically controlled models. Measuring 32 in. tall, heaters feature 14 in. dia base, stainless steel emitter, and multiport cast iron burner head. Flame Failure Safety Device is provided in case of flame outage.

Jungheinrich Lift Truck Corp.    Houston, TX 77043
Oct 17, 2005 Utilizing 750 Ah battery and CAN-bus controller, Models ECR 327/336 are equipped with 4 kW, 3-phase ac drive motor that provides acceleration for loads up to 6,000/8,000 lb and can reach max travel speeds of 6.8/5.9 mph, respectively. SpeedControl drive-speed monitoring system provides stepless acceleration and deceleration via motorcycle style throttle grip. Electro-magnetic brakes are applied whenever drive switch is in neutral position ensuring trucks stay in place.

CyberResearch, Inc.    Branford, CT 06405 2932

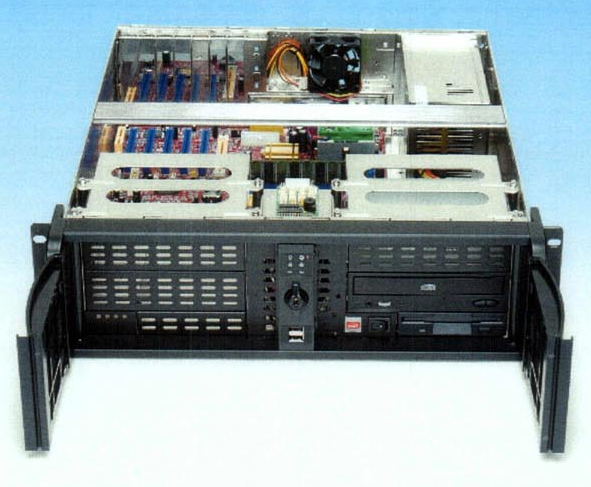

Oct 17, 2005 Weighing 14.0 lb with 300 W power supply, RCA MX 3U PC chassis is ATX motherboard-ready and offers 8 drive bays in addition to automatic fan and temperature monitor. It delivers 5-7 half-length expansion slots, depending on chosen motherboard; 2 internal 3.5 in. drive bays, and anti-vibration hold-down bar for expansion cards. Design provides front access to four 5.25 in. and two 3.5 in. drive bays. Lockable front doors secure unit from unauthorized users.

C & D Technologies    Mansfield, MA 02048-1151

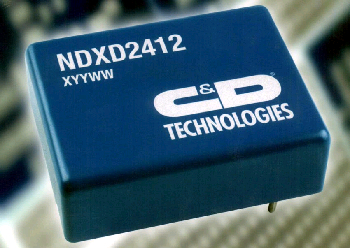

Oct 17, 2005 Housed in 5-sided metal case, dual output Series NDX delivers up to 7.5 W and offers choice of nominal input voltages of 24 or 48 V, allowing total input range of 18-36 V and 36-72 V, respectively. Measuring 1.26 x 0.98 x 0.39 in., converters include on-board continuous short circuit protection, remote on/off, 1 kVdc isolation, 81%efficiency, and power density of 15.4 W/in³. Standard 5-pin arrangement allows for drop-in replacement in existing designs.

STMicroelectronics    Lexington, MA 02421
Oct 17, 2005 Emitter Switched Bipolar Transistor Models STC03DE170, STC05DE150, and STC08DE150 feature breakdown voltages of 1.7, 1.5, and 1.5 kV, respectively, and on-resistances of 0.55, 0.17, and 0.11 Ω, respectively. Units combine bipolar junction transistors with MOSFET, connected in cascade configuration and housed in single package. All 3 devices feature Vcs(sat) value of 0.9 V, minimizing conduction losses, while absence of tail currents minimizes turn-off losses.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Oct 17, 2005 Featuring LCD display with .32 in. high readout, 799 Series is offered in 0-6 in., 0-8 in., and 0-12 in. models. All units provide push-button zero at any position as well as instant inch/millimeter conversion. Design includes depth rod and hardened stainless steel body, slide, and jaws. Thumb wheel provides fine adjustment, and lock screw holds slide in position. Resolution is .0005 in., and linear accuracy meets DIN862 standard.

Elma Electronic Inc.    Fremont, CA 94538
Oct 17, 2005 Dual Star VXS backplane comes in 18-layer controlled-impedance stripline design with 2 hub slots and 18 payload slots. As VME switched serial backplane, 7U unit uses low-dielectric Nelco PCB material to help control impedance and minimize crosstalk. It is fully backwards-compatible to VME/VME64x and utilizes 6.4 Gbps high-speed connector across P0 section of VME64x backplane, allowing use of switched fabric signals. Unit complies with VITA 38 and 1.7 specifications.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 17, 2005 Metric pallet truck rollers are available with Extrathane® polyurethane tread and aluminum, steel, stainless steel, or cast iron wheel centers, with and without ball bearings. Load capacities range from 750-2,425 lb, and wheel/roller diameters range from 82-200 mm. With load capacities from 22-540 lb, Metric guide rollers with Extrathane tread are available with or without steel wheel centers. Metric forklift tires come with Extrathane polyurethane or elastic solid rubber tread.

Manufacturing Data Systems, Inc.    Ann Arbor, MI 48108
Oct 17, 2005 OpenCNC® v6.5 enables manufacturers to integrate off-the-shelf hardware and software technologies. Set of lathe macros helps saves programming time, while hand-wheel feed feature lets user hand feed job stream up to programmed cutting and traverse speeds. Software also provides compiled HTML help menus, lead screw compensation for rotary axes, and Sercos SoftSERCANS support. With winPlot, users are provided with clear, 2D plot of machine moves.

Isota LLC    Miami, FL 33156
Oct 17, 2005 ABCSpell for Outlook Express offers spell checking without acquiring Microsoft Office. Itegrated English-language thesaurus provides synonyms, antonyms, and related words, while another feature lets users perform online word-lookup using Merriam-Webster's dictionary for instant definitions. Both features are accessed from Outlook Express' right-mouse menu for instant availability.

MadgeTech    Warner, NH 03278
Oct 17, 2005 Battery-powered, electronic Data Loggers measure and record temperature, humidity, pressure, weather, and combinations of parameters in various environments. Included Data Recorder Software v2.00.60 features initial menu option to select English, French, German, Italian, Spanish, Dutch, Polish, Swedish, and Chinese. It provides customizable engineering units, real-time recording and alarming, customizable overlaid graphs and annotations, and ability to export to MS Excel®.

Tamron USA Inc.    Commack, NY 11725
Oct 17, 2005 Covering focal length range equivalent to 85-310 mm when converted to 35 mm format, Model A15 AF55-200mm F/4-5.6 Di II MACRO LD lens realizes MFD of 0.95 m for 1:3.5 macro capability over entire zoom range. It employs 9-blade diaphragm, providing blurred background effect when natural out-of-focus effect is desired. Low Dispersion glass element compensates for on-axis and lateral chromatic aberrations, while internal surface coating minimizes ghosting and flare.

ifm efector, Inc.    Exton, PA 19341
Oct 17, 2005 Measuring 70 x 18 x 47 mm, 05 Series includes background suppression unit with sensing range of 1.8 m, polarized retro-reflective model with sensing range of 7 m, and thru-beam pair reaching up to 20 m. Three-wire sensors are directly compatible with bus systems and I/O blocks. Suited for inspection and error-proofing, background suppression sensor features 2-pushbutton Teach operation. Polarized and thru-beam models offer adjustment-free, fixed sensing range and are suited for larger areas.
