Advantapure, Div. Of NewAge Industries    Southampton, PA 18966

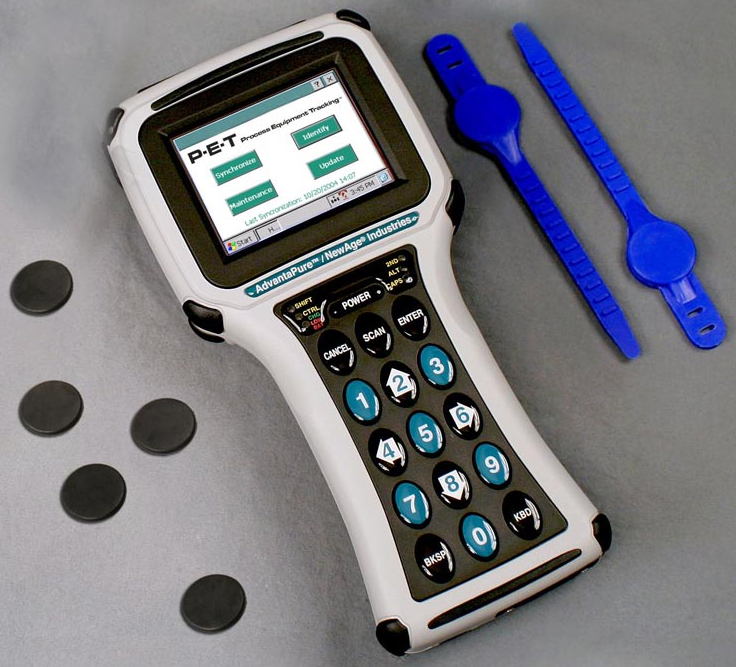

Nov 18, 2005 Using RFID tags, Process Equipment Tracking(TM) equipment identification and lifecycle analysis system helps monitor usage and cleaning cycles to ensure timely maintenance. Data, captured by handheld reader, can be transferred to networked computer for sharing, and system also offers data back-up and audit trail capabilities as well as ability to sort, compare, and analyze information. RFID tags are safe for use with CIP, SIP, and autoclave processes.

APEM Components    Haverhill, MA 01835

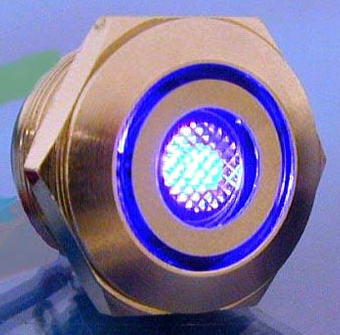

Nov 18, 2005 Available in solder lug and straight PC terminal versions, snap-action AV Series incorporates stainless steel actuator with thermoplastic overmolding. Actuator styles include illuminated ring or illuminated ring and disc, and materials include brass- or gold-plated terminals, gold-plated contacts, and nickel-plated brass bushings. With power ratings of 50 mA max @ 24 Vdc resistive load, switches offer 100 m§Ù max initial contact resistance and 500 Vrms min dielectric strength.

Rockwell Automation    Milwaukee, WI 53204
Nov 18, 2005 Allen-Bradley SMC Flex features integrated I/O that helps control processes and monitor motor systems from networked soft-starter. Dual inputs help improve process monitoring and promote access to diagnostic information, while 4 outputs allow users to extend control capabilities to other processes. Controller also incorporates internal bypass contactor that helps reduce heat as well as replaceable control modules, fans, and power poles.

Unette Corporation    Randolph, NJ 07869
Nov 18, 2005 Single-Use Tubes with Extreme Directional Flow Tip option allow accurate dispensing and location of product flow. Tips are available on all single-use tubes, including multi-layer polyethylene structures, Saran, and laminated foil. Applications include cosmetic, pharmaceutical, and personal care industries.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887
Nov 18, 2005 With flow rates up to 4.8 gpm and pressure up to 60 psi, Series 620 is designed for metering and dosing of corrosive, abrasive, and sensitive fluids, and is suited for contamination-free transfer of acids, paints, oils, inks, dyes, or waste slurries. With no valves or seals to clog, pumps require minimal maintenance. Series 620 provides control ratio of 2,650:1 and includes PIN-secure process protection feature that provides 2 levels of PIN protection.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615
Nov 18, 2005 Heavy-duty NS3 joystick controller includes Hall-effect sensor for contactless proportional signal. Available in 1-, 2-, and 3-axis models, product is designed for smooth, non-biasing handle action and can accommodate variety of functions. Components are resistant to corrosion, and aluminum housing, 12 mm dia shaft, and center pivot design are resistant to abuse. Joystick suits off-highway applications where limited space is of concern.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369
Nov 18, 2005 Measuring 2 mm high, NL Series Ultra-Subminiature Bi-Color Illuminated Switch contains 2 embedded, independent LEDs that are available in any combination of red, green, yellow, or blue. RoHS-compliant, SMT switch has electrical rating of 50 mA @ 24 Vdc and typ electrical life of 30,000 cycles. Along with 160 g force solid detent tactile feedback, it features 0.5 mm (±.2 mm) actuator travel and less than 50 mW contact resistance initially.

Selco Products Co.    Reno, NV 89521-5908
Nov 18, 2005 Along with overheat protection and automatic reset features, JP7, EP2, and BP employ dual spring mechanism design that provides shock and vibration resistance for stable contact performance. Model JP7 provides overheat protection for ac equipment in harsh industrial conditions, while EP2 does the same for low-voltage dc equipment. Measuring 15.0 x 5.0 x 2.8 mm, BP automatically shuts-off voltage if batteries in rechargeable battery packs should overheat.

Unilux, Inc.    Saddle Brook, NJ 07663
Nov 18, 2005 With ergonomic pistol grip handle made of ABS/PC material, Beacon produces even illumination pattern for focusing in on 19.5 in. target area at 800 LUX from distances up to 16.25 ft away. Stroboscopic inspection spotlight can be synched to still camera or video recorder and incorporates lamp cooling system, Extended Run battery kit, and quick-change battery design. With product, personnel can identify turbulence and stock jump, product uniformity, and air entrapment in headbox.

Curtiss-Wright Controls Embedded Computing    San Diego, CA 92121-1773
Nov 18, 2005 Offered as air- or conduction-cooled, dual-port PGE2 is powered by Intel 82546EB Gigabit Ethernet (GigE) Controller and simplifies addition of GigE networking into existing VME, cPCI, or PCI embedded systems. Product has 32/64-bit, 33/66 MHz PCI bus; 64 KB FIFO buffer memory per port; and 0 to +50°C standard operating temperature. It supports single or dual 10/100/1000BaseTX using standard RJ-45 connectors or optical 1000BaseLX interfaces with LC-type fiber connectors.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460
Nov 18, 2005 Modular LINKOSITY Wiring System enables error-free installation for 20 and 30 A circuits up to 600 Vac power distribution. Offering alternative to conventional pipe-and-wire methods, system consists of reconfigurable, factory-defined assemblies that can be installed and reused for range of applications including industrial and commercial facilities, construction sites, and military, medical, and emergency preparedness facilities.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Nov 18, 2005 Compact ISD-232(TM) board directly and simultaneously assesses air flow from 0-50 m/sec and temperatures from -30 to +150°C in computer feedback control and measurement systems using independent, mobile sensors that can be placed anywhere in test domain. Measuring 3.34 x 1.44 x 0.55 inch, board may be used to control devices such as laboratory wind tunnels and HVAC regulators or to provide read-out data for display systems. LabVIEW(TM) software is available.

Wanner Engineering, Inc.    Minneapolis, MN 55403
Nov 18, 2005 Featuring dry running capabilities, self-priming D/G/M03 Kel-Cell series utilizes DPC technology to control position of Buna-n or Viton® diaphragm and provide diaphragm rupture protection under adverse inlet conditions. Industrial pumps can be close-coupled to NEMA 56c faced or metric motors as well as belt-driven. They provide max capacity of 3.0 gpm @ 1,750 rpm, max inlet pressure of 250 psi, and pressure variable to 1,200 psi.

Jerome Industries Corp.    Elizabeth, NJ 07201 2005
Nov 18, 2005 Medical Isolation Transformer, Model TDYN120-12m, features 120 Vac, 60 Hz input and 120 V, 125 Va output. Measuring 6.50 x 3.75 x 2.89 in., desktop configuration is equipped with SJT hospital grade cord and is approved to UL60601-1 and cUL (CSA) 22.2 No. 601-1. Options include green LED power indicator and 1 or 2 isolation NEMA 5-15R outputs.

Coraid, Inc.    San Clemente, CA 92672
Nov 18, 2005 With CLN/20 Linux NAS network attached storage server appliance, unlimited number of Unix, Linux, or Windows clients can access unlimited amount of network storage using NFS file sharing. Small storage systems can be expanded one disk at a time up to to thousands of disks. Since server is separated from storage with Ethernet, storage is never captive to one NAS server. Rack mount, 1U unit is prepackaged with Coraid Linux NAS distro.

Beijer Electronics, Inc.    Schaumburg, IL 60173
Nov 18, 2005 Using Qlarity(TM) object-based programming language, QTERM-G75 is mounted on wall next to conference room and is attached to company network via optional Ethernet port. Scheduling meeting is done on terminal or with Virtual Qlarity(TM) PC application. Ruggedized unit stores list of meetings and initiates email notifying attendees prior to start of meeting. It includes 640 x 480 TFT color graphic LCD display, 100Base-T Ethernet with TCP/IP support, and 8 Mbytes Flash/32 Mbytes RAM.

Davallia Technology    Duncraig 6023  Australia
Nov 18, 2005 Intended for churches, non-profit, and commercial organizations, SmartRoster v2.20 cycles through different schedules and chooses best one, balancing workload, while respecting work association preferences. It maintains knowledge base about people, skills, absences, and work constraints, as well as organization's requirements. Offering over 12 report types, program makes sure volunteers get schedule by providing direct email and automated email reminders.

Control See Software Solutions Ltd.    Kochav-Yair 44864  Israel
Nov 18, 2005 When run as Windows(TM) service, U.C.ME-OPC(TM) v5.22 starts automatically after computer reboot without requiring login. Users can login and logoff computer during operation without interrupting server and setup recovery actions if service fails. Along with ability to import alarms already defined in SCADA/HMI software, features include MS SQL-Server support for scalability, MS-Access support, and capability to transfer plant floor data to IT systems.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Nov 18, 2005 Designed for 3.3-5 V DAQ systems, high-gain THS4508 and unity gain stable THS4511 and THS4513 feature fully differential architecture and 5 V single supply operation. Bandwidths range from 1,600-2,000 MHz, with slew rates from 4,900-6,400 V/µs. Suited for operation over -40 to +85°C range, all models come in 16-pin QFN package and deliver noise and distortion performance that enables designer to ensure accurate low-level signal measurements.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 18, 2005 Manufactured in 7 x 7 mm QFN-48 package, ADS1258 is fabricated on precision mixed-signal CMOS technology and optimized for multi-channel applications. This 24-bit ADC offers fixed-channel (125 kS/sec data rate) or automatic channel scan (23.7 kS/sec data rate) modes with 20 bits of effective resolution. Along with low latency (42 µs), product features externally accessible output, SPI-compatible serial interface, and 0.0010% max FS integral nonlinearity.
