Pentalift Equipment Corp.    Buffalo, NY 14240 1510

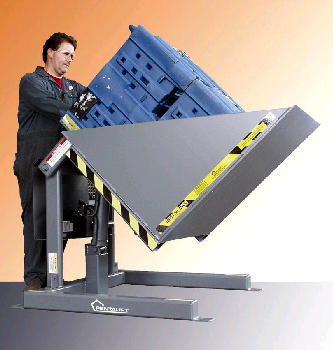

Nov 23, 2005 Designed to position parts within reach of worker during unloading/loading of containers, Drive-On Ergonomic Bin Tilter offers platform sizes from 38 x 40 in. to 50 x 48 in. and tilt capability up to 85°. Beveled front edge on platform enables smooth entry and exit of manual pallet truck during positioning. Tilter is equipped with electro-hydraulic power unit, pre-wired NEMA 12 TENV motor, push-button controls, and lubricated-for-life bearings.

BI Technologies Corp.    Fullerton, CA 92835-1051
Nov 23, 2005 Sealed, surface mount, 3mm cermet potentiometer Model 22 provides extended resistance range to 2 Mohms, standard resistance tolerance to ±20%, and absolute TCR values to ±100 ppm/°C with power ratings to 0.125 W at 70°C. Available in J-hook and side mount packaging, RoHS-compliant, single-turn unit features 12 mm tape width and 4 mm sprocket pitch. Operating temperature range is -55 to +125°C.

Igus, Inc.    East Providence, RI 02914 0349

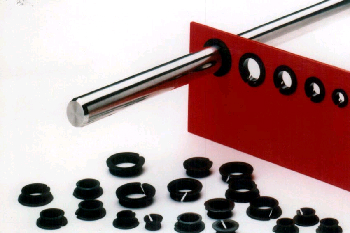

Nov 23, 2005 Lubrication-free iglide® Clip Bearings utilize M250 material for vibration-dampening characteristics, lightweight design, and wear resistance at average loads. Side slit in clip facilitates installation. Available in inch and metric sizes, bearings can be used without lubricants in both rotational and linear movements.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 23, 2005 ThinkVision® C170 17 in. full flat-screen CRT monitor employs flat shadow mask technology for clear images on entire screen with minimal distortion and glare. Along with viewable image size of 16 in., monitor features 0.25 mm diagonal dot pitch, 0.22 mm horizontal dot pitch, flicker-free 1,280 x 1,024 resolution, and 85 kHz horizontal line frequency. It is TCO'99 environmental label-compliant and offers VESA Display Data Channel capability for plug and play.

Schurter, Inc.    Santa Rosa, CA 95403

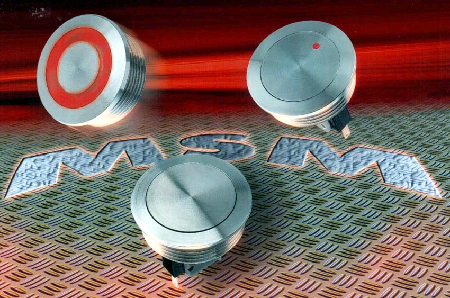

Nov 23, 2005 Mounting in panel cut-out of 30 mm, Model MSM 30 provides large actuating area and actuation force of 4.5 N. Contact travel is 1 mm with fixed stop accompanied by audible click. Switching actuation is single-pole, momentary with NO and NC contacts. With water-resistant rating to IP67, switch is suited for equipment exposed to liquid spills, drips, leaks, or wash-downs. It operates in temperatures as low as -25°C and as high as 85°C.

Miyachi Unitek Corporation    Monrovia, CA 91016

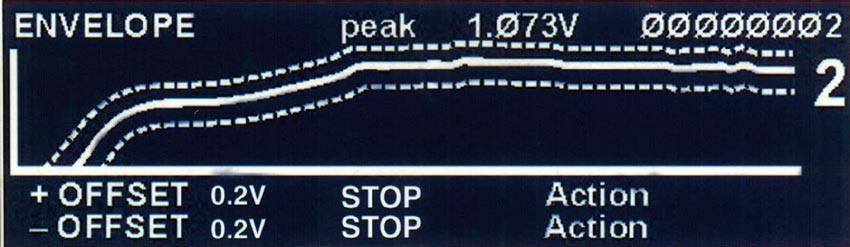

Nov 23, 2005 Envelope Limits feature of high-frequency Model HF27 enables monitoring of programmed weld schedule by placing upper and lower limits around optimized weld signature. Any deviation results in alarm and specified action that may stop weld and/or initiate valve output. Feature can accurately detect slight changes in process that could lead to inconsistent welds, which is important in medical, electronics, and automotive industries.

CPFilms Inc.    Martinsville, VA 24115
Nov 23, 2005 Polyester-based Clearsil® Series includes cleanroom-coated, optically clear, contaminant- and scratch-free release films that provide consistent release, as well as optimum transfer or release of adhesive's qualities. Color film substrate for identification can be supplied in form of deep-dyed release film. Models UV5A, UV10, UV12, UV30, UV50, and UV100 are UV-cured, while S10 fluorosilicone liner is used with silicone-based pressure sensitive adhesives.

Harting KGaA      Germany
Nov 23, 2005 With signal transmission up to 4 GHz, Mini Coax Single Row System features 3 contacts, 8 mm centerline distance, and 80 dB isolation. Right-angled modules are also available as pre-assembled, and both versions can be pressed in flat rock dies. Mini Coax connectors are suitable for equipment within cellular telecom infrastructure allowing for minimal slot distance of 15 mm.

Harting KGaA      Germany
Nov 23, 2005 Able to prevent data collisions, Model ESC 67-10 TP10U divides former collision domains into point-to-point connections between network components and user equipment. It allows up to 10 items of user equipment to be connected through shielded twisted pair cable in accordance with IEC 802.3. All connections are plugged and all Ethernet interfaces are protected against over-voltage.

Universal Lighting Technologies    Nashville, TN 37214
Nov 23, 2005 AccuStart5 T5 ballasts B228PUNV95-D and B228PUNV115-D, suited for use with F28T5 lamps, are available with .95 and 1.15 ballast factor options for flexibility in lighting design layout. Along with programmed start technology, products feature 120-277 V universal input voltage and end-of-lamp life shutdown circuitry with auto-reset. Operational efficiency facilitates compliance with ASHRAE 90.1 standard for lighting power density.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 23, 2005 With no moving parts, temperature-compensated M180 provides gas or liquid flow monitoring, control, and alarm switching. Unit incorporates thermal mass flow sensor and CPVC/Hastelloy C-22 or 316SS/Hastelloy C-22 wetted material combinations. Dual platinum RTD sensors are mounted in fully sealed, miniature thermowells. Since there are no orifices to plug or foul, design ensures maintenance-free, continuous operation with MTBF of over 60,000 hr.

Beckhoff Automation LLC    Minneapolis, MN 55337
Nov 23, 2005 Series ZK1020 IP-Link Bridge Connectors and Series ZS5300 I/O Mounting Rails are suited for applications that require IP67-rated I/O terminals mounted outside of cabinet and directly on machines. Connectors are used for high-density, side-by-side Fieldbus Box I/O mounting where modules are 0-5 mm apart. Made of 1.5 mm thick stainless steel with pre-cut M3 threads to attach I/O modules, Mounting Rails come in 500 mm long increments and mount on machines with M5 screws.

Mikron Infrared, Inc.    Hancock, MI 49930
Nov 23, 2005 Using VOX microbolometer with 320 x 240 resolution, Model 7500 images glass, steel, food, furnaces, textiles, and paper with ±2°C temperature accuracy. Spectral tuning technology enables unit to image in midwave bands of 3.9 microns and 4.8-5.2 microns, in temperature range of 400-1,600°C. Standard temperature ranges are -40 to 120°C and 0-500°C in 8-14 micron long-wave mode. Camera can be used with MikroSpec R/T software for real-time thermal data acquisition and analysis.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 23, 2005 Equipped with embedded JAVA web page, digital ADAM-6000W series uses wireless Ethernet standard 802.11b and supports Modbus/TCP and UDP protocols. Models ADAM-6050W/6051W/6060W feature inputs that can be configured to read frequency signal and act as counter, latching input, or normal input. Outputs can be configured as pulse, delayed, and standard outputs. Each unit allows 8 simultaneous web clients for remote viewing of I/O status and control.

American Bright Optoelectronics Corp.    Chino, CA 91710
Nov 23, 2005 Provided with SMT, dome, or flat-lens PLCC LEDs assembled onto PCB strips, ABP Series delivers continuous-run arrays suited for lighting and display applications. Passive devices such as resistors, capacitors, or diodes and additional circuitry can be added directly to assemblies. Two styles are offered in 16- or 32-unit, in-line PCB strip lengths of 17 5/8 in. wide x 7/16 in. thick PCB and 3/8 width x 1/16 in. thick PCB.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Nov 23, 2005 HEIDENHAIN LC scales are suited for use with machine concepts where more than one slide is moving along machine axis through directly driven linear axes. Absolute linear encoders with multiple scanning units feature bi-directional, digital EnDat 2.2 interface, which is capable of outputting absolute position values as well as requesting or updating information stored in encoder. Other absolute interfaces are available.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Nov 23, 2005 PEM® self-clinching flush-head studs feature X-Press(TM) threads to enable mating of plastic nuts and clips without tools. Used to promote secure attachment, products also facilitate removal and re-installation of mating hardware. RoHS-compliant Type FHX steel studs mount flush and permanently in steel or aluminum sheets as thin as .040 in. Thread design, available in 5 x 1.6 sizes and lengths from .394-.689 in., accepts paint, coatings, and under-sealants without affecting performance.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 23, 2005 Available in irreversible and reversible versions, Series KS labels are self-adhesive and resistant to oils, water, and steam. Irreversible labels permanently change color to indicate that max temperature has been achieved, while reversible labels monitor current temperature status with non-toxic thermo chromic liquid crystals that change color as temperature increases or decreases. Products suit various temperature monitoring applications.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 23, 2005 Equipped with precision calibrated internal temperature sensor, Series MDL is suited for food process verification, pharmaceutical storage, laboratories, transportation of temperature-sensitive goods, or monitoring equipment run time. User places logger in desired location and allows it to record. Once information has been captured, user plugs logger into serial port of computer for downloading and viewing of logged data.

Love Controls    Michigan City, IN 46361
Nov 23, 2005 Constructed with 4 environmentally-sealed temperature sensing modules spaced evenly along 12 ft. bendable aluminum probe coil, Series AVG Sensors measure average supply air temperature in large ducts. Probe terminates into rugged steel housing that meets NEMA4/IP65 requirements.
