AnaLogic Computers Ltd    Budapest H-1111  Hungary

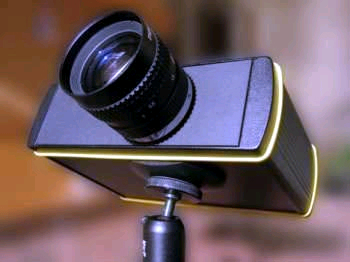

Oct 28, 2005 Featuring single 1.3 Mpixel CMOS sensor, Model Bi-i V301 is designed for industrial applications requiring high-speed image capturing as well as fast execution of complex image processing tasks. Housed in aluminum box, camera has Ethernet, USB, and RS-232 interfaces. Applications run at speeds up to 1 GHz using DSP from Texas Instruments. InstantVision software contains libraries for image-flow processing, feature classification, and multi-target tracking.

Parker Hannifin Corp., Brass Products Div.    Otsego, MI 49078 1472
Oct 28, 2005 Global Connect Series features grab ring construction and come in inch and metric sizes. Shape fittings have engineered composite bodies and nickel-plated threads, while straight fittings are all nickel-plated. Products are available in unions, elbows, connectors, tees, and branch tee swivels. Thread types include SAE, metric, BSPT, and BSPP. All fittings handle working pressures to 150 psi and temperatures from 0° to 140°F.

Balluff, Inc.    Florence, KY 41042-0937
Oct 28, 2005 Offered as drop-in replacement for linear potentiometers, Micropulse(TM) BIW transducer uses pulsed-inductive technology in wear-free design that eliminates performance degradation over time. Suited for use anywhere linear motion must be monitored/controlled, product is immune to external EMI and available in stroke lengths from 75-750 mm with analog 0-10 V or -10 to +10 V output. Update rate is greater than 20 kHz, non-linearity is ±0.02%, and max resolution is 5 microns.

Load Cell Central    Monroeton, PA 18832
Oct 28, 2005 SCWM shear web pancake-type load cell is designed for material testing, force calibration of presses, and other technical and industrial compressive force measurement applications. Precision sensor, constructed of nickel-plated alloy tool steel, is fully potted to IP65 to protect from water damage and features 4 bolt slots for mounting. Standard output is 2 mV/V, making it compatible with signal conditioners and standard strain gage digital displays.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

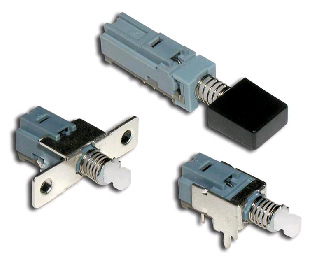

Oct 28, 2005 Offering DPDT, 4PDT, and 6PDT configurations, Series RPH is rated 100 mA at 30 Vdc and is available in latching and non-latching models. Switches feature contact resistance of less than 50 mW max initially at 2-4 Vdc, 100 mA. Dielectric strength is 1,250 Vrms min and insulation resistance is greater than 100 mW min. Operating from -20 to 70°C, switches are suited for computers and peripherals, instrumentation and measurement equipment, and non-power on/off applications.

AustriaMicroSystems USA Inc,    Raleigh, NC 27615

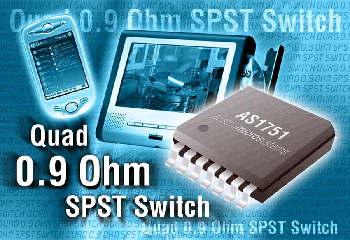

Oct 28, 2005 Designed for high-speed switching of audio, video, and data signals in portable devices, Models AS1751, AS1752, and AS1753 are normally-open, normally-closed, and combination of open and closed, respectively. Quad SPST switches feature supply voltage from 1.6-3.6 V and allow for switching current up to 250 mA. All digital logic inputs are 1.8 V CMOS compatible. Applications include mobile phones, digital cameras, PDAs, and MP3, CD/DVD, and video players.

ON Semiconductor, LLC    Phoenix, AZ 85008

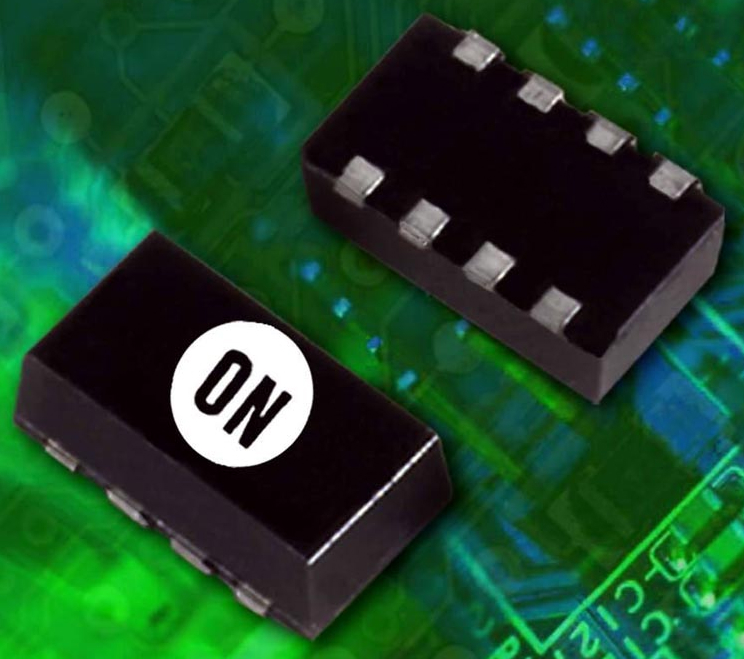

Oct 28, 2005 Designed for use in low-voltage, high-speed switching applications, VCE(sat) bipolar junction transistors (BJTs) are offered as PNP and NPN devices in surface-mount SOT-23, SC-88, SC-74, TSOP-6, and ChipFET packages. Miniature transistors deliver turn-on voltage of less than 1.0 V and offer bi-directional current blocking capability. Suited for portable applications, products exhibit ESD tolerance to protect sensitive components from damage.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Oct 28, 2005 Steel-Red Color EMT Connectors and Couplings eliminate need to paint or otherwise color fittings. Units match EMT raceways for clean looking installations. Color does not affect grounding capability as required by NEC and UL.

DE-STA-CO Industries    Madison Heights, MI 48071
Oct 28, 2005 Based upon modular concept with accessories such as automatic tool changers, compliance devices, robotic adapter plates, vacuum cups, and sprue cutters, MET Modular End Effector Tooling System can be reconfigured, re-used, or interchanged with other units. Lightweight aluminum system can be mounted to robot in end-mount cantilever style or mid-mount configuration. It offers 360° positioning, vision camera mount, and 5-pin electrical connector option.

DE-STA-CO Industries    Madison Heights, MI 48071
Oct 28, 2005 Providing quick clamping in repetitive production operations, Heavy-Duty Toggle-Lock Pneumatic Clamps are suited for short run jobs with temporary fixturing. They offer max exerting force of 1,600 lb and open to max of 130°, providing clearance for materials being clamped. Indexable clamp arms can be repositioned in 45° increments, and are offset, allowing them to be mounted on left, right, or both sides of clamp. Completely enclosed linkage protects against contaminants.

Cotronics Corp.    Brooklyn, NY 11232
Oct 28, 2005 Suited for thermal and electrical insulation applications, Thermeez 397PS is woven from flexible, industrial-grade ceramic fibers that exhibit chemical stability and resistance to thermal shock, corrosion, mechanical vibration, and stress. It is backed with high-temperature, pressure sensitive adhesive. Press-to-stick application eliminates twisting, slipping, and unwrapping for neat, uniform appearance. Non-toxic tape is not irritating to skin and will not burn.

Hitachi Power Tools    Norcross, GA 30093
Oct 28, 2005 Weighing 5.5 lb, NV50AP3 employs cap nail functionality that produces equal amount of pressure around outside of cap for flush fit to material being held. It accepts plastic or metal caps and holds 350 caps and 350 nails per coil in translucent magazine. Along with aluminum housing, 2 in. cap nailer features tool-free depth adjustment dial, 360° adjustable exhaust, and rubber grip. FlipFire switch changes nailing modes from sequential to bump fire.

KUKA Robotics Corp.    Sterling Heights, MI 48312
Oct 28, 2005 Real-Time Device Manager, with CeWin® v3.3 and VxWin® v3.1, analyzes and isolates IRQ resources for real-time hardware. It automates assignment of hardware to RTOS and can be integrated into third party installation using documented libraries. Included support for APIC and multiprocessor systems, by way of CeWin and VxWin, adds hibernate and power management functionality. Extensions can be started by service, allowing application to begin real-time processing without user logon.

Reparex, Inc    Latrobe, PA 15650
Oct 28, 2005 Suited for fixing wear-generated leaks in pneumatic conveying lines and elbows carrying abrasive materials, Quick Fix Clamp consists of wear-resistant aluminum ceramic tiles encased in flexible polyurethane pad. It includes nylon strap and hand-operated tightening ratchet. User places pad over hole in pipe and tightens strap to stop leak. Clamps are offered in sizes for 3 ranges of pipe diameters, including 3 5/8-8, 6-12, and 12-20 in.

Honeywell Power Supplies    Northford, CT 06472
Oct 28, 2005 Fully digital and networkable, Audio Evacuation Systems provide prerecorded messages and emergency paging during life safety emergency to facilitate orderly evacuation. They support line paging and 2-way telephone communications, as well as various control functions, all operating simultaneously on single pair of wires or fiber optic cables. Systems are available integrated directly within panel or as expansion solutions, which are in addendum to panel.

Rockwell Automation / Allen-Bradley/Industrial Automation Sy    Mayfield Heights, OH 44124
Oct 28, 2005 DeviceNet, series B, universal PCI card (1784-PCIDS) can detect and adapt to varying voltage amounts, allowing users to connect industrial and personal computers (PCs) over open, device-level network. Offering plug-and-play configuration, product is compatible with lower-voltage PC-based architectures and Rockwell Automation RSLinx server software. It includes scanner functionality, so users can control I/O with SoftLogix PC-based control software.

Sharp Microelectronics    Camas, WA 98607 9489
Oct 28, 2005 Suited for industrial, gaming, and medical environments, RoHS-compliant LQ104V1DW02 utilizes Advanced Super View technology. Its 10.4 in. VGA TFT-LCD has 450:1 contrast ratio for use in strong-light conditions, offering minimal reflection and optimal color saturation. Unit measures 246.5 x 179.4 x 15.5 mm, has 25 ms response time (typ), and supports 262,144 colors. Along with 170° symmetrical viewing angle, LCD delivers 380 cd/m² brightness and 4:3 aspect ratio.

Space-Ray    Charlotte, NC 28236
Oct 28, 2005 Available in natural and propane gas, LTU Series U-tube heaters suit high air change environments and higher mounting heights of 12 ft or over. Unitized low-intensity gas-fired infrared heaters are C.S.A. approved and can be configured to meet variety of industrial and commercial needs.

Lenox Instrument Co.    Trevose, PA 19053 3427
Oct 27, 2005 Able to identify flaws as minute at .001 in., flexible Fiberscopes feature tight bending radius and steerable 2- and 4-way articulated tip that allows manipulation around corners, through pipe bends, and past blockages. Diameters range from .140-.395 in. with lengths to 18 ft. Scopes are waterproof, as well as digital- and video-adaptable. They are suited for inspection of engines, equipment, tubing, pipes, castings, and other hard-to-access cavities.

Linear Technology Corp.    Milpitas, CA 95035
Oct 27, 2005 Offered in 15 x 15 x 2.8 mm LGA package, LTM®4600 µModule switching power supply delivers up to 10 A continuous current, 14 A peak, at up to 92% efficiency. Synchronous switchmode DC/DC step-down regulator has built-in inductor and supports power components as well as compensation circuitry. Accommodating 4.5-28 V input range, product requires only input and output bulk capacitors and one resistor to set output voltage within 0.6-5 V range.
