Dataforth Corp.    Tucson, AZ 85706
Nov 08, 2005 Comprised of SLX718 units and miniature SensorLex(TM) 8B isolated analog signal conditioners, isoLynx® SLX718 Data Logger/DAQ System includes 14-bit analog-to-digital conversion, programmable channel scan list, programmable sample rate throughput from milli-Hertz to more than 14,400 Hz, and USB or Ethernet interface. I/O can be changed on per channel basis for 8 signal conditioner locations. Stand-alone option features built-in multimedia socket that accepts SD memories.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 08, 2005 Along with 1/8 in. male NPT center back connection, Series SGC compact OEM pressure gage comes standard with 1 in., 304 SS case suitable for OEM applications using pumps, compressors, and portable cylinders. Products are available in ranges from 0-100 psig up to 0-5,000 psig.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 08, 2005 Small volume of triple wound Bourdon tube inside Series 7112B Spirahelic® gage enables diaphragm seals smaller than standard C Bourdon tube gage. Diaphragm seals are available with 316L SS wetted parts and are offered on models with pressure ranges up to 1,000 psig. Optional ¼ in. NPT flush port is available for applications such as water treatment plants that require clean-out line to maintain proper gage performance.

Omron Electronics, LLC    Schaumburg, IL 60173
Nov 08, 2005 Built on modular, plug-and-play concept, scalable ZS-L series laser displacement measurement sensors employ 2D CMOS technology. They are available with 9 sensor heads for distances from 10-350 mm and measuring ranges from ±0.5 to ±135 mm. Combined with matching controllers, multi-calculation controllers, and data storage units, sensors are set-up via controller or point-to-point USB connection to PC and deliver resolutions as fine as 0.25 mM with sampling speeds to 110 mS.

Mine Safety Appliances Company / Instrument Division    Pittsburgh, PA 15230
Nov 08, 2005 Offered with plastic or metal housings, Z Gard(TM) S Sensor detects CO gas, NO₂, or refrigerants in air and is available with 4-20 mA analog output or addressable RS-485 digital signal. Z Gard C Controllers, available in metal or fiberglass enclosures, accept 4-20 mA or RS-485 inputs from Z Gard S Sensors and accommodate inputs from 1-8 remote sensors. Z Gard C 485 and CX interface with up to 24 MSA Z Gard S Sensors and 40 remote MSA Z Gard Sensors, respectively.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Nov 08, 2005 Model pH 211 features pH range of 0-14 (±0.01) and temperature range of 0-100°C (±0.5ºC). In conjunction with ISE and ORP electrodes, microprocessor-based unit can also measure mV from ±399.9 to ±1,999 mV. Automatic buffer recognition lets user select 1- or 2-point calibration, and display shows pH or mV and temperature simultaneously along with step by step operation.

Linear Technology Corp.    Milpitas, CA 95035
Nov 08, 2005 Stand-alone Series LT3484 ICs have input voltage of 1.8-16 V, making them suited for applications powered by 2 AA alkaline cells or single Li-Ion batteries such as digital cameras and mobile phones. Models LT3484-0, -2, and -1 have primary current limits of 1.4, 1, and 0.7 A, resulting in average input current of 500, 350, and 225 mA, respectively. Output voltage detection needs no external circuitry as transformer turns ratio determines final charge voltage.

J. W. Winco, Inc.    New Berlin, WI 53151

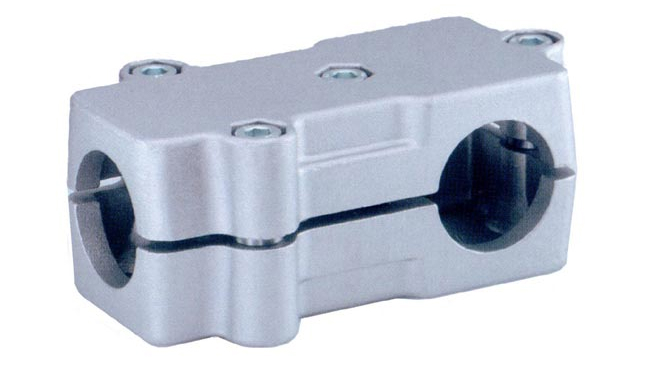

Nov 08, 2005 Metric Aluminum, Split Assembly, T-Angle Connector Clamps are available in black powder coated finish or natural color matte shot-blasted finish. Offered in round or square combinations, bores are designed for metric tubing types GN 990 or DIN 2391, DIN 2395, and DIN 2462. Fastener choices include socket cap screws, hex cap screws, or adjustable levers. Clamps are suited for modular light duty machine frames, machine guards, and rail systems.

Tidal Engineering Corporation    Randolph, NJ 07869
Nov 08, 2005 Microprocessor-based, 2-channel Synergy(TM) Controller with HASS/HALT configuration option is engineered to take command of chamber's temperature and vibration systems. Utilizing Windows® CE .NET 4.2 embedded OS, device uses 100 Ω platinum RTD for temperature measurement and dry capacitance sensor for humidity measurement. Available with front- or flush-mounted 320 x 240 touch screen, unit includes 10/100 Base-T Ethernet, RS-232/485, GPIB communications, and Web-based remote control.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403
Nov 08, 2005 Engineered to satisfy demanding agricultural applications, hydraulically driven HD Magnum Series cast iron and stainless steel pumps provide pressure to 145 psi at temperatures up to 140°F. Available in open and closed configurations, units are equipped with corrosion-resistant nylon impeller and Viton/ceramic seals, as well as oversized bearings and front and rear wear rings that balance impeller and maximize bearing life.

Onset Computer Corp.    Bourne, MA 02532
Nov 08, 2005 HOBOware® v2.1 for Windows combines logger launch and readout functions with data plotting capabilities, enabling users to analyze environmental conditions recorded with HOBO loggers. Intuitive GUI allows user to select environmental parameters to display, format graphs, perform analysis, and save projects for future use. Software also measures grains of moisture/lb of air, and supports 1-click export of data to Microsoft® Excel or other ASCII-compatible programs.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Nov 08, 2005 Featuring integrated LCD module and nanoWatt technology, Model PIC16F946 is equipped with 14 Kbytes Flash program memory, 336 Bytes RAM, and 256 Bytes data EEPROM. It includes 2 analog comparators, 8 MHz internal oscillator, and 10-bit ADC with up to 8 signal channels. Housed in 64-pin TQFP package, unit supports SPI, I2C, and AUSART communication protocols, and offers Brownout Reset, watchdog timer, and programmable low voltage detect.

Imperx Inc.    Boca Raton, FL 33487

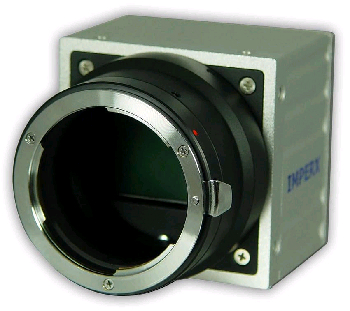

Nov 08, 2005 Equipped with 1 mil gate FPGA with 32-bit RISC processor, Lynx IPX-11M5-LT can dynamically zoom from 200 lines resolution at 30 fps to 2,672 lines at 5 fps, making it suited for bandwidth-constrained monitoring applications, such as remote surveillance. Peltier-effect thermoelectric cooling actively controls temperature of camera's large CCD at 20°C setpoint, stabilizing sensitivity, dark current, and noise for applications where these parameters are limiting factors.

Perma Pure Inc.    Toms River, NJ 08754
Nov 08, 2005 Designed to dry hot, wet, sample gases prior to analysis, MDH(TM) Series combines heating element with Nafion® technology, which selectively removes only water from sample gases, leaving rest of gas sample unaffected. Dryers remove water directly from vapor phase, preventing loss of water-soluble gases through dissolution in condensate. Units can dry gases with as much as 30% water by volume and use built-in thermostat to prevent condensation throughout drying process.

Rite-Hite    Milwaukee, WI 53224
Nov 08, 2005 Barrier® Fold bi-folding door uses Thermal Air(TM) Sealing System to create tight, conforming seal at top of door frame and to broadcast continuous warm air evenly across door and surrounding floor surfaces to prevent frost. Accommodating 6 x 8 to 10 x 16 ft openings, door features internal or external door mount configurations, impactable tubular track/trolley system, sealing side frames, and Reflek-Tek center panels that seal tightly together with Rite-Tite(TM) magnets.

SKF USA, Inc.    Lansdale, PA 19446

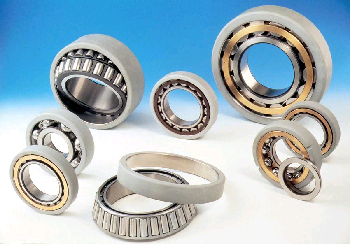

Nov 08, 2005 Promoting machine uptime, SKF INSOCOAT® Rolling Bearings protect against damage caused by passage of electric current in ac and dc motors, generators, and associated equipment. Thin aluminum oxide layer forms barrier against grease oxidation and electric arcing that typically causes fluting damage to rollers and raceways. Bearings are performance tested to 1,000 Vdc with minimum ohmic resistance of 50 M. Sealant provides resistance to heat, chemicals, and moisture.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460

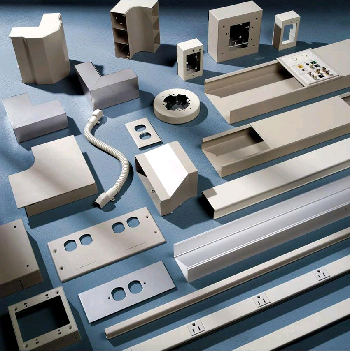

Nov 08, 2005 Available in steel, aluminum, single- or multi-channel versions, Metal Raceways feature UL classified transition fittings, Handi-Screw(TM) to facilitate box installation, and By-Pass(TM) divider to optimize space for data cable in multi-channel units. Boxes feature rounded corners and single-seam construction. Extensive line of plates accommodates full range of datacom and power connections.

Hilti Inc.    Tulsa, OK 74121

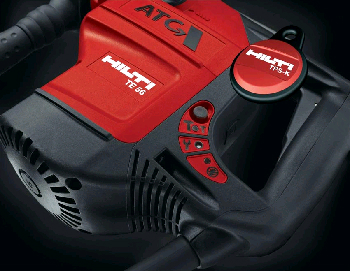

Nov 08, 2005 Available for many Hilti tools, electronic Hilti TPS consists of Company Card, Activation Key, and electronic module inside tool. Company-specific theft protection code is set in each tool using Company Card. Authorized users receive Activation Key, which is needed to electrically unlock tools. User connects tool to power supply, holds Activation Key to tool, and begins work. If tool is stolen, it will lock after 20 min and cannot be restarted without Activation Key.

Weldcraft    Appleton, WI 54911
Nov 08, 2005 Operating at up to 400 A, Super Cool 18® TIG torch features water chamber that allows water to flow down, around, and up entire length of torch head to prevent overheating. It includes heavy copper components and gas shielding nozzle that screws onto water chamber sleeve. Available with standard WP-18 long or short back caps, Super Cool 18 uses standard gas lens alumina nozzles, hoses, power cables, and collets and accommodates tungsten ranging from .020-3/16 in.

Vibra Screw, Inc.    Totowa, NJ 07511
Nov 08, 2005 Bulk Bag Unloader provides continuous discharge of material from bulk bags with ability to regulate or stop flow in accordance with system requirements. Two vibrators mounted on opposite sides of hopper create movement of material through integral sealed feed tube. When vibration is stopped, bag discharge and material feed immediately cease without need for additional valves. Unloader can be run volumetrically or equipped with load cells for batching by weight.
