Performance Technologies Inc.    Rochester, NY 14620
Nov 14, 2005 NexusWare(TM) WAN offers installable protocol support and flexible development environment for packet-based network access products, allowing developers to add and remove software packages to NexusWare Core as requirements change. WAN communications protocol environment provides connectivity, multi-protocol processing, and API that allows interoperability with WAN stacks such as HDLC, X.25, and frame relay. Created sub-systems can address multiple communications applications.

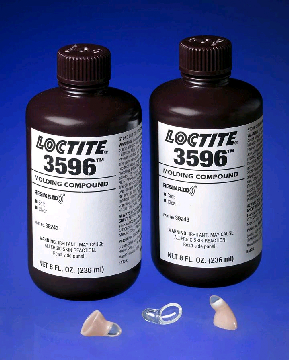

Henkel Loctite Corporation    Rocky Hill, CT 06067
Nov 14, 2005 Loctite® ResinAid® 3596 produces tear-resistant, conformable shells that deliver comfort in ear canal and comply with ISO-10993 standards for skin surface medical devices. Formulation withstands jaw movement and resists chemicals found naturally in human ear. With viscosity of 1,000 cp, product cures on exposure to UV or visible light of correct intensity, and provides post-cure tear strength of 145 in.-lb. Clear liquid has hardness of 90 Shore A and modulus of 740 psi.

Wieland Electric Inc.    Burgaw, NC 28425
Nov 14, 2005 Rated for IP65 usage in any industrial application requiring Ethernet connectivity and signaling or power, Multipole revosFLEX Connectors are UL and CSA approved for Cat 5 cabling and 100 Mbit/s. Signal/power connections are rated for 480 V/10 A circuits. Units offer connections in field for fieldbus communications, signal connections for watchdog circuits, or power connections for field devices in quick connect/disconnect design.

Honeywell Power Supplies    Northford, CT 06472
Nov 14, 2005 Used for dry or latching contacts, polarity reversal, phone line seizure, or other switched control logistics, HRB5, HRB1224, and HRB610 facilitate customization of security systems. Model HRB610, 6-unit relay cluster can be used as complete unit or snapped apart for individual use. This 12/24 Vdc selectable, 50 mA coil draw control relay has SPDT contacts rated 10 A/120 Vac/28 Vdc. Both HRB5 and HRB1224 feature set of DPDT contacts rated 5 A/120 Vac/28 Vdc.

Fenwal    Ashland, MA 01721
Nov 14, 2005 Developed for gas-fired applications utilizing 2 separate burners, Series 35-62 controls single gas valve and simultaneously lights and monitors both gas burners. Features include 24 Vac, microprocessor-based DSI control; system diagnostic LED; selectable number of tries for ignition; and pre-purge and inter-purge timings of 0, 15, or 30 sec. Direct spark gas ignition system also provides remote flame sensing with dual flame sensor inputs.

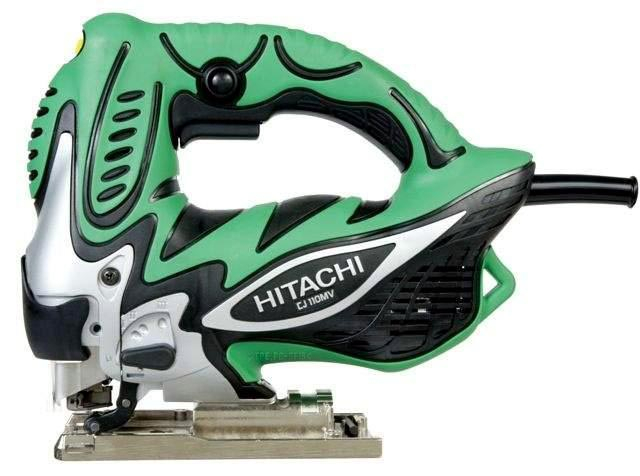

Hitachi Power Tools    Norcross, GA 30093
Nov 14, 2005 With 5.8 A motor, Model CJ110MV Variable Speed Jig Saw has ergonomic design that incorporates curved D-shaped handle to provide secure grip and elastomer compound that covers saw to absorb vibration. Saw features 1 in. stroke length, max cutting capacity of 3/8 in. for metal, tool-less blade changing system, front mounted LED light, and dust blower. Weighing 4.9 lb, saw is suited for use by carpenters, general contractors, metal fabricators, and siding installers.

Analog Devices, Inc.    Norwood, MA 02062-9106
Nov 11, 2005 Comprising 8 models, AD536x and AD537x monolithic DAC series deliver 8 and 40 channels in 8 and 9 mm² packages, respectively. Model AD5362 denseDAC features bipolar voltage outputs, temperature sensor, thermal monitor mode, voltage monitor multiplexer, and power-down mode, and AD5370 offers 2 Vref pins and 2 offset DACs. Both provide user-programmable offset and gain registers, ±10 V output range, 16-bit DNL, 14-bit INL, and 50 MHz SPI-compatible serial interface.

Analog Devices, Inc.    Norwood, MA 02062-9106
Nov 11, 2005 Manufactured in 3-5 mm MSOP package and 3 mm² LFCSP, PulSAR® AD7690 is capable of 400 kSPS data rates and features SNR of 102 dB. It powers down automatically at end of each conversion and dissipates 20 mW at max throughput rate. Along with DNL of ±1 LSB (least significant bit), unit achieves typ INL of ±1 LSB, provides on-chip track-and-hold, and exhibits no pipeline delay or latency. Also available, AD7691 provides 250 kSPS throughput.

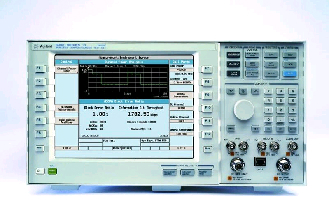

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 11, 2005 Test Set Model 8960, featuring E1963A W-CDMA Mobile Test Applications with Option 403 HSDPA test modes, provides set of RF parametric measurements. Frequency Division Duplex and Radio Bearer test modes give developers flexibility in structuring test processes, provide support for H-set 1-5, and cover UE testing demands through Category 6. Graphical dynamic power analysis of DPCH, HS-DPCCH, CQI, ACK, NACK, and DTX channels validates relative power levels between channels over time.

Altera Corporation    San Jose, CA 95134
Nov 11, 2005 PCI Express MegaCore® is delivered with IP toolbench GUI that designers can use to configure core to corresponding testbench and user reference designs for x1, x4, or x8 endpoint links. PCI Express function targets Stratix II GX or Stratix GX FPGAs with embedded transceivers, as well as Cyclone(TM) II or Stratix II FPGAs or HardCopy® II structured ASICs with external transceiver devices. Only Stratix II GX architecture enables PIPE interface in x8 configuration to run at 250 MHz.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913
Nov 11, 2005 Configurable with up to 8 positions and up to 20 poles, Detent-Action Series 24 features fully enclosed decks and self-cleaning, silver-plated, double-wiping contacts for low-resistance contacting of .01 Ω max. Molded phenolic insulating disks provide minimum insulation resistance of 100 MΩ. Make-before-break contacts allow sequential connections on same switching deck. Other features include waterproof mounts, gear-driven operation, and push-to-turn handles.

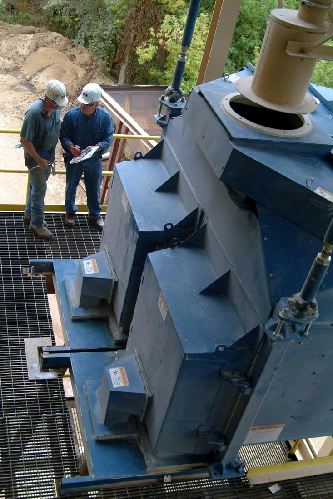

Rotex, Inc.    Cincinnati, OH 45223 1845
Nov 11, 2005 Designed to maximize product recoveries at material temperatures up to 400°F, Minerals Separator(TM) features screen deck slope of 6° to meet glass, filter, and frac sand specifications. Elliptical-linear motion equally distributes materials to all screen decks, ensures uniform bed-depth across screen surface, and provides aggressive blinding control. Lift-Rail(TM) system with non-binding stainless steel cam activation facilitates screen frame installation and removal.

ScanCAD International, Inc.    Morrison, CO 80465
Nov 11, 2005 Combining color flatbed scanner with dual lighting system, stand-alone ScanINSPECT VPI qualifies each step of assembly and fabrication process before production. In board assembly operations, system uses Gerber, CAD, or Golden part data to validate board fabrication, stencil cleanliness, paste/adhesive deposition, and populated boards. ScanINSPECT VPI checks holes, slots, and artwork and ensures parts from multiple vendors conform to required shape, position, color, and size.

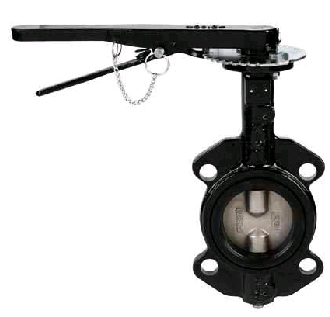

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 11, 2005 Suited for on-off or throttling services, Series BFV features max temperature of 300°F and max pressure of 225 psi. Choice of EPDM or PTFE liners and standard 316 SS stem offer wide chemical compatibility. Cartridge seat design alleviates installation difficulties associated with dovetail seat design, while providing maintenance-free service, and hand lever operator allows for complete manual control.

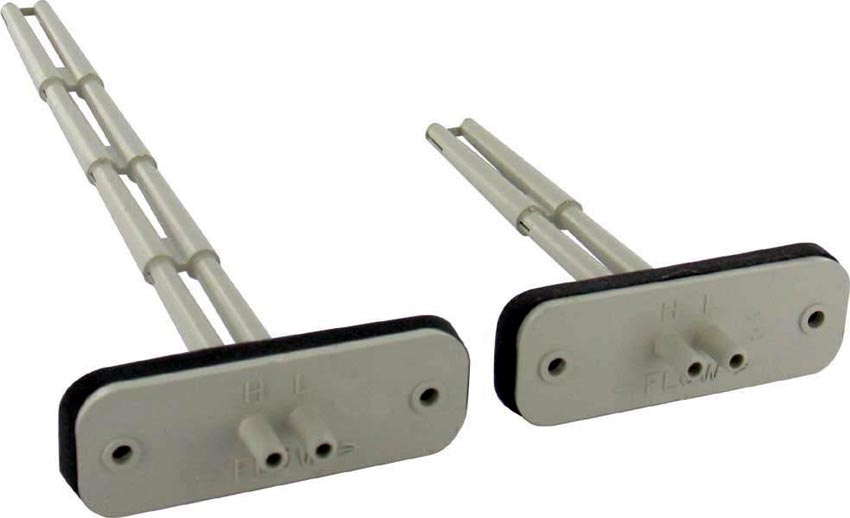

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 11, 2005 Designed for long-term performance, Series SSS-1000 senses differential pressure of variable air volume terminal units, fan terminal units, and individual zones in HVAC systems. It is available with 1-4 sensing points and in lengths from 3 5/32-9 29/32 in. to accommodate box size diameters from 4-20 in. All units include 3/8 in. polyethylene tubing.

RadioScape, Ltd.    London NW1 4DS  United Kingdom
Nov 11, 2005 When incident occurs in particular tunnel bore, TunnelAlert(TM) is switched in with effect of replacing audio on all Digital Audio Broadcasting (DAB) audio services being re-broadcast in tunnel bore with live emergency message. It provides occupants of vehicles in tunnel with appropriate instructions by monitoring specified on-air DAB multiplexes and updating in-tunnel DAB multiplexer system to follow their configuration.

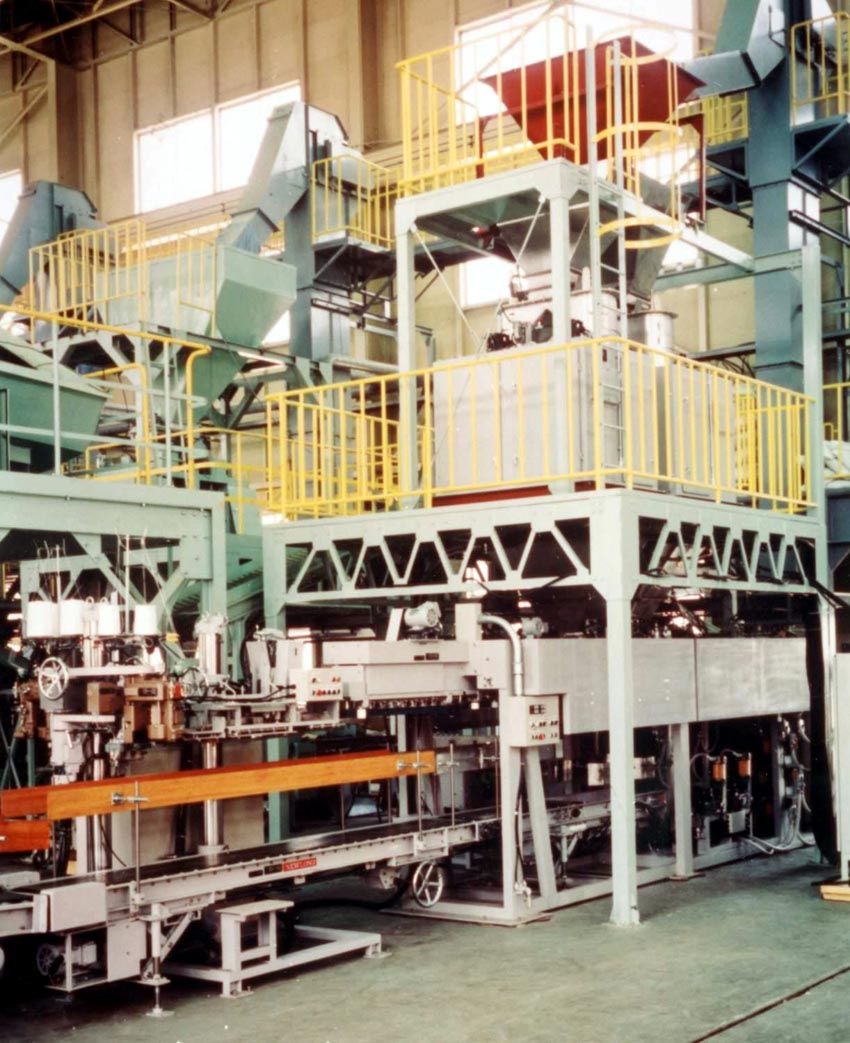

American-Newlong, Inc.    Indianapolis, IN 46217
Nov 11, 2005 Able to process 2,000 bags weighing 20-110 lb per hour, 3CM-PDS features automatic bag feeder, 2 spouts for simultaneous filling, and automatic tag placer. Optional servo-motor lateral bag transfer drive reduces air consumption. Machine handles various bag materials as well as closure styles such as plain sewing, sewn over tape, or heat sealed. Suited for seed plants, product is also available in single-spout servo-unit rated at 1,200 bags/hr.

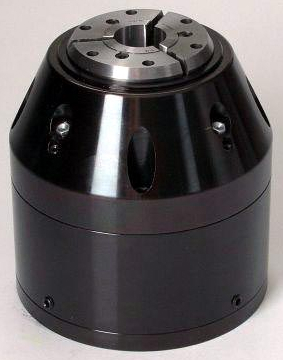

Lexair, Inc.    Lexington, KY 40511 1018
Nov 11, 2005 With wedge design that provides optimal grip force regardless of rpm, Pull to Close Prodyne® Servo Collet Chuck maintains position of barstock against barloader pusher as chuck closes to eliminate need for turret stop for positioning. Along with concentricity adjustment capability, product incorporates fixed length collet design, tapered nose shape, and master collet that utilizes S style pads. There are 4 available models with max bar capacities from 1.625-2.625 in.

Bud Industries, Inc.    Willoughby, OH 44094
Nov 11, 2005 Constructed of ABS plastic material with UL94-HB flammability rating, Belt Clip allows operator to attach any hand-held box to clip for hands-free operation by drilling 2 holes. Standard colors are black or light gray, with other colors and modifications available upon request. Product measures 1.91 x 1.12 x 0.39 in. and comes with assembly hardware.

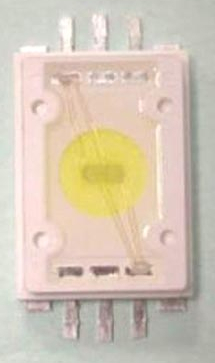

Para Light Corp.    Walnut, CA 91789
Nov 11, 2005 Infrared versions of EP2 and EP4 series enhanced-power LEDs operate at currents of 350 and 700 mA, respectively, with power dissipation of 0.5 and 1.5 W. With forward voltage range from 1.4-2.5 V and radiant intensity from 70-800 mW/sr, products are optimized to operate at wavelengths of 850, 880, and 940 nm. EP2 packages offer viewing angles of 10°, 30°, and 100°, and EP4 packages offer viewing angles of 60°, 90°, and 100°.
