Saelig Co., Inc.    Pittsford, NY 14534

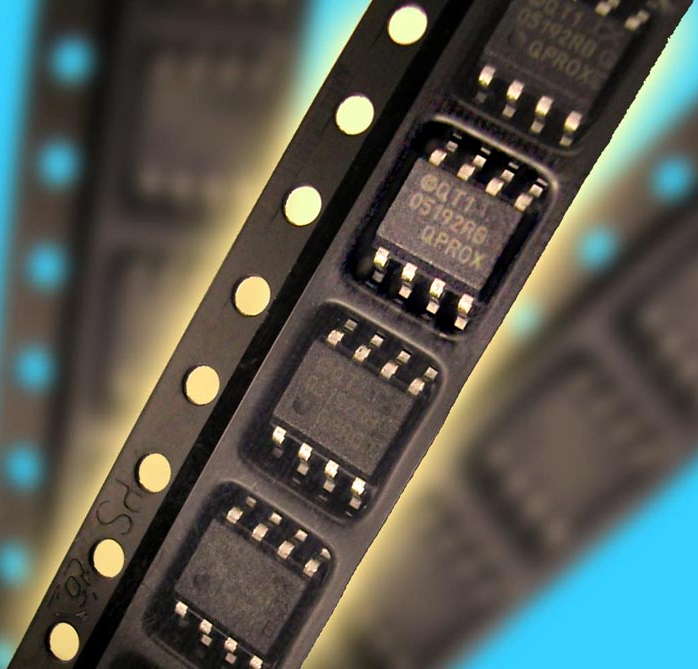

Nov 11, 2005 Designed for charge-transfer capacitive touch-sensing switch applications, QT110 series creates touch-sense fields through dielectric surfaces such as plastic or glass up to 4 in. thick. QTouch sensor ICs can also turn small objects into sensors and work through gloved hands. Along with lifetime auto-calibration and drift compensation, series features current consumption down to 10 µA and automatic adjustment to build-up of dirt, moisture, and temperature.

Jicey Precision Shims    Viroflay 78221  France
Nov 11, 2005 Alkomposit Viewtek is laminated shim with peelable layers to adjust thickness. Each shim is composed of sheets of different thicknesses on each side: 0.001 in. on one side and 0.004 in. on other. Made of stacked composite films, its marking system indicates thickness of sheets on middle section of shim. Due to transparency of composite material, operator can instantly see thickness of sheet being peeled. Sheet thickness is also identified by corresponding color.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Nov 11, 2005 Able to be used as quiet replacement for solenoid valves, selector valve No. 6,725,881 allows single input to be switched between 2-6 output ports in standard configuration. Non-selected ports are vented to atmosphere. Optional configuration, with built-in check valves and 2-6 input ports, can be switched to single output port. Non-selected ports are sealed to prevent leakage. Both are available with detents for manual operation or without detents for automatic operation.

Arcom Control Systems    Overland Park, MO 66085
Nov 11, 2005 PEGASUS VxWorks BSP Development Kit enables customers to create VxWorks based applications and features 133 MHz PEGASUS PC/104 single board computer with 32 Mb SDRAM, 16 Mb flash memory, PSU, and serial/Ethernet cable set. Board offers 10/100baseTx Ethernet port, 4 serial ports, printer port, HDD interface, battery backed clock, and PC/104 bus I/O expansion. Targeted for fanless communication systems such as communication gateways and telemetry equipment.

Universal Lighting Technologies    Nashville, TN 37214
Nov 11, 2005 Available for 1- and 2-lamp applications, Basic-12(TM) Ballasts comply with federal ballast efficiency requirements for installation into new fixtures as well as with 2010 requirements for replacement ballasts. Rapid Start units are wired identically to magnetic ballasts they replace, and mounting dimensions are identical as well.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2005 Powered by single or dual 3.8 GHz Intel Xeon processors with Intel EM64T, IntelliStation® Z Pro models support 16 GB PC2-3200 ECC DDR2 SDRAM RDIMM memory and are available with various 2D and 3D PCI Express graphics adapters. Units support 73 GB, 10,000 rpm Ultra320 SCSI or 80 GB, 7,200 rpm SATA HDDs with SMART in addition to CD-RW/DVD-ROM combo drive. Rack-mount tower system, with 6 slots and 6 bays, features integrated Gigabit Ethernet, mirroring, and IEEE 1394 communications.

Neptune Chemical Pump Co., Div. Of R.A. Industries, Inc.    Lansdale, PA 19446 0247
Nov 11, 2005 Featuring acrylic liquid end clear enough to view liquid and valve action, ARPZ is designed for use in sodium hypochlorite service or with other chemicals that off-gas at room temperature. Design minimizes internal space, eliminating areas where gas can accumulate, and all ports slope upward to vent gas through top of pump and away from diaphragm. Other features include acrylic pump head with Teflon® diaphragm, ceramic checks, and EDPM O-rings and seals.

Setra Systems, Inc.    Boxborough, MA 01719

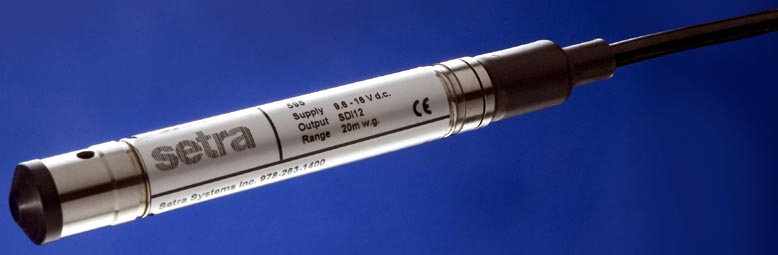

Nov 11, 2005 Manufactured in 318SS enclosure rated IP68 to 200 mWG, Model 595 features integral specific gravity compensation that provides true level reading - even when subjected to media temperature changes over 23-113°F range. Hermetic header eliminates possibility of water entering transducer. Resistant to effects of humidity, product is offered with 2-wire/4-20 mA, SDI-12 w/4-20 mA, RS485, or SDI-12 output. It comes in gauge pressure ranges from 5-40 mWG.

IBASE Technology Inc.    Taipei   Taiwan

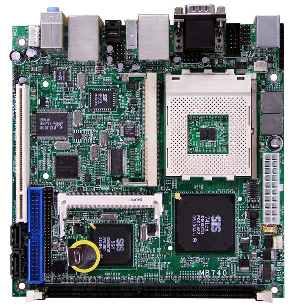

Nov 11, 2005 Integrated with SiS® 741CX chipset, MB740 Mini-ITX Motherboard comes with AMD Geode NX processor running at 667 MHz to 1.4 GHz. With dimensions of 170 x 170 mm, board incorporates 1 GB DDR SDRAM, 10/100 Ethernet, Gigabit Ethernet, Serial ATA, CRT, USB 2.0, 1394, SPDIF, and PCI expansion slot. It is suited for embedded applications requiring silent operation and without active cooling such as POS, kiosk, gaming systems, and multimedia applications.

JP Sercel Associates, Inc.    Manchester, NH 03102

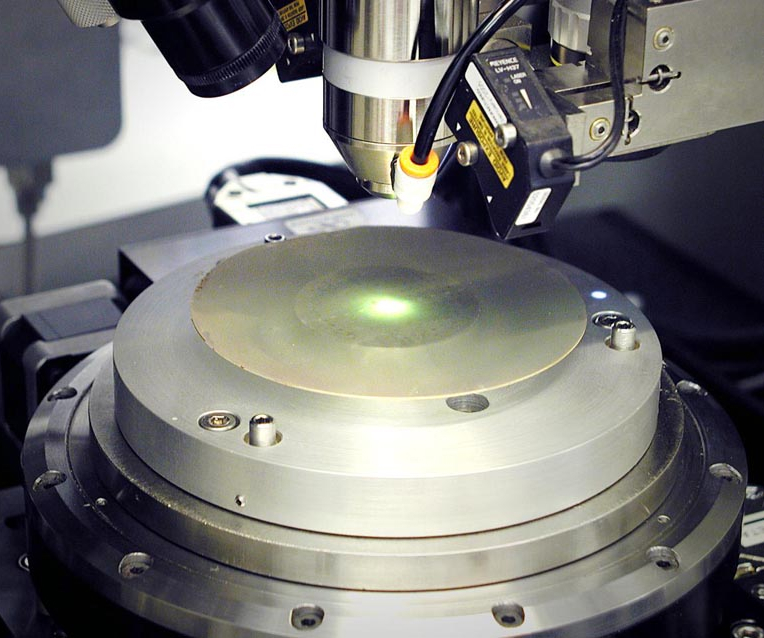

Nov 11, 2005 Tolerant of wafer warp and bow, ChromaDice(TM) UV diode-pumped solid-state (DPSS) laser system produces well-defined chips with consistently narrow cuts as small as 2.5 microns. Accuracy performance is true, unmapped position radius of 2 microns over 100 x 100 mm square area with stage orthogonality of better than 2 arc sec. Within 60 x 42 in. footprint, self-contained machine incorporates air-cooled laser, motion control, beam delivery, and video inspection.

Kontron Modular Computers GmbH      Germany
Nov 11, 2005 Without requiring a PCI or AGP slot, RoHS-compliant CRTtoLCD-5 assembly converts analog RGB or DVI input signals into digital TTL or LVDS signals for TFTs. Integrated Genesis gm5621 chip provides resolutions up to SXGA. Able to process input resolutions up to UXGA and scale image to appropriate size for panel, assembly is available with FLEX32 interface for control of 18-bit TTL flat panels or JILI30 interface for control of single- and dual-port LVDS TFTs up to data width of 2 x 24 bit.

MRC Bearings    Lansdale, PA 19446

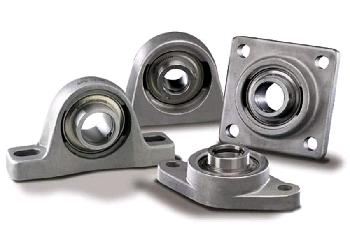

Nov 11, 2005 Offered in heavy-duty cast iron or extreme-duty cast stainless, corrosion-resistant Marathon® Bearings feature dual-sealing system to extend service life and inhibit potentially damaging contamination. Multi-function rubber seals are bonded to AISI 304 stainless steel, and sealed-for-life lubricants are USDA approved for food applications. Standard housing styles include pillow block, 2- or 4-bolt flange, or tapped base.

Weiler Corporation    Cresco, PA 18326 0149
Nov 11, 2005 Tiger Disc(TM) enables operator to trim away back of disc up to 3/8 in. from original diameter, exposing more flap abrasive. By trimming backing material away, flap length is extended, allowing users to access areas such as right angles and irregular shapes, or grind on-edge without changing tools. Non-marking backing will not damage workpiece, minimizing re-work and scrap.

Analog Devices, Inc.    Norwood, MA 02062-9106
Nov 11, 2005 Designed for handheld consumer electronics, ADXL330 features 3-axis sensor structure integrated with signal conditioned analog voltage outputs on same die. It is housed in 4 x 4 x 1.45 mm plastic SMT package and based on iMEMS® Motion Signal Processing(TM) technology. With ±2 g range, product is capable of measuring static acceleration of gravity for tilt-sensing applications as well as dynamic acceleration resulting from motion, shock, or vibration.

Midwest Motion Products    Watertown, MN 55388

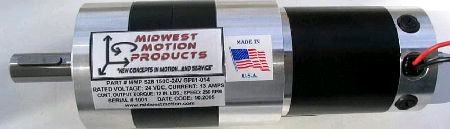

Nov 11, 2005 Accepting any 24 Vdc source including battery power, Model MMP-S28-150C-24V GP81-014 requires 13.4 A at 24 Vdc to generate full load output torque. It produces 8.5 Nm continuous torque at 250 rpm and 90.0 Nm peak. Rated IP54 for operation in harsh environments, gearmotor measures 3.2 in. dia x 8.5 in. long and has keyed output shaft of 19 mm dia x 40 mm long. Mounting is accomplished with 4 face mount M6 threaded holes, equally spaced on 65 mm dia BC.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Nov 11, 2005 Utilizing PowerTrench® MOSFET technology, high-side control MOSFET Model FDS6298 and low-side synchronous MOSFET Model FDS6299S optimize space in notebooks using Intel Mobile Voltage Positioning specifications. Chip set features low Qgd of 3 nC at VGS=4.5 V for fast switching, as well as Qgd/Qgs ratio of less than 1 to limit potential for cross-conduction losses. As matched pair, units are also suited for high current POL converters in high-end communications equipment.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2005 Powered by 64-bit Intel(TM) Xeon MP processors at up to 3.00 GHz, xSeries® 366 Servers contain 3rd Generation Enterprise X-Architecture(TM) technologies that combine 4-socket SMP-capable power and Active PCI-X 2.0 expansion. Units feature up to 64 GB PC2-3200 ECC DDR2 SDRAM, 6 Active 64-bit/266 MHz PCI-X 2.0 slots, and integrated Broadcom 5704 dual-port 10/100/1000 Gigabit Ethernet. Servers are suited for database, ERP, CRM, and in-house-developed applications.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2005 Powered by Intel dual-core Xeon MP processors up to 3.00 GHz with 2 x 2 MB L2 cache, xSeries 460 Servers feature up to 512 GB PC2-3200 ECC DDR2 SDRAM, 6 Active 64-bit/266 MHz PCI-X 2.0 slots, integrated Broadcom 5704 dual-port 10/100/1000 Gigabit Ethernet, and XA-64e third-generation EXA chipset. Units support 32- and 64-bit applications on same platform. Six 2.5 in. hot-swap bays allow flexible installation of HDDs, supporting up to 440.4 GB internal data storage.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2005 Offering choice of xSeries 460 servers, Datacenter Solution provides stand-alone and cluster server system configurations. High Availability Offering delivers fully configured, Datacenter-certified, pre-installed hardware and software operating system on 4- to 32-socket server configurations. Datacenter Scalable Offering provides Windows Datacenter stand-alone server solution that scales from 4- to 32-socket without Datacenter-certified end-to-end solution.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Nov 11, 2005 Domino® Unified Communication v1.2.3 stores voice mail, email, and fax messages in one location for access via devices such as telephones (analog and VoIP based), PCs, mobile phones, pagers, PDAs, and browsers. Included notification features alert subscribers in different ways when they receive message that meets certain criteria. Along with debug tracing toggle, software offers support for IBM Lotus Notes® and Domino 7 with presence awareness and follow up.
