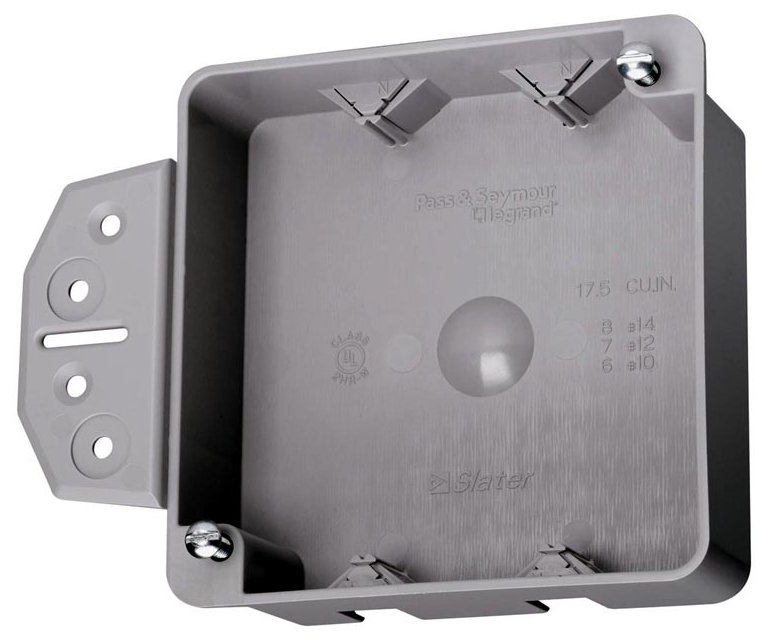

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 21, 2005 Measuring 4.25 x 4.25 x 1.25, Shallow 4-Inch Square Box is classified for 2 hr wall fire resistance and suited for masonry-furring strip style walls. Dual No. 8 screws facilitate RC1, RC2, or 4SBC mud ring installation, while 4 Auto/Clamps® eliminate need for separate cable clamps. Height Site alignment guide helps center device on reference mark. With 18 in.³ volume, product accepts 9 No. 14, 8 No. 12, or 7 No. 10 wires and can be used with ½ or 3/8 in. wallboard.

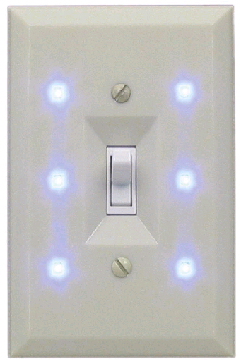

Memorytime Inc.    Portland, OR 97239
Nov 21, 2005 Wall-mounted Lite-A-Switch(TM) LED Night Light uses 6 LEDs to provide enough illumination to navigate in unfamiliar rooms. Design allows secure installation to any existing light switch or outlet plate. Available in blue, green, pink, and white, night light helps minimize energy use and injuries. In addition to hotel room, Lite-A-Switch can be installed in poorly lit halls or entranceways.

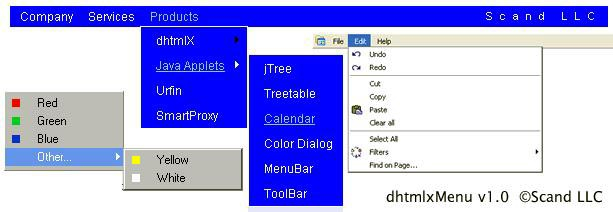

Scand LLC    Minsk   Belarus
Nov 21, 2005 Featuring cross-browser support for use on sites and web applications that run under different OS, dhtmlxMenu v1.0 lets web developers design and edit DHTML menus. Software has XML support to build menus dynamically from XML file or database, and menu appearance can be changed without requiring web page to be reloaded. Users can create pop-up or drop down menus of any configuration, and client-side API allows changing of menu state with external JavaScript code.

ELTIMA Software GmbH    Berlin   Germany
Nov 21, 2005 Offering support for Flash MX and ActionScript v2.0, SWF to FLA Converter for Mac OS lets Flash designers convert SWF files back into FLA format in one click. Mac OS tool exports whole SWF movie in FLA format and utilizes algorithms that extract all Flash objects from SWF file and store them in FLA file, which can be edited in native Flash environment. Program also permits users to change Flash objects, modify text or hyperlink, and replace sounds or images.

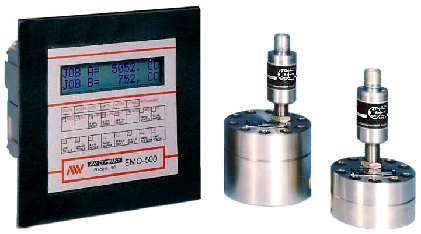

AW-Company    Franksville, WI 53126
Nov 21, 2005 Fuel Monitoring System consists of 2 JV-KG positive displacement flow meters, 1 for supply line and 1 for return line, as well as Model FEM-03A2 flow monitor that displays flow rate and net fuel consumed. Featuring all metal construction, flow meter measures flow rates as low as 4 cc/min and offers pressure rating to 5,000 psi. Remote reporting is enabled by 4-20 mA output. System is adaptable to compressors, diesel and gasoline engines, and boiler systems.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Nov 21, 2005 Measuring 0.58 mm thick with area dimensions of 4.3 x 4.1 mm, KMX Series attaches to board via 4 gull-wing terminals. Normally open, switches close with audible click, which is certified for 250,000 cycles. Units are available with or without actuator built-in to assembly, and incorporate ground pin for ESD protection. Gold and silver contact plating options are supported, and devices are RoHS-compliant. Applications include PDAs, smart phones, MP3 players, and cameras.

Automated Packaging Systems Inc.    Streetsboro, OH 44241
Nov 21, 2005 Autobag AB 145 is capable of bagging at speeds up to 45 bags/min in semi-automatic fill and seal operation. Package size changeovers can be accomplished in less than 2 min, and AutoTouch(TM) control screen facilitates access to job set-up, storage, and recall. Designed with all electronic controls in single location for fast plug-in replacement, system is suited for high productivity applications where counters, scales, and other infeeds are not required.

Gagemaker    Houston, TX 77287-7709
Nov 21, 2005 Windows-based CERTIFI client-server program helps customers manage and control gage calibration processes and documents. It automates crucial activities associated with calibration, tracking, and reporting of measurement information in manufacturing or machine shop environment. High-speed connection via USB port streamlines data input from MIC TRAC calibration center directly to CERTIFI calibration screens.

Trek, Inc.    Medina, NY 14103 9710
Nov 21, 2005 Infinitron(TM) electrostatic voltmeter with hand-held probe provides contacting voltage measurements with virtually no transfer of electric charge to or from measured object. It measures site-specific voltage during handling and processing to identify and rectify problems that could result in harmful ESD events. Measurement range is 0-±100 Vdc or peak ac at ±0.1% accuracy. Resistance greater than 10¹⁶ ohms provides infinite impedance loading and lack of charge transfer.

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404
Nov 21, 2005 Clamp-on Doppler Series DFX measures flow in pipe sizes larger than 1/8 in. and flow rates from 0.15 to greater than 30 fps. Intelligent software algorithms monitor incoming signal quality and flow meter performance, making adjustments to nullify changing liquid conditions. Digital mixer circuit is immune to measurement errors caused by electrical noise and other ultrasonic products. Systems include NEMA 4X enclosure, isolated output modules, and backlit LCD.

NetBurner, Inc.    San Diego, CA 92121
Nov 21, 2005 Based on Freescale Semiconductor ColdFire(TM) 66 MHz, 32-bit MCF5213 processor, Mod5213 is mounted onto 40-pin DIP and comes equipped with IDE, Project Manager, and fully preemptive RTOS. IDE integrates compiler, linker, and debugger supporting both C and C++. Fully static ColdFire core provides flexible power management with standby of 130 µA and full-speed operating current below 50 mA. With operating temperature of -40 to +85°C, Mod5213 performs in harsh environments.

Cobar Solder Products    Londonderry, NH 03053
Nov 21, 2005 Intended for Pb-free and N2-free processing, SAC-XM7S remains stable and active during extended heating at elevated temperatures and does not require nitrogen blanket. It is available in most common SAC-alloys, including anti-Tombstoning type, and in several powder classes.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Nov 21, 2005 Made of steel or stainless steel, CL-200-LPA, CL-300-LPA, CL-400-LPA, and CL-500-LPA feature lock that automatically engages when clamp is closed and remains locked until manually disengaged by pressing lever before opening. This safety lock prevents latch clamp from being accidentally opened by bumping handle. Available in 4 sizes with holding capacities from 700-7,500 lb, all latch-action clamps have threaded U bolt for adjustability and matching latch plate.

Sciemetric Instruments Inc.    Ontario K2K 2P5  Canada
Nov 21, 2005 Suited for small-scale deployments, QualityWorX® TSM Express provides automated storage, retrieval, analysis, and reporting of test result data for discrete manufacturing. Users can access test data from desktop to conduct data analysis, including advanced what-if analysis, and produce quality and production reports. Software includes statistical process control functionality and is scaleable to meet manufacturer's growing requirements.

MWH Soft    Broomfield, CO 80021
Nov 21, 2005 H2OMAP Scheduler module helps system operators effectively manage energy consumption with optimized pumping strategies and reservoir control. Using real-time data, program pinpoints daily pump scheduling that best meets target hydraulic and water quality performance requirements. It leverages nature-based optimization technologies, such as Particle Swarm Optimization and Genetic Algorithm, to address energy consumption and demand charges.

Network Physics    Mountain View,, CA 94043
Nov 21, 2005 Facilitating secure application delivery, NP-2000 for NetFlow appliance integrates NetFlow reporting and analysis capabilities in routers and large switches with NetSensory flow-based technology to provide details about application performance-response times. IT teams can identify applications on network and percentage of bandwidth they are consuming, users affected by performance issues, systems affected by virus or worm, and Internet usage.

Colder Products Co.    St. Paul, MN 55114
Nov 21, 2005 Utilizing dip-tube integrated with quick-disconnect coupling system, DrumQuik® Series allows safe removal of aggressive chemical media from IBCs, drums, and other rigid containers. Units ensure reliable connection of liquid lines and spill/fume-free extraction of chemicals. Natural, virgin PTFE, polypropylene, and polyethylene options assure chemical compatibility and purity. Mechanical keying and IdentiQuik(TM) RFID options prevent misconnections and track chemical inventory.

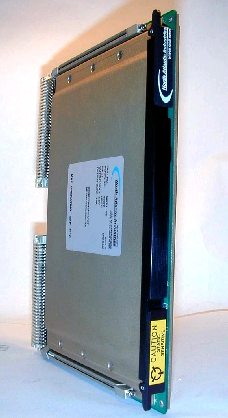

North Atlantic Industries, Inc.    Bohemia, NY 11716
Nov 21, 2005 Single card slot Model 58KS1 provides up to 75 W of output power at full load over operating temperature of -40 to +70°C. Operating from +5.0 Vdc input, unit delivers +3.3 Vdc output, 75% minimum efficiency, noise and ripple of 33 mV p-p, and output load transient recovery of 0.5 ms. Designed and manufactured to NAVSO P3641 component derating guidelines, card meets requirements of MIL-STD-461 when installed within system, and is suited for military and aerospace programs.

IOGEAR    Irvine, CA 92618
Nov 21, 2005 Connected to standard 9-pin serial port, Bluetooth Serial Adapter replaces traditional serial cables in products such as laptop computers, industrial data collection systems, and medical monitoring equipment. Plug-and-play solution requires no software and is compliant with Bluetooth 1.1 specifications. With range of up to 330 feet, adapter also supports authentication and encryption.

Panasonic Security & Digital Imaging Company / Vision System    Secaucus, NJ 07094
Nov 21, 2005 Available with 160 or 320 GB HDD, WJ-HD220 features 8 inputs along with PTZ camera control for stand-alone or satellite systems applications. It integrates on-board networking capabilities and coax control up to 3,000 ft using Panasonic VD2 for dome camera operations. Along with direct time/date and list search functions, DVR offers simultaneous live monitoring, recording, and playback capabilities; electronic zoom; and motion detection functions.
