AR Worldwide    Souderton, PA 18964
Mar 28, 2006 Models 15S5G7 and 30S5G7 are 15 and 30 W broadband amplifiers, respectively, designed for 5-7 GHz frequency range. They are suited for testing WiMax components, and have amplified signal that is virtually indistinguishable from signal generator's output. Performance enables products to be used as substitute transmitters. Since linearity of amplified signal is as strong as signal generator, there is no interference with adjacent channels.

Performance Motion Devices, Inc.    Lincoln, MA 01773
Mar 28, 2006 Windows®-based Pro-Motion® v3.0 accelerates motion system development by providing ready-to-go capabilities that can be shared by entire development team. Along with motion control features such as status and event monitoring, programmable motion shuttle, and complete motion oscilloscope, software features step-by-step axis wizard for tuning position loop, current loop, and field-oriented control motor parameters. It supports PCI bus, serial, and CANbus communications.

Multiquip Inc.    Carson, CA 90746
Mar 28, 2006 Flex-shaft BP25H back-pack vibrator is powered by 2.5 hp Honda gasoline engine and weighs 24 lb. CE compliant unit features swivel shaft connection, quick disconnect knob for shaft removal, built-in oil shut-off, and 7 steel and 4 rubber heads. Vibrator heads range from 7/8-2¾ in. dia with max length of 17¾ in. and flexible shafts range from 2-21 ft long. Engine comes with flow-through ventilation and cassette-style design.

Teknor Apex Co.    Pawtucket, RI 02861
Mar 28, 2006 Monprene® Ultra Soft Gel Series of thermoplastic elastomers features hardness from 30-60 on Shore 00 scale. MP-1238D offers 0.88 specific gravity, 300 psi tensile strength, 40 psi tensile modulus, 700% ultimate elongation, and 20 g/10 min melt index (condition C). Water-clear, haze-free products are suitable for shoe insoles, heel cups, ergonomic products, sporting goods, and medical devices.

Qosina Corp.    Edgewood, NY 11717 8329
Mar 28, 2006 Advanced polymer multifunctional ties are adaptable to different configurations and can be double wrapped or formed into multiple loops. Clear Flexible Ties Model 99912 and UV Stable Black Flexible Ties Model 99913 are available in 12 in. lengths and can form closed loops of various sizes with multiple wraps in either direction. Unused tail can be cut and reused as new tie. Reusable, releasable ties provide option for connecting tubing, cables, or as a closure.

Stahlin Enclosures    Belding, MI 48809
Mar 28, 2006 FATBOY Double Deep J Series of Enclosures features clam shell appearance, and is available in 11 sizes from 6 x 4 x 8 in. up to 20 x 16 x 17 in. with 21 configurations. Units are formulated from SolarGuard(TM) fiberglass material that ensures UV resistance. Enclosures incorporate SS latches and hinges, back panel mounts on both cover and base, and urethane gasketing. They are UL/CSA rated to Type 12, 3R, and 4X as well as IEC 60529 IP66 for protection against extreme environmental conditions.

Mazak Corp.    Florence, KY 41042 3092
Mar 28, 2006 Capable of multi-tasking, Nexus QTN 450M offers and 40 hp turning spindle with 1,327 lb-ft of torque and 12-station turret with 10 hp, 4,000 rpm milling spindle. Maximum speed on integrated spindle/motor unit is 2,000 rpm, and feeds are 1,181 ipm in X and Z axes. Additional features include max swing of 33.3 in., max machining diameter of 22.8 in., and 6.5 in. spindle bore. Tailstock provides thrust force up to 2,923 lb.

IAI America, Inc.    Torrance, CA 90505
Mar 28, 2006 Rated IP65, RSW/RMW Series RCP2 Robo Cylinder incorporate ballscrew, linear guide, and stepper motor to offer strokes from 50-300 mm. Model RCP2-RWS is 45 mm wide with load capacity of 40 kg horizontal and 19 kg vertical, while RCP2-RMW is 64 mm wide with load capacity of 55 kg horizontal and 26 kg vertical. Speed can be changed during slider/rod movement and positioning repeatability is held to ±0.02 mm.

Wire Belt Company Of America    Londonderry, NH 03053-7449
Mar 28, 2006 Flat-Flex® Shuttle Conveyor is designed to gap product and turn its direction of travel through 90°. It is suitable for transferring of product from narrow size belt to wider belt or vice versa, depending on specified stroke of shuttle. Conveyor is offered with Flat-Flex stainless steel belting and variable speed electric motor drive, with other drive options available.

Powerstax plc    Farnborough, Hants GU14 0NR  United Kingdom
Mar 28, 2006 Housed in 1U high, 19 in. rack-mount package, configurable Model A3600 offers combinations of single or multi-output, regulated DC power from universal input main supply of 85-264 Vac. Input and output connection may be specified at front or rear and may be cable entry, connector, or safety stud as required. With up to 18 isolated and adjustable outputs, it is possible to individually margin, enable, parallel, or stack output to provide millions of power variants.

Larson Davis, Inc., A PCB Group Co.    Provo, UT 84601
Mar 28, 2006 Available in Type 1 or Type 2 versions, Soundtrack LxT(TM) provides sound measurement for compliance and worker noise exposure monitoring, and offers way to manage route or task-based workplace noise surveys. With operator route prompts and digital voice annotation, surveys can be done by operators at all skill levels. Optional integrated real-time 1/1 and 1/3 octave filter performs frequency band analysis instantly with no step-through required.

Squid Ink    Spring Lake Park, MN 55432
Mar 28, 2006 Using shared-wall technology, PZ/4 Series III offers up to 256 addressable jets per print head, and is suited for printing bar codes, logos, and other alphanumeric on corrugated cases. System produces up to 1.4 in. per print head, providing max print height of 5.6 in. Users can run up to 4 printheads from 1 controller. ImageMaster® PC software provides complete control of Ethernet connectivity, WYSIWYG message design, message storage, and message retrieval.

Cognex Corp.    Natick, MA 01760 2059
Mar 28, 2006 Checker(TM) 101E directly accepts encoder signals, eliminating need for PLC when tracking and rejecting parts on variable-speed production lines. If inspection is not required, Checker can be used to detect and track parts or webs for process control. Shift register is automatic, enabling unit to accurately track up to 4,000 parts between inspection and rejection point. During operation, unit acquires and processes over 500 images/sec.

Megger    Dallas, TX 75237-1017
Mar 28, 2006 Base model, MIT510, comes with 5 pre-programmed test voltages from 250-5,000 V and measures to 15 TW on digital scale. Adding to previous model's capabilities, MIT520 offers ability to step up voltage in 10 V increments from 50-1,000 V and 25 V increments beyond 1,000 V. It also includes pass/fail alarm, various tests, 32k data storage, and RS232 or USB downloading capabilities. Also available, MIT1020 adds 10,000 V range and ability to measure to 35 TW on digital scale.

Toshiba America Information Systems, Inc.    Irvine, CA 92618-1697
Mar 28, 2006 Suited for security applications, IK-DP30A speed dome is optimized to track activity with its 360° continuous pan rotation, variable speed scans, and 92° tilt. Quick-connect, snap-in dome drive requires minimal connections and offers fully programmable operation with 64 presets and RS-422 connectivity. IR sensitive with day/night capabilities effective down to .01 Lux, RoHS-compliant unit features 480-line horizontal resolution, 18x optical zoom, 12x digital zoom.

Flowserve Corporation    Irving, TX 75039
Mar 28, 2006 Featuring Precision Face Topography(TM) and wavy face seal design, QBQ LZ is suited for pumps in light (0.40-0.60 specific gravity) hydrocarbon service at vapor pressure margins from 5-50 psi. It addresses problem of vaporization by altering temperature and pressure dynamics on seal faces, and satisfies all API 682/ISO 21049 design and qualification test requirements. Bi-directional product may also be used for high-pressure pumps above 300 psi at any vapor margin.

CGTECH    Irvine, CA 92618
Mar 28, 2006 Running under Windows and UNIX operating systems, VERICUT® v6.0 creates CNC probe programs and inspection sequences. Users can view and configure multiple setups in single session, as well as simulate machines with multiple synchronized tools, spindles, and auxiliary attachments. Tool manager simplifies NC program optimization, while Model Export option outputs features where possible and synthetic features when individual features are not possible or desirable.

International Distribution Alliance, Inc    Rockford, IL 61109

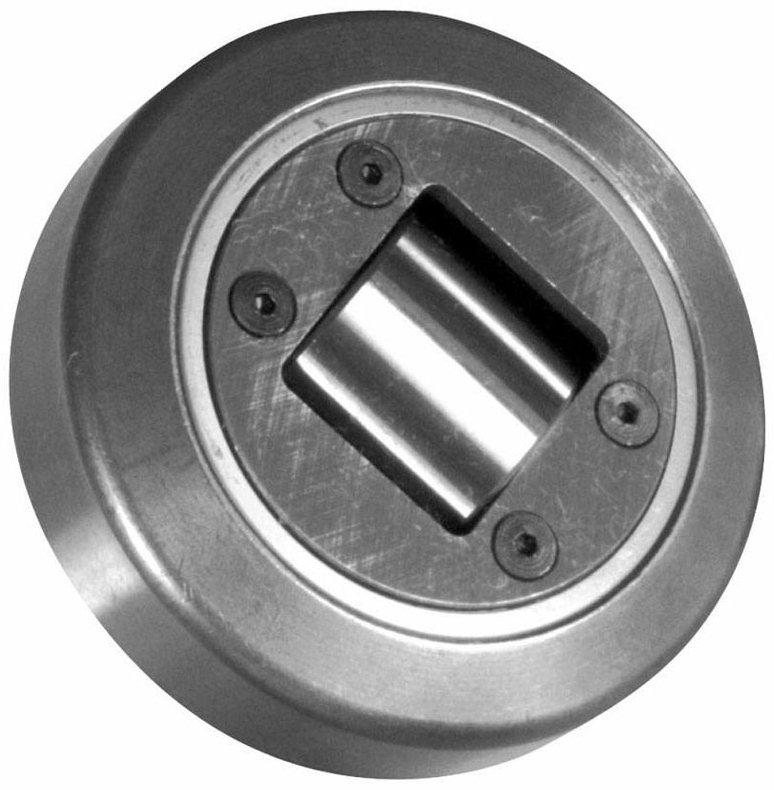

Mar 28, 2006 Consistent with industry standards, HeavyD(TM) bearings are constructed of case-hardened steel and handle radial and axial loads up to 40,000 lb. Products come in 11 sizes for 2 fixed and adjustable central axial roller bearing types. Suited for material handling applications, products offer construction that combines bearing, matched profile steel rails, flexible flange plate, and rail clamps. Product may also be used in storage and retrieval systems.

Metalcraft, Inc.    Mason City, IA 50401 1468
Mar 28, 2006 Able to be removed or repositioned without leaving messy residue, EZ-Peel Polyester Labels are suited for reusable shipping containers, inventory shelving, work-in-process applications, or any application where items are subjected to repeat labeling. Small tab at one end has no adhesive, enabling label to be easily lifted, grabbed, and peeled off.

Lawson Products, Inc.    Des Plaines, IL 60018
Mar 28, 2006 In addition to all-steel gearing system, The Deuce is designed with 15° off-set head that eliminates "knuckle busting" during use. Product works with metric and fractional sizes, lending to decreased inventory. Construction is of heavy-duty chrome vanadium steel with mirror finish that facilitates clean-up.
