O&O Software GmbH    Berlin 13507  Germany
Apr 10, 2006 RescueBox v4 software suite for professional-grade data recovery includes bootable Recovery CD and consists of UnErase v4, FormatRecovery v4, and DiskRecovery v4. UnErase v4 rescues deleted files from intact file systems. Data on mistakenly reformatted hard disks can be recovered using FormatRecovery v4. DiskRecovery v4 enables recovery of files whose directory and file information have been either deleted or overwritten.

Garmin International, Inc.    Olathe, KS 66062
Apr 10, 2006 Available in Standard, Traffic, and Radar/Traffic models, GMX 200 multi-function display includes 640 x 480 pixels display, rotary knob for map scale changes, preloaded world terrain and hydrography data, and Garmin Base Map. Traffic version supports interfaces to Garmin's TIS capable transponders and ADS-B transceivers, and connects to select TCAS I and TAS systems. Radar/Traffic model supports traffic interfaces and can be interfaced with GWX 68(TM) digital weather radar.

Binder-USA    Camarillo, CA 93012
Apr 10, 2006 Featuring M12 interface, 825 series D-coded connector system meets Category-5 performance requirements. It is available with straight and right-angle male plugs, pre-wired front- and rear-mount female sockets, and female sockets with DIP solder contacts. Along with M12x1 threaded coupling system, product features full metal housing for 360° shielding and D-coding that prevents connector from being mated with A-coded connector used in sensor applications.

Technology Group International    Toledo, OH 43604
Apr 10, 2006 Integrating with Microsoft Outlook and MapPoint, Enterprise 21 v6.5 provides user specific dashboards with integrated DSS reporting, customized graphs, drilldown capabilities, and export to Excel, HTML, or e-mail. It includes audit tracking for regulatory compliance, trending of inventory levels, and WMS functionality for RF environments. CRM functionality is provided for direct marketing, prospecting, and lead generation.

Th. Wortelboer B.V.    Malden NL 6580 AA  Netherlands
Apr 10, 2006 Providing clamping range from ½-4 in. pipe diameter, manually operated Model PBM-4 can bevel up to 17 mm in one pass. It requires only 40 seconds to make 30° bevel on duplex 4 in. steel pipe with 13 mm wall. Users can change from one size pipe to another without changing or replacing insert holders. Heavy-duty, self-centering prism clamp holds pipe firmly in place. Machine is suited for offshore construction, shipbuilding, and pipeline construction.

Vicor Corp.    Andover, MA 01810 5424
Apr 10, 2006 With input range of 180-375 V, Micro DC-DC Converters include two 50 W models rated 3.3 and 5 Vout, and five 75 W models at 12, 15, 24, 28, and 48 Vout. Units have power densities up to 90 W/cu-in. with efficiencies up to 90%. Measuring 2.28 x 1.45 x 0.5 in. with above board height of 0.43 in., RoHS-compliant modules are suited for designing off-line power systems for industrial and process control, distributed power, medical, ATE, and communications applications.

Cementex Insulated Tools Co.    Burlington, NJ 08016
Apr 10, 2006 Basic Electrician's Kit consists of 8 pieces, all double-insulated and certified for use to 1,000 Vac/1,500 Vdc. It comes in custom soft briefcase with slot for each tool, including 9 in. Lineman's Pliers, 8 in. Chain Nose Pliers, 7¾ in. Hi-Leverage Curved Pliers, and 7 5/8 in. Wire Stripper. Three screwdrivers include ¼ x 4¼ in. Mechanics Tip, 3/16 x 6 in. Cabinet Tip, and No 2 x 4 in. Phillips, all with cushion grip handles.

WAGO Corp.    Germantown, WI 53022
Apr 07, 2006 WAGO-I/O-SYSTEM 750 Series includes fieldbus couplers for CANopen, Modbus, and Ethernet; digital I/O modules; analog I/O modules; and special function modules such as serial communication modules. Modules feature 2, 4, or 8 channel granularity in 12 x 64 x 100 package size, and support applications that typically reside outdoors, such as pump stations, electrical sub-stations, and temperature controlled containers.

Huron Technologies, Inc.    Leslie, MI 49251
Apr 07, 2006 Model EZR324 semi permanent mold release agent provides semi-permanent molded release performance while promoting bonding to molded rubber-metal inserts. Water based agent is suited for EPDM and natural rubber, and is available in 5 gal pails, 55 gal drums, and 275 gal totes.

StockCap    Arnold, MO 63010
Apr 07, 2006 Compliant with ASTM, MIL, and NAS standards, polyethylene end caps are suited for protecting tube ends during shipping. They provide snug friction grip for positive seal in low-pressure situations, and are available in more than 27 sizes.

Value Engineering Alliance, The    Cambridge, MA 02139-4772
Apr 07, 2006 Delivered ready to install and operate on Pentium 4 PC running Windows XP, SmallFrEYE(TM)PC is configured with appropriate Firewire camera/lens/lighting combination and, depending on customer requirements, outfitted with cards that support computer-controlled illumination, I/O, and networking. Primary modules include part detection; package location; 2D BGA and chip scale packaging pad inspection; pattern recognition; data matrix and 1D bar code decoding; and OCR/OCV.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Apr 07, 2006 DIN rail-mount HMM.1 series, measuring 4.2 mm wide, accepts PTC jumpers and allows for 6 terminal blocks to be mounted in 1 in. of panel space. Jumper design enables connection of adjoining or alternating terminal blocks. Accepting 24-14 AWG wire range, series features current rating of 17.5 A @ 500 V. Available types within series include single to single wire connection, single to 2 wires, 2 wires to 2 wires, double level, and associated ground blocks.

austriamicrosystems AG    Premstatten   Austria
Apr 07, 2006 With resolution of less than 1 µV and linearity error below 0.1%, offset-free Models AS8500/AS8501 are capable of collecting variety of measurements that can be displayed in form of voltage or resistance values. Data is fed to programmable preamplifier via chopper circuitry, then transmitted to 16-bit A/D converter, before being offset-corrected in digital area. Data is transferred to external microprocessor via serial interface, where sampling rates up to 16 kHz are obtained.

Zippertubing Co.    Los Angeles, CA 90061 0129
Apr 07, 2006 Manufactured from flexible PVC, D-Track wrap around jacketing features external closure system for optimal cable fill rates and protection against outside contaminants. Single-piece construction has no sharp edges to damage wires during cable assembly process, and wrap around or side entry allows for modular cable design. Expansion feature allows for cable growth as design changes occur. Product comes in sizes for 3/8 in. dia and up cable bundles.

EXAIR Corporation    Cincinnati, OH 45249-1621
Apr 07, 2006 Super Air Nozzle Clusters deliver blowing force suited for long distance, wide area blowoff, drying, and cooling applications. Available as clusters of 4, 7, or 12 Super Air Nozzles, products provide blowing force of 3.2, 5.7, and 9.8 lb at full pressure of 80 psig. Aforementioned clusters consume 56, 98, and 168 scfm, respectively, and serve industrial applications where temperatures reach 158ºF. Attached to aluminum body, nozzles have zinc aluminum alloy construction.

Pass & Seymour/Legrand    Syracuse, NY 13221

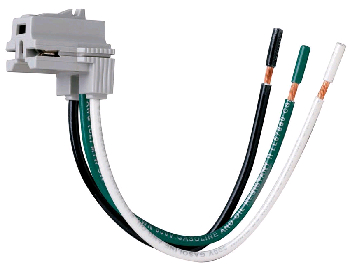

Apr 07, 2006 Using 6 in. stranded or solid pre-stripped wires, polycarbonate PlugTail(TM) Connector provides right angle crimped and welded contacts, so wire leaves housing at 90° angle. At rough-in, user splices connector into box, and at device out, user snaps in receptacle and mounts it in box. Saving 3/8 in. of depth, from back of tail to back of box, connector is suited for shallow depth raceway applications or tight box fill situations.

NVision, Inc.    Southlake, TX 76092

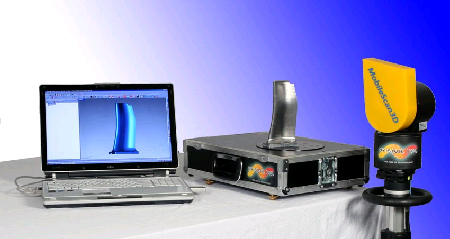

Apr 07, 2006 Collecting measurements at 30,000 points/sec, 3D MobileScan HD provides point spacing of 0.001 in. and accuracy of ±0.0005 in. Sensor has 2-axis servo-controlled swivel head that is integrated with turntable. Movement of 3 axes is programmable, allowing automation of measurement strategies. Connecting to notebook computer, scanner uses Geomagic inspection software, which automatically processes scan data from physical part to generate polygon and parametric surface models.

On Demand Machinery    Elizabeth, NJ 07206

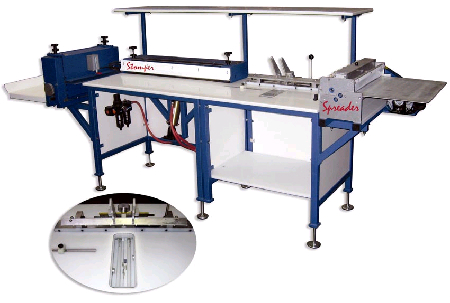

Apr 07, 2006 Consisting of casemaker, sticker, and smasher, ODM System can produce over 1,000 books per day. With built in light box, user does not need to use side guide when aligning pre-printed covers. User centers title on scribed line and type lines up perfectly on spine. Casemaker can produce 120-200 covers/hr with minimum open size of 5 x 8 in. and max open size of 18 x 30 in.

Control Chief Corp.    Bradford, PA 16701 0141
Apr 07, 2006 Providing real time control and tracking, Train Chief® II locomotive remote control system consists of transmitter worn by operator and receiver mounted on equipment. Weighing less than 6 lb, transmitter is designed to mimic controls located in cab and provides secure, coded radio communications at more than 3,500 ft without repeaters. Receiver control cabinet measures 30 x 20 in. and is designed around Allen-Bradley SLC 500 PLC technology.

ERICO    Solon, OH 44139-2631
Apr 07, 2006 CADDY® PYRAMID Pipe and Equipment Support Models 50, 150, 300, and 600 consist of polyethylene foam block that absorbs shock and vibration but not water, and metal top with electro-galvanized finish that offers corrosion protection from weather and other environmental conditions. They hold up to 50, 150, 300, and 600 lb loads, respectively. Model 25 is all-plastic, 4 x 5 in. UV-rated support with sled design that holds up to three ½ in., two ¾ in., or 1 in. pipes.
