Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
May 03, 2006 Designed for medium- to high-end applications, 16-bit Model TMP91FY42FG combines flash memory of 256 Kbytes with 10-bit, 8-channel ADC; 8-channel, 8-bit timer; 2-channel, 16-bit timer; and watchdog timer. Based on Model TLCS-900/L1 processor core, device operates from 2.7-3.6 V. I/O functions include 2-channel SIO/UART, I2C interface, support for IrDA version 1.0 at 115.2 kbps, and 81 I/O ports. Minimum instruction execution time is 148 nanoseconds at 27 MHz.

Presstek Inc.    Hudson, NH 03051
May 03, 2006 Based on A3 portrait press platform, Presstek 34DI digitally images 4 plates simultaneously on-press. It utilizes ProFire Excel 16 micron laser imaging and ProFire Digital Media, which delivers 300 lpi and FM/stochastic printing. Press automatically adjusts amount of ink according to image on each plate. Process from computer file to sellable color can be achieved in less than 10 minutes, and in less than 20 sheets.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
May 03, 2006 Combining pole-mounted GPS receiver and antenna, Acutime(TM) Gold is housed in environmentally sealed, corrosion-resistant, and waterproof enclosure. Once power is applied, unit automatically tracks satellites and surveys its position to within meters. It then switches to overdetermined time mode and generates PPS output synchronized to UTC within 15 nanoseconds. Requiring less than 70 mA at 12 V, Acutime Gold operates in extreme temperatures from -40 to +85°C.

Diamond Ground Products Inc.    Newbury Park, CA 91320
May 03, 2006 Cryo-T Thoriated Tungsten Electrodes are cooled with nitrogen gas to -300°, then slowly reheated back to room temperature, producing dense structure and increased surface area that provides stress relief and dimensional stability. They offer long tip life and consistent welds resulting from crisp starts.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
May 03, 2006 Providing frequent updates on corrosion rates in user's system, Ultracorr® ultrasonic monitoring system features non-intrusive sensor attached to exterior of pipe/vessel surface. Sensors are electronically tagged and measurements stored in hand held, portable data logging instrument. Analysis software provides plots of thickness versus time that are augmented with corrosion rate calculator permitting detailed event analysis.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
May 03, 2006 Able to miter up to 45° left and 60° right, KMT Model H230 permits angles to be cut without swinging workpiece out across work floor. It is offered in 3 configurations: manual, AutoCut with 115 and 230 fpm blade speeds, or AutoCut with infinitely variable blade speeds from 65-320 fpm. All models feature 1 hp TEFC motor, ¾ in. x 8 ft 3 in. blade with solid carbide blade guides and full guarding; enclosed transmission; and clamping, adjustable vise.

VX Corporation    Palm Bay, FL 32905
May 03, 2006 VX tool takes any True Type font on PC and transparently converts it into vector format for 3D modeling. Users select desired font and then type text straight into VX Sketcher. Various tools produce solid or surface geometry from text, and program does not require sketch to stay planar, as it can be wrapped around any surface to ensure that extruded text is held normal to surface if required. Draft relief can also be applied.

Informative Graphics Corp    Scottsdale, AZ 85254
May 03, 2006 Brava!® Enterprise for EMC Documentum v5.3 provides unified and universal viewing, annotation, and secure publishing for enterprise. It centralizes content viewing for hundreds of office and engineering formats, including TIFF and PDF, and is fully integrated with Documentum's unified platform. Program features Save-to-PDF and content redaction, and can publish CSF files using Visual Rights(TM) document-level security controls, extending document security beyond firewall.

Saelig Co., Inc.    Pittsford, NY 14534
May 02, 2006 With software APIs, tools, and tutorials, RTG001 programmable USB 2.0 connected fast DAQ and FPGA processing system enables users to quickly implement out-of-the-box FPGA designs. It offers 2 channels of 210 MS/sec 12 bit A/D conversion, 2 channels of 160 MS/sec 16 bit D/A conversion, and 8 user programmable digital I/Os combined with 1.5 M gate FPGA. Each system is delivered with USB-connected FPGA/DSP hardware of choice, USB cable, I/O cables, and power supply, and documentation.

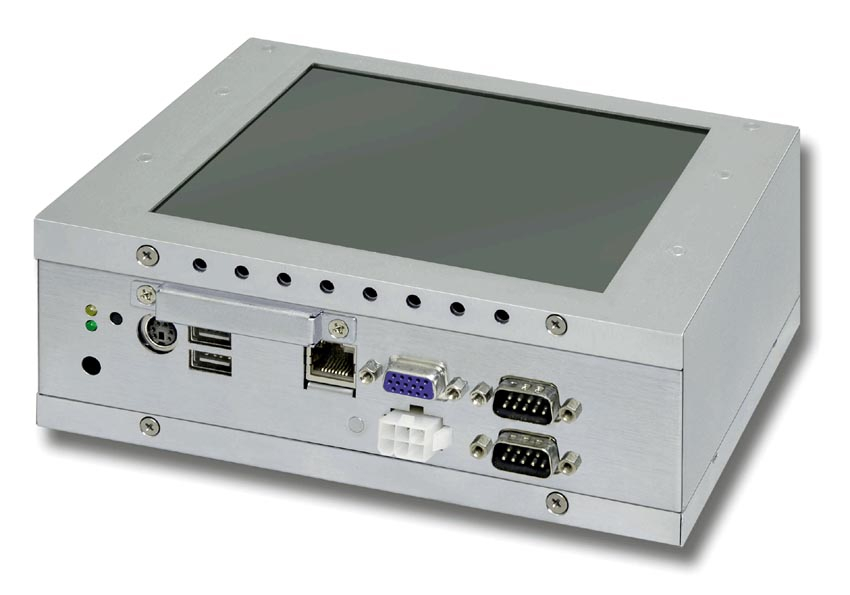

Ampro Computers, Inc.    San Jose, CA 95138-1007
May 02, 2006 ReadyPanel(TM) 6.5 Industrial Panel PC includes EPIC form factor Pentium® compatible SBC, 6.5 in. color flat panel display, and 4-wire resistive touch screen integrated into compact enclosure. Application-ready Windows® CE 5.0 appliance for HMI environments can be configured with up to 1 Gb DRAM memory and Compact Flash options up to 2 Gb. It provides connectors for access to USB ports, Ethernet port, dual serial ports, CRT video, PS/2 keyboard, mouse port, and audio.

MRK, Inc.    Lexington, NE 68850
May 02, 2006 Self-contained, trailer-mounted Mobile Rotary Kiln allows soil at rig sites, fuel dumps, and gas/service stations to be cleaned up efficiently. It operates through max temperature of 2,520°F and can process 10-15 tons/hr. Available in 33 and 48 ft versions, kiln utilizes infrared radiation and can produce cement clinker and various densities of expanded clay. Extreme temperatures enable disposal gasses, residues, and toxins to be eliminated or encapsulated in calcium.

Marktech Optoelectronics    Latham, NY 12110
May 02, 2006 Housed in 2.9 x 2.8 x 1.3 mm SOT23-6 package, Model TB62752AFUG powers multi-segment white LEDs used to backlight color LCD panels in small portable devices such as cell phones and PDAs. High output power allows for up to 800 mW LED loading, while dedicated surge-detection pin minimizes need for external components. Device operates with input voltages from 2.8-5.5 V and achieves power efficiency in excess of 80% during 7-segment white LED operation.

OEM Controls, Inc.    Shelton, CT 06484
May 02, 2006 Product suite, comprised of Tracking, Capture, Delivery, and Managing modules - captures detailed job site information, transmits it to secure storage, and integrates it with back office systems for use in scheduling and billing. Capture module is PDA that accepts bar code or IR data input. Operating independently of user's network, software suite facilitates job tracking, labor and resource planning, and financial forecasting.

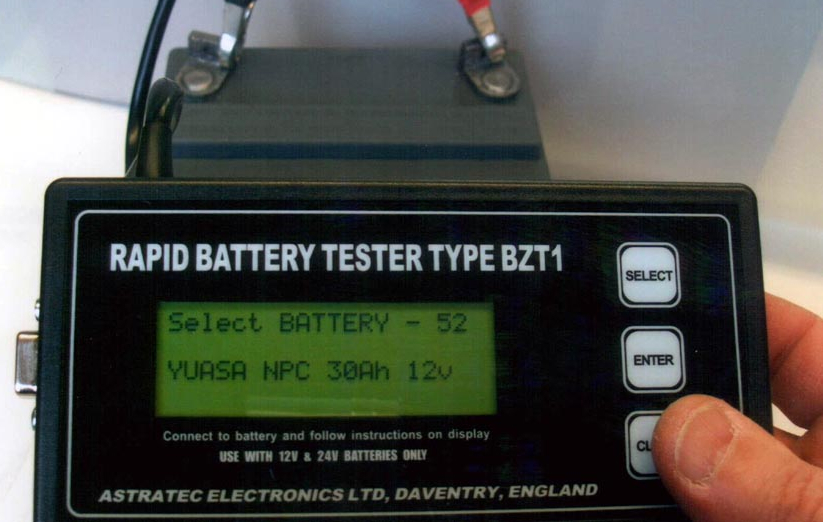

Astratec Electronics Ltd    Daventry, Northants NN11 8RJ  United Kingdom
May 02, 2006 Hand-held BZT1 uses voltage and battery impedance analysis to estimate battery performance. Standard tester works on 12 and 24 V batteries, with other voltages available. Unit saves up to 40 tests that can be downloaded to printer or PC spreadsheet. Suited for field service applications, operation requires user to connect unit to selected battery's terminals; test is automatic. Self-adhesive markers are available for recording data on battery.

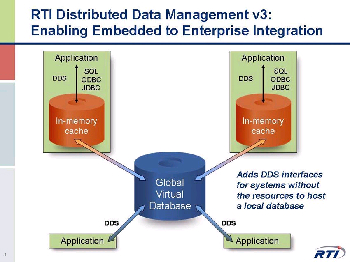

Real-Time Innovations, Inc.    Santa Clara, CA 95054
May 02, 2006 RTI Distributed Data Management v3 includes Oracle TimesTen In-Memory Database 6.0, supports remote database access via RTI Data Distribution Service 4.0, and includes support for Java Database Connectivity. Applications can use DDS to publish data into database and be notified of updates and changes. Support for DDS and SQL provides users with standards-compliant mechanism for sharing data across enterprise and embedded systems that lack resources to host local database.

Blue Water Mfg.    Chanhassen, MN 55317
May 02, 2006 As component in SafetyRail 2000 Guardrail System, Perma-Line eliminates need to perform monthly inspection and replacement of torn and worn out plastic flagging. Product exceeds OSHA regulations and features self-supporting, no drill installation. Setup requires users to slide 39 in. high stanchions into base and string warning line cable with galvanized metal flags through stanchion connection. System remains in place without piercing or penetrating roof.

Cablecraft Motion Controls    New Haven, IN 46774
May 02, 2006 With ball and body constructed of stainless steel, SSPM/SSPF Series features injection-molded, reinforced nylon race design and self-lubricating characteristics. They suit motion transfer applications requiring corrosion resistance, low friction, low moisture absorption, high wear resistance, and/or wide operating temperature ranges. Operating in temperatures from -30 to +220°F, products are also offered in studded and right- or left-handed versions as well as custom assemblies.

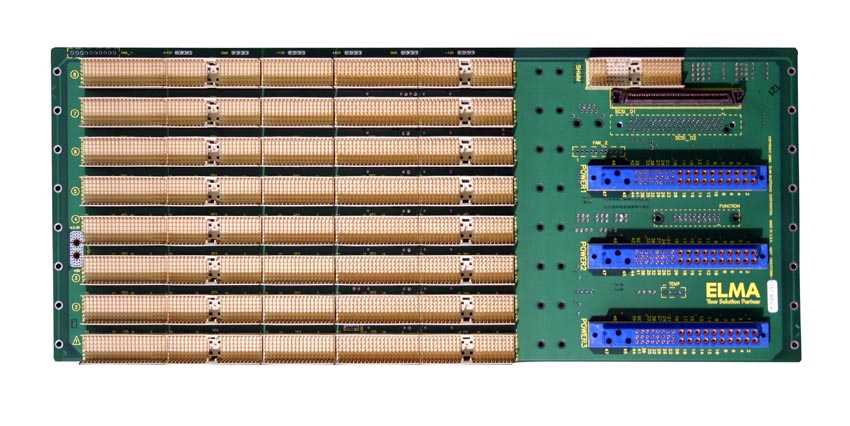

Elma Bustronic    Fremont, CA 94538
May 02, 2006 Low-Profile PICMG 2.16 Compact Packet Switching Backplane is 9U long when horizontally mounted in chassis. Pluggable 47-pin power connectors are in extra 3U of length, allowing hot swapping of power supplies into same monolithic backplane. Backplane is available in Star, one fabric slot, and Dual Star, two fabric slot, versions.

Sugatsune America, Inc.    Carson, CA 90746
May 02, 2006 Drawer Slide Industrial Hardware line is offered in positive stop, non handed, and quick disconnect options with 1- or 2-way travel choices. CBL series 304 SS slides feature corrosion resistance, added ball bearings in inner ball cages, custom locking options, extended lengths up to 70 in., and load ratings to 1243 lb. ESR 4513/3813 SS drawer slides have front end disconnect and Hold In detent features while MR Aluminum series is suited for small stroke applications.

SVF Flow Controls, Inc.    Santa Fe Springs, CA 90670
May 02, 2006 Utililizing low friction technology, Aero2 rack and pinion actuator is designed for universal operation of ¼-turn valves. Core components are stainless steel, baked epoxy, and hard anodized aluminum, preventing corrosion for exterior applications or where Chloride solutions, Oxidizing Acid, and Alkaline Media are present. Direct-mount actuator includes high-density bearings, bi-directional stroke adjustment, NAMUR manifold, and Versa view continuous indicator.
