Bison Gear & Engineering Corp.    St. Charles, IL 60174

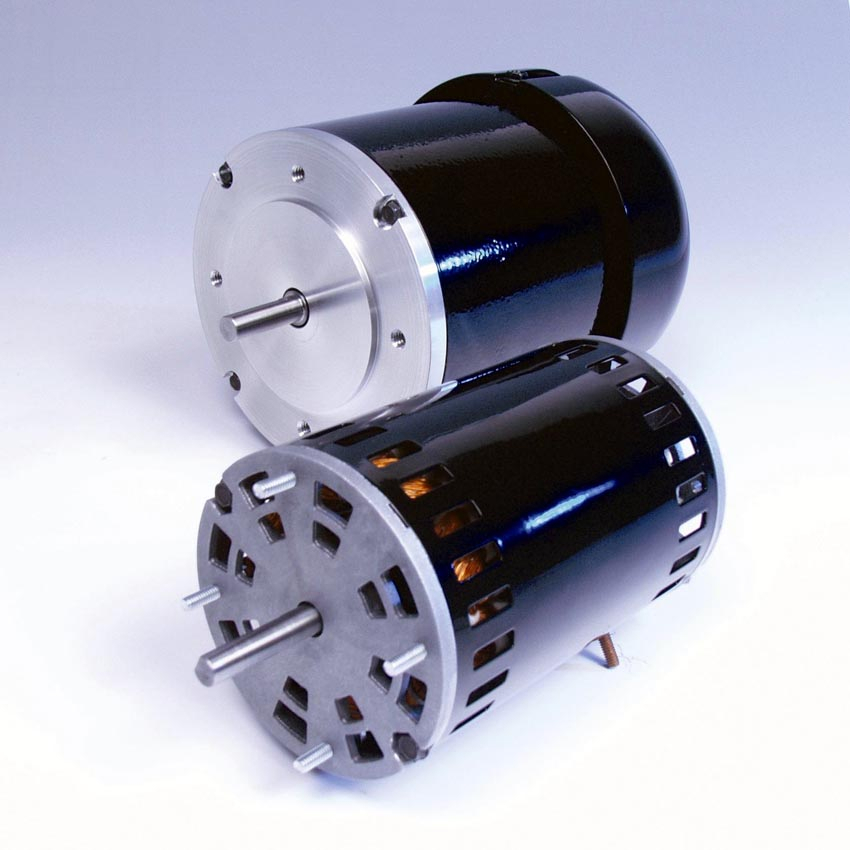

Apr 19, 2006 AC motors, available with several winding configurations, come in 34 and 49 frame. With 3.3 in. OD, 34 frame has power range of 1/80-1/10 hp and ½ in. standard shaft diameter. Also featuring ½ in. standard shaft diameter, 49 frame has 4.9 in. OD and power range of 1/10-¼ hp. Products are offered in PSC, split phase, 3-phase, and 3-phase inverter styles.

Linear Technology Corp.    Milpitas, CA 95035
Apr 19, 2006 Monolithic synchronous buck regulator LTC3415 delivers up to 7 A of output current at 0.6 V. PolyPhase® operation enables up to 12 units to be run together with interleaved phases. Product features input voltage range of 2.5-5.5 V, 450 µA quiescent current, 1.5 MHz nominal adjustable frequency, and ±1% reference accuracy. It is available in 38-pin, 5 x 7 mm QFN package, and is suited for single cell Li-Ion battery and point-of-load applications.

CLARE INSTRUMENTS US INC    Tampa, FL 33634

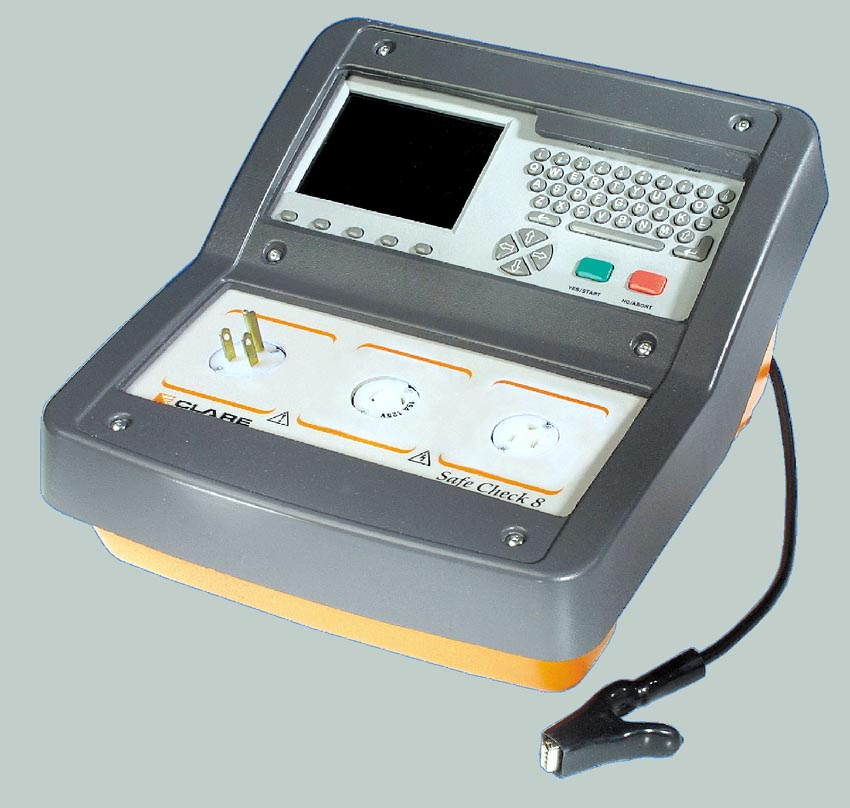

Apr 19, 2006 SafeCheck 8 electrical safety tester allows operators to program tests for ground bond, insulation, flash, short test, leakage, and run tests, or select from pre-programmed tests for Class I/II electrical equipment, extension cords, and locking power cord tools. Equipment/tools are automatically sequenced through test routine, where results are recorded. Capable of holding 5,000 test results, unit can also be used with barcode reader to scan ID number or pre-programmed test routines.

Grace Engineered Products, Inc.    Davenport, IA 52807
Apr 19, 2006 Inside-Outlet(TM) combines both external and internal control panel receptacle in one assembly, and makes TEST/RESET functions available to maintenance personnel from outside of control panel. UL 4/4X, CSA, and CE certified utility receptacle features clear cover providing Nema 12/4 rating when closed. Options include Nema 4X, Nema 4X 304/316 SS, and circuit breakers.

Kerk Motion Products, Inc.    Hollis, NH 03049
Apr 19, 2006 RGS 10000 Slide handles axial loads of up to 100 lb and speeds of more than 60 ips. Self-contained slide is both backlash and maintenance free. It is suitable for applications such as transportation doors actuation, materials handling, CNC routers, industrial packaging, automated cutting and slitting, and large X-Y tables.

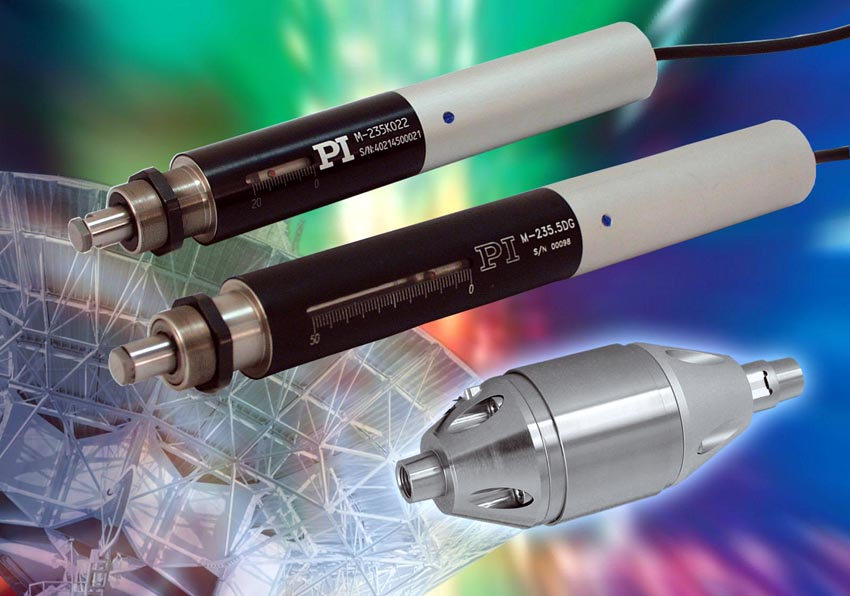

Physik Instrumente (PI)    Auburn, MA 01501
Apr 19, 2006 Based on PiezoWalk® drive principle, NEXLINE® all ceramic, high-force, high stiffness linear actuators provide pushing/holding forces to 600 N and resolution of <0.1 nm. When at rest, zero-drift automatic locking maintains position to nanometer level precision with no heat dissipation or electrical power consumption. Actuators are available with standard 20 mm travel.

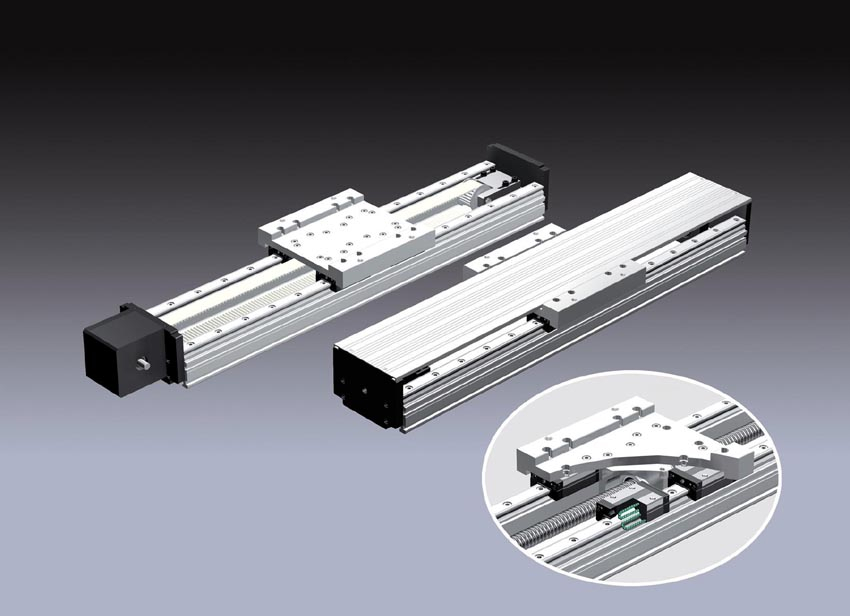

THK America, Inc.    Schaumburg, IL 60173 5340
Apr 19, 2006 Using 2 caged ball type guides, Type GL-N actuator offers speeds up to 5 m/sec and accelerations over 5 gs. Caged Technology employs synthetic resin cage with curvature that cradles each ball and separates it from the next. Spaces between rolling elements retain grease and act as lubrication system. With aluminum extrusion base, 4 four raceways, and standard motor mounts to facilitate integration, actuators come in standard lengths up to 3 m.

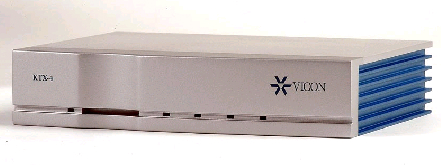

Vicon Industries Inc.    Hauppauge, NY 11788
Apr 19, 2006 Powered by ViconNet, 4-channel Model KTX-4 collects video from up to 4 analog inputs. Streamed video is then sent over network for storage and viewing on ViconNet Network Video Recording Stations. Each server can be remotely configured from other Kollector Elite Recorders and ViconNet PC Workstations on network. Model KTX-4 supports full PTZ control, alarm reporting, picture quality configuration, external sensors, macros, and alarm configuration.

Earth-Chain U.S.A., Inc.    Indianapolis, IN 46256

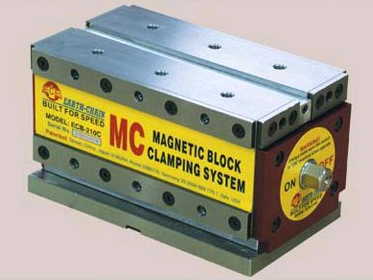

Apr 19, 2006 Using permanent, rare earth magnets, MagVISE Blocks securely hold workpieces without manual fixturing or vise set-ups. Each is rated to 4,620 lb of holding power, with 3.5X safety factor, for over 16,000 lb of magnetic force. Blocks use no electricity, are maintenance-free, and will never wear out. They can be ganged together to create custom workholding solutions.

Orange Research, Inc.    Milford, CT 06460

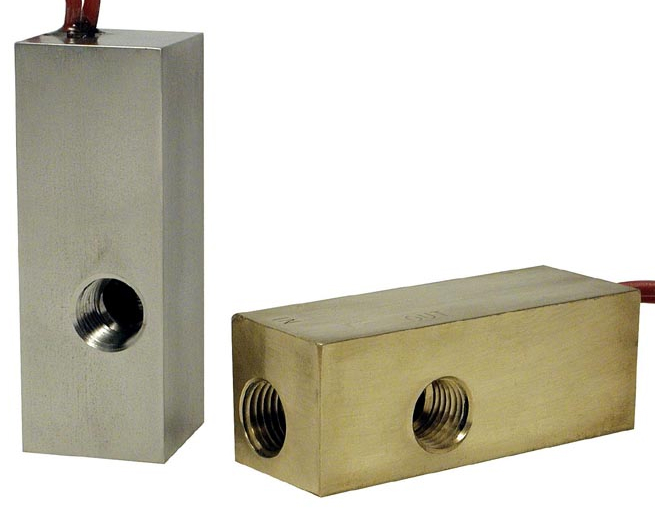

Apr 19, 2006 Designed for inline-use, 30000 Series fixed set-point flow switches are available with factory-preset flow settings in 6 steps from 0.1-1.5 gpm. They use solid brass or stainless steel pistons and pressure bodies and stainless steel springs to ensure reliable use up to 1,000 psig in applications where shock and vibration are common. Mounted where space is limited, switches suit OEM applications requiring simple flow switch actuation.

Dranetz-BMI    Edison, NJ 08818

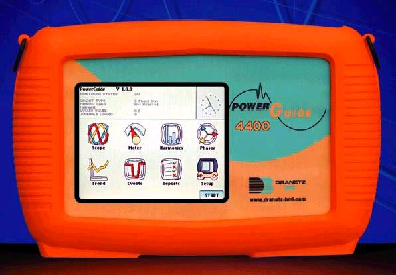

Apr 19, 2006 Incorporating color touch screen, PowerGuide® 4400 enables users to select length and mode of data collection, including troubleshooting, data logging, fault recording, inrush, power quality surveys, and energy studies. Unit collects data at 256 samples/cycle/channel for voltage and current and offers remote communications using RS-232, Ethernet, or USB options. Data is captured on memory card for analysis, trending, visualization, and reporting using DRAN-VIEW® software.

Watson-Marlow Bredel Pumps    Wilmington, MA 01887

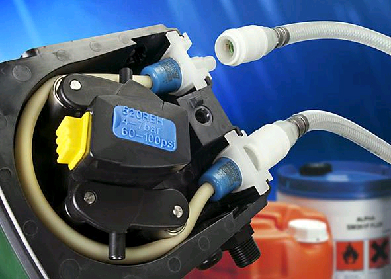

Apr 19, 2006 Cased and close-coupled LoadSure® 520 Pumps offer flows of 55 gph at 30 psi to 7 gph at 100 psi. Tube elements ensure correct loading every time, as well as 1-min maintenance with no snaking, twisting, or pinching. Incorporating 24 V industrial logic, NEMA 4X Model 520UN/RE facilitates analog operation, provides volt-free pump-status I/O, and can be password protected. For industrial connectivity, Model 520DuN/RE possesses comprehensive flow calibration and RS485-network options.

Harrington Hoists, Inc.    Manheim, PA 17545 1754

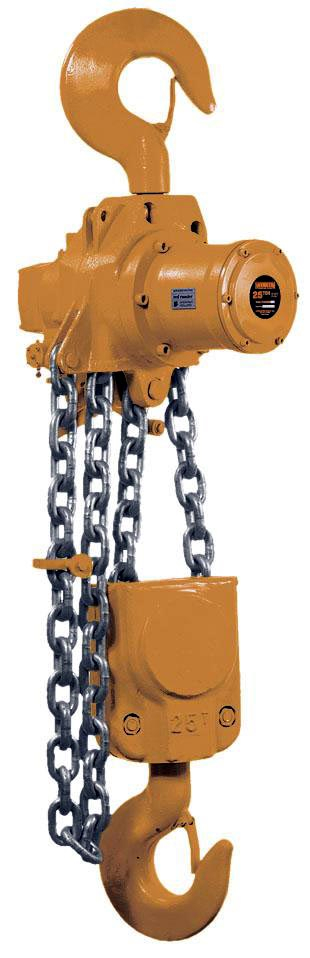

Apr 19, 2006 Available in models with 10 and 25 ton capacities, TCR hoists have hook mounted configuration with cord or pendant control and can accommodate lifts up to 50 ft. Features include load limiter to stop lifting when load is over rated capacity, disc motor brake for instant brake activation and load support, and cast iron housing suited for outdoor or harsh environments. Applications include mines, shipyards, heavy construction, and rigging situations.

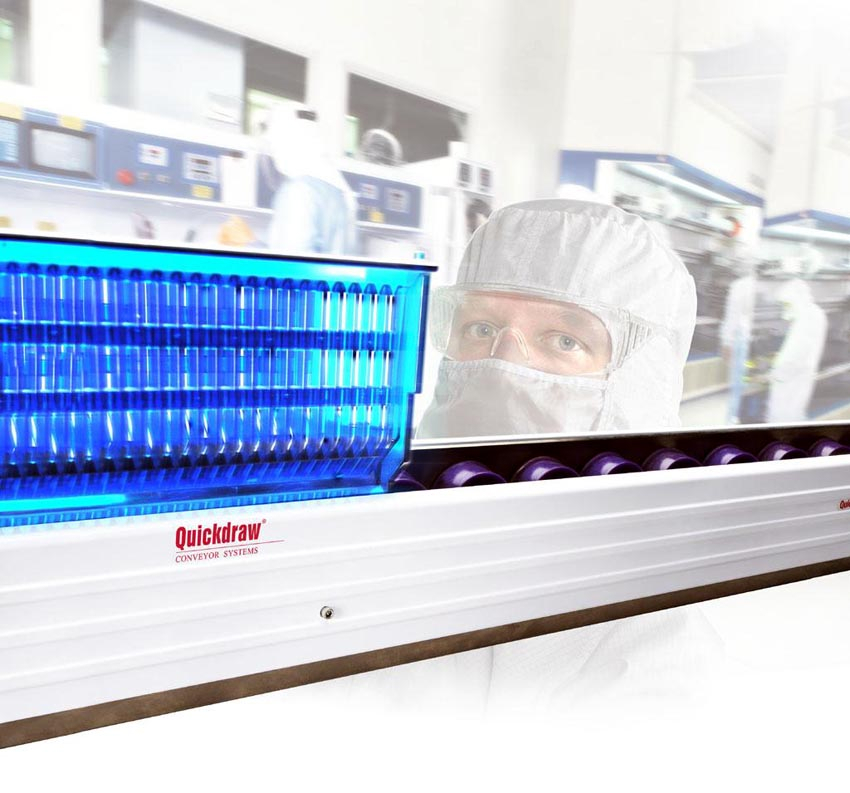

Magstar Technologies    Hopkins, MN 55343
Apr 19, 2006 Quickdraw® Conveyor System features Zone Buffering® and Intellizone® technology that utilizes integrated sensors to provide conveyor control within specific conveyor zones. Control system is self-contained with plug-and-go operation. Conveyor design allows for variable speed bi-directional transport, changeable layouts, and precision stopping for tight tolerance processing. Conveyor measures 2 7/8 in. high and is 1½ in. wider than transport tray.

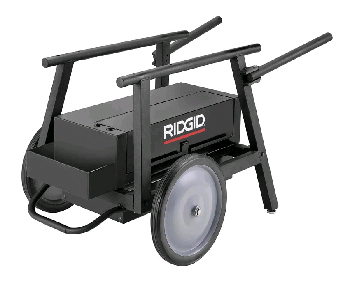

RIDGID    Elyria, OH 44035
Apr 19, 2006 Featuring horizontal mounting to facilitate transport, Models 100A, 150A, and 200A include large diameter wheels, making them suited for shop or field use. Constructed of heavy-walled steel tubing, stands have adjustable widths that are compatible with threading machines. Model 200A is equipped with steel tool cabinet for jobsite storage security, while Models 100A and 150A feature high-impact, corrosion-resistant polymer tray for storage of small tools.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

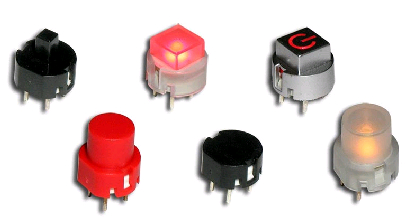

Apr 19, 2006 Featuring over 25 cap and actuator options and 3.3 mm square post for custom actuator designs, miniature SH Series handles currents to 50 mA at 35 Vdc with contact resistance less than 50 M. RoHS-compliant units offer pre-engraved process symbols including lighted on-off and arrow directional symbols. Positive tactile feedback is accompanied by 100,000 cycle life. High temperature versions are available for where ambient process temperatures may exceed 100°C.

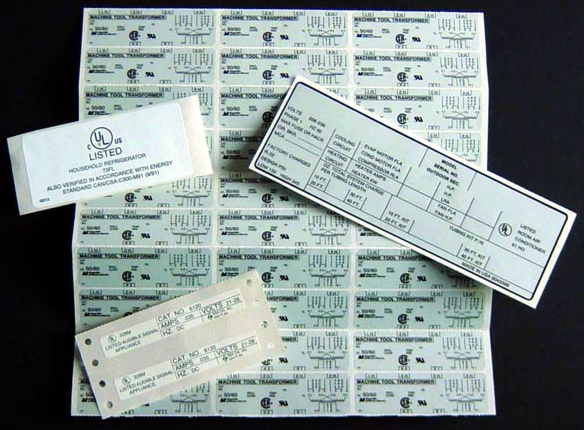

Badger Tag & Label Corp.    Random Lake, WI 53075
Apr 19, 2006 Printed on white or silver pressure-sensitive stock, custom UL/CSA labels meet Underwriters Laboratory (UL) and Canadian Standards Association (CSA) guidelines. Preprinted labels and blanks, offered as part of UL Repackaging Program, can be printed in any size requested. Company can add numbering and barcoding as well as perforate, score, laminate, or UV-coat labels. Blanks can be printed at end-user facility with thermal transfer or dot matrix printers.

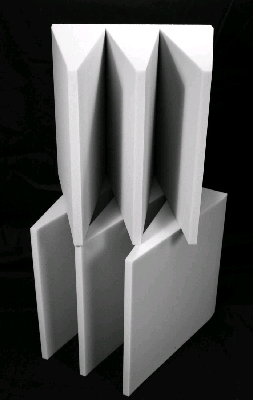

TECNIFOAM, Inc.    Circle Pines, MN 55014
Apr 19, 2006 Open-cell Fireflex Foam is resistant to chemicals and useful for installation in high temperature harsh environments. It withstands heat up to 482°F and continuous temperatures up to 320°F. Panels can be custom engineered meet specific requirements and are suited for welding cells, power generating areas, robotic assembly stations, or anywhere noise control is needed.

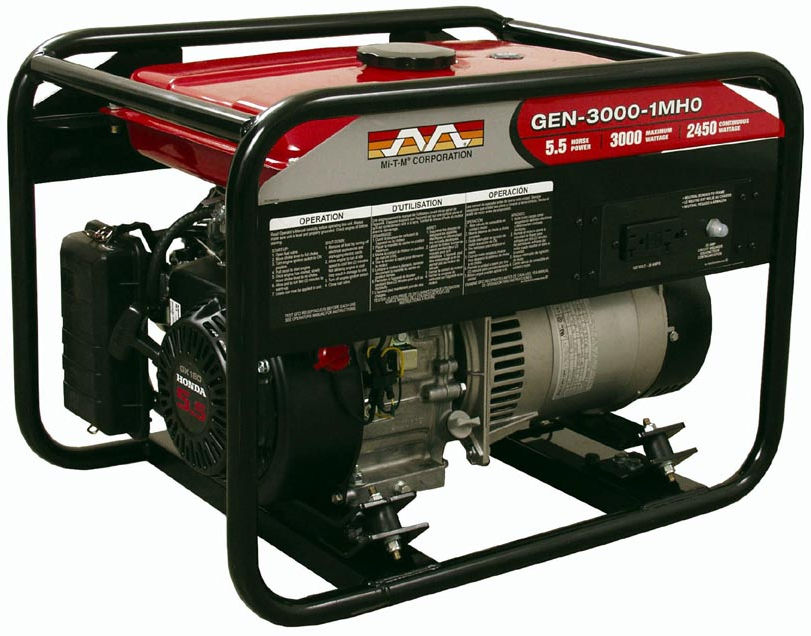

Mi-T-M Corporation    Peosta, IA 52068
Apr 19, 2006 Suited for rental and construction industries, 3,000 W extended-run generator features Honda OHV engine with low oil shutdown. CSA-listed unit also incorporates Mi-T-M® roll cage design, which features isolator design and solid-state circuitry. Its 2.6 gal fuel tank capacity provides for 7.4 hr of run time at full load. Along with 120 V alternator and fuel shutoff valve, unit features low-tone muffler with industrial air cleaner.

Garmin International, Inc.    Olathe, KS 66062
Apr 19, 2006 Personal Travel Assistants(TM), nuvi 310 and nuvi 360, incorporate GPS navigator, traveler's reference, digital entertainment system, and hands-free mobile phone to reduce the number of electronic devices travelers carry. nuvi 310 offers 1 of 9 regional European maps and nuvi 360 offers full European or North American mapping. Optional FM RDS-TMC traffic receiver notifies drivers of upcoming accidents, road construction, or other incidents.
