Micro-Lite, Inc.    Three Rivers, MA 01080
May 17, 2006 Fully variable from 25-100%, LED-based Model LV1000 provides flicker-free, shadow-free 360° white light with Kelvin Color of 6,200°. Brightness can be controlled to optimally suit viewing requirements of each application. Unit's compact design allows maximum working room under microscope.

Mazak Corp.    Florence, KY 41042 3092
May 17, 2006 Combining 5-axis vertical machining center with 150° tilting table, Variaxis 730 offers max spindle speed of 10,000 rpm, 40 hp max spindle power, 387 lb-ft max torque, and 1,575 ipm rapid traverse in X, Y, and Z axes. Table size on single-pallet machine is 24.8 x 19.7 in. while optional 2-pallet system is 19.7 x 19.7 in. Cutting conditions are automatically determined by Mazatrol Fusion 640M CNC, and edited cutting conditions are stored in CNC memory.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Designed to meet data rate requirements of point-to-multipoint and terrestrial radios, Model SMV2500L-LF VCO operates in frequency range of 2,400-2,484 MHz and offers phase noise performance of -86 dBc/Hz at 10 kHz away from carrier. Unit provides optimized tuning linearity and harmonic suppression of -20 dBc. Housed in SUB-L package measuring 0.30 x 0.30 x 0.08 in., oscillator is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Offered in 0.50 x 0.50 x 0.22 in. package, S band (2,200-2,285 MHz) CRO2242A-LF is RoHS-compliant and offers low phase noise performance of -111 dBc/Hz @ 10 kHz offset from carrier. It has tuning sensitivity of 25 MHz/V typ and covers entire band from 0.5-4.5 V. Designed to operate at 5 Vdc supply while drawing 25 mA typ over -40 to +85ºC range, VCO is suited for applications that require signal stability, tuning linearity, and low phase noise performance.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Coaxial resonator-based VCO, CRO1877A-LF, is lead (Pb)-free and operates over 1,835-1,920 MHz frequency range. It comes in 0.50 x 0.50 x 0.22 in. package and offers tuning linearity with typ tuning sensitivity of 22 MHz/V and covers entire band from 0.5-4.5 V. With less than 0.5 MHz/V pull and push, product operates over -40 to +85ºC range and offers phase noise performance of -111 dBc/Hz @ 10 kHz offset from carrier. Device is suited for automated SMT assembly and reflow.

EMX Industries, Inc.    Cleveland, OH 44128
May 17, 2006 Providing high sensitivity and long-range target detection, UVX-300G-REM remote UV luminescence sensor has remote sensing head that measures 0.7 x 0.8 x 1.2 in., and has volume of <0.7 cu in. Control unit provides 5 user-selectable gain settings, and relative reflection readings from 0-99. With operating distance of 350 mm, sensors are suited for gluing applications to measure amount of applied adhesive, check for presence of material/part, and alert operators to problems.

Ark-Plas Products, Inc.    Flippin, AR 72634
May 17, 2006 Available with silicone disk valves, Polycarbonate Luer Check Valves come in 6 configurations featuring male and female Luer with locking swivel and slip connections. They meet most clean room and sanitary requirements, non-contact medical delivery, and are acceptable for use with food processing and potable water. One Way valves are designed for use in applications requiring one way flow in pressure applications from .2-125 psi.

Advantech Co. Ltd    Irvine, CA 92618
May 17, 2006 Measuring 12 x 9.6 in., AIMB-740-6CB1 industrial ATX motherboard supports Intel® Pentium® 4/Celeron® D/Mobile Pentium® 4-M processors with 2.6-3.06 GHz speeds and up to 512 Kb L2 cache. Using Intel 845GV chipset, it features Hyper-Threading technology to enable multi-tasking applications. Equipped with 6 serial ports and up to 6 USB ports, board delivers wide memory bandwidth with 400/533 MHz FSB and offers max memory capacity of 2 Gb DDR 266/333 SDRAM.

Volpi Manufacturing USA    Auburn, NY 13021
May 17, 2006 FlexLens is available with 1-4 arms, each arm transmitting image back through FlexLens system into C-mounted camera. Images can then be combined or processed individually. Integrated LED-based illumination suits applications with short working distance, and optional fiber optic illumination is used where more light is required. Each arm can be ordered with independently focusable optics to address instances where each view has different required working distance.

Woodhead Industries Inc.    Deerfield, IL 60015
May 17, 2006 Featuring unthreaded stainless steel connectors, BradConnectivity(TM) Ultra-Lock System meets stringent sanitary requirements of food, beverage, and pharmaceutical manufacturers. M12-compatible system is comprised of integrated distribution boxes and cordsets built on push-to-lock technology, which enables installation without turning coupler. Rated to IP69K, radial O-ring seal is operator-independent and maintains constant pressure seal against moisture.

MC Machinery Systems    Wood Dale, IL 60191
May 17, 2006 Combining aspects of hydraulic brakes with ac servo brakes, HYB Series controls ram speed and positioning with 1 micron resolution scales that read ram position 1,000 times/sec. Feedback is sent to ram ac servo motors to ensure ram velocity is constant and no over-travel can occur. Lower bed crowning is controlled by double wedge system that is adjustable across bed. Control sets amount of crown, which is automatically adjusted to correct bed to match angles.

Humphrey Products    Kalamazoo, MI 49003
May 17, 2006 Offered in 2-way and 3-way configurations and in 7, 15, and 21 mm sizes, Spider Valves are designed for insertion into sub-base or custom manifold. Instead of plunger that moves through coil, valves have flat armature that is pulled against magnetic yoke in energized position. Armature is fastened together with leaf spring that presses integrated sealing element against valve seat in de-energized position. Consuming ½ W, valves offer switching times in µsec range.

RotoZip by Bosch    Mount Prospect, IL 60056
May 17, 2006 Multi-purpose 5/32 in. XB-MPGP2 Tracing XBIT(TM) makes correct cuts every time by avoiding object behind surface and only cutting out material desired. To use bit, users plunge directly into workpiece and bit is driven in one direction until it hits edge of object being cut out. Using object as template, users follow edge around to complete cut. Compatible with RotoZip and Spiral Saws®, bit is suited for applications in materials ranging from wood to fiberglass.

Accu-Sort Systems, Inc.    Telford, PA 18969 1196
May 17, 2006 FAST Monitor(TM) monitors and diagnoses potential issues that affect scanners in sortation systems, enabling distribution center warehouse maintenance managers to optimize package throughput. Designed for Auto ID market, maintenance and engineering tool provides real-time performance data that enables identification and diagnosis of problems from any location in as little as 5 sec. Data is presented in form of Web page, accessible through Internet Explorer® or Mozilla® browser.

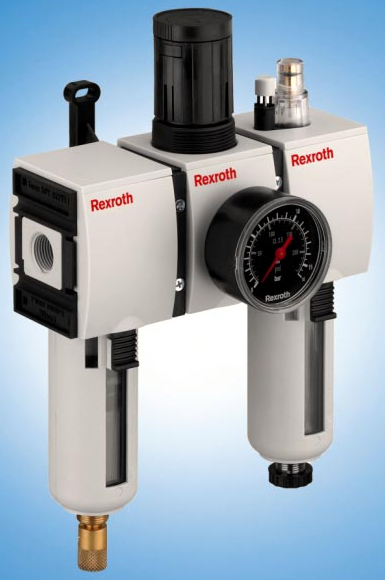

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
May 17, 2006 Featuring modular construction, Series AS3 FRL is comprised of filters, regulators, lubricators, and accessory devices such as shut-off valves and distribution blocks. Air Service system measures 63 mm wide and is offered with 3/8 and ½ in. NPT or G3/8 and G1/2 ports with pressure range of 232 psi. It can be used at temperatures from 14-122°F and is available with 5, 0.3, or 0.01 micron filtration. Window provides clear view of filter and lubricator levels.

Micro Vision Systems, Inc.    Santa Barbara, CA 93101
May 17, 2006 Compatible with installed base of stereomicroscopes, TrueVision(TM) 1000 provides real-time visualization and digital image processing at full high-definition resolution in 3D for scientific, medical, and industrial applications. Product displays images on monitors or projection screens, allowing operator and onlookers to observe. Comprised of Sensor Module, Image Processing Unit, and Display System, product offers frame rates to 60 Hz progressive @ 1,280 x 720.

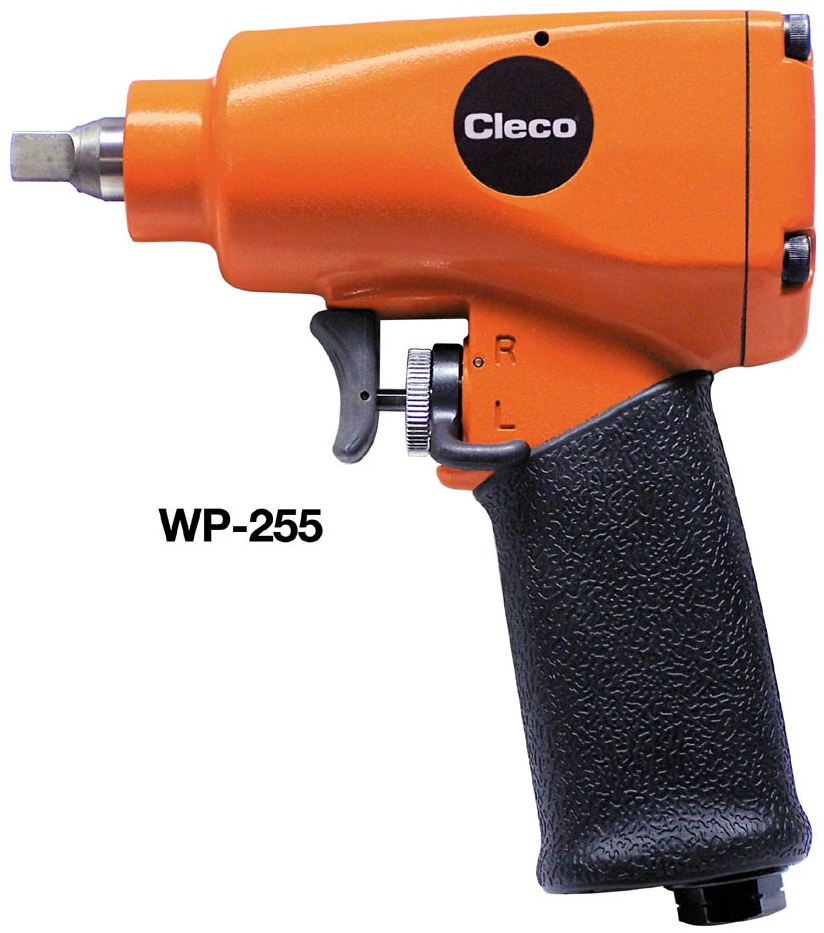

Cooper Power Tools    Lexington, SC 29071
May 17, 2006 Able to maneuver into tight or difficult spaces, Cleco® WP-255-3P secures fasteners in all areas of general repair and assembly applications that use nuts and bolts within 3/8 in. size range. Twin hammer clutch mechanism contains 2 identical hammers, delivering instantaneous and balanced blow that minimizes vibration. Other features include pin retainer for secure socket retention, built-in power regulator, and comfort grip. Tool produces 60-75 lb-ft torque.

SICK, Inc.    Minneapolis, MN 55438
May 17, 2006 As safeguarding solution for point of entry applications, M4000 Advanced provides access protection to various machine applications. Product uses corner mirrors to protect up to 4-sided applications and does not require PC. When used with UE403 Muting Module, product offers solution for decentralized conventional muting applications involving automatic material transport. Integrated LED status indicator mounted on end cap is visible from any direction.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
May 17, 2006 Available in 2-ring, 3-ring, or combination varieties, natural rubber Series V10Z47MRM provides 9 mounting styles and 10 load ratings from 165-2,645 lb, allowing for up to 90 options. Units range in diameter from 2.36-9.06 in. and in height from 1.38-6.61 in. Low natural frequency remains constant, providing vibration and electrical isolation in rotating and reciprocating production machinery, compressors, pumps, and blowers.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
May 17, 2006 Equipped with chemical- and temperature-resistant ceramic top, microprocessor-controlled Model CB162 uses magnets and motor to produce stirring speed up to 1,500 rpm with volumes up to 15 liters. Independent safety circuit protects against overheating, and internal electronic components are protected against corrosion. HOT warning light flashes whenever plate temperature is above 50°C and will operate even when hotplate is turned off and is still connected to power.
