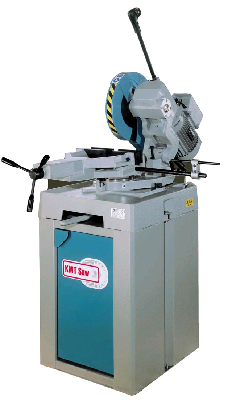

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
May 02, 2006 Equipped with 3.5 hp, 3-phase TEFC motor, Model C315/350 features double vise assembly with 6¼ in. max opening, providing holding power on both sides of cut for burr-free operation. Saw includes 14 in. HSS blade, 2-speed spindle operating at 30 and 60 rpm, enclosed transmission, 24 V controls, and built-in flood coolant. It can cut round shapes up to 4 in. dia at 90° and 3¾ in. dia at 45°; plus square and rectangular shapes up to 3¾ x 5 in. at 90° and 3¾ x 3¾ in. at 45°.

Torque Transmission    Fairport Harbor, OH 44077
May 02, 2006 Housed in glass-reinforced nylon, gear drives come in standard RAB model as well as MAD model for miniature angle drives. Measuring 3 21/32 x 3 15/16 x 1¼ in., RAB Model employs shielded, lubricated, hardened steel ball bearings and gears and is rated 1/3 hp, 1,600 rpm with max speed of 3,000 rpm. Measuring 1.25 x 1.25 in., MAD Model uses permanently lubricated gear drives, hardened steel helical gears, and non-metallic bearings. It is rated at 1,800 rpm max and 1/8 hp continuous.

LEM Holding SA    Plan-les-Ouates CH-1228  Switzerland
May 02, 2006 Designed to measure voltage and impedance per cell as well as internal temperature of individual cells, Sentinel features intelligent SoC device that processes signal and interfaces to digital S-Bus control bus. Monitoring voltage, current, and impedance allows users to predict which cells are likely to fail, and to replace them, while temperature measurements ensure that thermal runaway situations are detected and corrected before they cause catastrophic failures.

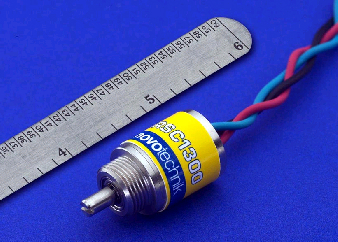

Novotechnik U.S., Inc.    Southborough, MA 01772
May 02, 2006 Based on vertical Hall technology, Series RSC 1300 features cross structure that is affixed to silicon chip to provide 360° measurements with 10-bit resolution. Miniature non-contact sensors support maximum rotating speed of 10,000 rpm with sample rate of 10,000 kHz. Measuring 0.51 diameter x 0.8 in. long, units are housed in stainless steel and sealed to IP65. Applications include robotics, medical devices, and scientific instrumentation.

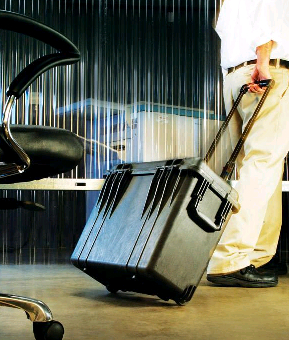

Pelican Products, Inc.    Torrance, CA 90505
May 02, 2006 Featuring top loading design, Protector(TM) 1440 Case is equipped with stainless steel, ball bearing, polyurethane wheels; telescoping, metal handle; rubberized top and side grips; and stainless steel reinforced padlock protectors for added defense against cutting and theft. Lid has polymer O-ring for dust and waterproof seal, while automatic Gore-TEX® pressure equalization valve stops moisture from entering case and prevents vacuum-lock so case opens at any altitude.

Caddock Electronics, Inc.    Riverside, CA 92507
May 02, 2006 Manufactured with alumina ceramic sandwich, Models USF340, USF370, and USF371 provide voltage ratings of 300, 1,400, and 2,500 V and power ratings of 0.33, 0.75, and 0.75 W, respectively. Units feature resistance range of 50 ohms to 25 Megohms with temperature coefficient of ±5 ppm/°C max from -40 to +85°C. Applications include amplifier gain setting, bridge circuits, weighing systems, strain gage circuits, reference resistors, and precision voltage dividers.

Abanaki Corp., Oil Skimmer Div.    Chagrin Falls, OH 44023
May 02, 2006 Constructed to support upgrades to wider belt sizes without replacing entire unit, Tote-It® oil skimmer removes up to 12 gph of free-floating oil from water. Single-assembly unit, weighing 36 lb, has removable trough that facilitates clean up and oil disposal. Hand-carried to any indoor or outdoor application, product handles liquids up to 212ºF and pH levels from 3-13. It also reduces bacteria growth in tanks, along with resulting odor.

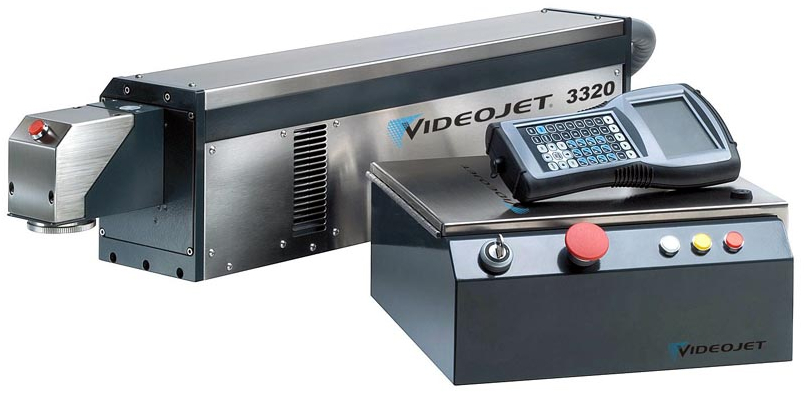

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
May 02, 2006 Videojet® 3320 integrates into applications that require permanent marking of variable data on glass, plastic, rubber, and cardboard substrates as well as labels. Capable of 0° (straight-out) or 90° laser output, it prints standard and 2D bar codes, expiration dates, batch and lot codes, serial numbers, symbols, and manufacturer names and logos at rates to 1,300 characters/sec for line speeds up to 15 product marks/sec. Job generation software is included.

Rousseau Metal    St. Jean-Port-Joli, QC G0R 3G0  Canada
May 02, 2006 With proper anchors and strong wall, multipurpose frames offer 300 lb capacity for storing objects using wall space (up to 500 lb with set of 3 frames). Products measure 72 in. high and can be cut in two 36 in. frames or four 18 in. frames. Perforated every 1 in. for adjustment of accessories, frames can be combined with accessories such as overhead workstation lights, louvered panels for plastic bins, and overhead tool rails.

Validian Corporation    Ottawa, Ontario K1P 5L4  Canada
May 02, 2006 Validian SASR is a secure send/receive solution with embedded application authentication and application-to-application encryption. It transforms user's PC into secure facility for uploading sensitive, proprietary information to shared repository while transforming server into download manager that simplifies distribution of proprietary files to authorized users. Client application performs either 2- or 3-factor authentication, with appropriate biometric support, of end-users.

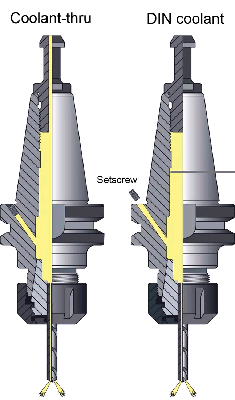

Techniks, Inc.    Indianapolis, IN 46236
May 02, 2006 Available for CAT40 and CAT50 spindles, in ER collet chuck and endmill holder styles, CoolFLEX Tool Holders feature coolant path that can be switched from coolant-thru-spindle to DIN style coolant by removing 2 setscrews. Collet chucks are available in sizes from ER16 to ER40 and are balanced to 18,000 rpm, while endmill holder styles range from ¼-1 ¼ in. ID and are balanced to 10,000 rpm.

Kontron    Poway, CA 92064
May 02, 2006 Equipped with 2.0 GHz Intel® Pentium® M processor, RoHS-compliant PC V-Box-Express is ready for Intel® Core(TM) Duo processor technology. It measures 270 x 195 x 232 mm and is designed to handle every task in measurement, controls, operation, and visualization. PC has 4 RS232 and 4 USB interfaces, VGA and DVI graphics, and Ethernet 10/100 and 100/1000. Two PCI slots and 2 PCI Express x1 slots are available for expansion. EtherCAT provides real-time communication.

Henkel Corp.    Madison Heights, MI 48071
May 02, 2006 Using membrane sensors, Loctite® Fluid Waveform Analyzer C (LFWA-C) Series offers standardized application process for monitoring sealant and adhesive dispenses for variability. Rotospray mode monitors up to 4 short simultaneous dispenses, while single bead dispense analysis mode monitors single dispense operations. With modifiable parameters, processes can be refined to prevent production shutdowns by identifying potential problems before they arise.

Infortrend Corp.    Santa Rosa, CA 95401
May 02, 2006 Suited for building shared storage pool for data backup, EonStor® (ES) A04U-G2421 SCSI-to-SATA subsystem features SCSI-320 host channel and support for up to four 3 GB SATA-II disk drives. It provides reliable storage capacity and SATA-II benefits such as dedicated bandwidth for direct attached storage applications. Capable of transfer rates to 320 MB/sec per channel, product features single RAID controller, SATA NCQ support, and real-time event notification.

Certicom Corp.    Mississauga, ON L4W5L1
May 02, 2006 Comprised of Certicom MCE software module and Certicom ECC Core hardware IP core, Certicom Security for Sensor Networks secures low-power, wireless sensor networks and enables them to be scalable, mobile, and self-configurable. Product uses elliptic-curve cryptography to add provable identity to sensor devices, which provides security from design and development through to manufacturing, deployment, and upgrade of sensor network.

Sybase, Inc.    Emeryville, CA 94608
May 02, 2006 As development tool for Microsoft® .NET Framework-based environments, DataWindow .NET(TM) v2.0 simplifies and accelerates creation of data-driven applications. It supports Microsoft .NET Framework v2.0 and Visual Studio® 2005. Software lets users build DataWindows directly from Microsoft standard DataSets and DataTables. Offering control and flexibility over reports, it delivers autosize functionality and support for database connectivity, including Oracle and ADO.NET.

Pitney Bowes    Stamford, CT 06902
May 02, 2006 Pitney Bowes Mailworks(TM) connects organization's inbound and outbound mail flows with core business processes to improve customer communication and minimize risk associated with flow of mail, documents, and packages into, within, and out of businesses and government agencies. In addition to mail center management, software offers capabilities for postage and carrier monitoring and management as well as business continuity and risk management.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
May 02, 2006 Integrating 240 MHz, 64-bit, MIPS-based(TM) TX49/H3 RISC CPU with display controller and hardware graphics accelerators in single system-on-chip, Model TX4961XBG-240 is suited for driver information systems, car infotainment systems, and car navigation systems. It includes on-board DDR SDRAM controller, unified memory architecture, and multiple on-chip buses. Housed in 456-pin PBGA, IC also incorporates video frame grabber, 10-bit ADC, and 16-bit PWM outputs.

Ingersoll-Rand Co.    Bryan, OH 43506
May 02, 2006 Offered in 3/8-3 in. port models, Pro Series delivers 10-237 gpm. Users can choose from non-metallic and metallic body materials and variety of internal elastomers including santoprene, hytrel, and TFE. Low-to-medium flow range models feature SimulShift and D-valve designs for stall-free operation. Models in high-flow range include unbalanced, stall-free air valve design and bolted construction for leak-tight integrity.

Intermec Technologies    Everett, WA 98203
May 02, 2006 Housed in metal case, EasyCoder® PD41 supports all printer command languages, as well as Unicode, and features serial, parallel, USB, and multi-channel Ethernet connectivity. It produces variable-data labels at continuous rates to 6 ips and accepts 8 in. label rolls and 18,000 in. of ribbon. In addition to Smart Printing(TM) features, product offers tool-less printhead replacement. Applications include warehouse and store operations, work-in-progress, and parcel-tracking.
