Smart-Hose Technologies    Philadelphia, PA 19143
May 03, 2006 Smart-Hose(TM) Safety System automatically shuts off flow in both directions instantly if hose failure takes place. Assembly connects coated cable within hose bore to valve plungers, wedges, or flappers at hose end points. Acting as compression spring, cable will hold valves open when conditions are normal. As soon as thrust is eliminated due to coupling ejection, hose stretching, or hose separation, both valves seat themselves, stopping all flow.

Sennebogen North America    Stanley, NC 28164
May 03, 2006 Measuring 15.7 x 8.2 x 8.1 ft, 305 Multihandler C Series features hydraulic hi-rise operator's cab with eye level of 13.3 ft and reaches lift height of 24 ft. Outfitted with 100 hp diesel engine, machine offers max load-bearing capacity of just over 11,000 lb. Optional 2-part XL telescopic boom provides extended reach and lift height of 30 ft. Designed with hydrostatic all-wheel drive, machine offers crab steering, all-wheel steering, and front-wheel steering.

Durham Manufacturing Company, The    Durham, CT 06422-2108
May 03, 2006 Combining compact, secure storage with work surface and mobility, cabinets are available with either 8 lockable drawers or 4 lockable drawers and single-shelf compartment with lockable door. Both models feature heavy-duty, all-welded, 16 gauge steel construction. They measure 46 x 21 x 34 in. and have 3 in. lip on back of top surface for work retention. Mobility is provided via 5 x 1¼ in. polyurethane bolt-on casters (2 swivel, 2 rigid) and push handles.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 03, 2006 Designed for use with Loctite 3552(TM) and 3553(TM) Visible Light Cure Adhesives, Loctite ZETA 7720 Visible Light Wand System provides safe, immediate cure for assembly applications. Its output, which exceeds 1.5 W/cm² of visible light irradiance, can cure bead sizes as large as ¾ in. dia. Featuring fiber optic light guide and 100 W visible arc bulb, product requires no venting or specialized protective equipment to ensure worker safety.

Opal-RT Technologies    Montreal, QC H3K 1G6  Canada
May 03, 2006 Combining RT-LAB software with COTS PC and XILINX FPGA technologies, RT-LAB MX Station delivers rapid prototyping of power electronic controllers and simulation of motor drives used in electrical hybrid vehicles. PC component supports dual-core Pentium M or Pentium 4 HT processors, while Opal-RT OP5110 XILINX VIRTEX IIPro FPGA board handles I/O management. Able to be deployed remotely, station is fully integrated with Simulink(TM), Real-Time Workshop(TM), and SimPowerSystem Blockset(TM).

Wera Werk    Wuppertal   Germany
May 03, 2006 Ring magnet construction enables Rapidaptor® quick release bit holder to hold long/heavy screws securely, even in awkward installation situations. Bit is always inserted into screw to its max depth of penetration, to achieve max positive drive and high transfer of force. Identical screwing depth is maintained when ring magnets make contact with surface of workpiece. Rapid-Out function allows small bit sizes to be removed without use of auxiliary tool.

Sealed Air Corp., Engineered Products Div.    Danbury, CT 06810
May 03, 2006 Available in 8 sizes, Korrvu® Standard Packaging provides one-size-fits-many packaging solution. Used to pack low profile items, Korrvu® retention packaging uses retention frame and elastomeric film to hold items in place during shipment. Designed for larger pieces with more height, Korrvu® suspension packaging holds fragile items between two membranes of film to secure item in airspace of shipping container. Standard package sizes range from 7½ x 5½ x 2 in. to 17 x 17 x 8 in.

Tracer Products    Westbury, NY 11590
May 03, 2006 Tracerline® Marksman(TM) receiver unit utilizes heterodyning technique to convert inaudible sound into audible sound, then Sound Signal Technology(TM) fine-tunes into natural sound emitted by defect. When attached to receiver, 12 in. hollow probe accentuates air sounds, while solid contact probe accentuates sounds of wear/grinding inside gears. Ten-bar LED display indicates intensity of incoming signals from problem source to ensure error-free diagnosis.

IDEC Corporation    Sunnyvale, CA 94089-2209
May 03, 2006 Available in 10.4 and 12.1 in., TFT color LCD touchscreens feature WindO/I-NV2 3.01 programming software and Ethernet/IP driver. Units also include Ethernet networking protocols Modbus TCP/IP 1:N driver and IDEC 1:N driver. Programming software features security function and alarm logging. Alarm logging stores historical events and has configuration compliant to Instrument Society of America Standards. Touchscreens are suited for automation design engineers.

Omega Engineering, Inc.    Stamford, CT 06907
May 03, 2006 Offered with NEMA 4 (IP66) enclosure and CE approval, Model FLSC-45B dc powered frequency-to-analog output signal conditioner accepts low level magnetic pickup signal or high level dc pulse from flow paddlewheel sensor or turbine meter without amplification and converts it into analog output. It features ±0.15% of full scale accuracy, ambient operating temperature of 20-70°C, and operates on 15-32 Vdc with .025% repeatability.

Greenlee Textron, Inc.    Rockford, IL 61109
May 03, 2006 Model ES25 battery-powered ratchet style cable cutter is designed for ACSR and other steel reinforced cables. Unit weighs 7.7 lb, is operable with one hand, and suits overhead crews at power utilities and utility contractors. Cutter features 14.4 V NiCd battery, and makes about 50 cuts of Grosbeak or 120 cuts of Merlin on 1 battery charge. Blades are contoured to slice aluminum strands and then snap steel strands. It comes with 2 batteries, battery charger, and molded carrying case.

SPEKTRA USA    Laguna Niguel, CA 92677
May 03, 2006 Utilizing laser vibrometer as primary reference standard, Model CS18P HF Primary Calibration System provides absolute calibration of vibration transducers, calibrators, and meters. It achieves frequency response from 10-20,000 Hz for transducers and weights up to 200 g and includes resonant search capability to 50,000 Hz. High-frequency, air-bearing vibration exciter with vibration isolators is used to achieve performance required and low levels of uncertainty.

Mistequay Group Ltd.    Saginaw, MI 48605
May 03, 2006 Suited for use as standby units for smaller manufacturers, ECO210 MVII Microset presetter features rotating tool adapter with ISO 40 and 50 tapers as well as HSK taper sizes. Ergonomic unit, offering one-hand operation of co-ordinate slides, has toolholder capacity of 415 mm dia x 465 mm length. In addition to sealed keyboard and Metric/English conversion switch, unit employs CCD camera with 20:1 magnification and automatic switch-off for surface illumination.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
May 03, 2006 Suited for OEM applications or new construction, TID In-line Centrifugal Fan utilizes TEK backward curved airfoil impeller to meet needs of environments that require quiet operation. Product is available in diameters from 12-24 in. and in capacities to 4,000 cfm. In addition to its non-sparking construction, product exhibits non-overloading power characteristics.

Control Company    Friendswood, TX 77546
May 03, 2006 Traceable® Workstation Digital Barometer measures atmospheric pressure from 23.62-31.01 in. Hg with resolution of 0.03 in. Hg and accuracy of ±0.09 in. Hg. With resolution of 0.5° and accuracy of ±1°C, it reports temperature from 15 to 158°F. Clock shows time in AM/PM and 24-hr formats, while graphic barometric trend shows present reading as well as previous 1, 3, 6, and 12 hr readings in bar-chart format.

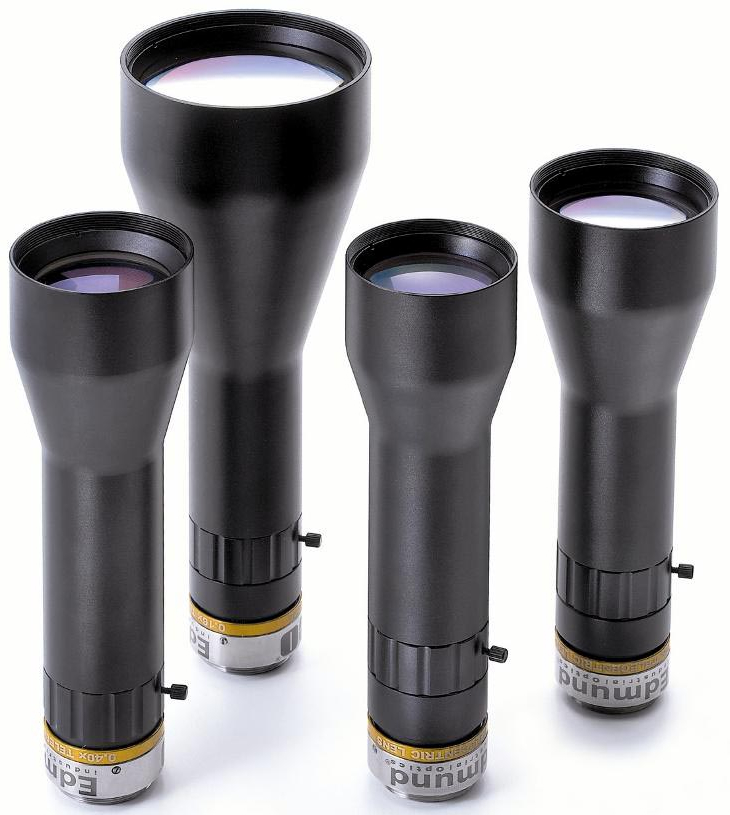

Edmund Optics    Barrington, NJ 08007
May 03, 2006 Available in 1x, 2x, or 4x magnifications, TML(TM)-HP series enables non-contact measurements of small objects. Lenses mount via twin-ring clamps and provide minimal distortion due to their fixed magnification throughout depth of field. Products, suited for automated metrology applications in on-line and off-line production environments, have front filter threads that accommodate color filters, polarizers, protective windows, and ring illuminators.

Endicott Research Group, Inc.    Endicott, NY 13761
May 03, 2006 Offered in open frame and vacuum encapsulated versions, dc-ac inverters can power up to 2 CCFLs. S Series, which measures 2.87 x 0.62 x 0.38 in. and weighs 12 g, handles up to 5 W of output power and comes in 5 and 12 V designs. SE Series dc-ac inverter, featuring same form factor as S Series, is vacuum encapsulated to provide resistance to shock, vibration, and humidity. Both inverter Series feature -20 to +70ºC operating temperature range and are PCB-mountable.

Greenlee Textron, Inc.    Rockford, IL 61109
May 03, 2006 Machined from aluminum alloy and anodized to aircraft standards, mini-magnet Model L97 features 4-vial design for displaying 0, 30, 45, and 90° angle. Ports enable viewing from all sides, while 4 rare earth magnets allow for hands-free use on metal surfaces. Bending offsets and calculations are permanently laser engraved onto level. Applications include bending conduit, aligning electrical panel box, or plumbing metal cabinets.

Gateway, Inc.    Irvine, CA 92618
May 03, 2006 Utilizing Intel® Centrino® Duo Mobile Technology and Intel® Core(TM) Duo processor, M255-E notebook features WiFi connectivity, integrated optical drive, and 14.1 in. widescreen display. Shared components and accessories like port replicator, modular bay optical devices, and batteries make it IT-friendly. Weighing 5.21 lb, PC delivers extended battery life of up to 9 hr on single charge. Integrated Smart Card reader offers advanced security.

SSA Global    Chicago, IL 60661
May 03, 2006 Framework for Excellence business consulting offering provides structured knowledge base that allows companies to achieve specific business goals through application of people, process, and technology components. With flexibility to meet range of industry and process requirements, it helps customers decide what's critical for solving business problems and design solution to meet company needs.
