Optek Technology, Inc.    Carrollton, TX 75006-6905
May 11, 2006 Providing electrical isolation and data transfer, Series OPI1270 consists of visible LED emitter and phototransistor detector housed in separate opaque molded plastic housings and coupled by shrouded optical cable for noise immunity. LED emits red light with peak wavelength of 645 nm, while phototransistor exhibits max collector current of 50 mA. Offered in standard lengths of 32, 40, and 80 mm, RoHS-compliant units feature operating temperature of -20 to +85°C.

Phihong USA    Fremont, CA 94539

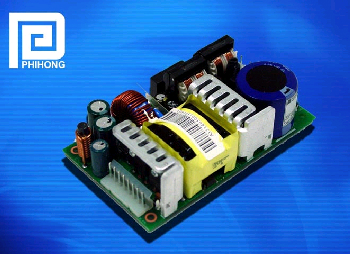

May 11, 2006 Featuring 3 x 5 in. footprint, PSA120 Single Output Series fits 1 U racks for applications such as POS terminals and network hubs. Units are available with dc output voltage of +5, +12, and +24 V and max loads of 15, 10, and 5 A with output power of 75-120 W. Over-voltage and short circuit protection have automatic restarts, and output can be shorted permanently without damage. Operating temperature is 0-50°C while in operation and -25 to +85° C during non-operation.

Group4 Labs LLC    Menlo Park, CA 94025
May 11, 2006 Gallium-facing GaN-on-diamond semiconductor wafer features single GaN layer atomically attached to freestanding, 25 micron thick, polycrystalline CVD diamond substrate. Nanometer proximity of chip's active region to diamond reduces heat build-up by extricating heat from core at instant of generation, permitting high temperature resilience. Measuring 10 mm², wafer has atomically smooth gallium facing surface and is shipped freestanding or optionally on disposable silicon wafer mount.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
May 11, 2006 Using backward curved airfoil impeller manufactured of glass reinforced polyamide, TFD Blower pushes air through with minimal turbulence and noise. Product features cast aluminum impeller hub, epoxy coated steel housing, flanged and drilled outlet, and ABS inlet cone. Fan, suitable for 0-160°F, is available with single- or 3-phase TEFC motors and CW rotation to 5 positions. Applications include electronic cabinet cooling, heat exchangers, and fume hoods.

SMARTCODE(TM) Corporation.    New York, NY 10167
May 11, 2006 Near field UHF EPC Gen 2 tags provide item level tagging solution using same EPC infrastructure as when implementing RFID in pallet and case tagging. Using UHF near field electromagnetic field, reading distance is 1-3 ft, and sensitivity in liquids and metals is optimized. Available products include SL-EPC-2680 Square Tag(TM), SL-EPC-2650 Circle Tag(TM), SL-EPC-2660 Triangular Tag(TM), SL-EPC-2670 Comb Tag(TM), and SL-EPC-2730 Picasso Tag(TM).

Temex Time    Oxnard   Switzerland
May 11, 2006 Suited for use as key RF component for CDMA handsets, hermetically sealed TMX DU W307 replaces 2 individual SAW filters and 3 passive components with one plug-and-play, 0.2 x 0.2 in. package. Lead (Pb)-free, RoHs-compliant duplexer allows handsets to meet 3GPP2 specifications and simplifies CDMA450 system design.

Astrodyne Corp.    Mansfield, MA 02048

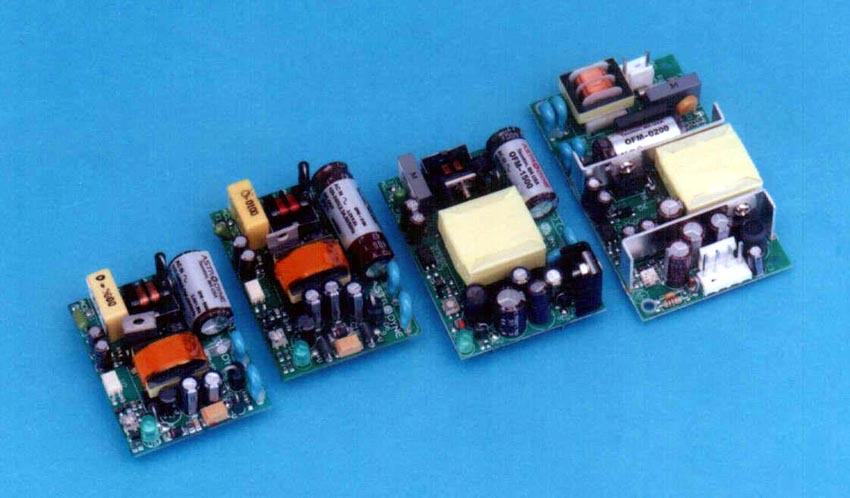

May 11, 2006 Series LFM 5-20 ultraminiature open frame modular switching power supplies accept universal input from 85-264 Vac, and features LED indicator and output adjustment potentiometer. Operating over ambient temperature range of 0-40°C, series includes 23 models that provide single outputs of 3.3-24 Vdc. Designed for PCB plug-in mounting, UL/EN60950 approved units contain short circuit protection circuitry and operate at typical efficiency of 75%.

Master Bond, Inc.    Hackensack, NJ 07601
May 11, 2006 Formulated to setup in 3-5 min in 10-20 g masses at room temperature, EP65HT-1 ultra-fast curing, high temperature resistant epoxy adhesive bonds with metals, glass, ceramics, woods, vulcanized rubbers, and plastics. It has Shore D hardness of >75 and volume resistivity of >1014 ohm-cm. Mixed viscosity is 60-70,000 cps and mix ratio is 10 to 1 by weight. Available in pint, quart, gal, and 5 gal unit kits, EP65HT-1 has service operating temperature of -60 to +400°F.

Norstat, Inc.    Rockaway, NJ 07866
May 11, 2006 Series FG is available in Type A signaling version, which requires no external wiring and has LEDs switched on via solenoid power supply, and Type B version, which allows connection to contact block, making it possible to control different states of switch. Metal-bodied units have 3 conduit entries, actuator holding force of 2,500 N, integrated contact blocks with 4 poles, rotating head, and protection rating of IP67, making them suited for use in severe conditions.

Sensoray    Tigard, OR 97223
May 11, 2006 Connected to host computer and powered through USB 2.0 port, 2250 USB MPEG capture device converts analog NTSC or PAL color video and audio into one of supported MPEG digital video formats: MPEG1, MPEG2, or MPEG4. Range of supported bit rates allows for optimal size/quality ratio for various applications. SDK for Microsoft Windows facilitates integration of video capture into any application. Unit ships as board-level product or in metal enclosure.

Saelig Co., Inc.    Pittsford, NY 14534

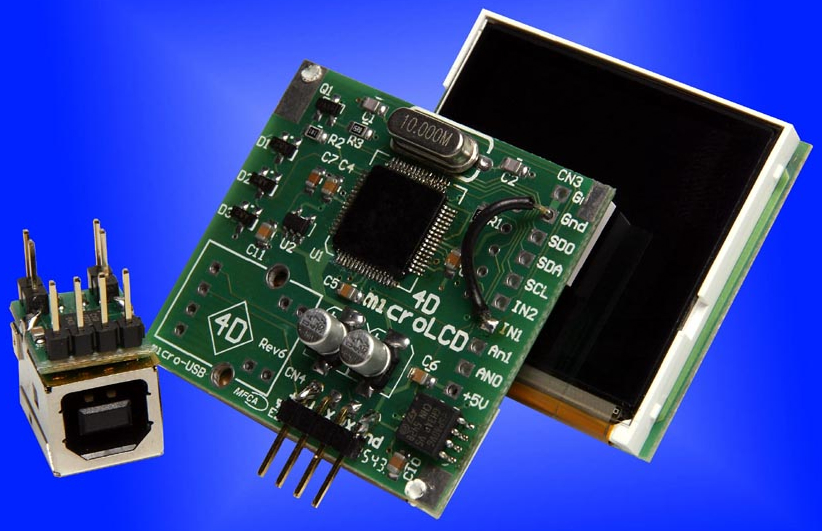

May 11, 2006 Measuring 2 in. square, µLCD all-in-one, intelligent LCD controller has embedded graphics capability to deliver stand-alone display features. Embedded commands control background color, text size, shapes, and animations. Driven via micro-controller with serial or USB interface, µLCD module comes with 1.5 in., 128 x 128 color LCD; vector drawing controls for circles, lines, and squares; and logic-level RS232 with auto-baud rate detection of 300-128 Kb/sec.

Saelig Co., Inc.    Pittsford, NY 14534

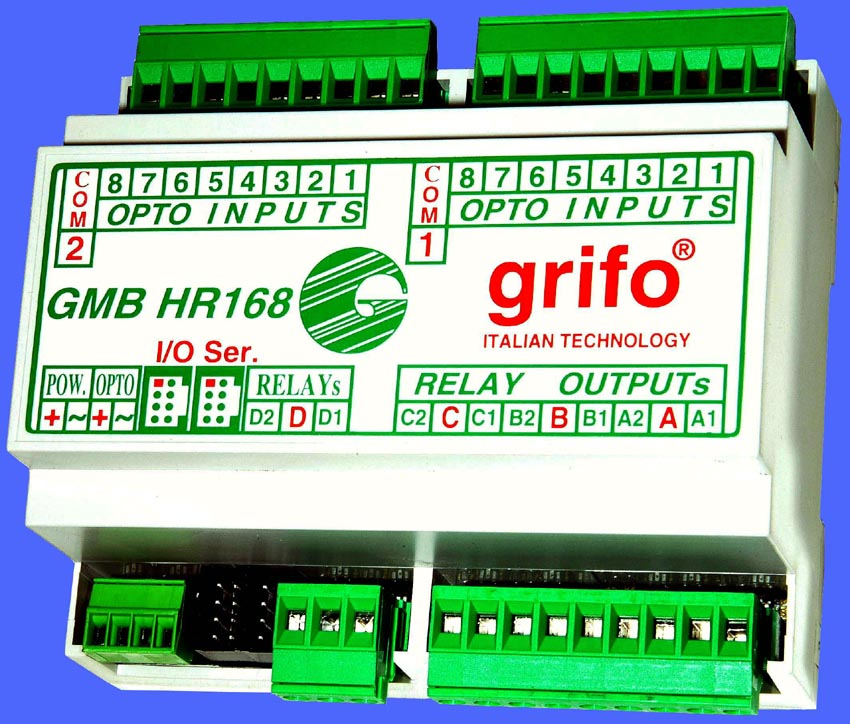

May 11, 2006 Provided in 4.2 x 3.5 x 2.3 in. plastic housing, GMB HR168 DIN rail module accommodates 28- or 40-pin grifo(TM) GMM Mini Module CPU boards based on 8051, PIC, and AVR cores. Features include 16 galvanically-isolated inputs and 8 relay outputs with LED status indicators, asynchronous serial line, I2C BUS interface, analog input for ADC, PWM output, and up to 4 I/O TTL. Unit works as intelligent peripheral and may be remotely mounted in wide-area control network.

Saelig Co., Inc.    Pittsford, NY 14534

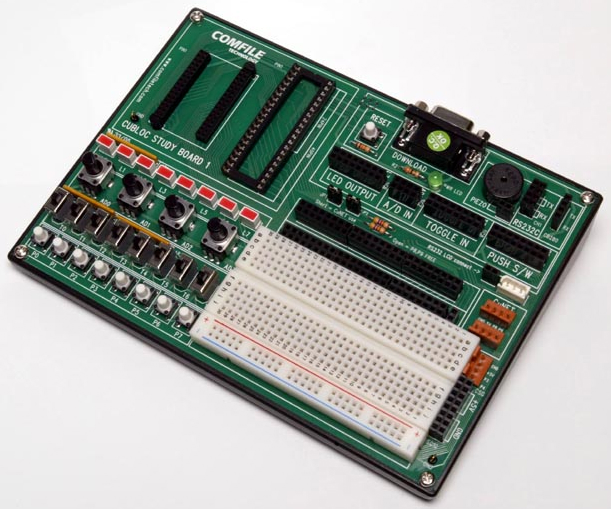

May 11, 2006 CUBLOC(TM) embeddable, multi-tasking processor allows implementation of complex math, graphic LCD, and data communication protocols. It simultaneously executes Basic and Ladder Logic, and resulting data may be shared. Along with 49 I/O ports and 8 channels of 10-bit A/D, it features up to six 16-bit PWM outputs and 80 KB Flash memory. CUBLOC is suited for development of industrial machines, factory temperature controllers, packing machines, and robots.

Nippon Pulse America, Inc.    Radford, VA 24141

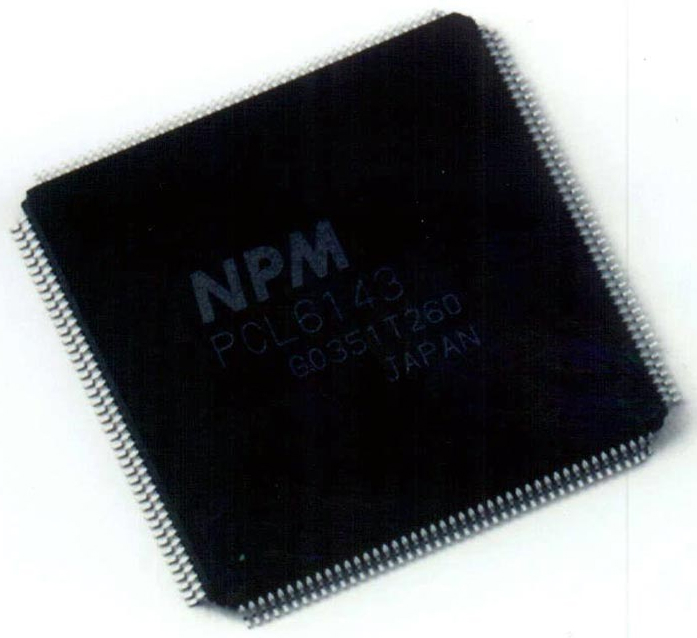

May 11, 2006 Designed for controlling stepper and digital servomotors, PCL6143 quad-axis, single IC motion processor offloads intensive motion control functions from application's host processor. Product is driven by host microprocessor using 8- or 16-bit parallel bus. Sstandard features include linear interpolation, S-curve acceleration/deceleration control, comparators, encoder inputs, and ability to change speed and position on-the-fly.

NewAge Industries Inc.    Southampton, PA 18966
May 11, 2006 Offered in 8 styles of fittings for pipe sizes from ¼-4 in., corrosion- and chemical-resistant Clear-40® pipe is manufactured from clear, virgin grade PVC compound and has slight blue tint. Rigid pipe, made to schedule 40 dimensions, does not need ties or clamps to be held upright or level. All ingredients are non-toxic and conform to FDA standards. Smooth interior pipe surface promotes flow, and construction is non-conductive and flame retardant.

Fairchild Semiconductor Corp.    South Portland, ME 04106
May 11, 2006 Suited for port isolation in ultra-portable products, FSUSB31 480 Mbps USB 2.0 switch features low On-capacitance (CON) of 6.5 pF typ which helps maintain compliance to USB 2.0 Hi-Speed eye test, and low Off-capacitance (COFF) of 2.5 pF typ to optimize signal bandwidth. Wide bandwidth of 720 MHz facilitates signal integrity. Available in lead-free MicroPak(TM) package measuring 1.6 x 1.6 mm, it saves battery power by drawing less than 1 µA.

FDM Software Ltd.    North Vancouver V7P 3P7  Canada
May 11, 2006 Designed for Fire and EMS agencies, GIS Analyst provides analytical tools for modeling, examining, and interpreting information for station planning and resource expansion. Features include user definable and redistributable map projects, seamless records extraction, InstantPrint and page layout options, and data analysis Wizards. Software is integrated with FDM's Records Management System, and works with FDM Mobile RMS in field.

Steril-Aire, Inc.    Burbank, CA 91504
May 11, 2006 Packaged Terminal Air Conditioning UVC Kit contains 24 in. UVC Emitter(TM) and power supply, plus all necessary hardware components to retrofit PTAC coil or other room unit with UVC. Installed opposite coil, UVC energy provides continuous, non-chemical coil cleaning, optimizing airflow, temperature, and humidity control. It also stops mold and bacteria at source, as well as viruses and other airborne microorganisms, preventing spread of infectious diseases.

Oxygen Software    Moscow   Russian Federation
May 11, 2006 Oxygen Phone Manager II 2.9 enables users to manage content and settings from PC. Users can organize phonebook, events, tasks and notes, gallery, profiles, FR radio, GPRS and WAP options, call lists, and voice records. Ad-hoc editing of data is provided in case some contacts need to be modified without total synchronization. Copy of information and settings on local hard disk guarantees, that if phone is stolen or damaged, data can be transferred to new phone.

MS Team    Pittsburgh, PA 15209
May 11, 2006 AvailSuite v2.0 automates tasks such as order entry, job scheduling, time tracking, billing, inventory management, purchases, and receivables. Offering CRM and ERP functionality, SMB management software has no required fields or specific order of operation and lets users save any piece of data as draft. Software also offers functionality for vendor and purchase order management, service contract tracking, project budget control, and dispatch route management.
