MKS    Andover, MA 01810 2449
Jun 02, 2006 Model 5200-SR, combined with AeroBar ionizers and integrated IonMonitor(TM) software, provides closed-loop controlled ionization system that ensures tool calibrations remain in compliance with industry guidelines such as SEMI E78. Promoting uniformity even in of changing conditions in wafer processing environments, digital unit offers adjustable ionization parameters and can be set to alarm at user-specified thresholds or under specified process conditions.

DuctSox    Dubuque, IA 52002
Jun 02, 2006 Suited for use in HVAC industry, L-Vent features sealed, non-fraying edges to limit surface dusting that affects IAQ standards in occupied spaces. Product can be used for fabric duct in commercial building applications and offers even air dispersion. Cleanable through commercial laundering, design includes 1-3 rows of orifices ranging from ¼-1 in. openings, factory-engineered to produce airflows of 5-90 cfm at 0.5 in. wg.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103
Jun 02, 2006 Available in 4 sizes, SPK+ exhibits low noise due to smooth-running hypoid gearset on input and optimized helical teeth. Acceleration torques range from 80-1,100 Nm, with 1,000 cycles/hr and 11 reduction ratios from i=12 to i=100. Options of i=16 and i=32 are for applications such as endless positioning, where binary reduction ratios are necessary. Along with universal alpha motor mounting system, product features torsional backlash between 2 and 6 arc min.

Anver Corp. - Anver.Com    Hudson, MA 01749
Jun 02, 2006 Powered by direct drive pump operating with 100% duty cycle, VT-Series Vacuum Lifter is designed to handle rubber sheet, coated carpet, and other flimsy materials as large as 72 x 48 in. Foam seal vacuum cups can be adjusted without tools and quick-connect couplings accommodate variety of pad attachments. Lifter features rugged wire-reinforced tube with a protective cover, vacuum gauges, and up/down controls built into ergonomic handle.

NJM/CLI Packaging Systems Int'l.    Lebanon, NH 03766 1403
Jun 02, 2006 Featuring Elau brushless servo motors at each capping head, Equatorque controls torque from 0-35 lb-in. and enables on-the-fly torque adjustments to be made without slowing machine via local operator interface or remotely via optional Ethernet connection. Available with 1-24 capping heads, machine handles containers from 30 ml to 5 l and achieves line speeds from 10-600 containers/min. It speeds tool-free changeovers by eliminating mechanical adjustments.

CPI Inc.    Knoxville, TN 37922

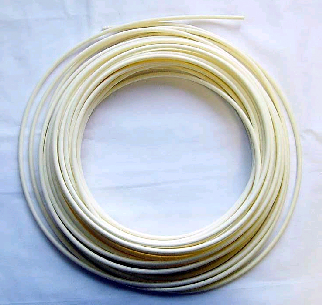

Jun 02, 2006 Available in 100 ft lengths with 1/8 in. ID, PEX Icemaker Tubing offers secure, pressure-resistant connection and helps minimize water damage resulting from leaks for breaks in standard tubing. With no chemicals used during processing, there are no chemicals to leach into water supply. UV inhibitor provides protection from degradation caused by exposure to sunlight. Tubing provides safe, clean conduit for potable refrigerator-dispensed ice cubes and cold drinking water.

Stanley Vidmar    Allentown, PA 18105 1151

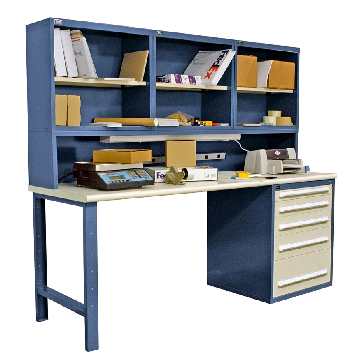

Jun 02, 2006 Built around modular drawer cabinet and laminate top, Shipping/Receiving Workbench can be tailored to suit customer. Set at 36½ in. high, top is 90 in. long, providing room for weighing, packing, and labeling. Drawer cabinet comes with roll-out shelf at top drawer position, providing additional surface for writing, packing, or staging, and can be locked in open position while in use. All drawers have 100% extension slides, and can be locked separately.

Altronix Corp.    Brooklyn, NY 11220

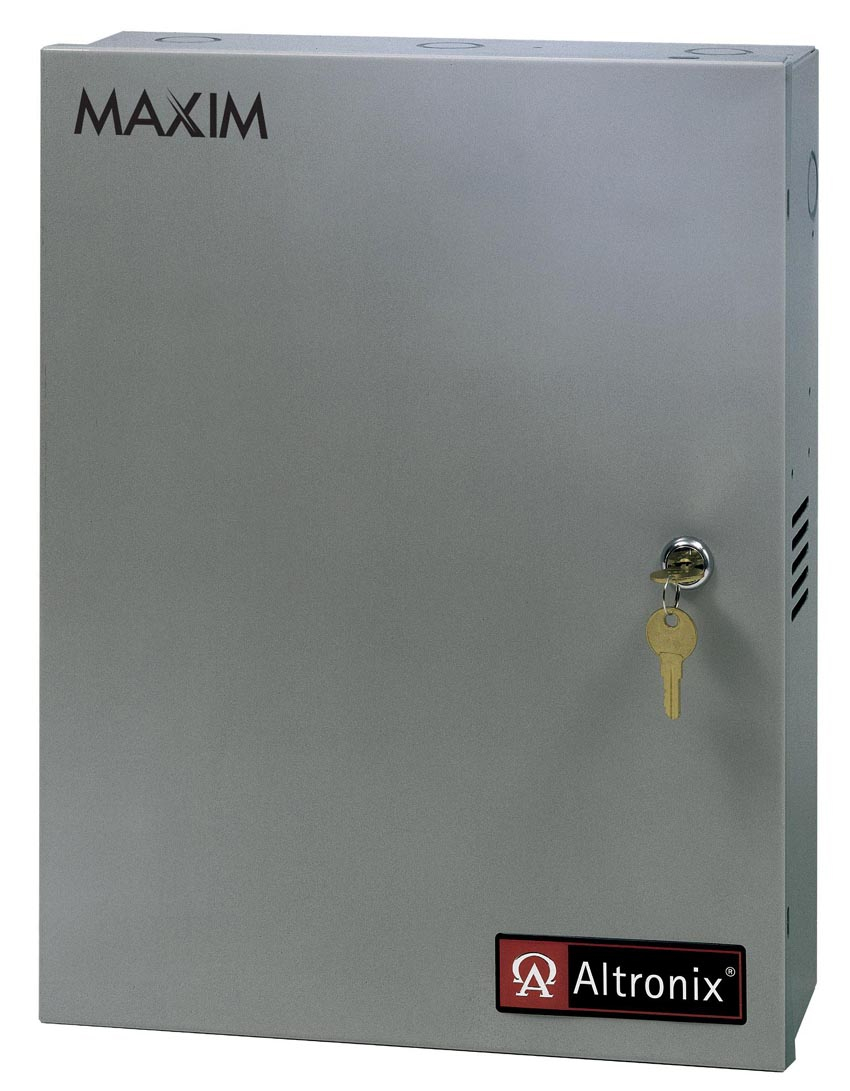

Jun 02, 2006 Maxim 33 Access Power Controller features 16 independently trigger controlled wet/dry outputs via two 8-output access power controllers. Power controller output can be configured to simultaneously offer 12 and/or 24 Vdc at up to 12 A of total power. Outputs incorporate built-in selectable latching or non-latching fire alarm interfaces. Maxim 33 provides monitoring for ac failure, low battery, and battery presence.

Bell & Gossett    Morton Grove, IL 60053
Jun 02, 2006 Suited for residential and light commercial heating systems, Models NRF-36 and NRF-45 are equipped with 3-speed motors, which allow pumps to cover wide range of hydraulic capabilities. Units include DuraGlide(TM) Bearing System, heat-resistant and non-metallic closed impeller, and self-cleaning particle shield.

Bertsche Engineering Corp.    Buffalo Grove, IL 60089 6902
Jun 02, 2006 With 2 independently operating 3-axis spindle modules, Xi-Mill with 3 x 3 MM option is capable of working interchangeably as single and dual work zone machine. Based on raised bed design with twin carriages, machine offers rapid traverse of 2,362 ipm, acceleration of 0.5 g, and direct-drive 15,000 rpm 30 hp motor spindle for handling wide variety of materials. X-axis travel starts at 157 in. with models available to 275 in. of stroke. Y and Z axis travel is 20 x 20 in.

C & M Corporation    Wauregan, CT 06387 0348
Jun 02, 2006 MacroFlex Series includes Series 10, 12, 25, and 39 with wire gauge ranges from 26-16 in Series 10 down to 30 AWG in Series 12, and pitch ranges from .025-.100 in. With Teflon®-insulated cables, assemblies withstand temperatures from -55 to +200°C and can be used in variety of demanding environments. Applications include board-to-board connections avionics equipment, PCB jumpers, computers, datacom harnesses, test equipment, and medical electronic equipment.

Zetec, Inc.    Issaquah, WA 98027 0140
Jun 02, 2006 Featuring up to 64 simultaneously active phased array channels, Z-Scan PA allows for real-time data compression, signal averaging, high pulsing rate, and Dynamic Depth Focusing. It is driven by UltraVision® software from desktop or notebook PC through 100BaseT Ethernet link. By supporting 64 channels for acoustic beam forming, unit allows for design of UT inspection solutions in complex geometries where simultaneous variation of refracted and skew angle are required.

Hermle Machine Company    Franklin, WI 53132
Jun 02, 2006 With X, Y, and Z axis travels of 1,000, 1,100, and 700 mm, respectively, Model C 50 U accommodates max workpiece weight of 2,000 kg. It offers rapid traverse linear rate of 60 m/min in X and Y axes and 55 m/min in Z axis. Standard NC swiveling rotary table provides clamping surface up to 700 mm diameter. Machine is suited for 5-axis and/or 5-sided machining of large automotive and aircraft parts and molds up to 1,000 mm in diameter and 810 mm in height.

Hobart Brothers Co.    Troy, OH 45373-2900
Jun 02, 2006 Designed for A514, A710, and similar HSLA and Q and T steels, Tri-Mark TM-101 gas-shielded wire offers tensile strengths in 105,000-115,000 psi range. It is available in .045 and 1/16 in. diameters and features smooth, stable arc, low spatter, and flat bead profile. Quick freezing slag also makes wire suited for high deposition welding on either single or multiple pass applications.

Igus, Inc.    East Providence, RI 02914 0349
Jun 02, 2006 Chainflex(TM) CF.INI Cables include sensor/actuator cord set for process automation applications. Insulation and jacket are made from flexible, anti-abrasive thermoplastic polymer containing fire retardants. Non-porous TPE outer jacket also provides chemical resistance. With temperature range of -31 to +212°F, Chainflex CF.INI Cables come with straight or right angle connectors. Over-molded, thermal-plastic connector body is sealed to prevent intrusion of water.

J. W. Winco, Inc.    New Berlin, WI 53151
Jun 02, 2006 Two-Way Connector Clamps are available in aluminum with matte shot-blasted finish or black powder coat finish, as well as in stainless steel. Bores of flanged clamps are machined and designed for construction tubings GN 990 or DIN 2391, DIN 2395, and DIN 2462. Hexagon nuts are either zinc plated or stainless steel to suit screws. Clamps may be ordered with socket cap screws, hex cap screws, or adjustable clamping levers.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Jun 02, 2006 Housed in 64-pin TQFP package, 16-bit Model dsPIC30F6015 integrates 1 MSPS 10-bit ADC with up to 16 signal channels, 144 Kbytes Flash program memory, and PWM peripheral for power conversion, motor control, and lighting applications. It offers 8 Kbytes SRAM, 4 Kbytes of EEPROM, and self-programming capabilities via Flash memory. Available in industrial and extended temperature ranges, controller can operate at full speed using internal oscillator.

Ideal Industries, Inc.    Sycamore, IL 60178
Jun 02, 2006 Used to verify that installed cabling will support voice, video, and data applications, SIGNALTEK offers Gigabit performance testing by transmitting 10/100/1000 Mbps Ethernet packets and measuring errors on link in accordance with IEEE 802.3ab Gigabit Ethernet standard. Handheld device also supports Bit Error Rate Testing (BERT) and integrates time domain reflectometer. Along with monitoring mode, unit features intelligent autotest function and 32 MB internal memory for data storage.

Toshiba America Information Systems, Inc.    Irvine, CA 92618-1697

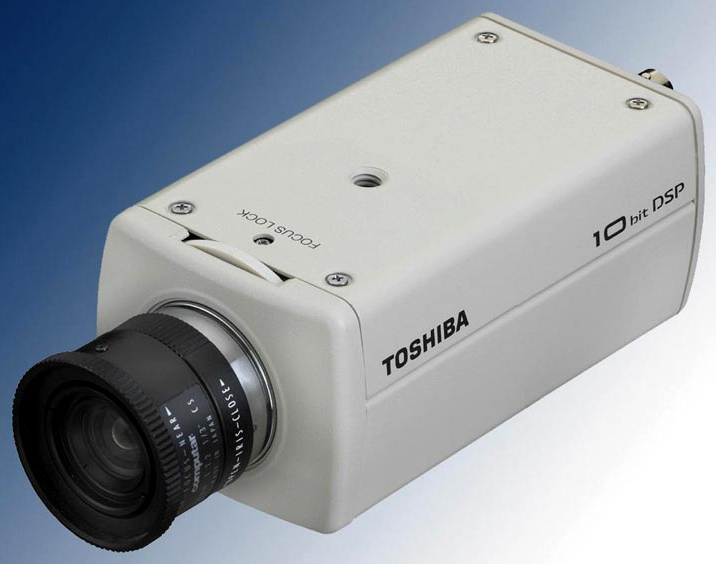

Jun 02, 2006 Offering 4 user-selectable backlight compensation modes, RoHS-compliant IK-6550A employs 1/3 in. IT CCD and delivers 540 TV line resolution and light sensitivity down to 0.2 Lux. Day-Night Imaging captures clear color video during daylight hours and changes instantly to night vision when light levels drop. Along with menu-programmable operation, box-style analog CCTV video camera features automatic shutter, digital noise reduction, 50 dB SNR.

Metabo Corp.    West Chester, PA 19380 4243
Jun 02, 2006 With max tightening torque of 142 lb-in., SBE 660 offers 5/8 in. capacity in concrete, ½ in. capacity in mild steel, and 1-3/16 in. capacity in softwood. This ½ in. hammer drill features goose neck depth gauge and ergonomic side handle. Along with Variospeed full-wave electronic speed control, it features motor with epoxy resin-coated field coil free of air inclusions. Product, rated at 5.8 A, offers 0-1,000/3,000 rpm no-load speeds and 0-57,000 no-load blows/min.
