Honeywell Power Supplies    Northford, CT 06472
May 18, 2006 Designed for use with video cameras and accessories, power supplies fit in 19 in. EIA rack and provide power options such as dual output 24 Vac/28 Vac or single output 24 Vac and 12 Vdc. All models have output distributed via 16 or 32 individually protected circuits. With flip of switch, voltage is converted in banks of 8 circuits, allowing voltage drop encountered by long wire runs to be accommodated for cameras that require it without impacting closer cameras with excessive voltage.

Streamlight, Inc.    Eagleville, PA 19403
May 18, 2006 Utilizing .5 W Rigel LEDs, Task-Light® 2AA provides up to 8 continuous hours at optimum output and 50 hours on low power, while Task-Light 3AAA delivers 5 continuous hours at optimum output and 45 hours on low power. Both feature deep reflective optics that generate 25 lumens. Equipped with 5 mm Nichia LED that produces 8 lumens, Task-Light 1AA provides up to 5 continuous hours at optimum output and 80 hours on low power. All are anodized machine aluminum with 2-stage, push-button switch.

Gems Sensors Inc.    Plainville, CT 06062
May 18, 2006 Utilizing piezo resonance technology, ExOsense(TM) Sensors monitor presence or absence of fluids from outside of plastic containers used by medical diagnostic instrument manufacturers. Units offer calibration-free installation, affix via self-adhesive disc, and sense fluid regardless of color. Applications include reagents, waste, diluents, detergent/wash, coolants, saline, and pure water contained in opaque, translucent, or transparent plastic reservoirs.

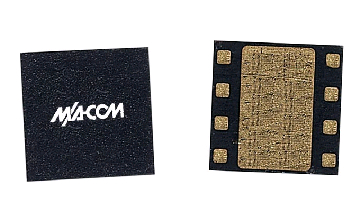

M/A-COM, Inc.    Lowell, MA 01853
May 17, 2006 Housed in 0.4 mm thick, lead-free UTQFN package, DPDT Model MASWSS0190 maintains high linearity up to 6.0 GHz with power handling performance of 33 dBm P1dB, insertion loss of 0.70 dB, isolation of 43 dB, and max leakage current of 10 µA. Fabricated on 0.5-micron gate-length GaAs process with full passivation, RoHS-compliant switch is suited for WLAN IEEE 802.11a and 802.11b/g systems that employ 2 antennas, as well as cordless phones and base stations.

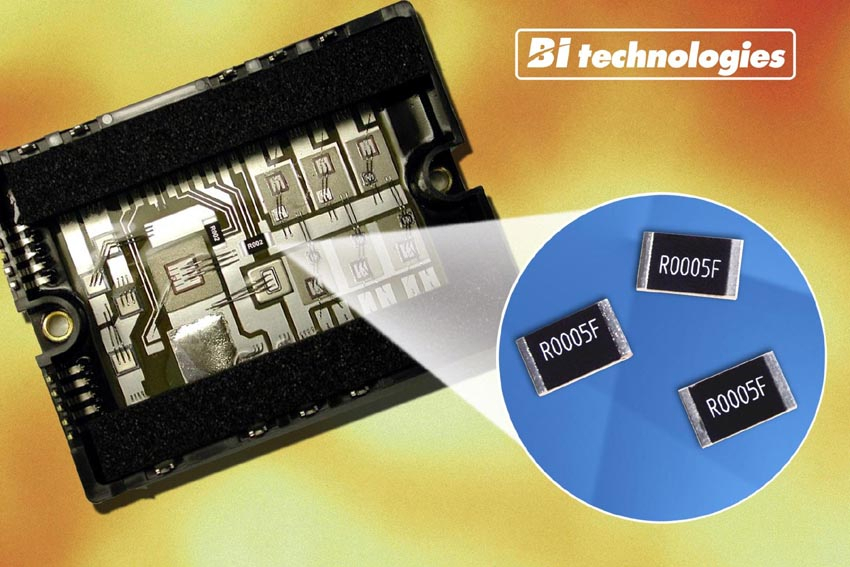

BI Technologies Corp.    Fullerton, CA 92835-1051
May 17, 2006 With resistance range of 0.5-5 mohm in tolerances of ±1.0%, BCS8 Series metal element current sense chip resistors offer typ TCR of ±50 ppm/°C, with ±30 ppm/°C resistors available. They feature footprint of 6.4 x 12.8 x 2.5 mm, with temperature rating of 175°C. Surface mount devices have rating current of 90 A, max current of 126 A, and series inductance of 5 nH. Products are suitable for applications such as over current detection, servo motor control circuits, and dc/dc, dc/ac power modules.

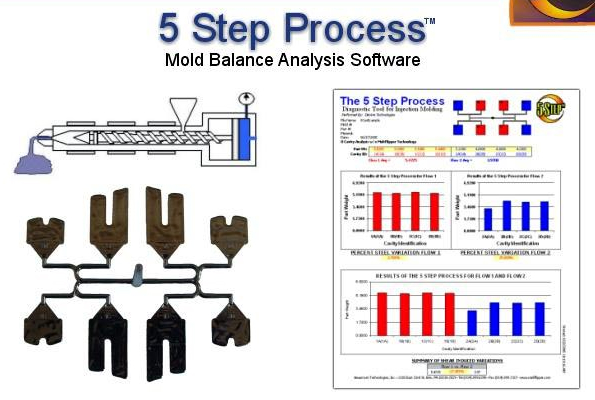

Beaumont Technologies, Inc.    Erie, PA 16511
May 17, 2006 Incorporating graphics and multi-cavity mold configurations, 5 Step Process(TM) v1.2 helps moldmakers and processors isolate variations and quantify mold imbalances by root cause, typically shear-induced flow imbalances or steel variations in mold itself. Typical debugging takes hours, rather than days or weeks. Processors can use software at plant locations worldwide, giving injection molders ability to accommodate international installations.

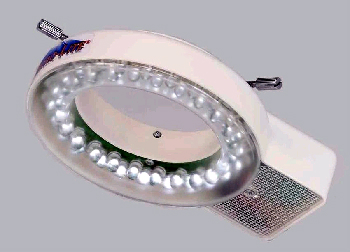

Micro-Lite, Inc.    Three Rivers, MA 01080
May 17, 2006 Fully variable from 25-100%, LED-based Model LV1000 provides flicker-free, shadow-free 360° white light with Kelvin Color of 6,200°. Brightness can be controlled to optimally suit viewing requirements of each application. Unit's compact design allows maximum working room under microscope.

Mazak Corp.    Florence, KY 41042 3092
May 17, 2006 Combining 5-axis vertical machining center with 150° tilting table, Variaxis 730 offers max spindle speed of 10,000 rpm, 40 hp max spindle power, 387 lb-ft max torque, and 1,575 ipm rapid traverse in X, Y, and Z axes. Table size on single-pallet machine is 24.8 x 19.7 in. while optional 2-pallet system is 19.7 x 19.7 in. Cutting conditions are automatically determined by Mazatrol Fusion 640M CNC, and edited cutting conditions are stored in CNC memory.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Designed to meet data rate requirements of point-to-multipoint and terrestrial radios, Model SMV2500L-LF VCO operates in frequency range of 2,400-2,484 MHz and offers phase noise performance of -86 dBc/Hz at 10 kHz away from carrier. Unit provides optimized tuning linearity and harmonic suppression of -20 dBc. Housed in SUB-L package measuring 0.30 x 0.30 x 0.08 in., oscillator is suited for automated surface mount assembly and reflow.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Offered in 0.50 x 0.50 x 0.22 in. package, S band (2,200-2,285 MHz) CRO2242A-LF is RoHS-compliant and offers low phase noise performance of -111 dBc/Hz @ 10 kHz offset from carrier. It has tuning sensitivity of 25 MHz/V typ and covers entire band from 0.5-4.5 V. Designed to operate at 5 Vdc supply while drawing 25 mA typ over -40 to +85ºC range, VCO is suited for applications that require signal stability, tuning linearity, and low phase noise performance.

Z-Communications, Inc.    San Diego, CA 92126
May 17, 2006 Coaxial resonator-based VCO, CRO1877A-LF, is lead (Pb)-free and operates over 1,835-1,920 MHz frequency range. It comes in 0.50 x 0.50 x 0.22 in. package and offers tuning linearity with typ tuning sensitivity of 22 MHz/V and covers entire band from 0.5-4.5 V. With less than 0.5 MHz/V pull and push, product operates over -40 to +85ºC range and offers phase noise performance of -111 dBc/Hz @ 10 kHz offset from carrier. Device is suited for automated SMT assembly and reflow.

EMX Industries, Inc.    Cleveland, OH 44128
May 17, 2006 Providing high sensitivity and long-range target detection, UVX-300G-REM remote UV luminescence sensor has remote sensing head that measures 0.7 x 0.8 x 1.2 in., and has volume of <0.7 cu in. Control unit provides 5 user-selectable gain settings, and relative reflection readings from 0-99. With operating distance of 350 mm, sensors are suited for gluing applications to measure amount of applied adhesive, check for presence of material/part, and alert operators to problems.

Ark-Plas Products, Inc.    Flippin, AR 72634
May 17, 2006 Available with silicone disk valves, Polycarbonate Luer Check Valves come in 6 configurations featuring male and female Luer with locking swivel and slip connections. They meet most clean room and sanitary requirements, non-contact medical delivery, and are acceptable for use with food processing and potable water. One Way valves are designed for use in applications requiring one way flow in pressure applications from .2-125 psi.

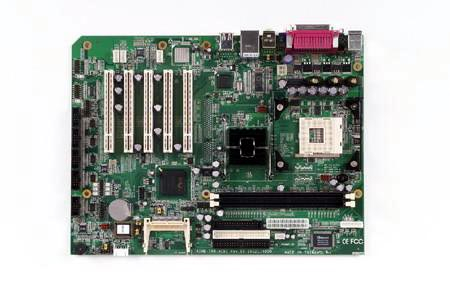

Advantech Co. Ltd    Irvine, CA 92618
May 17, 2006 Measuring 12 x 9.6 in., AIMB-740-6CB1 industrial ATX motherboard supports Intel® Pentium® 4/Celeron® D/Mobile Pentium® 4-M processors with 2.6-3.06 GHz speeds and up to 512 Kb L2 cache. Using Intel 845GV chipset, it features Hyper-Threading technology to enable multi-tasking applications. Equipped with 6 serial ports and up to 6 USB ports, board delivers wide memory bandwidth with 400/533 MHz FSB and offers max memory capacity of 2 Gb DDR 266/333 SDRAM.

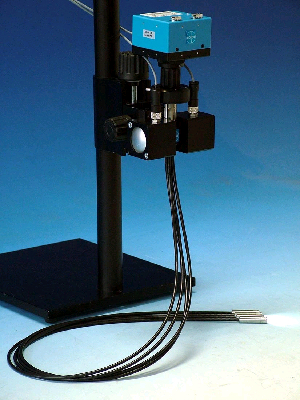

Volpi Manufacturing USA    Auburn, NY 13021
May 17, 2006 FlexLens is available with 1-4 arms, each arm transmitting image back through FlexLens system into C-mounted camera. Images can then be combined or processed individually. Integrated LED-based illumination suits applications with short working distance, and optional fiber optic illumination is used where more light is required. Each arm can be ordered with independently focusable optics to address instances where each view has different required working distance.

Woodhead Industries Inc.    Deerfield, IL 60015
May 17, 2006 Featuring unthreaded stainless steel connectors, BradConnectivity(TM) Ultra-Lock System meets stringent sanitary requirements of food, beverage, and pharmaceutical manufacturers. M12-compatible system is comprised of integrated distribution boxes and cordsets built on push-to-lock technology, which enables installation without turning coupler. Rated to IP69K, radial O-ring seal is operator-independent and maintains constant pressure seal against moisture.

MC Machinery Systems    Wood Dale, IL 60191
May 17, 2006 Combining aspects of hydraulic brakes with ac servo brakes, HYB Series controls ram speed and positioning with 1 micron resolution scales that read ram position 1,000 times/sec. Feedback is sent to ram ac servo motors to ensure ram velocity is constant and no over-travel can occur. Lower bed crowning is controlled by double wedge system that is adjustable across bed. Control sets amount of crown, which is automatically adjusted to correct bed to match angles.

Humphrey Products    Kalamazoo, MI 49003
May 17, 2006 Offered in 2-way and 3-way configurations and in 7, 15, and 21 mm sizes, Spider Valves are designed for insertion into sub-base or custom manifold. Instead of plunger that moves through coil, valves have flat armature that is pulled against magnetic yoke in energized position. Armature is fastened together with leaf spring that presses integrated sealing element against valve seat in de-energized position. Consuming ½ W, valves offer switching times in µsec range.

RotoZip by Bosch    Mount Prospect, IL 60056
May 17, 2006 Multi-purpose 5/32 in. XB-MPGP2 Tracing XBIT(TM) makes correct cuts every time by avoiding object behind surface and only cutting out material desired. To use bit, users plunge directly into workpiece and bit is driven in one direction until it hits edge of object being cut out. Using object as template, users follow edge around to complete cut. Compatible with RotoZip and Spiral Saws®, bit is suited for applications in materials ranging from wood to fiberglass.

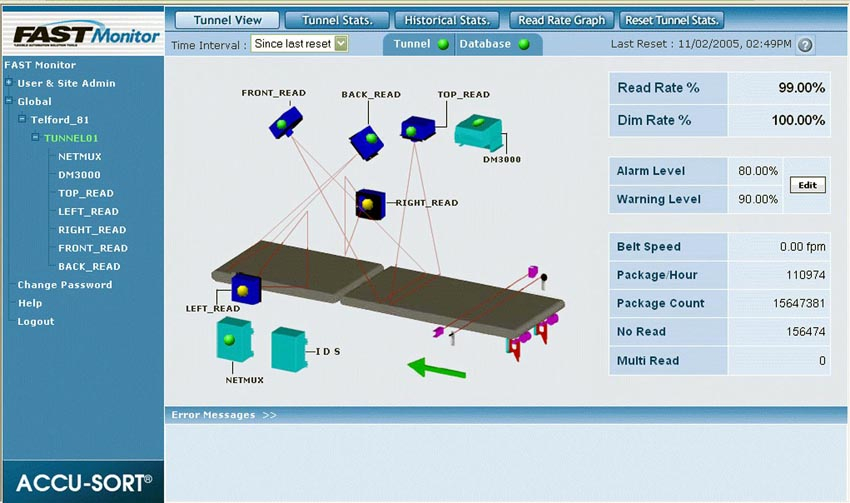

Accu-Sort Systems, Inc.    Telford, PA 18969 1196
May 17, 2006 FAST Monitor(TM) monitors and diagnoses potential issues that affect scanners in sortation systems, enabling distribution center warehouse maintenance managers to optimize package throughput. Designed for Auto ID market, maintenance and engineering tool provides real-time performance data that enables identification and diagnosis of problems from any location in as little as 5 sec. Data is presented in form of Web page, accessible through Internet Explorer® or Mozilla® browser.
