Copley Controls Corp.    Canton, MA 02021
May 23, 2006 Designed for torque control of brushless servo motors, Model 800-1514 dual-axis servo amplifier accepts encoder and Hall feedback data. Drive torque is controlled by ±10 V command from motion controller or PLC. It operates on 20-55 V isolated dc supply and delivers independently controlled 4 A peak and 3 A continuous outputs for driving high performance 3-phase motors. Measuring 6.58 x 3.9 x 1.17 in., amplifier provides dual-channel status indicators and protection circuits.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
May 23, 2006 Designed for finishing of dies and molds made of steel harder than 47 HRc, GC1610 CoroMill Plura carbide endmill provides direct machining in pre-hardened materials in single set-up. PVD-coated product with Pluratech quality is available in standard diameters ranging from 0.4-25 mm. Combination of solid carbide tooling solutions suits variety of milling including applications for tool and die and aerospace industries.

CS Hyde Company    Lake Villa, IL 60046
May 23, 2006 Suited for color code specific applications, processes, or products, Colored PTFE (Teflon®) Films and PSA Tapes (with adhesive) are available in blue, green, or yellow. Products feature tensile strength of 20-30 lb/in. and dielectric strength of 8,000-12,000 V. Films and tapes operate at 50-55°F and 45°F, respectively, and suit high temperature applications.

Clip Strip Corp.    Hackensack, NJ 07601
May 23, 2006 Molded of clear plastic, Roto Clip sign holders attach with spring tension clips and can be used on wood, glass, and acrylic shelving. They clip on grid panels, garment racks, display arms, wire panels, or product itself. Available in 9 models, sign holders come with 1-5 uni-socket joints to allow signage to be displayed in same plane as display fixture and merchandise, at an angle, or rotated.

Seco-Larm    Irvine, CA 92606-5012
May 23, 2006 Designed for cabinets and drawers, E-941SA-80 miniature electromagnetic lock measures 2¾ x ¾ x 1¼ in. It features 12 and 24 Vdc dual-voltage operations, and has 80 lb holding force. Product comes with 36 in. wire leads, removable bracket, and offers anodized aluminum housing, MOV surge protection, and no residual magnetism.

Extech Instruments Corp.    Nashua, NH 03063
May 23, 2006 Series S3750THS battery-operated thermal printer features automatic thermal print contrast control and provides multiple interface options. Portable receipt printer is MS-DOS and Windows compatible with flash-based integrated CPU memory to add logos, bar codes, and other graphic elements to receipt. RS-232 Serial and IrDA wireless communication are standard and in addition to 802.11b/g with WPA security, optional Bluetooth(TM) radio for peer-to-peer communication is available.

Cornerstone Automation Systems, Inc.    Prosper, TX 75078

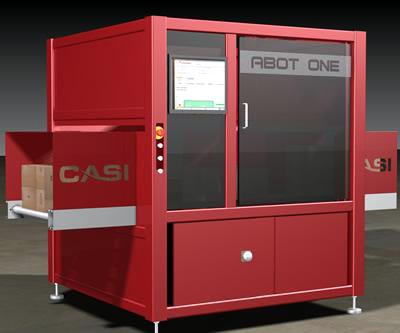

May 23, 2006 Able to open boxes in random order of size, shape, and opening style, Automated Box Opening Technology(TM) (ABOT(TM)) handles boxes ranging from 2 x 2 x 1 in. to 30 x 23 x 20 in. Multiple cut patterns can be programmed and applied to specific SKUs or packaging types based on bar codes or box size, and cutting depth can be changed on-the-fly for different corrugate thickness. ABOT ONE(TM) cuts up to 600 cases/hr and ABOT DUO(TM) rates up to 1,200 cases/hr.

Eagle MHC    Clayton, DE 19938

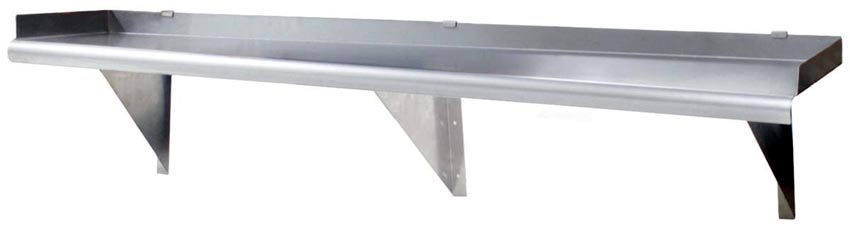

May 23, 2006 Snap-n-Slide(TM) system incorporates heavy-gauge stainless steel shelf that slides onto die-formed stainless steel mounting brackets. Shelves can be positioned anywhere on wall brackets, without need for fasteners or tools, while brackets can be mounted directly to wall studs, allowing shelf to be adjustable on brackets. With rolled front edge, shelves are 12 in. wide and are available in lengths ranging from 24-72 in.

LEDtronics, Inc.    Torrance, CA 90505
May 23, 2006 Bright White LED Compact Solar-Powered Lantern uses stored sunlight energy to power LED lamp of 3.4-end-ft-candle intensity, providing bright light for up to 25 hr on fully-charged battery. Measuring 8.125 in. high and weighing 2.2 lb, lantern has rugged ABS plastic body that provides resistance to dents, scratches, and foul weather. Child-safe product comes with built-in handle, solar panel, ac/dc power supply, car power supply adapter, and 4 rechargeable batteries.

QC Industries    Batavia, OH 45103

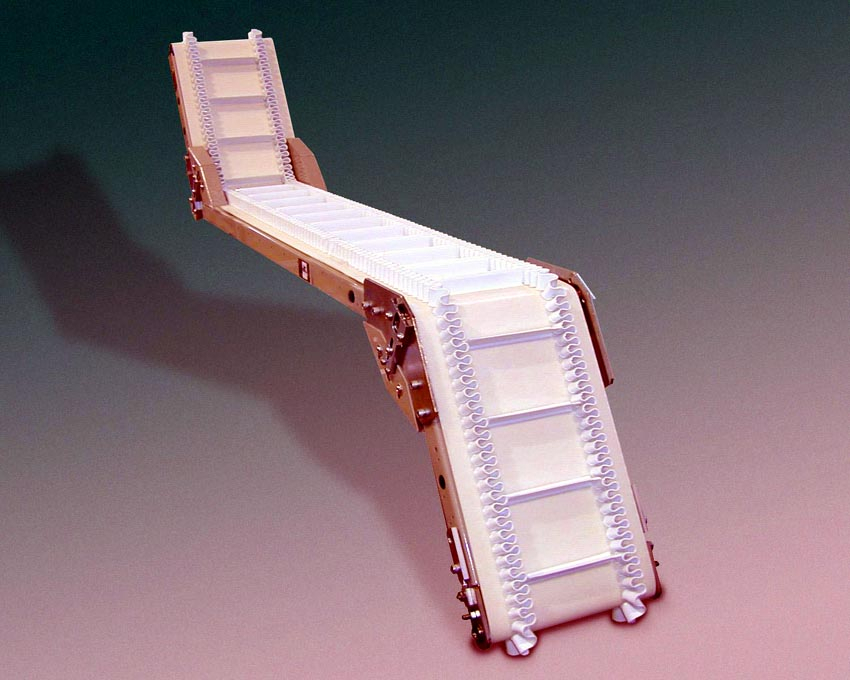

May 23, 2006 Available in 5 standard configurations of movement, 125Z Series conveyors fit within space constrained areas and provide tight product transfer. Z-Track(TM) component allows users to control belt tracking at fixed angles ranging from 30-90° of incline/decline and adjustment settings can be locked-in to ensure long belt life. Belt widths of 8-24 in. are available in lengths up to 20 ft, with load carrying capacity of up to 125 lb and speeds to 225 fpm.

Michelman Inc.    Cincinnati, OH 45236
May 23, 2006 BugBan(TM) 9000 is water-based, repulpable coating for paper and paperboard substrates that can be applied on corrugated or folding carton either off-line or in-line, using Rod, Blade, Flexo, Gravure, or Size Press application methods. EPA approved product is suited for applications including outside of corrugated surfaces, folding cartons, and wood and corrugated pallets used in transporting of food.

Bridgeport Fittings, Inc.    Stratford, CT 06497
May 23, 2006 PVC non-metallic cable connector line is designed to allow contractors to run desired length of cable into electrical box before installing connector. Model 616-NMD accepts cable ranges of one 14/2-6/2 or two 14/2-12/2, and 617-NMD accepts one 8/2-6/3 cables. Both models are used with 1 in. knockouts. For new work, connector is inserted into knockout from outside of box, and, for old work, connector is slid over cables and inserted into knockout from inside of box.

Phoenix Contact    Harrisburg, PA 17111 0100

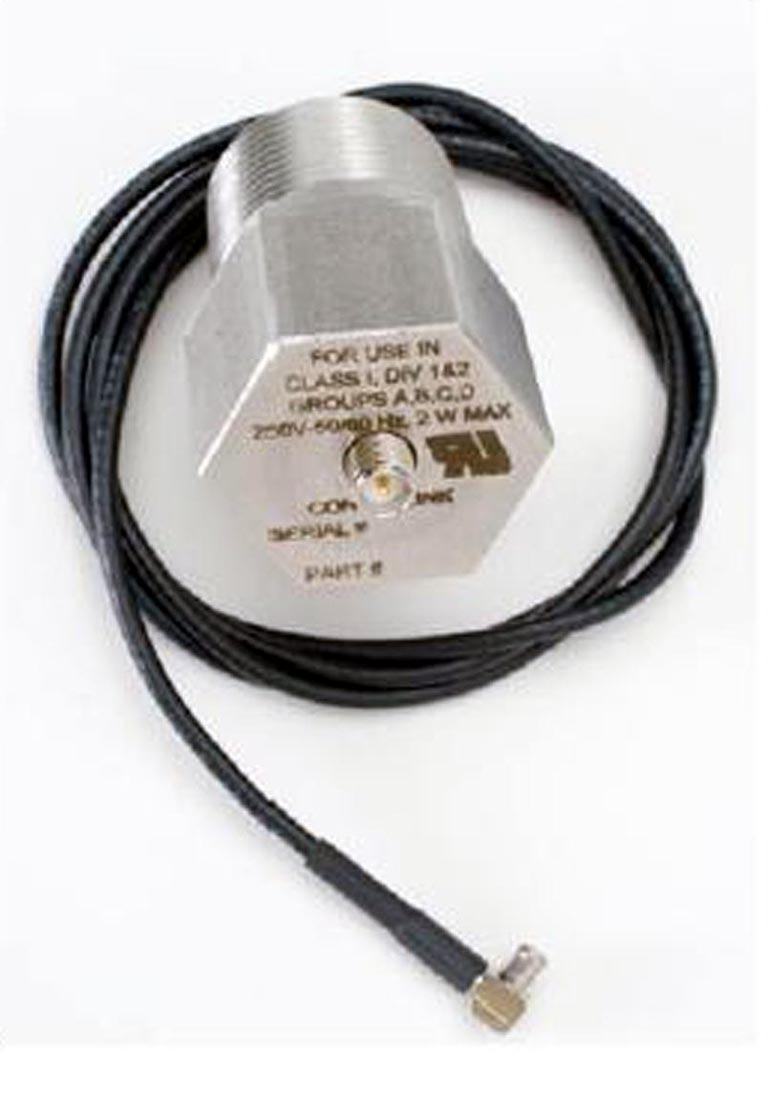

May 23, 2006 RAD-CON-MCX-RPSMA-EX flameproof antenna fitting limits amount of energy to antenna, reducing chance of explosion. Any UL/CSA listed explosion-proof housing or fitting can be used with it. Fitting allows wireless product to be used in Class 1, Div. 1 area with antenna mounted outside cabinet. MCX connector and 3 ft of integrated cable connect radio to inside of cabinet, then pass through cabinet and attach to antenna or additional cable with RPSMA connector.

ESAB Welding & Cutting Products    Florence, SC 29501
May 23, 2006 With single plasma torch, ESAB m3 Plasma System produces high-speed standard plasma cutting, precision cutting and marking, and high-current, thick-plate cutting. PT-36 torch produces cut face with low dross, requiring little secondary clean up, and can function in both dry and water injection modes. When configured for 600 A operation, system can cut and mark material from 20 Ga to 6.25 in. without sacrificing cut quality.

Halogen Valve Systems Inc.    Irvine, CA 92614

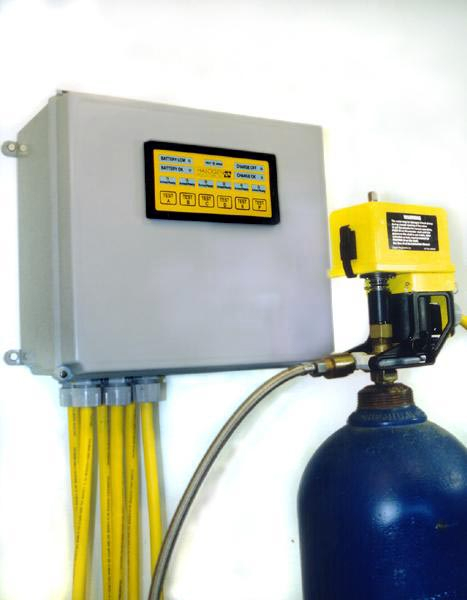

May 23, 2006 Hexacon(TM) Model II control system closes up to 6 Eclipse(TM) actuators on toxic gas cylinder and ton container valves when activated by panic buttons or remote gas sensors. Model II computer system applies 30 lb-ft of torque for test closures and 50 lb-ft of torque for emergency closures of cylinder valve. SCADA systems can be provided with actuator closure status and error codes to analyze problems and take appropriate corrective action.

Mitutoyo America Corp.    Aurora, IL 60504 9176
May 23, 2006 Featuring 3D display of part measurements and ability to import native CAD models, MCOSMOS 3.0 Coordinate Measuring Machine (CMM) software enables users to import part and fixture models and place them in on- or off-line CMM. Graphic view of all measurement points can be rotated, zoomed, or panned to any viewpoint, and software links all statistics, data, image, and sound files of part program for record management. Software also supports Electro Discharge Machining.

Danaher Motion    Wood Dale, IL 60191-1073

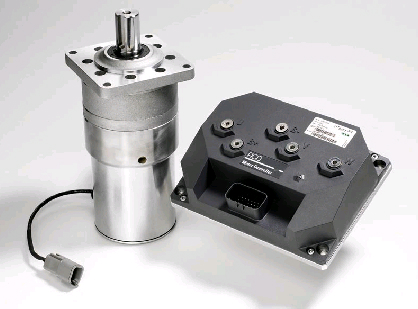

May 23, 2006 Consisting of permanent magnet ac motor with integrated speed reducer and ac drive with I/O interface, Advanced Power Steering System covers variety of vehicle applications including Class 1, 2, and 3 lift trucks. I/O interface facilitates direct connection of most steering sensors, while stand-alone mode allows direct connection of steering encoders. Offered in 4 power ranges with 3 gear ratios, system includes safety function that can directly activate emergency brake.

Speaker, J. W. Corp.    Germantown, WI 53022

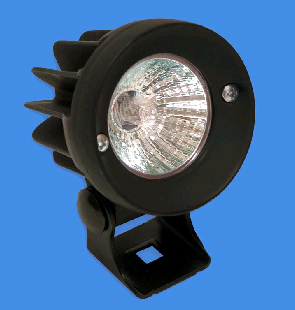

May 23, 2006 Suited for heavy-duty applications and offered in 12 or 24 V versions, Model 4200/MR16 utilizes MR Halogen bulb and 2-pin Deutsch socket. Unit comes in 36° spread version for flood-type beam patterns and 12° spread version for trapezoid beam pattern. Equipped with universal hardware that mounts to any surface, lamp is suited for construction, specialty truck, and agricultural vehicles.

AC Technology Corp.    Uxbridge, MA 01569 2001
May 23, 2006 Featuring power range up to 20 hp and input voltage range from 120 Vac 1-phase to 600 Vac 3-phase, SMVector Drive is designed for packaging and food processing machinery, material handling/conveying, and HVAC systems. Modes of operation include V/Hz, Enhanced V/Hz, Vector Speed, and Torque. SMVector also includes Electronic Programming Module, which is drive's memory in removable chip that enables users to program multiple drives in seconds.

Heinrich Co.    Racine, WI 53403

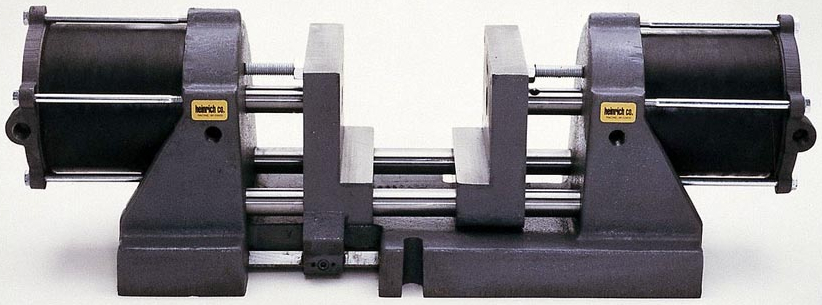

May 23, 2006 Offered in jaw widths of 2, 6, and 8 in., self-centering vises handle stock sizes from ¼-9 in. Maximum jaw opening can be adjusted via stops, and set of hardened and ground horizontal v-jaws is offered with each size. Operated with double-acting piston type air cylinders that produce from 15-33 times power factor, vises have recommended max air pressure of 120 psi. Gear and rack assembly in bottom of each unit moves jaws together with ±.0001 in. accuracy.
