Schaffner EMC, Inc.    Edison, NJ 08837
Jun 19, 2006 Delivering RF attenuation, ACARA(TM) Filtered Connectors prevent emission and protect sensitive computers as well as switching and cellular equipment. Units are available in current ratings from 65-100 A in variety of capacitance values from 100-600 nf. They offer EMI suppression to frequencies up to 6 GHz, and insertion loss of less than 100 dB beyond 6 GHz. Positive latch prevents accidental unmating, but allows for immediate power disconnect for emergency service.

Advantech Automation Corp.    Cincinnati, OH 45240
Jun 19, 2006 Fanless MIC-3316 utilizes on-board ULP 650 MHz Celeron processor and is suited for rugged industrial applications. In 3U form factor, board offers CPU with up to 348 MB SDRAM, optional rear I/O support, battery-backup 512K RAM, and 2 on-board CompactFlash sockets. Other features include 2 RS-232/422/485 ports, 10/100 Mbps Ethernet port, and DVI-I interface in addition to watchdog timer, PCI-to-PCI bridge, AC-97 audio support, and 2.5 in. HDD bay.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 19, 2006 BUCHANAN JC6 series .375 in. centerline dual-barrier strip is rated 20 A at 300 Vac or 5 A at 600 Vac and accepts 12-22 AWG copper wire, stranded or solid. Insulator is UL 94V-0 black thermoplastic and contacts are tin plated brass. RoHS-compliant, molded-to-length product is available in 2-23 positions and can be configured with quick-connect tabs and jumpers, and with choice of SEMS or binding head screws.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

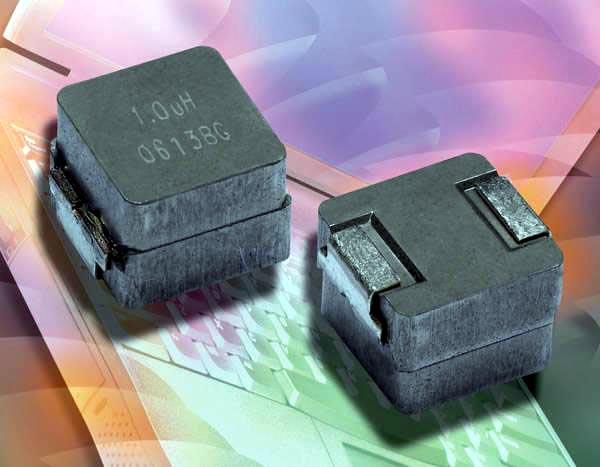

Jun 19, 2006 Measuring 0.255 x 0.270 in. with maximum height of 0.197 in., IHLP-2525EZ-01 inductors offer 0.56-10 µH inductance values. They have typical DCR values ranging from 3.4-67.9 mµ and maximum DCR values ranging from 3.6-71.3 mohm, while standard inductance tolerance is ±20%. With resistance to thermal shock, moisture, mechanical shock, and vibration, low-profile, high-current inductors operate under temperature range of -55 to +125°C.

Techno CNC Router Systems    New Hyde Park, NY 11040
Jun 19, 2006 Operating with Techno Premium Class CNC Routers, Model 60W roller hold-down system features four 2 in. dia urethane covered steel rollers with automatic roller lift and retracting for optimal pressure hold-down. Spindle positioning is placed in-between 2 sets of rollers to maximize downward force being applied to material preventing part slippage. Adjustable roller-end-of-travel actuators activate sensors and signal rollers to lift before outer edge of workpiece.

Curveline, Inc.    Ontario, CA 91761
Jun 19, 2006 Used for weather protection or air pollution control wherever covered conveyor systems are required, self-supporting covers can be crimp-curved into 180° clearspans as well as other desired radii and angles of curvature. Products are created from choice of ~50 different exposed fastener panels and have unfinished galvanized steel substrate. Based on 100 mph wind factor, single 24-gauge, Grade D (50 ksi) steel panel can be curved to form spans from 6 ft 1 in. to 11 ft 9 in.

Bosch Rexroth Corp., Pneumatics Div.    Lexington, KY 40511
Jun 19, 2006 Available with NPT or metric (ISO-G) threads, QR1 (Quick Release) series features oval release ring with raised gripping surface. Mini design works with plastic tubing ODs from 1/8-¼ in. and 3-6 mm, while Standard fittings can be used for tubing ODs from 5/32-½ in. and 4-16 mm. Products such as check, ball and flow control valves are included in range of function fittings, which work with tubing ODs from 5/32-½ in. and 4-12 mm. Metric fittings have captive O-ring.

Associated Research, Inc.    Lake Forest, IL 60045
Jun 19, 2006 OMNIA® and HypotULTRA® III series electrical safety testers are available with optional Data/Interface card, which provides choice in communication protocols as well as method to log test data. Data/Interface card features serial port configurable for RS-232 or RS-485 communication, and PS/2 input allows for bar code scanning directly from tester. Data collection port works directly with provided 256 MB flash memory stick.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Jun 19, 2006 Weighing less than 2¼ lb, ProSet(TM) 1600 is built from cast aluminum and high-strength polymers and able to maneuver in tight spaces. Ergonomic design incorporates 2-finger trigger; quick disconnect nose housing; and left or right, On/Off swivel air fitting. Front end components can be serviced in minutes. In addition to 5/32 in. rivet dia open-end all aluminum and steel rivets, tool can set all aluminum, steel, and stainless steel rivets from 2.0 mm to 1/8 in. dia.

Thermo Electron Corporation    Ecublens CH-1024  Switzerland
Jun 19, 2006 ARL QUANTRIS(TM) optical emission spectrometer can be configured with up to 3 spectrographs to cover wavelengths from 130-780 nm, enabling analysis of all elements of interest in zinc alloys within 35 sec. Each module is flat field spectrograph with single CCD. Product comes with Current Controlled Source, vacuum spectrometer, automatic optical alignment, and spectrum profiling. Electronic spectrograph lets users perform qualitative and semi-quantitative analysis using spectra.

Pacific Bearing Co.    Rockford, IL 61125
Jun 19, 2006 Available in 9 different sizes, Standard Inch Linear Ball Bearings provide minimum friction resistance and wide linear travel distance in sizes ranging up to 2 in. in shaft dia. Preassembled bearings can be loaded from any direction. Products are comprised of solid, heat treated steel and resin retainer. Bearings are suited for use in machine tools, industrial machines, electrical equipment, food processing machines, or optical and measuring equipment.

Pacific Bearing Co.    Rockford, IL 61125
Jun 19, 2006 Designed to provide minimum friction resistance and unlimited linear travel distance, Standard Inch Linear Ball Bearings are offered in 9 sizes to handle range of load capacities while maintaining precise forwards and backwards linear motion. Bearing seals in lubrication and blocks out dust, while resin retainer reduces running noise. Offered in sizes up to 2 in. shaft diameter, parts are preassembled for use and can be loaded from any direction.

Pacific Bearing Co.    Rockford, IL 61125
Jun 19, 2006 Based on Simplicity® self-lubricating linear bearings, Redi-Rail® V Guide System exhibits minimal noise while maintaining high-speed capabilities in harsh environments. Offered in 4 sizes, its V Guide Rails are polished and induction hardened to correspond with same size wheels. V Guide Wheels are permanently greased to provide low-friction guidance. Allowing for preload and fit, adjustable V Guide Bushings are available for metric or English hardware.

Communications Specialties, Inc.    Hauppauge, NY 11788
Jun 19, 2006 Pure Digital Fiberlink® 7250 Series transmits RGB resolutions up to UXGA and stereo audio over 2 single mode or multimode fibers. Each fiber may be connected to either input on receiver unit without affecting system operation with up to 20 m difference in length between 2 fibers. Unit requires no adjustments, equalization, or de-skewing. Applications include weather and satellite imaging, military installations, and digital signage.

ASACA/Shibasoku Corp. Of America    Golden, CO 80401
Jun 19, 2006 OSVault storage appliance provides disk speed access and transparent connectivity to TeraCart optical libraries. Offering nearline access to oversized files, product features dual Gigabit Ethernet ports and can be configured with 3, 6, 8, 12, or 24, 500 GB hot-swappable SATA HDDs. It stores data in UDF file system format to facilitate platform interchange and cross-platform readability. Powered by Intel P4 4.0 GHz CPU, plug-and-play unit has 512 MB DDR-2 Memory and CD-RW/DVD drive.

Verizon Communications, Inc.    New York, NY 10036
Jun 19, 2006 Designed for large businesses, Business Integrated Telecom Expense Management Service tracks wireline and wireless expenses to identify cost-savings opportunities. Service utilizes Symphony software to manage assets and invoices for wireline services, including inventory tracking, contract administration, invoice auditing, and dispute resolution. Analytical capabilities include comparison of wireless plans against database of 35,000 national plans to determine cost-effective alternatives.

DataNumen, Inc.    Alameda, CA 94512
Jun 19, 2006 Database Recovery v1.0 recovers deleted tables and records from corrupt MS Access 95, 97, 2000, XP, and 2003 databases and repairs DBF files with memo or binary data fields stored in DBT or FPT files. It repairs files on corrupted media such as floppy disks, Zip disks, or CD-ROMs, and users can repair file with context menu of Windows Explorer. Software also supports command line parameters and drag and drop operation.

MWH Soft    Broomfield, CO 80021
Jun 19, 2006 GIS-centric InfoSWMM Risk Assessment Manager is used to estimate extent and consequences of overflows and flooding on wastewater and stormwater collection systems, as well as in formulating urban sewer and small stream emergency response, recovery, remediation, and operations plans. Program can model entire land phase of hydrologic cycle as applied to urban stormwater and wastewater collection systems, or perform single event or long-term rainfall-runoff simulations.

Autodrill Co.    Millington, NJ 07946
Jun 19, 2006 Available with air motors or electric motors, 1000 series AutoDrill units can be equipped to have proof of return signal provided by drill itself. DC motors are also available, which have adjustable rpm rate for optimal accuracy. Measuring 12 x 4 x 4 in., series is rated for use on woods, plastics, metals, and various other materials. It can be used in combinations for complex patterns or production drilling operations where multiple spindle drilling heads are not appropriate.

Enerpac BV      Netherlands
Jun 19, 2006 Powered by 1, 1.5, 3.0, or 7.5 hp TEFC motor, ZE Series Pumps offer multiple valve and reservoir configurations to match demanding industrial applications. They are available in 4 flow ranges and single and 2-stage models to provide optimum cylinder and tool performance. Optional LCD display provides various diagnostic and readout capabilities.
