Toshiba America Information Systems, Inc    Irvine, CA 92618-1697

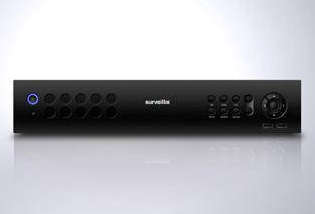

Jun 12, 2012 Suited for surveillance systems running up to 16 cameras, EHV offers flexibility to record analog cameras at 480 fps as well as IP network cameras. Embedded hybrid recorder uses H.264 video compression to maximize network bandwidth efficiency while providing appropriate integration with new/existing infrastructure elements. Capabilities let user simultaneously record and remotely access live views as well as playback video. Mobile apps permit remote access of video on diverse devices.

DSL    Hertfordshire SG6 1LP  United Kingdom

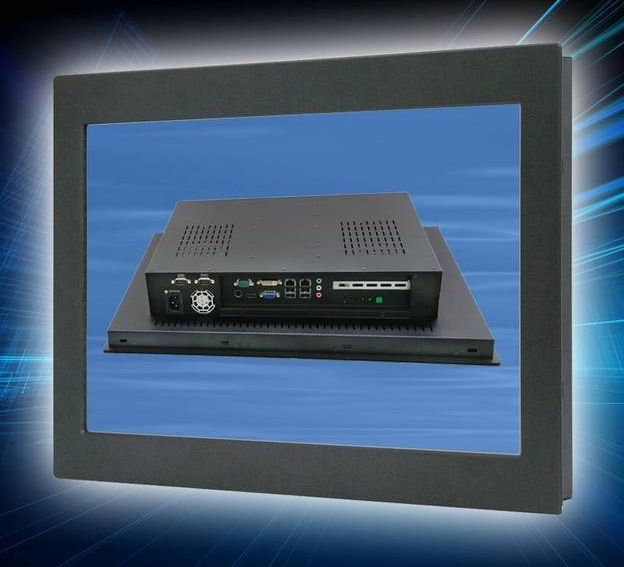

Jun 12, 2012 Equipped with 21.5 in., high-brightness TFT LCD and Intel® Core(TM) 2 Duo/Quad CPU with up to 4 GB RAM, APC-3228 suits industrial and factory automation and control applications. IP65-sealed resistive touchscreen display provides 1,920 x 1,080 resolution, and CRT, DVI-D, and HDMI outputs are also available. Designed to be VESA or panel mounted, PC offers dual Gigabit LAN, PCI expansion slot, COM port, 4 USB 2.0 ports, and 3 serial ports as well as support for 2.5 in. HDD or CompactFlash.

Ohmite Mfg.    Rolling Meadows, IL 60008

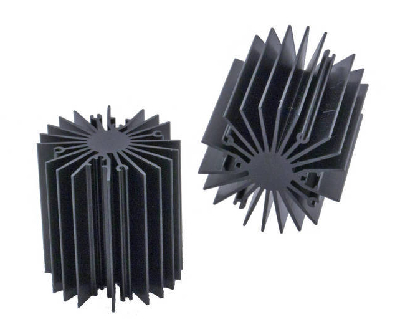

Jun 12, 2012 Made of black anodized aluminum, 19000 Series features radial-fin geometry optimized for natural convection. Five models are available with power ratings of 42.8, 26.3, 9, 4.5, and 24 W and corresponding thermal resistances of 0.68, 1.15, 2.38, 3.27, and 1.15 C/W. Expected temperature rise above ambient ranges from 14.7°C max for 4.5 W model to 29.2°C for 42.8 W unit. Available in 2-10 in. lengths and 1.26-4.51 in. diameters, heat sinks include screw bosses for LED substrate attachment.

Fresh Aire Test & Balance    Lemont, IL 60439

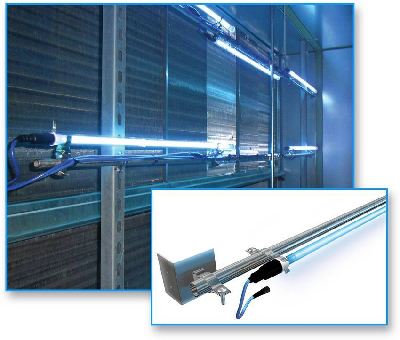

Jun 12, 2012 Designed for onsite configuration with major brands of HVAC equipment, Tubular Rack UV System emits 360° light field that disinfects interior wall surfaces, coils, and supply airstream of air handlers. Kit includes multi-voltage power supply, UV lamps in 32 or 60 in. lengths, and all necessary bracketing, mounting hardware, and marine-grade waterproof electrical cables and connections. Commercial germicidal IAQ product is suited for hospitals, schools, and office buildings.

Wilks Enterprise, Inc.    East Norwalk, CT 06855

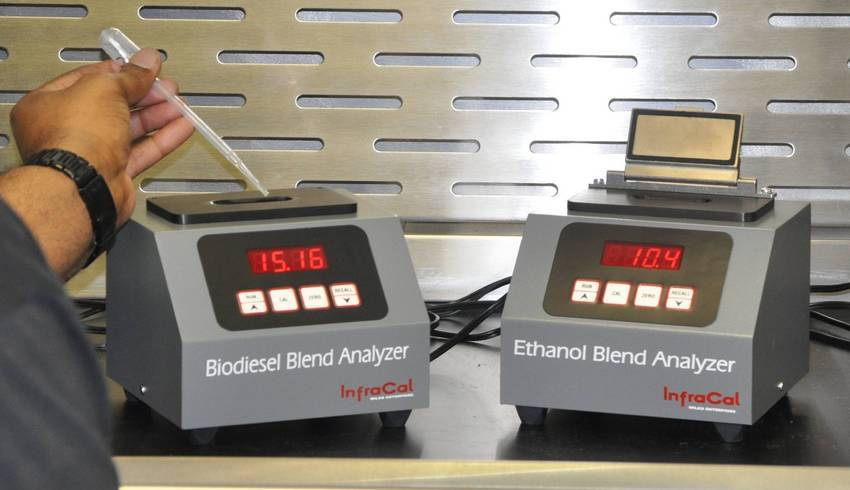

Jun 12, 2012 Designed for use by non-technical personnel, InfraCal Blend Analyzers determine percent ethanol in gasoline or biodiesel in diesel to ensure correct fuel blend. Factory-calibrated and self-contained models are available for measuring various ranges from 0.2%-100% and can be operated from battery pack or cigarette lighter adapter cable. Weighing less than 5 lb, analyzers come with internal calibration program, direct readout display, and RS 232 interface. Printer option is available.

VarTech Systems, Inc.    Baton Rouge, LA 70809
Jun 12, 2012 Powered by Intel® Core i5 CPU (standard) or i3/i7 CPU (optional), PowerCube Mobile features industrial-grade construction with black powder-coated thermal set aluminum enclosure, 2.05 in. profile (without mounting), and various mounting bracket options. Front access removable HDD is protected by quick removal cover, and operation is rated from 32 to 140°F. Along with support for up to 16 GB DDR3 at 1,333 MHz, features include 500 GB SATA Fast Access HDD standard (up to 1 TB optional).

Crouse-Hinds Div., Cooper Industries, Inc.    Syracuse, NY 13221
Jun 12, 2012 Offering tool-less, snap-in installation and removal, MCQ Series Quick-Lok Pro Connector provides solution for termination of cable in steel boxes and enclosures. Unit comes standard with polycarbonate insulated throat to ensure smooth pulling surface. Designed to fit into ½ in. KO, connector is suitable for steel and aluminum armored cable from 14/2-10/3, steel and aluminum MC/MCI-A and Hospital Grade cable from 14/2-10/3, and steel and aluminum 3/8 in. reduced wall flexible metal conduit.

Richard L. Sensenig Co.    Ephrata, PA 17522
Jun 12, 2012 Featuring double glazed dome formation consisting of 2 prismatic acrylic layers, 1 clear and 1 white, Firestone SunWave(TM) Daylighting Systems deliver soft, yet bright natural diffused light that is distributed throughout building, without hot spots or glare. Dome shape maximizes lighting performance at low sun angles while offering maximum strength. Available in 2 x 4, 4 x 4, 4 x 8, 5 x 5, 5 x 6, and 5 x 8 ft sizes, skylights also come in Smoke Hatch and Curb models.

Humphrey Products    Kalamazoo, MI 49003
Jun 12, 2012 Measuring 15 mm with 0.25 Cv flow, 3-port Model 153 provides stable performance regardless of media fluctuations, mild contamination, or porting choices. Balanced poppet design means all internal forces generated by pressurized media are effectively neutralized. Applicable for full pressure range to 125 psi, including vacuum, direct-acting valve is designed and tested for low leak rates of 4 ccm max at 100 psi. Models are available in 2-way or 3-way and normally closed or normally open.

Elemco Building Controls    Hillsborough, NJ 08844
Jun 12, 2012 Comprising data collection unit, display, and built-in printer, Metering and Billing Panel allows users to view consumption and peak demand, and print detailed receipts for up to 5 tenants. Unit can be configured to measure up to 5 pulse outputs, including electric, gas, water, and steam. Suitable for 5,000-60,000 ft² buildings, panel retains 12 month history for reference.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 12, 2012 Supplied in miniflat SOP-4 package with 2.0 mm profile, VOM160 and VOM305x series offer 3 choices of input trigger LED current: 5 mA (VOM160NT/VOM3053T), 7 mA (VOM160PT), and 10 mA (VOM160RT/VOM3052T). Blocking voltage is 600 Vac, and static dV/dt is 500 or 1,500 V/µs. In addition to being used for turning on/off motors and solenoid control in refrigerators, washers, lamps, and coffee makers, products may also be used to drive TRIACs for solid-state relays and static AC power switches.

OKW Enclosures, Inc    Bridgeville, PA 15017
Jun 12, 2012 Measuring 10.62 x 9.72 x 3.58 in., Size M CARRYTEC electronics enclosures come in ABS for indoor use or fiberglass reinforced polyamide for outdoor use. Screw pillars are provided in top and bottom for fitting PCBs, and connectors and switches can be mounted to inset flat sections on underside. Also available, station is designed for charging and data transfer and can be mounted on wall, machine housing, or desk. Snap-lock holds enclosure in station at 15° viewing angle.

Linx Technologies, Inc.    Grants Pass, OR 97526
Jun 12, 2012 To facilitate sending/receiving of digital data in 902-928 MHz band, NT Series offers True Transparency(TM) interface that lets user create wireless wire for use with nonstandard data rates, custom protocols, or encodings such as PWM and Manchester. Receive sensitivity is rated up to -113 dBm, and low power consumption is 19.2 mA in receive mode or 15.2 mA in transmit mode at 0 dBm. Although programming is not required, series allows communication and MCU programming over UART connection.

Maxim Integrated Products    Sunnyvale, CA 94086
Jun 12, 2012 Comprised of MAX5880 digital upconverter and 14-bit, 4.6 GSPS MAX5882 RF DAC, high-density QAM (quadrature amplitude modulation) modulator chipset synthesizes up to 128 QAM channels across entire 50 MHz to 1 GHz downstream cable spectrum. This gives cable service providers bandwidth for future cable services while reducing CAPEX and OPEX. Performance exceeds Cable Labs® DOCSIS® 3.0 RF specifications, and single RF port enabled by chipset replaces multiple QAM modulator boxes.

Monotype Imaging Inc.    Woburn, MA 01801
Jun 12, 2012 Type Enhancements for Android lets device manufacturers tailor Google Android(TM) 4.0 user experience for their products using typefaces, multilingual support, and font technologies. All-in-one solution is comprised of selectable modules for ensuring display of highly legible, brand-complementary typefaces in multiple languages; optimized Web browsing; and personalization through user-selected fonts. All modules meet Google CTS (Compatibility Test Suite) certification requirements.

Cortus S.A.    Montpellier 34000  France
Jun 12, 2012 Featuring 32-bit modern RISC architecture with sixteen 32-bit registers and 5-7 stage pipeline, APS3R delivers 1.21 CoreMarks/MHz and 2.29 DMIPS/MHz computational performance. CPU's dynamic power is 11.6 µW/MHz with standard 90 nm process and 16.8 µW/MHz for 130 nm (both UMC). Able to be as small as 8,700 gates, this native 32-bit core, optimised for use with C or C++, is available with optional parallel hardware multiplier that can improve performance to 1.92 CoreMarks/MHz.

Cresset Group Ltd    Welwyn Garden City AL7 3AX  United Kingdom
Jun 12, 2012 Giving computational chemists control and insight into activity data, forgeV10 uses shape and electrostatic character of molecules to create qualitative and quantitative 3D models. Computational suite, utilizing ligand comparison method to align, score, and compare molecules from biological viewpoint, can be used to decipher complex SAR and communicate results, design molecules based on trustworthy predictions, prepare detailed pharmacophores, and virtually screen 10,000 compounds on desktop.

Plessey Semiconductors Ltd.    Devon PL6 7BQ  United Kingdom
Jun 12, 2012 EPIC(TM) PS25203 is suited for contactless ECG measurement, such as driver fatigue monitoring or seat occupancy, and works by measuring changes in electric field, even at distance and through clothing, down to milliVolt levels. Supplied in custom 4-pin PCB hybrid package measuring 10.5 x 10.5 x 3.45 mm, sensor is designed to enable discrete electrode placement. By adjusting DSP and amplification circuitry, sensors can be tuned for detection at distance as required for automotive applications.

RUETZ SYSTEM SOLUTIONS    Munich   Germany
Jun 12, 2012 With TTsuite, users can perform test and simulation tasks in varying degrees of complexity. Tool is based on standardized test specification language TTCN-3 and uses GFT-format for definition, visualization, and documentation of tests. For in-car data transmission, TTsuite supports speed grades of 25, 50, and 150 Mbps, and physical layers for Media Oriented Systems Transport, including plastic optical fiber as well as coax and shielded/unshielded twisted pair copper wires.

TMP, Technical Machine Products    Cleveland, OH 44102 4431
Jun 12, 2012 Featuring self-contained, 300-ton design, Low Deflection Hydraulic Press uses hardened stainless steel heated and cooled platens for heating up to 1,000°F. Platens are fitted with multiple zones and shaded watt density cartridge-type heating to aid in temperature uniformity. In addition to proper hardware for staged cooling via air, mist, or water, 4-post compression press includes Edge Advanced Control System, which can store recipes and provide process data.
