ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Jun 12, 2006 Available in 2 models with torque ranges of 10-50 lbf-in. and 30-250 lbf-in., T-Series manual torque-control wrenches is accurate to ±3% in direction of torque calibration from 20-100% FS. Wrenches have audible click to indicate torque has been reached, and can be calibrated using English or metric settings. Interchangeable heads are available including ratchet head, box-end, or open-end drivers.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615
Jun 12, 2006 Capable of withstanding rough environments, XL-VNSO compact 1, 2, and 3-axis rugged joystick accommodates applications that require digital or analog command signals to control variable speed drives, PLCs, and microprocessors. Joystick is constructed with NiCr gimbal yokes, hardened steel bearings, polished steel shaft guides, bronze gate handle stops, and dual compression return springs in each axis. Variety of standard and custom gates and handles are available.

IMS Company    Chagrin Falls, OH 44023
Jun 12, 2006 Designed for plastics processing machines, Hot Sleeves Replacement Heater Bands feature rust resistant steel sheath, stainless steel strap lock-up, mica insulation, and nickel-chromium resistance wire element. They incorporate 12 in. treated glass braid leads at end of band and deliver average 31-46 W/in.² to ensure consistent operation. Notched sleeve allows insulation to be flush with nozzle hex.

C & M Corporation    Wauregan, CT 06387 0348
Jun 12, 2006 Cable enables delivery of power and signals controlling regulators and sensing devices inside community drinking water storage containers. RoHS compliant unit conforms to NSF/ANSI Standard 61 and uses water blocking technology for security. Waterproof thermoplastic rubber jacket does not leach compounds into water and is resistant to UV rays and chemicals used in disinfecting water storage tanks.

U E Systems, Inc.    Elmsford, NY 10523
Jun 12, 2006 Permitting condition monitoring in hard-to-access spaces, Remote Access Sensor includes sensing transducer which is permanently mounted on test subject such as pump, motor, bearing, or valve housing. It is connected to cable that can be inserted through test port and attached to Ultraprobe to data log and/or record sound samples for analysis. Model RAS-MT operates in difficult-to-reach test points, while Ultra-Trak 750(TM) measures ultrasonic amplitude changes on continuous basis.

Tohnichi America Corp.    Northbrook, IL 60062-2420
Jun 12, 2006 Data Tork CEM3 features lightweight aluminum body and provides 999 data measurement storage capability. It incorporates dual LCD/LED displays, time and date function, judgment parameters, and tightening mode to ensure quality control. Targeting applications where precision fastening and torque measurement is vital, wrench is available in 8 models and in American, Metric, and Newton measurements.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Jun 12, 2006 Model 491M/B/SD dynamically blends precisely known VOC/TOC gas standards with parts-per-billion and parts-per-trillion analyte concentrations. First stage (491M/B) of dilution combines analyte flow from Trace Source(TM) permeation tubes with precisely controlled flow of pure dilution gas to form ppb concentration mixture. In second stage (491M/SD), aliquot of ppb mixture is further diluted to form ppt mixture. Standard additions techniques may also be used to insure accuracy.

Ammeraal Beltech Modular (Uni-Chains)    Reading, PA 19611
Jun 12, 2006 Featuring 2.5 in. pitch, uni XLB K318 can replace roller chains, drag chains, steel flat top belts, and other types of chains/belts used in heavy-duty applications. Belt is impact-resistant, wear-resistant, and bi-directional. With positive sprocket drive, full synchronized movement of parallel lanes is ensured. Used on skid conveyors, belt requires no lubrication and is suited for automotive, carwash, palletizing, and paper and cardboard industry.

Ammeraal Beltech Modular (Uni-Chains)    Reading, PA 19611
Jun 12, 2006 Offered in widths from 3.0-118.8 in., Model X-MPB features 2.5 in. pitch and heavy-duty design that allows for impact without breakage. Sprockets are available with 6, 8, 10, or 13 teeth, providing optimal belt engagement for long conveyors. Made of FDA-approved plastic material, belt includes lockpin system to facilitate maintenance.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Jun 12, 2006 Como Injection can optimize, monitor, and document up to 8 channels of cavity pressure or 4 channels of cavity pressure and 4 channels of machine signals. Available with optional touch screen for curve visualization, compact device is machine-mounted and compatible with coaxial and single-wire Kistler sensors. It can also be used to separate non-conforming parts to questionable parts bin. Collected data can be stored to server and accessed remotely via Internet.

Toshiba Teli America, Inc.    Irvine, CA 92618

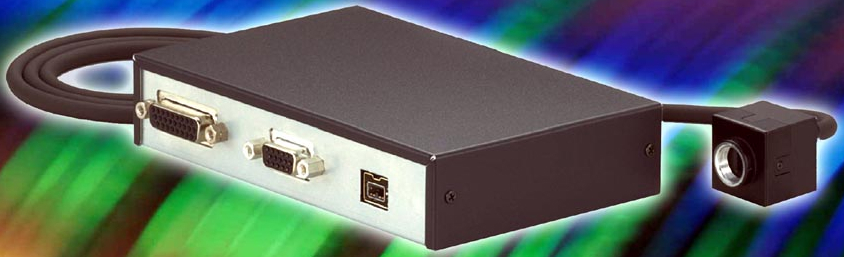

Jun 12, 2006 Based on 1/3 in. progressive scan CCD, CS8581QF remote-head FireWire camera meets needs of factory automation applications with its 133 fps frame rate at full 640 x 480 resolution (8-bit monochrome) and partial scan mode with 430+ fps frame rate. Camera features 7.4 µm square pixels, 1/50,000-2 sec electronic shutter, and random trigger shutter. System is comprised of micro remote head camera that fits in restricted mounting spaces and central control unit mounted up to 2 m away.

Weber Marking Systems, Inc.    Arlington Heights, IL 60005 4457

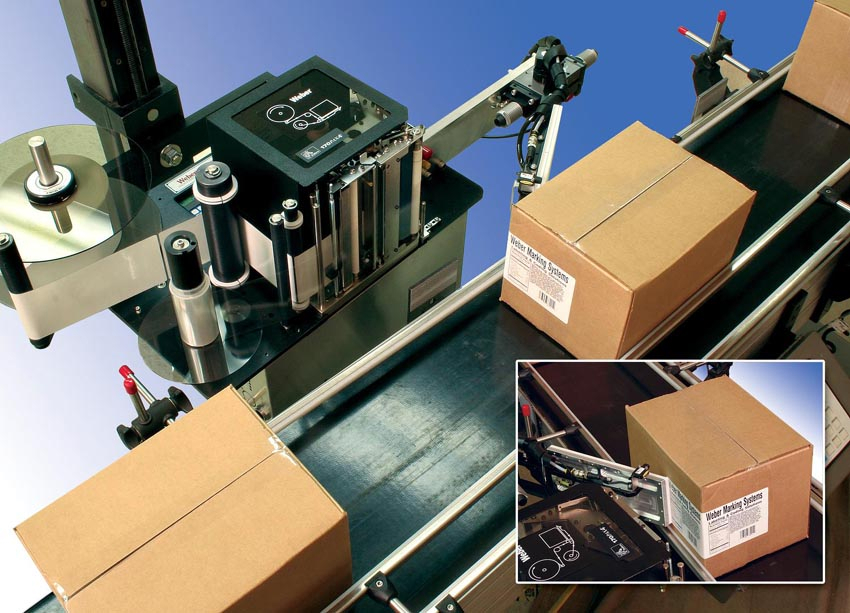

Jun 12, 2006 In addition to offering selection of print engines that addresses various print speeds and resolutions, Model 5200 Corner-Wrap is available with optional RFID print-encode engines. Thermal/thermal-transfer print engines produce text, bar codes, and graphic images at 203 or 300 dpi. Able to handle labels up to 10 x 4 in., system prints labels in next-out mode and will print and apply labels at rates to 15 cartons/min max.

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2006 Available in 16-pin thermally enhanced TSSOP, LT3844 DC/DC controller features 4-60 V input range with adjustable 100-500 kHz switching frequency. It operates at temperature range of -40 to 125°C, and can be used in several DC/DC topologies such as step-down, step-up, inverting, and SEPIC (buck-boost). Current mode controller drives N-channel MOSFET and maintains high efficiency at light loads with its Burst Mode® operation and 120 µA quiescent current.

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2006 Available in 32-pin QFN package, Model LTC1408 14-bit ADC samples 0-2.5 V unipolar and ±1.25 V bipolar differential inputs at speeds up to 600 kS/sec. Serial 3-wire unit operates from single 3 V supply with power dissipation of 15 mW typ in active mode, 3.3 mW in nap mode, and 6 µW in sleep mode. LTC1408 allows design of compact, battery-powered, and portable data acquisition systems.

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2006 Available in 4 x 4 mm QFN-16 package, LTC4001 switchmode battery charger for single-cell 4.2 V Li-Ion/Li-Polymer batteries offers efficiencies as high as 90% @1.5 A. Final float voltage accuracy is specified at 1% with charge current accuracy of 10%. Standalone operation eliminates need for external microprocessor for charge termination. Operating frequency of 1.5 MHz and current mode architecture allow use of small inductors and capacitors, minimizing noise and filtering needs.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 12, 2006 RoHS compliant, 150 CRZ family of surface-mount aluminum capacitors feature ripple current of 850 mA at 105°C, and offer 3,000 hr life. Polarized, self-healing units have non-solid electrolyte and are charge- and discharge-proof, with no peak current limitations. Suited for filtering, smoothing, buffering, and voltage decoupling applications in lead-free electronic circuits, capacitors can be utilized in automotive components, SMPS units, and telecom equipment.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 12, 2006 Designed to provide capacitance values from 10-680 µF, 140 CRH RoHS-compliant SMD aluminum capacitor is both lead-free and solderable. Voltage range is 6.3-63 V and is available in sizes 8 x 8 x 10 mm to 10 x 10 x 14 mm with temperature ratings from -55 to +125°C. Polarized capacitor is intended to stabilize output voltages, filter unwanted noise, smooth dc voltage, buffer electrical energy, and decouple superimposed ac ripple current in automotive and industrial systems.

austriamicrosystems AG    Premstatten   Austria
Jun 12, 2006 With 0.35 µm high-voltage CMOS process, H35, chip fabrication service allows for integration of 3.3, 5, 20, 50, and 120 V devices on single chip without any process changes. Process matches BCD performance and chip sizes, while modularity permits 100% reuse of low-voltage CMOS design IP. Produced in 8 in wafer fabrication, H35 offers fully scalable 120 V NMOS and PMOS devices and floating logic libraries.

Memorex Products, Inc.    Santa Fe Springs, CA 90670
Jun 12, 2006 With Memorex 16X DVD+R LightScribe Media and LightScribe Media Version 1.2, users can create labels using photos, graphics, and text, and inscribe designs directly onto specially coated, scratch-resistant discs. Available in package of 10, media is suited for recording home movies, creating multimedia presentations, archiving photos, and preserving important data. Write-once discs store 4.7 GB of data or 120 min of video in SP mode.

GE Advanced Materials- Silicones    South Charleston, WV 25303
Jun 12, 2006 Eliminating changes in sheen of paint when applied over caulk or sealant, GE Infinity urethane elastomeric sealant enables users to deliver seamless look when painting. It provides optimal adhesion and elasticity without dirt pick-up or yellowing. Incorporating BioSeal, cured sealant is resistant to mold and mildew growth. GE Infinity is suited for indoor and outdoor applications and cleans up with soap and water.
