Pelican Products, Inc.    Torrance, CA 90505

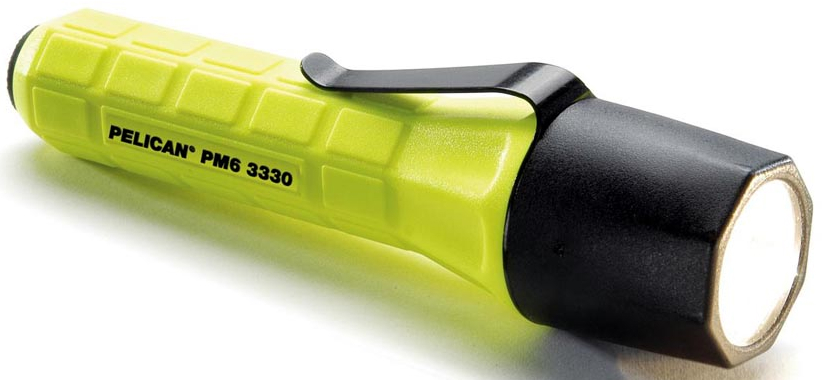

Jun 12, 2006 Constructed of engineering-grade polymer, PM6 3330 LED and PM6 3320 Incandescent lights feature non-slip textured grip and tail switch with on/off and momentary function for one-handed operation. Model PM6 3330 LED uses high-output CR123 lithium batteries to drive 1 W Luxeon® LED, which produces 41 lumen output. Engineered with heavy-duty CR123 lithium batteries, PM6 3320 Incandescent has high-intensity Xenon bulb that delivers 74 lumen output.

ILSCO    Cincinnati, OH 45227 1426
Jun 12, 2006 Fabricated from 6061-T6 aluminum alloy to ensure strength and conductivity, ClearTrax(TM) connectors feature lay-in installation of aluminum or copper conductors. They accommodate wire range of 1000MCM-2 and are clear plated for low contact resistance. Compact body, designed from single piece, is engineered for heat dissipation, and reduced cable manipulation during installation results in fast and safe connection.

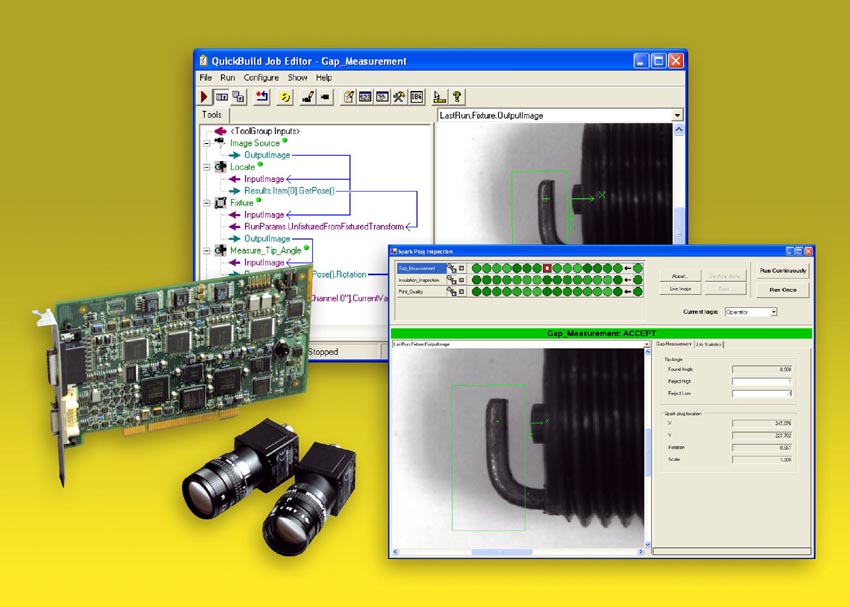

Cognex Corp.    Natick, MA 01760 2059
Jun 12, 2006 VisionPro® facilitates development of PC-based machine vision solution for automated inspection and quality assurance applications. QuickBuild environment defines image acquisition, vision tools, and accept/reject criteria, while optional scripting extends it without programming entire application. Communications explorer sends inspection results to I/O lines and communication devices and application wizard generates runtime application with operator interface.

Akron Coating & Adhesives, Inc.    Akron, OH 44301

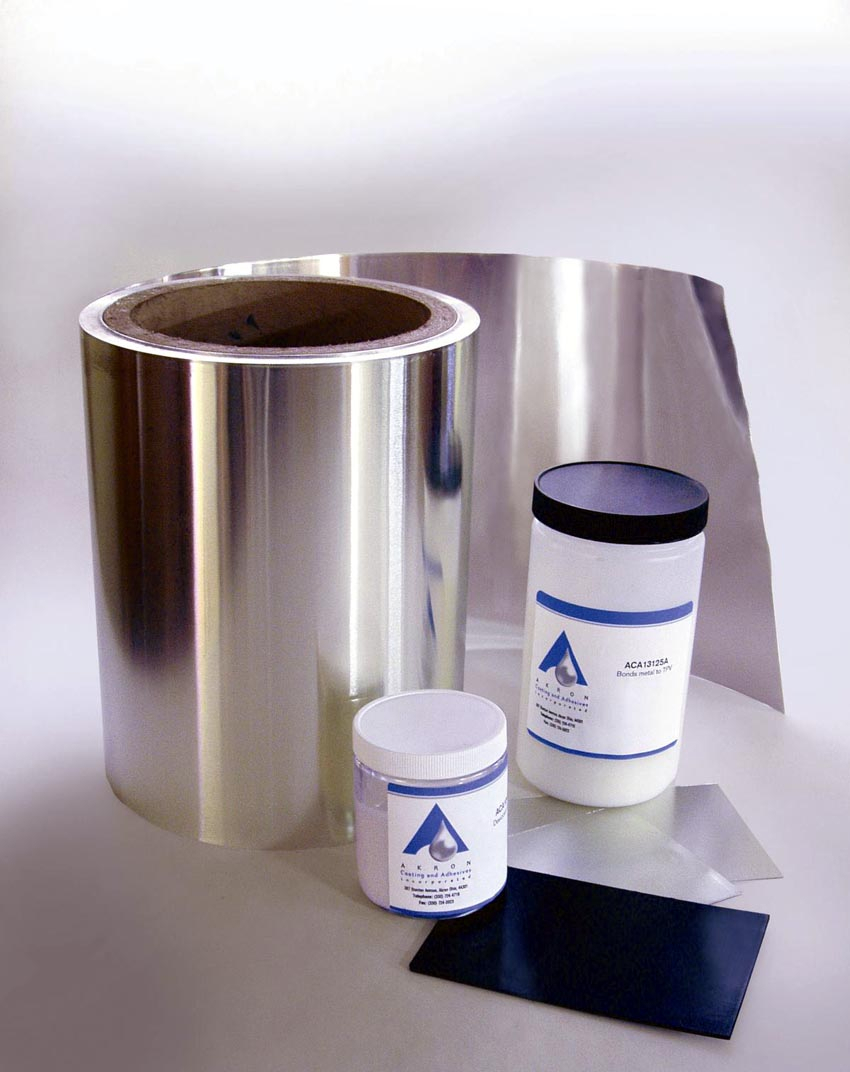

Jun 12, 2006 Hot melt adhesives bond materials including several grades of Santoprene(TM), polyethylene, neoprene, PVC, TPV, EDPM foam, and natural rubber to metals like aluminum, stainless steel, galvanized steel, copper, and brass. Water-based adhesives are compliant to environmental regulations and can be applied using variety of coating techniques. Heat activation temperatures range from 250-400°F.

CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.    Maple Grove, MN 55369

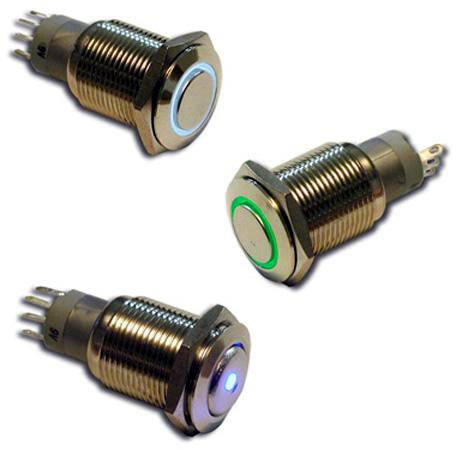

Jun 12, 2006 CH Series lighted switch includes functions for momentary or alternate action in SPDT or DPDT configurations. Center dot or ring illuminations feature red, yellow, green, blue, white, and orange LED voltages inclusive of 6 Vdc up to 220 Vac. Panel mount style options are SS or polished nickel plated raised or flush actuators. Switch rating is 1 A at 24 Vdc or 125 Vac, and .5 A at 250 Vac with operating temperature range of -25 to +55°C. Width of switch face including bezel is 18 mm.

Phoenix Contact    Harrisburg, PA 17111 0100
Jun 12, 2006 Along with existing Systems Cabling termination modules, Faceplate Adapters help users reduce installation and commissioning time, eliminate I/O wiring errors, and control troubleshooting in field. They are available for multiple I/O cards including 8- and 32-channel digital cards, as well as various analog cards.

Phoenix Contact    Harrisburg, PA 17111 0100

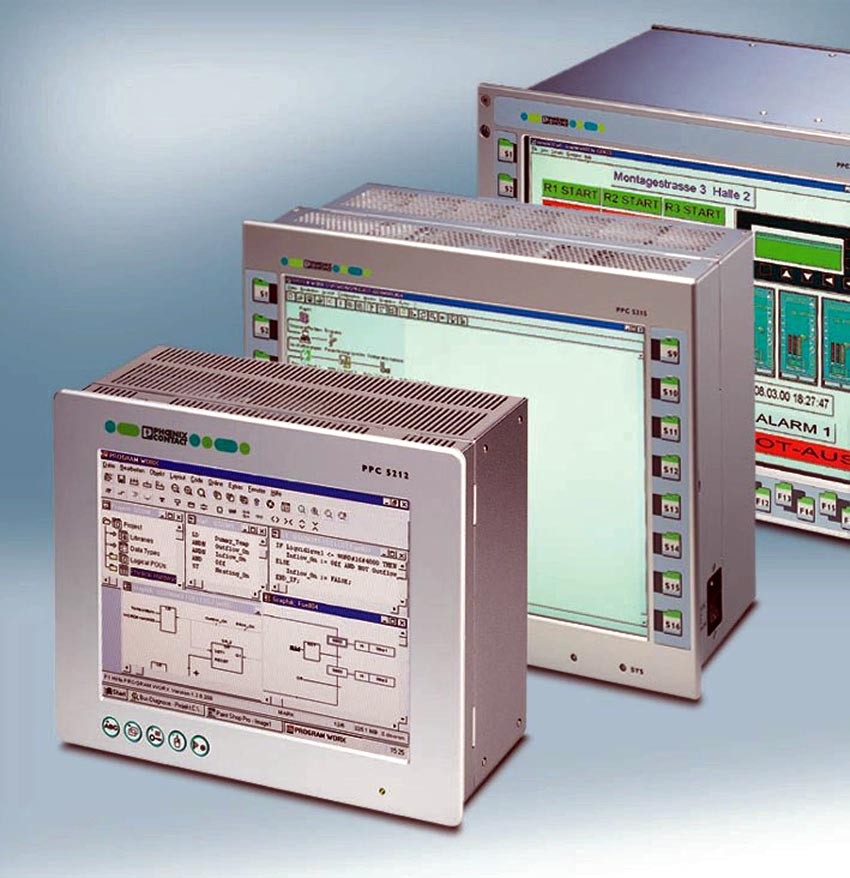

Jun 12, 2006 Industrial PCs incorporate slot-based CPU that allows for use of Celeron M and Pentium M processors. Combined with fieldbus interface boards and Steeplechase VLC control software, they offer control solution for all automation systems. With 17 and 19 in. color TFT touch screens, PCs display complex graphics in easy-to-read screen resolution. Two standard Ethernet ports and side and front USB ports allow for flexible connectivity and communication options.

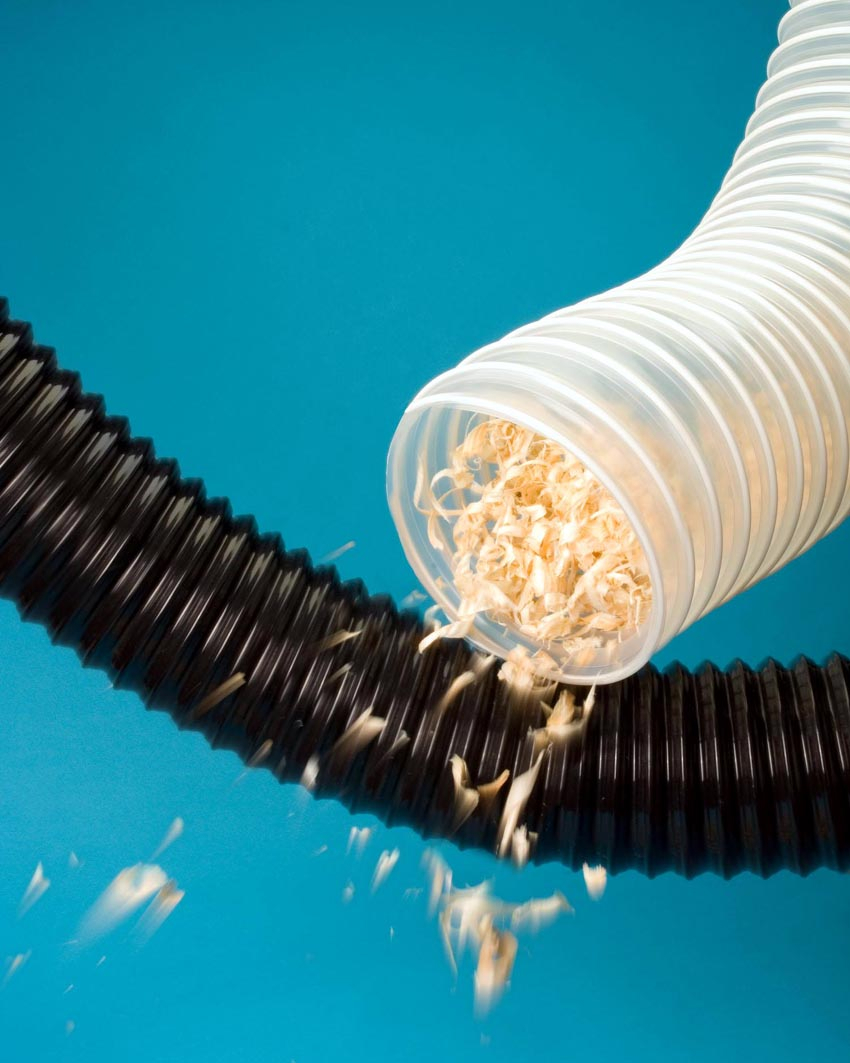

Flexaust Co., Inc., The    Warsaw, IN 46581
Jun 12, 2006 Reinforced with coated spring steel wire helix, abrasion resistant and flexible Flx-Thane® Polyurethane Hose provides 4:1 compressibility. It comes in light, medium, and heavy versions in 2-24 in. ID sizes and resists cuts, gouges, and chemicals. Available in standard clear and black colors in 25 and 50 ft lengths, hose operates over -65 to 225ºF temperature range. Static dissipative version with 108-1,010 Ohms/sq surface resistivity is also available.

Jen Mfg. Inc.    Worcester, MA 01602
Jun 12, 2006 Designed to absorb, hold, and evenly spread water- and oil-based paints, stains, sealers, urethanes, and varnish, Poly-Brush® Foam Brushes provide proper stiffness and deflection required to produce even finish. They feature absorbent foam with beveled edge that is supported by internal polyethylene stiffener, which is cut to precise specifications, secured to handle, and fused together. Tapered brushes are available in 1, 2, 3, and 4 in. wide sizes.

Alliance Scale Inc.    Canton, MA 02021

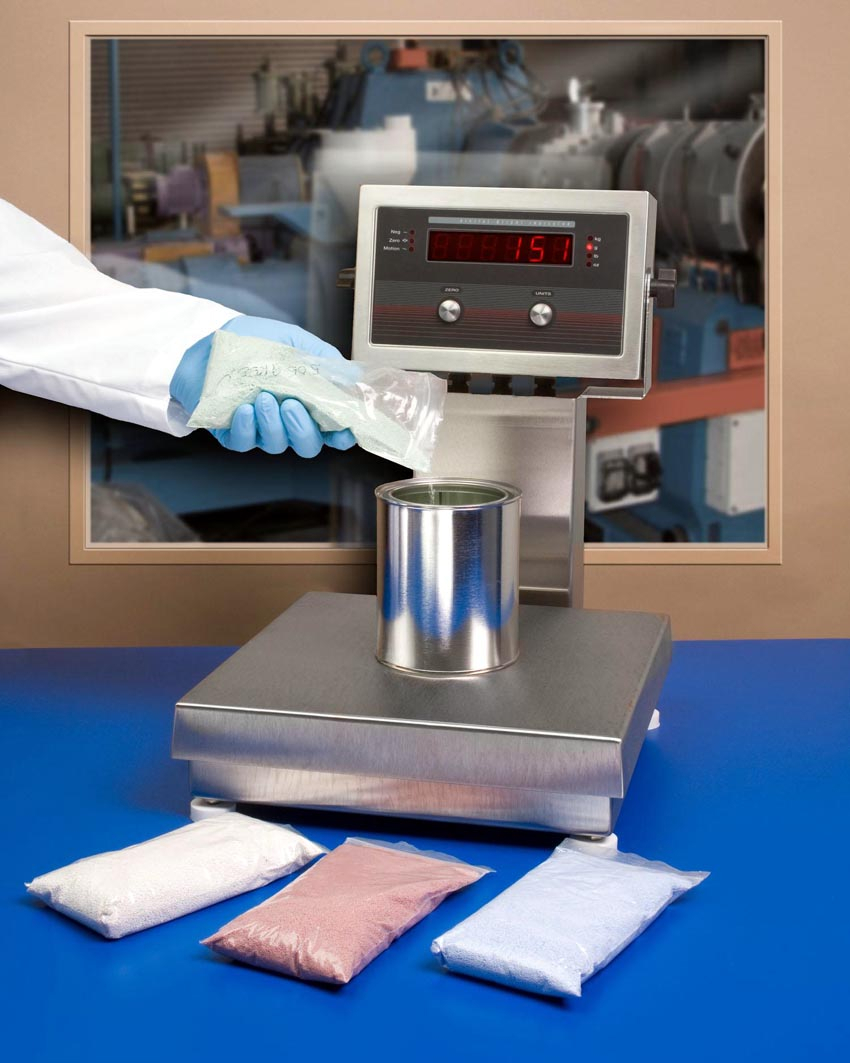

Jun 12, 2006 Available in 5-20 to 150-1,000 lb capacities, Alliance/Rice Lake IQ plus® 2100 Digital Bench Scale has 7-segment 0.8 in. LED display to show results in decimal, lb, kg, oz, lb and oz, and g. It operates on 115 Vac and has RS232 port. NEMA 4X/IP66, 304 stainless steel indicator enclosure, platform, and base protect scale from messy spills in processing environments and development laboratories in chemical, pharmaceutical, food processing, and industrial applications.

ASG, Div. of Jergens, Inc.    Cleveland, OH 44110
Jun 12, 2006 Available in 2 models with torque ranges of 10-50 lbf-in. and 30-250 lbf-in., T-Series manual torque-control wrenches is accurate to ±3% in direction of torque calibration from 20-100% FS. Wrenches have audible click to indicate torque has been reached, and can be calibrated using English or metric settings. Interchangeable heads are available including ratchet head, box-end, or open-end drivers.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615

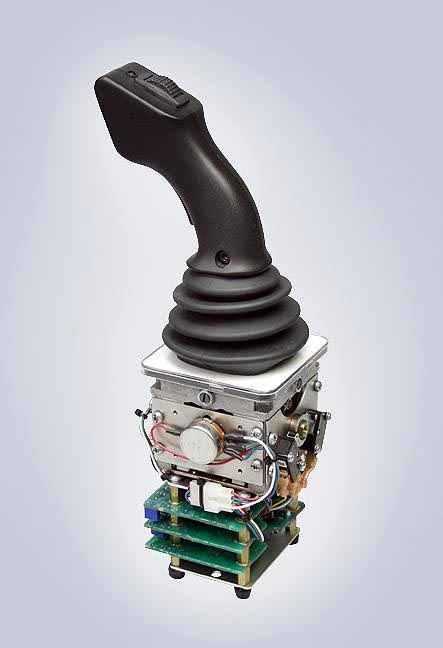

Jun 12, 2006 Capable of withstanding rough environments, XL-VNSO compact 1, 2, and 3-axis rugged joystick accommodates applications that require digital or analog command signals to control variable speed drives, PLCs, and microprocessors. Joystick is constructed with NiCr gimbal yokes, hardened steel bearings, polished steel shaft guides, bronze gate handle stops, and dual compression return springs in each axis. Variety of standard and custom gates and handles are available.

IMS Company    Chagrin Falls, OH 44023
Jun 12, 2006 Designed for plastics processing machines, Hot Sleeves Replacement Heater Bands feature rust resistant steel sheath, stainless steel strap lock-up, mica insulation, and nickel-chromium resistance wire element. They incorporate 12 in. treated glass braid leads at end of band and deliver average 31-46 W/in.² to ensure consistent operation. Notched sleeve allows insulation to be flush with nozzle hex.

C & M Corporation    Wauregan, CT 06387 0348
Jun 12, 2006 Cable enables delivery of power and signals controlling regulators and sensing devices inside community drinking water storage containers. RoHS compliant unit conforms to NSF/ANSI Standard 61 and uses water blocking technology for security. Waterproof thermoplastic rubber jacket does not leach compounds into water and is resistant to UV rays and chemicals used in disinfecting water storage tanks.

U E Systems, Inc.    Elmsford, NY 10523
Jun 12, 2006 Permitting condition monitoring in hard-to-access spaces, Remote Access Sensor includes sensing transducer which is permanently mounted on test subject such as pump, motor, bearing, or valve housing. It is connected to cable that can be inserted through test port and attached to Ultraprobe to data log and/or record sound samples for analysis. Model RAS-MT operates in difficult-to-reach test points, while Ultra-Trak 750(TM) measures ultrasonic amplitude changes on continuous basis.

Tohnichi America Corp.    Northbrook, IL 60062-2420
Jun 12, 2006 Data Tork CEM3 features lightweight aluminum body and provides 999 data measurement storage capability. It incorporates dual LCD/LED displays, time and date function, judgment parameters, and tightening mode to ensure quality control. Targeting applications where precision fastening and torque measurement is vital, wrench is available in 8 models and in American, Metric, and Newton measurements.

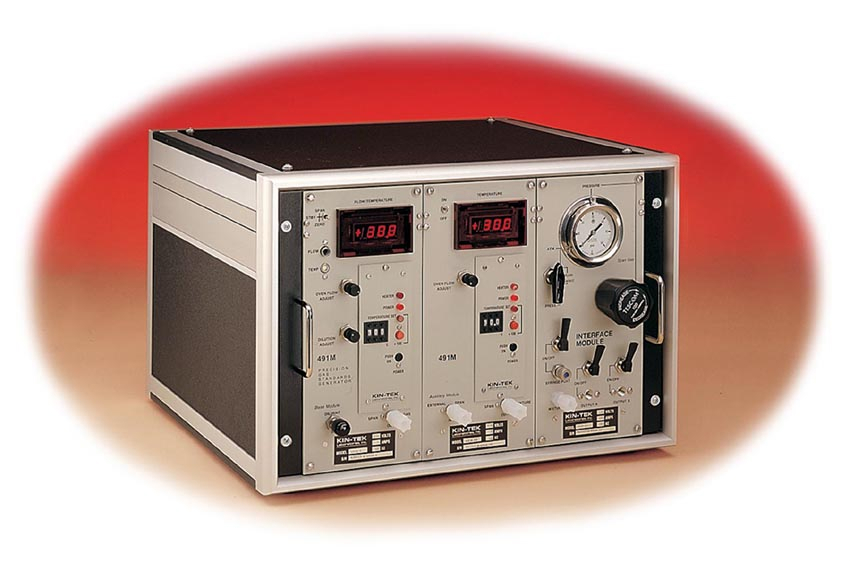

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Jun 12, 2006 Model 491M/B/SD dynamically blends precisely known VOC/TOC gas standards with parts-per-billion and parts-per-trillion analyte concentrations. First stage (491M/B) of dilution combines analyte flow from Trace Source(TM) permeation tubes with precisely controlled flow of pure dilution gas to form ppb concentration mixture. In second stage (491M/SD), aliquot of ppb mixture is further diluted to form ppt mixture. Standard additions techniques may also be used to insure accuracy.

Ammeraal Beltech Modular (Uni-Chains)    Reading, PA 19611
Jun 12, 2006 Featuring 2.5 in. pitch, uni XLB K318 can replace roller chains, drag chains, steel flat top belts, and other types of chains/belts used in heavy-duty applications. Belt is impact-resistant, wear-resistant, and bi-directional. With positive sprocket drive, full synchronized movement of parallel lanes is ensured. Used on skid conveyors, belt requires no lubrication and is suited for automotive, carwash, palletizing, and paper and cardboard industry.

Ammeraal Beltech Modular (Uni-Chains)    Reading, PA 19611

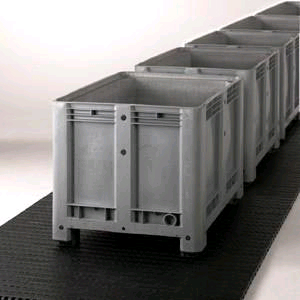

Jun 12, 2006 Offered in widths from 3.0-118.8 in., Model X-MPB features 2.5 in. pitch and heavy-duty design that allows for impact without breakage. Sprockets are available with 6, 8, 10, or 13 teeth, providing optimal belt engagement for long conveyors. Made of FDA-approved plastic material, belt includes lockpin system to facilitate maintenance.

Kistler Instrument Corp.    Amherst, NY 14228 2119

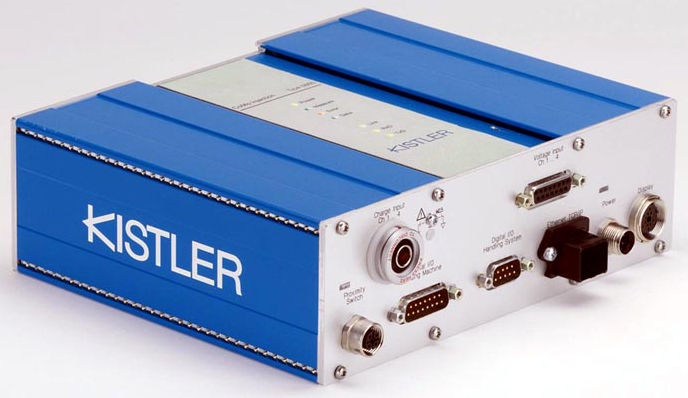

Jun 12, 2006 Como Injection can optimize, monitor, and document up to 8 channels of cavity pressure or 4 channels of cavity pressure and 4 channels of machine signals. Available with optional touch screen for curve visualization, compact device is machine-mounted and compatible with coaxial and single-wire Kistler sensors. It can also be used to separate non-conforming parts to questionable parts bin. Collected data can be stored to server and accessed remotely via Internet.
