Eaton Corp.    Cleveland, OH 44114
Jun 29, 2006 Offered in 1.8 cid size, 74300 Series fixed-displacement piston motor converts hydraulic energy supplied by pump to mechanical energy. Product is rated at 210 bar continuous pressure and features shuttle valve, charge pressure valve, speed sensor, as well as SAE mounting flanges and porting. Motor lets users fine-tune motor speed in medium-duty mobile applications that requires continuous rotary motion at remote location from power source.

Despatch Industries    Lakeville, MN 55044
Jun 29, 2006 Paint Sample Baking Tool utilizes multiple variables and chamber-in-chamber design to accurately replicate paint curing process. Via software, users can adjust oven parameters to simulate characteristics of any type of production oven (radiant, direct gas heated, or electric convection) and replicate environmental conditions surrounding specific production facility. Features include monitoring ports, variable air flow velocity, and adjustable incoming dew point air.

Dynabrade, Inc.    Clarence, NY 14031
Jun 29, 2006 Suited for vertical sanding applications, 2.1 lb Dynabug II utilizes 10,000 rpm air motor and features 3/32 in. dia orbit that can be used for blending and finishing. Clips are designed for heavy-duty use, simultaneously accepting up to 4 sheets, and rubber overmold reduces vibration to operator. Non-vacuum Dynabug II with clips (Model 58507) is suited for attaching optional abrasive sheets. Other configurations include Central Vacuum and Self-Generated Vacuum models.

The Ridat Company    London NW11 7NP   United Kingdom
Jun 29, 2006 Designed for repetitive production of plastic items, model 1610 APF (automatic pressure former) incorporates in-tool cutting and automatic stacking. Maximum forming area measures 16 x 10 in., and operating speed is adjustable from 8-50 cycles/min. Finished products are cleared from tool by air blast, and skeletal waste is wound onto rewind unit. Heating process is spread over 6 index pitches with 7 heaters across web at each station.

Agathon Machine Tools, Inc.    Bethel, CT 06801
Jun 28, 2006 Featuring manually rotable regulating wheel slide facilitating angular infeed with up to 90 mm grinding width and cylindrical plunge grinding up to 127 mm, 255CL grinds parts with 0.5-15 mm dia and up to 125 mm lengths. Equipped for single, dual- and triple-track grinding, grinder incorporates Hydropol® concrete into machine bed for rigidity. Machine allows for front, rear, and wheel headstock mounting of measuring systems and peripheral devices.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jun 28, 2006 FSAM50SM60A (600 V/50 A) and FSAM75SM60A (600 V/75 A) Smart Power Modules (SPM) in 60 x 31mm DIP package handle inverter motor designs up to 7.5 kW. Utilizing direct bonded copper substrate technology, each SPM integrates 6 IGBTs, 6 freewheeling diodes, 3 HVICs, LVIC, and thermistor. RoHS-compliant module delivers switching frequencies to 20 kHz and 2,500 Vrms/min isolation voltage rating, and integrated thermistor monitors over-temperature conditions.

Chevalier Machinery, Inc.    Santa Fe Springs, CA 90670
Jun 28, 2006 Equipped with 4.1 spindle bore, 2-speed ZF gearbox, and 12 in. hydraulic chuck, Model FBL-1233 delivers parts machining of bars up to 3.5 in. dia at speeds to 2,500 rpm, with X and Z travels of 12.6 and 32.3 in. and 708 ipm rapid traverse. To accelerate machine cycle time, 10-position indexing turret offers 0.5 sec tool indexing. Additional features include FANUC OiT control with mathematical processing capability, TFT color LCD screen, and chip conveyor with bucket.

One Stop Systems    Escondido, CA 92029

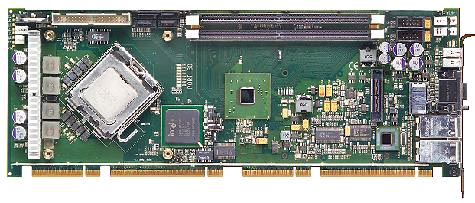

Jun 28, 2006 Graphics-class MAX Express(TM) Pentium® D Dual-Core Board is PICMG 1.3 compatible and supports x16, x4, and x1 PCI Express links as well as 32-bit/33MHz PCI interface and variety of system option cards. Dual core design supports dual 10/100/1000Base-T Ethernet interfaces, while primary and secondary SATA/300 ports support up to 4 independent SATA storage devices. SATA controller can be configured as RAID controller with RAID 0, 1, 5, and 10 implementations.

Induction Atmospheres LLC    Rochester, NY 14624
Jun 28, 2006 Utilizing solid-state induction heating technology, Model VF-20 heats parts of virtually any shape in high-temperature, high-vacuum environment. It requires less than 8 minutes to reach 1,900°F and cools down to 400°F in less than 20 minutes. Furnace operates at high vacuum or partial pressure of inert gas. Chamber has base vacuum of 5 x 10^-6 Torr with leak-up rate of less than 1 micron/hour.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jun 28, 2006 Microprocessor-controlled SOLITRON RJCS Series features internal current sensing circuitry that monitors industrial heating equipment and reacts to various load failure conditions. Equipped with heat sink and internal over-temperature and over-current protection, DIN rail-mount relays are available with NPN or PNP, NO or NC alarm outputs. They can switch 50 A single phase AC loads at up to 660 Vac when controlled by 4-32 Vdc signal, and alarm functions can be set locally or remotely.

Digital View, Inc.    Morgan Hill, CA 95037

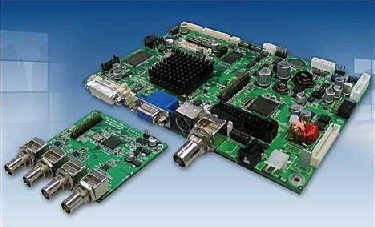

Jun 28, 2006 Fully buffered, multi-sync Model SVH-1920 provides analog and digital connection for TFT LCD panels up to WUXGA resolution. Featuring full screen image expansion of lower resolutions, image flip and invert functions, and onscreen PIP functions, unit supports High-Definition Serial Digital Interface adapter for professional and broadcast video applications. Module enables SVH-1920 to support 2 channels of HD-SDI input and provide regenerated output for upstream HD-SDI services.

Perma Pure Inc.    Toms River, NJ 08754
Jun 28, 2006 Suited for continuous emissions monitoring, GASS(TM)-2040 prepares gas samples for analysis. It uses Nafion® technology to remove acid mists, coalescent liquids, water, and particulates without altering concentrations of analyte gases. Unit, which features NEMA-4x stainless steel enclosure and integral stack mounting capability, connects directly to probe and dries sample completely before transporting it to ground. Drying is continuous, self-regenerating process.

CONCOA    Virginia Beach, VA 23454
Jun 28, 2006 Suited for pipeline and high-flow applications, 2-stage 632 High-Flow Performance Series delivers continuous supply of gas from left/right cylinder bank configuration and consistent pressure utilizing pressure-differential technology. It is available in 15, 50, or 120 psig delivery models and enables users to select from liquid or high-pressure cylinders as mode of supply. Priority arrow provides cylinder use identification and control from single-valve body design.

PolyScience Div. Of Preston Industries Inc.    Niles, IL 60714 4588

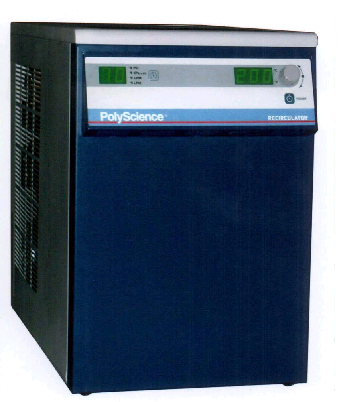

Jun 28, 2006 Designed for cooling applications where quiet operation is required, 4200 Series provides up to 4,500 W of heat removal and can maintain process temperatures from 61-104°F with 2.0°F stability or better. Units transfer waste heat directly to facility's water supply via liquid-to-liquid heat exchanger. Temperature is controlled via microprocessor-based controller, which automatically compensates for variations in temperature or flowrate of facility water.

Cal Test Electronics, Inc.    Yorba Linda, CA 92887
Jun 28, 2006 Providing way for users to repair test leads or build custom patch cords, 4 mm FlexPlug(TM) Model CT3276-# allows for solderless wire connection using setscrew attachment method. Non-sheathed unit is rated at 36 A and 33 Vac/70 Vdc per IEC61010-031, although it can be used up to 1,200 Vac/dc if not handheld. Fully compliant with RoHS specification, plug comes in black, red, yellow, green, blue, and white.

imaging Technology international (iTi)    Boulder, CO 80303

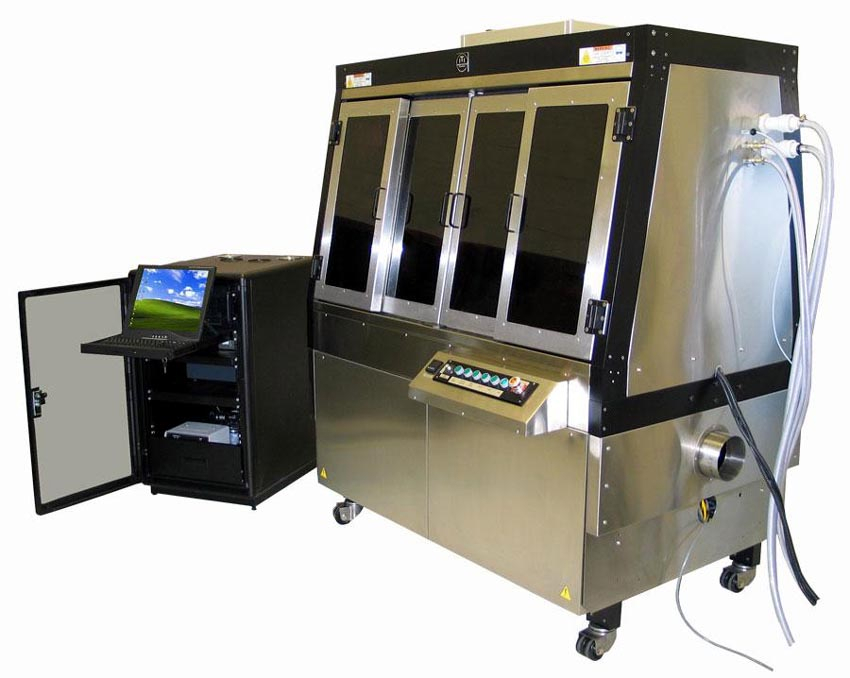

Jun 28, 2006 XY Materials Deposition System 2.0 delivers integrated inline curing functionality in scanning inkjet printing system that offers drop placement accuracy for industrial applications. It provides platform for development of jettable fluids, analysis of interaction between fluids and substrates, and development of pilot production processes. System offers user-controllable curing and software to control platen movement through curing area to control duration of cure exposure.

DP Technology Corp.    Camarillo, CA 93012
Jun 28, 2006 ESPRIT 2007 with ESPRIT FX(TM) technology provides portions of original CAD Feature Tree directly inside ESPRIT user interface, thereby including original design intent. CAD features and associated properties are mapped into machinable features providing complete definition of what is being machined. Manufacturing properties are then fed into ESPRIT KnowledgeBase, which aids user in selecting how to machine part based upon existing best practices.

Clip Strip Corp.    Hackensack, NJ 07601
Jun 28, 2006 Clever Clip Style Merchandising Strips combine spring hinged Clever Clips, 36 or 48 in. polyethylene chain with ¾ x ½ in. links, and S hook. Each Clever Clip has mounting ring for attachment, removal, and reattachment to any link in chain, enabling strip to be adapted to range of products of different lengths and bulk. Strips are suited for displaying plush toys, snack bags, sponges, gloves, socks, mini travel kits, etc.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 28, 2006 Available in Category 3 and Category 5 versions, MADISON CABLE prevents permeation of vapor to non-explosionproof environments and complies with UL-87, section 36A and TIA/EIA-568. Terminated to RJ-45 connectors or terminal blocks, cable can be used without having to remove cable jacket and pot cable core. Cable satisfies requirements of gas and oil dispensing systems, allowing direct connection between pump and point-of-sale for Ethernet communication.

B.E.S.T., Inc. (Bulk Equipment Systems Technology, Inc.)    Brunswick, OH 44212

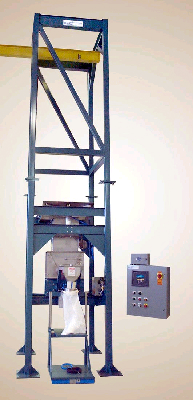

Jun 28, 2006 Suited for rubber compounding operations, Bulk Handling System eliminates labor-intensive handling of batching materials. It consists of MTU-4000 bulk-bag unloader with 2-ton electric hoist, powered trolley and powered agitation paddles, Model TSF twin-screw feeder, and Model PBC-50 portable poly-bag clamp/scale station. All process functions are coordinated through NEMA-rated programmable control system and digital weight indicator.
