Elsner Engineering Works, Inc.    Hanover, PA 17331
Jul 05, 2006 Able to handle web widths up to 15.7 in., Model CWF-2-400 Cross-Wipe Folding Machine produces consumer non-woven cross-folded wet wipes from jumbo rolls of material. Material is wetted based on customer requirements, then folded in length and direction to produce variety of fold styles including Z-, C-, W-, or M-fold. Substrate is cut-off and cross folded onto itself using mechanical fold cylinders with gripper system that insures accurate cut-off and cross-folding.

Southco    Concordville, PA 19331 0116
Jul 05, 2006 Measuring 3.03 x 1.40 x 0.70 in., R4-30 Series push-to-close rotary latches feature steel body construction, triple-layer pawl, and double-layer trigger of hardened steel. Zinc plated for corrosion resistance, latches withstand working loads up to 2,950 lb-ft and have 0.31 in. tolerance to accommodate misalignment. Available in 3 actuation styles each with 3 mounting options, latches are suited for door and panel fastening in off-highway, transportation, and HVAC applications.

DoAll Company    Des Plaines, IL 60016
Jul 05, 2006 Powered by 5 hp band drive motor, dual column Model DC-310NC saws rectangles up to 12 X 12 in. and rounds up to 12 in. dia using 1 ¼ in. blade. Ergonomically placed control panel has 8-line alphanumeric display with operator-prompting messages for setup and feedback of machine operations. Kerf compensation and multiple indexing are automatically controlled, and numeric controls offer 10 job programming capacity. System features multiple indexing up to 10 times with 16 in. stroke.

EXAIR Corporation    Cincinnati, OH 45249-1621
Jul 05, 2006 Housed in 5.5 x 3.5 x 4.4 in. metal enclosure, Four Outlet Power Supply features four 5 kV output connectors designed to energize up to 4 static eliminators. Output current is limited to 5 mA, and unit requires 115 Vac, 50/60 Hz input. Without fuse or mechanical reset, short circuit protection takes voltage output to zero if short occurs in static eliminator. CE- and RoHS-compliant, UL-listed unit comes with 6 ft power cord and lighted power switch.

ERNI Electronics, Inc.    Midlothian, VA 23112
Jul 03, 2006 Measuring 10 x 10 x 3 mm, 4-pin MiniBridge(TM) is suited for space-saving and flexible board-to-cable connections. Miniature connector components offer current-carrying capacity of 4 A. Using straight or angled male connectors, and female connectors where cables are fed out at 90° or 180°, it is possible to overcome spatial restrictions. Male connectors have SMT termination, and female connectors use IDC termination. Additionally, female connectors are available with locking latches.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2006 With direct-to-RF transmitter architecture, LT5558 is optimized for direct conversion from baseband to 850-965 MHz frequency band for wireless transmitters and RFID readers. I and Q baseband inputs offer common mode voltage of 2.1 V, allowing baseband coupling to active filters. Product exhibits linearity with OIP3 of 22.4 dBm and OIP2 of 65 dBm at 900 MHz. Product combines 2 matched mixers, 0° and 90° phase shifter, 50 ohm LO input with integrated buffer, and on-chip RF transformer.

Sandvik Materials Technology, Strip Products Div.    Benton Harbor, MI 49022
Jul 03, 2006 Dieflex Platinum and DieHard Platinum are hard edge coated rules that exhibit hardness ratings from 4,000-5,000 HV while retaining flexibility required for diemaking. Also available, Dieflex MicroCut has all above benefits plus thinner edge bevel and double bevel profile. Microperforating creasing rule, PlastiCrease, is used for controlled and accurate creasing of PET, PVC, and similar plastics. It has serrations with 100 teeth/in. in rule edge.

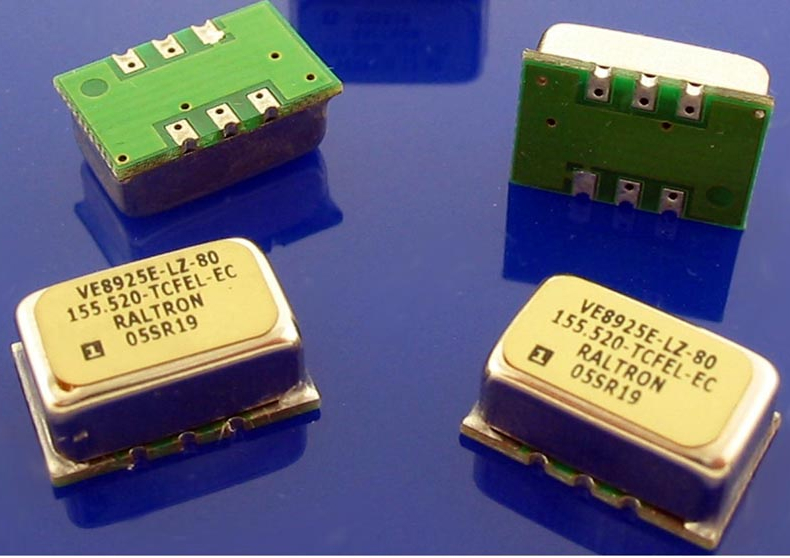

Raltron Electronics Corp.    Miami, FL 33172
Jul 03, 2006 Ultra High Frequency (UHF) and High Frequency (HF) Voltage Controlled Crystal Oscillators (VCXOs) are offered in CMOS, HF PECL, HF LVDS, UHF PECL, and UHF Sinewave configurations. Wide pull up to 1,000 ppm is available at certain frequencies, and overall stability of ±20 ppm is available within -48 to +85°C range. Operating from 3.3 or 5.0 V supply, RoHS-compliant products come in 14 x 9 x 6 mm FR-5 package.

Picor, a subsidiary of Vicor Corporation    North Smithfield, RI 02896
Jul 03, 2006 Operating from 10-76 Vdc, QuietPower® QPI-12 attenuates conducted common-mode and differential-mode noise to comply with CISPR22 requirements. It supports 7 A loads up to 80°C, is parallelable for high power, and occupies 0.5 in.² of board area. QPI-10 complies with AdvancedTCA PICMG3.0® requirements for hot insertion and board-level conducted noise limitations defined by EN 55022 class B. It provides conducted common-mode and differential-mode noise attenuation from 150 kHz to 30 MHz.

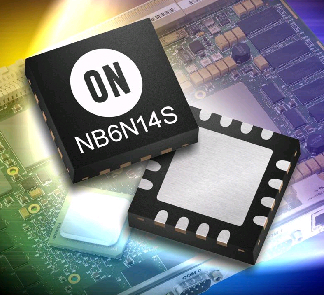

ON Semiconductor, LLC    Phoenix, AZ 85008
Jul 03, 2006 Combining bipolar capability with LVDS-compatible output structure, ECLinPS MAX(TM) NB6L11S and NB6N14S are Clock or Data translators and distribution ICs that interface directly with LVDS devices. Featuring max input clock frequency of greater than 2.0 GHz and jitter of 500 fs, 1:2 Model NB6L11S operates at Vcc of 2.5 V and 1:4 Model NB6N14S operates at Vcc of 3.3 V. Applications include telecommunications, networking, high-end computing, and automated test equipment.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2006 Combining monolithic autonomous power manager, diode controller, and standalone battery charger, Model LTC4085 features PowerPath(TM) control, which provides power to USB peripheral device and charges peripheral's Li-Ion battery from USB VBUS or wall adapter power supply. To ensure fully charged battery remains fresh when bus is connected, IC directs power to load through USB bus. Once power source is removed, current flows from battery to load through internal 200 mOhm diode.

Linear Technology Corp.    Milpitas, CA 95035
Jul 03, 2006 Synchronous, current-mode controller IC, Model LT3837, regulates output voltage based on sensing secondary voltage via transformer winding, allowing for tight output voltage regulation without optoisolator. Unit can convert input supply of 9-36 V to isolated output of 3.3 V at 12 A with up to 90% efficiency and ±1% regulation. Switching frequency can be adjusted from 50-250 kHz with capacitor. Housed in 16-lead TSSOP package, controller is rated for -40 to 125°C operation.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 03, 2006 Rated for 60 A and 100 V in common-cathode 30 A x 2 configuration, Trench MOS Barrier Schottky rectifier Model V60100C delivers forward voltage drop of 0.70 V at 30 A and 125°C and 0.79 V at 30 A and 25°C. Unit is optimized for 70-800 W high-frequency switchmode power supplies in servers, industrial computers, and telecom systems. It can also be used for ac-to-dc rectification in adapters for desktop PCs, servers, notebook PCs, PDP TVs, LCD TVs, and monitors.

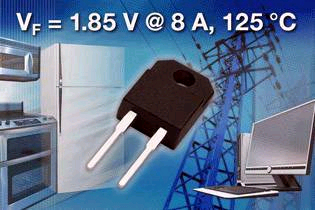

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 03, 2006 Providing forward recovery time of 150 ns under LEM test conditions, 8 A, 600 V Ultrafast UH8JT and UHF8JT feature forward voltage drop rating of 1.85 V at 125°C. Built using planar chip junction technology, units are suited for range of power supply applications, including high-voltage continuous current-mode PFC systems in consumer and computer products, output switchmode power supplies, secondary dc to dc rectification, and freewheeling diode applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 03, 2006 Supplied in 8.3 x 3.0 x 2.5 mm package, TFDU6300 and TFDU6301 support IrDA® high-speed IrSimpleShot protocol for beaming digital pictures directly from camera phones to TVs, printers, and other enabled camera phones. They are fully compliant with IrDA Physical Layer, transmitting data over distances to 0.7 m, and can transmit TV remote control signals over distances to 25 m. RoHS-compliant units feature integrated EMI protection and provide fast infrared (FIR) 4 Mbps data rate.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 03, 2006 Suited for signal processing and power management applications in portable electronic systems, 298D MicroTan(TM) SMT tantalum capacitors provide capacitance values from 1 µF at 16 V to 47 µF at 4 V in 0603 and 0805 footprints. They offer capacitance tolerance of ±20%, voltage ratings from 4-16 WVdc, and 0.01 CVdc leakage values. Rated for use from 55 to 85°C, products can be operated to +125°C with voltage derating and feature RoHs-compliant terminations.

Vista System    Sarasota, FL 34234
Jul 03, 2006 Modular office signage, Vista V200, utilizes Modular Curved Frame Technology (MCFT) to facilitate installation. Signs can be ordered pre-assembled according to custom design, or end-user can perform assembly. Construction enables flexible layout, lets users determine height of information strips, and can be sectioned by placing separation strips where desired. Available with plastic or aluminum end caps, product is offered in 18 widths of custom-made extrusions and any size lengths.

Walls & Forms Inc.    Dallas, TX 75374
Jul 03, 2006 Available in as few or as many sections as desired, Modular Sales Counter offers front-merchandising and backlit headers. It can be customized for new store interior construction and remodeling projects in desired color combinations, finishes, sizes, and designs to match any store decor. Counter can be dismantled, moved to new location, and reassembled when necessary.

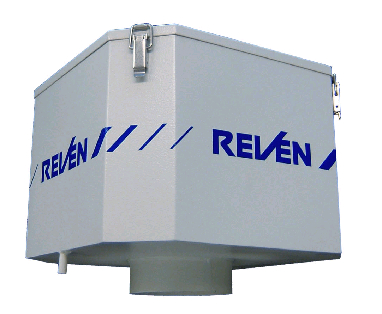

Tecnara Tooling Systems, Inc.    Santa Fe Springs, CA 90670
Jul 03, 2006 Featuring lightweight construction, Reven RECOJET-1® vortex separation system is suited for machining centers, CNC lathes, Swiss-type CNC lathes, EDMs and cutter grinders. Sound attenuated for quiet operation, unit's design mitigates inherent problems of centrifugal systems such as noise, vibration, and low separation efficiency.

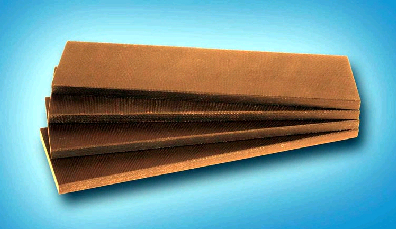

Norplex Micarta    Postville, IA 52162
Jul 03, 2006 Manufactured from woven aramid fiberglass fabric combined with phenolic compound, NP193PM has ambient flexural strength of 45,000 psi and hot flexural strength of 33,000 psi. Proprietary additive works as lubricant, minimizing friction and lowering operating temperatures by 50°. Suited for compressor vane applications, composite features dimensional stability that prevents pump blades from warping and causing pump to malfunction or disrupt vacuum seal.
