EAO Switch Corp.    Milford, CT 06460
Jul 05, 2006 Low profile, flush mount, illuminated Series 84 pushbuttons are available with aluminum or plastic bezels in standard 22.5 mm cutout. IP67 rated pushbuttons can be connected by 300 mm ribbon cable or plug-in terminals. Double-blade, slow make switching system ensures pleasing tactile operation and promotes reliable switching, even of very light loads. With a maximum rating of 42 Vac/dc, 100 mA, switches are suited for PLC level signals.

Transducers USA    Elk Grove Village, IL 60007

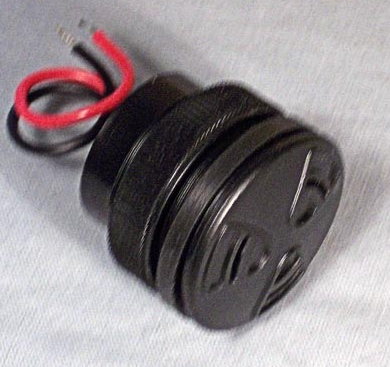

Jul 05, 2006 Able to handle extremely difficult off road conditions, Model TRIP-86515W Audio Alert is specified with temperature range of -40 to +75°C and operating voltage span of 3-25 Vdc at 25 mA max. Sound output is 100 dBA min with resonant frequency of 2,900 ±500 Hz. Sealed, panel mounted alert is offered in 29.0 x 32.8 mm leaded and connector versions in standard black color.

Linear Technology Corp.    Milpitas, CA 95035
Jul 05, 2006 Operating with or without host microcontroller, LTC4101 smart battery charger controller is optimized for 3-5.5 V charging voltages and is suitable for 1-cell Li-Ion and 3- to 4-cell nickel-chemistry batteries. Synchronous switching operation provides charging from 6-28 V input supply and IC is capable of charging up to 4 A with 0.8% voltage accuracy and 4% current accuracy. LTC4101 is housed in 24-pin SSOP package and operates from -40°C to 85°C.

Henkel Loctite Corporation    Rocky Hill, CT 06067
Jul 05, 2006 Equipped with internal cooling fan, Loctite® 7700-HD LED Light Source portable curing system offers output of 1.0-1.5 W/cm² at peak wavelength of 405 nm and provides effective continuous duty cycle use. Powered from ac power adapter, hand-held or stationary mount system features extended tip for use on small adhesive joints. Sized at 9 x 1.4 x 2 in. and weighing 0.75 lb, unit may be actuated using foot switch, PLC interface cable, or timer.

InduKey Keyboard Production GmbH & Co. KG    D-08233 Treuen (Vogtland)   Germany

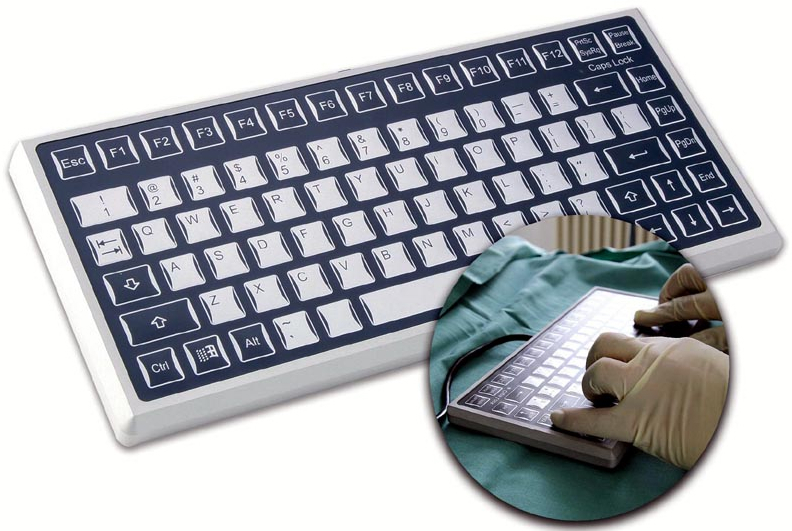

Jul 05, 2006 Available as keyboard only or with integrated capacitive touchpad, InduStyle(TM) has wear- and chemical-resistant polyester frontsheet sealed against base to IP65 standards. Keys and PCB are mounted in solid aluminum base, while gold-on-gold dome switches promote optimal tactile feedback and have lifetime of over 2 million operations per key. Measuring 15.5 mm thick, product is offered with PS/2 or USB interface options and fully customizable frontsheet.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004

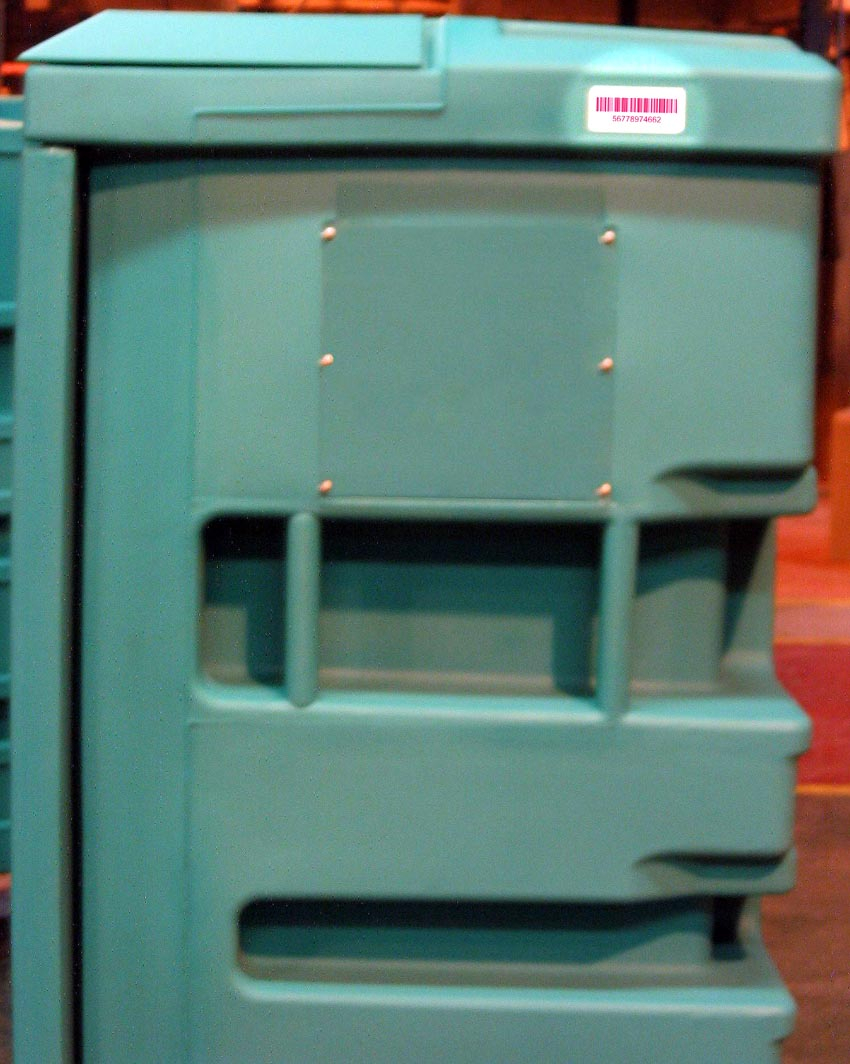

Jul 05, 2006 Suited for laundry, housekeeping, and food/beverage staff in hotels, restaurants, and healthcare facilities, bulk linen and laundry carts feature recess for RFID tags or bar codes on side of rotationally molded carts near roofline. Positioning allows ergonomic access for hand scanners while also ensuring smooth tag reading as cart rolls through automatic scanners. Recess also serves as protective niche that helps guard tags against collisions with walls, trucks, and other carts.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403
Jul 05, 2006 PowerFLO(TM) 5850-101 Series is constructed with Viton valves, polypropylene housings, Santoprene diaphragms, and stainless steel fasteners. Driven by 12 Vdc motor, these 5-chamber, positive displacement pumps are self-priming and can run dry without damage. They operate in demand mode, offer 5.0 gpm output at open flow, and handle fluid temperatures up to 140ºF. Brackets are included for mounting flexibility.

seepex, Inc.    Enon, OH 45323
Jul 05, 2006 Portable MDF progressive cavity Drum Pumps are available with titanium internals, PTFE housing, and explosionproof motors. Positive pressure on suction side simplifies transfer of fluids, and pumping elements are introduced directly into fluid to lift it without need to pull prime. Designed to empty open and closed drums, totes, and tanks, pump handles corrosive and abrasive compounds of varying viscosities and solids content as well as liquids with high vapor pressures.

Engis Corp.    Wheeling, IL 60090 6038

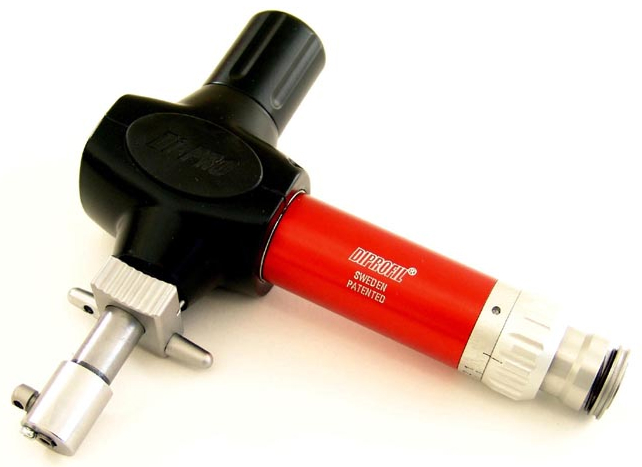

Jul 05, 2006 Manufactured for optimal balance and weight, Di-Pro polishing/finishing system is suitable for extended use with variety of drive systems, including integrated air motor, flexible shaft (slip-joint or ball-joint), integrated micro-motor, and connections for micro-motors. Product, which weighs 0.9 kg, exhibits maximum performance when used with Diprofil diamond tools and offers max speed of 10,000 rpm at 0-6 mm stroke length.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Jul 05, 2006 Suited for applications where same rivet body size is specified but multiple grip ranges are required, POP® Steel Multi-Grip(TM) Rivets automatically adjust grip range during setting to accommodate range of variation in material thicknesses. Elliptical impressions in rivet body ensure consistent compression of rivet body during setting, and rivet body expands to completely fill irregular or oversized holes. Products come in 1/8-3/16 in. dia in domed head and large flange configurations.

ETCO Incorporated    Warwick, RI 02888 1501
Jul 05, 2006 Made from galvanized steel, ETCO Strain Relief Clamps grip cable or cord inside equipment to protect against damage caused by pulling or stretching. They help extend cord life and reinforce cord connection in any high-voltage application. Offered in several configurations for use on round and flat parallel power cords, products are suited for protecting electric range and dryer cords as well as cord sets used in medical instruments, imaging equipment, and conventional appliances.

Sphinx Adsorbents, Inc.    Springfield, MA 01104
Jul 05, 2006 Capable of purifying and drying in one operation, Sphinx Molecular Sieve Desiccant has uniform bead sizes to prevent adsorbent segregation. Surface area porosity optimizes adsorption and crush strength to minimize loss from abrasion. Suited for industrial desiccant driers handling chemicals, plastics, fuels, and gases, product can be supplied in several grades with precise pore sizes to match application requirements and regenerated for repeated use.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Jul 05, 2006 Used in multi-loop switch-mode power supplies, 16-bit dsPIC® Digital Signal Controllers (DSCs) enable full control of power conversion process. Models dsPIC30F1010 and dsPIC30F2020/2023 have onboard PWM with 1 nsec resolution and 7 modes of operation. Onboard, 10-bit ADC enables complete digital loop control and has up to 12 input channels and 2 MSPS sample rate. While dsPIC30F1010 devices have 6 KB Flash and 2 PWM generators, dsPIC30F202X devices have 12 KB Flash and 4 PWM generators.

LEDtronics, Inc.    Torrance, CA 90505

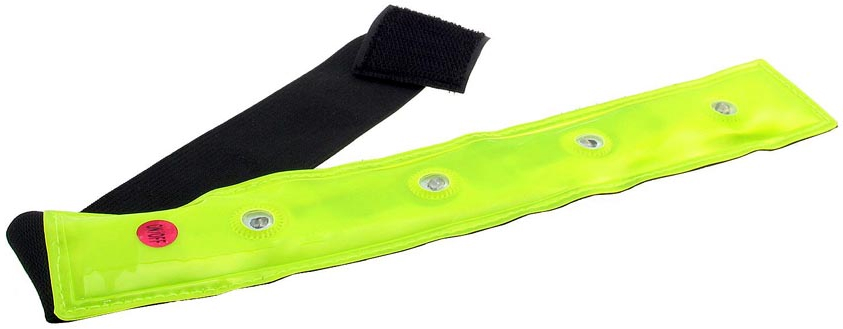

Jul 05, 2006 Providing portable light source, Flashing LED safety band features 4 red LEDs spaced 2 in. apart against lime green reflective tape background. Velcro strap facilitates attachment to anything requiring visibility during low light levels, and one replaceable CR2032-cell battery powers unit for 85 hr. Measuring 9 x 1 ¼ in., product is made of soft nylon material and utilizes LEDs with 100,000+ hr lifespan and solid-state design impervious to environmental fluctuation.

Pomona Electronic    Everett, WA 98204
Jul 05, 2006 Built for safe operation, IEC (International Electrotechnical Commission) insulated BNC adapters allow for attachment in 500 V CAT 1 applications. Specific models include IEC Insulated BNC male 50 cable (model 72926-C-40); IEC Insulated BNC to stackable/retractable 4 mm plugs (male model 72908, female model 72909); and IEC Insulated BNC to 2 male banana 4 mm plugs (female model 72911, male model 72910).

Advantech Co. Ltd    Irvine, CA 92618

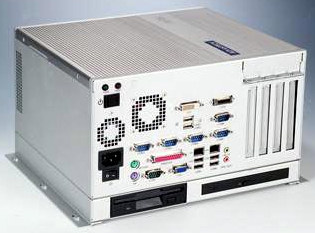

Jul 05, 2006 Offering scalable CPU performance and flexible I/O expansion, ARK-7480 features 295 x 180 x 260 mm cast aluminum chassis with cableless, modular design. It supports UFCPGA2, 478-pin embedded Intel® Pentium® 4 or Celeron® D Processors up to 2.8 GHz, Intel 852GME chipset with GMCH, and Intel 82801DB I/O Controller Hub 4. For connectivity, unit offers 3 PCI expansion slots, dual Fast Ethernet, 6 USB 2.0 ports, 6 COM ports, and DVI, LVDS, and VGA display interface.

JNJ Industries Inc.    Franklin, MA 02038

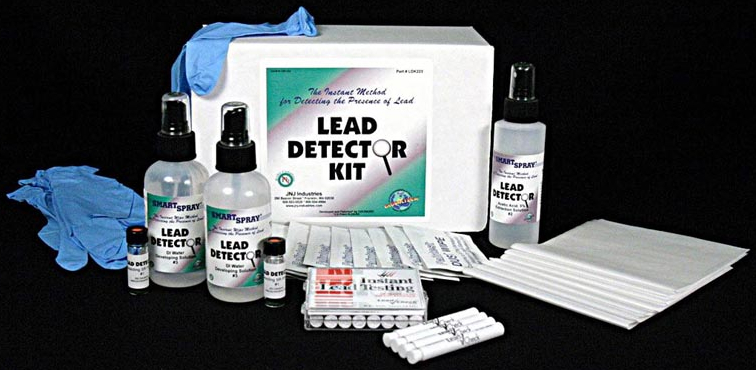

Jul 05, 2006 Lead Detector Kit offers 2 test methods that instantly reveal presence of lead, even when it exists as invisible residue on work surfaces, enabling manufacturers to help maintain healthy, safe work environment. Lead Detector wipes and swabs indicate presence of lead by displaying pink to red color, showing that further hand washing or surface cleaning is necessary. Color intensity denotes degree of lead concentration.

Postini, Inc.    San Carlos, CA 94070
Jul 05, 2006 Postini message management services platform integrates with existing IT systems, providing fine-grained policy controls for making message processing rules on inbound and outbound content (email and IM traffic) based on global, group, or user requirements. Directory Sync capability and Single Sign-On (SSO) interface allow users, policies, authentication, and authorizations to be defined at customer premise and automatically synchronized with services infrastructure.

Copley Controls Corp.    Canton, MA 02021
Jul 05, 2006 Suited for controlling AC brushless and DC brush motors, XSJ series Micro Xenus amps are compatible with various command signal sources and accept step-and-direction commands. They run on 100 to 240 Vac, 50/60 Hz and come in 3 models that cover 2, 6, and 10 A peak power ranges. Single amp can be used for various stand-alone and network-controlled applications. Series offers several motion control modes and works with feedback from position, velocity, and commutation signal sources.

Adtran Inc.    Huntsville, AL 35806 2807
Jul 05, 2006 Positioned to address any access or metro ring application, OPTI-6100 Multi-Service Provisioning Platform (MSPP) enables delivery of Ethernet, DS1, DS3, and optical services directly from OC-48 rings. Ethernet in the First Mile (EFM) capabilities provide carriers with means to host multiple bonded circuits and aggregate said circuits into single element. Unit provides scalability from OC-3 to OC-48 and offers flexibility to add additional network bandwidth.
