Invensys Avantis    Burlington L7N 3V6  Canada
Jun 14, 2006 Condition Monitoring v2.1 integrates with data sources and systems to provide early detection and analysis of impending plant equipment failures. Support for OPC alarms and events extends OPC access to bring together raw data points with alarm and event information. Association Templates and Batch Load helps speed configuration through automated re-use of existing device and asset definitions, while XSL reports enable users to create HTML reports for remote Web viewing and printing.

JM Science, Inc.    Grand Island, NY 14072

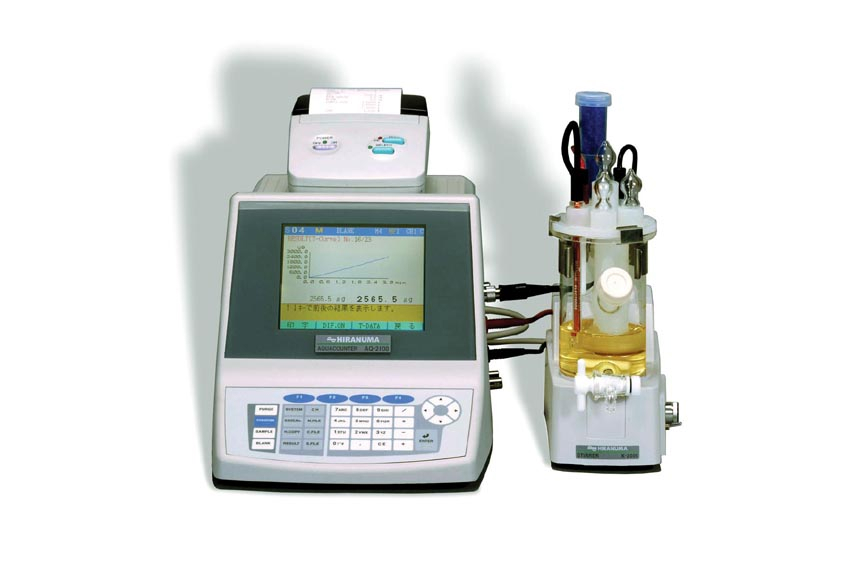

Jun 13, 2006 With detection range from 5 ppm to 10%, Model AQ-2100 AQUACOUNTER® Karl Fischer Coulometric Titrator has color LCD that displays analytic information, including real-time titration curves. Replaceable membrane delivers same precision as ceramic frit, and GLP-compliant instrument validation functions verify life of reagents and electrodes. Device is controlled from PC or laptop connected with RS-232 cable, and optional coulometric kit supplies 2-channel expansion capability.

Bede    Durham DH1 1TW  United Kingdom
Jun 13, 2006 Sensitive to dislocations, precipitates, mechanically introduced cracks, and inclusions, BedeScan(TM) defect inspection system is capable of looking at process induced defects on surface of wafer and detects crystallographic abnormalities inside wafer that can lead to wafer breakage. System monitors pin marks, thermal slip dislocations, misfit dislocations, back-side and front-side scratches, as well as surface and buried mechanical edge damage.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Jun 13, 2006 Model 3918 18 V 10 in. Compound Miter Saw enables users to make accurate crown molding cuts with miter and bevel detents at 31.6° and 33.9°, respectively. Aluminum base is 21 in. wide with sliding extensions that expand it to 24 in. to support longer material and 3½ in. fence slides to left to facilitate bevel setups. Miter Saw is available either alone or in kit that includes 2.4 A Bluecore(TM) battery, 1 hr charger, 24 tooth blade, material clamp, and dust bag.

Milacron Inc.    Cincinnati, OH 45206
Jun 13, 2006 Mosiac control consists of 15 in. TFT touchscreen display with keyboard mounted on swing arm. Sealed to IP65, panel is driven by industrial computer with 600 MHz Celeron processor and 1 GB flash drive for data storage. Control provides 5-stage extrusion profiling with graphical setup, 10-stage injection profile and 10-stage pack and hold with real-time graphing, simultaneous monitoring of 16 user-selectable process parameters, and process graphics with 13 time/position-based graphs.

Micro Control Co.    Minneapolis, MN 55432
Jun 13, 2006 LM-1 Logic and Memory Burn-In System has system capacity of 1,536 devices when individual temperature control is required or 6,400 device capacity when conventional burn-in cycle is run. Burn-in-with-test system features 300 A current per burn-in board, programmable temperature control up to 150ºC, and scan mode vector memory up to 1 G deep. Handling up to 32 burn-in boards, system can be customized to burn-in different device types during same cycle.

Capital Safety Group (Australia) Pty Ltd    Silverwater NSW 2128   Australia
Jun 13, 2006 Incorporating both frontal and dorsal fall arrest rated D-rings, AB119/2AU harness features confined space access loops, wide padded back pad, work positioning buttock seat, and pole/restraint side O-rings along with fully adjustable leg, shoulder, waist, and chest straps. With extruded aluminum housing, model AD120BR 6 m self retracting lifeline weighs 2.3 kg and withstands rough use. It allows workers to move around freely without need for frequent reconnection.

Avery Dennison, Printer Systems    Philadelphia, PA 19111

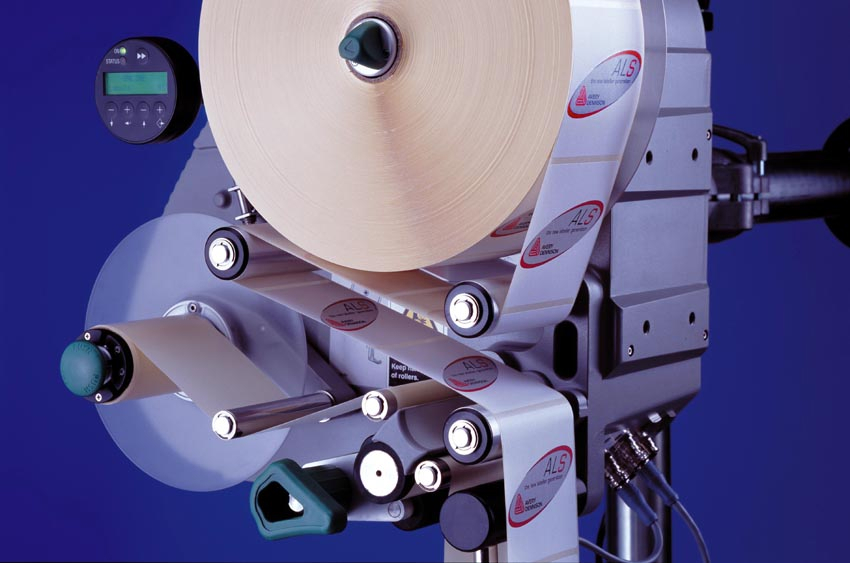

Jun 13, 2006 Avery Dennison ALS 204 industrial-grade label applicator automatically applies preprinted product ID labels to cartons, boxes, and other items at packaging-line speeds up to 40 m/min. It applies labels in widths up to 4 in. and accommodates label rolls up to 12 in. Dispensing edge can be rotated 90°, while entire unit can be rotated 360°. Available in right- and left-hand configurations, 19.6 in. tall applicator comes in compact 13.6 x 19.6 in. footprint.

LitePoint Corporation    Sunnyvale, CA 94085
Jun 13, 2006 Based on integrated vector signal analyzer and vector signal generator architecture, IQmax(TM) system tests devices based on WirelessMAN OFDM PHY standards, including all bandwidth and data rate options. Dual RF ports are selectable for Tx or Rx operation and support 3.3-3.8 GHz frequency band. IQsignal Analysis Suite provides instrument set-up, control, and analysis functions including RF and I&Q graphs, frequency spectrogram, power spectral density, and constellation diagrams.

Yokohama Rubber Co., Ltd.    Tokyo 105-8685  Japan

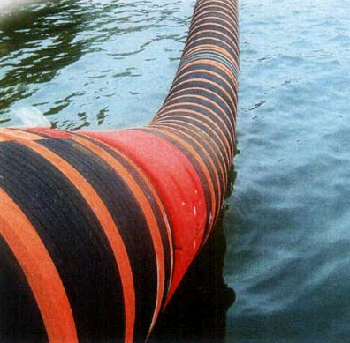

Jun 13, 2006 Designed with dual-carcass structure, Super Stream Hose is suited for reel-winding systems in rough seas. Form-fitted floats on flange connections between hose segments help distribute tension caused by waves and currents evenly over hose line. Optimized reserve buoyancy helps keep hose afloat in any sea conditions. Sponge material provides hose with minimum reserve buoyancy of 25% and average reserve buoyancy of 30%.

Advantech Technologies, Inc.    Irvine, CA 92618

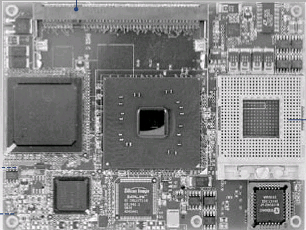

Jun 13, 2006 Embedded COM Express Type 2 CPU module, Model SOM-5780, features onboard Intel® Pentium® M processor and Intel® 915GM/ICH6-M chipset. In basic form factor of 95 x 125 mm, unit provides scalable solution by utilizing plug-in CPU module on application-specific customer solution board. It incorporates serial differential signaling technologies such as PCI Express, Serial ATA, USB 2.0, LVDS, and serial DVO interfaces.

Southworth Products Corp.    Portland, ME 04104 1380
Jun 13, 2006 Roll-In(TM) Level Loader features cutouts in low-profile platform that let forks of hand pallet truck roll into platform, level with top. Able to accommodate any open-bottom pallet or skid, design ensures load is evenly placed when pallet truck is lowered and rolled away. Palletizer comes in 2,500 or 4,000 lb capacity with respective lowered heights of 3¼ or 4 in., raised heights of 35¾ or 36½ in., and platform sizes of 48 x 53 or 51 x 53 in.

IRC, Advanced Film Div.    Corpus Christi, TX 78411

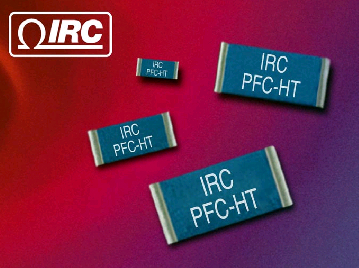

Jun 13, 2006 Utilizing TaNFilm® self-passivating resistive element technology, tantalum nitride Series PFC-HT features wraparound non-leaching termination style, in either gold-plated or 100% tin versions, enabling devices to operate at elevated temperatures. Units come in 0603, 0805, and 1206 chip sizes with voltage and power ratings of 33.3 V/62.5 mW, 50 V/100 mW, and 100 V/125 mW, respectively. Resistance range is 10 W to 85 KW, with tolerances to ±1%.

TAC    Carrollton, TX 75006
Jun 13, 2006 Weighing less than 1 lb, portable Roam IO2 provides wireless field access to controller point information. Compact hardware adapter offers mobility through local connection to field bus or Ethernet network or wireless connection with Bluetooth® adapter. It automatically discovers and edits BACnet devices from third parties as well as TAC Andover Continuum(TM) BACnet and Infinet(TM) controllers on network, providing multiple displays of entire BACnet system.

W.A.C. Lighting Company    Port Washington, NY 11050

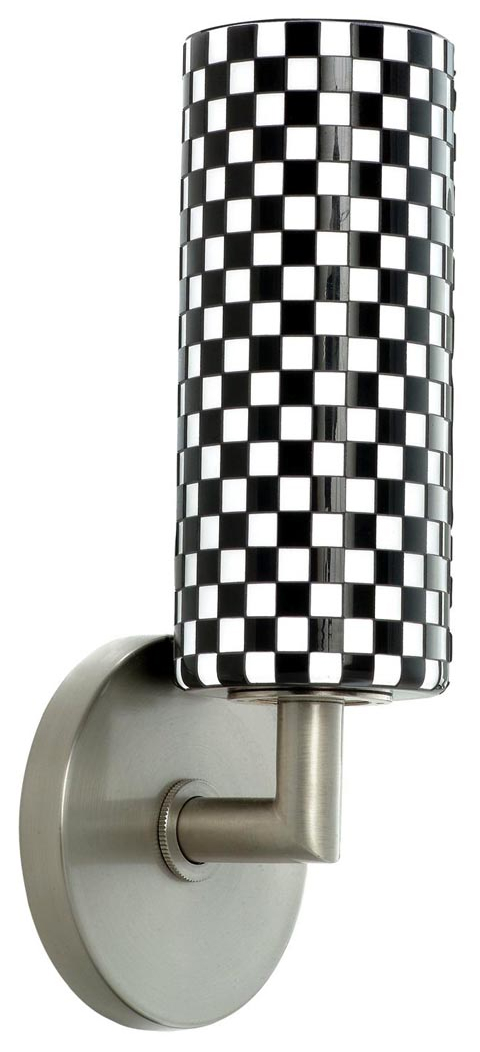

Jun 13, 2006 Meeting ADA requirements, series integrates range of backplate designs with glass and porcelain shades. Vertical-oriented Black and White sconces feature Harlequin, Checkmate, and Zebra designs on cylindrical shaped shades. Cylindrical sconces measure 3 1/8 in. wide and 10 ½-11 1/8 in. high. Series also includes dual-light, horizontal styles measuring 18 1/8 x 3 7/8 in. Also available, wall sconces feature buffet lampshade styles and measure 3 7/8 in. x 9-9 7/8 in.

Vision Engineering Inc.    New Milford, CT 06776

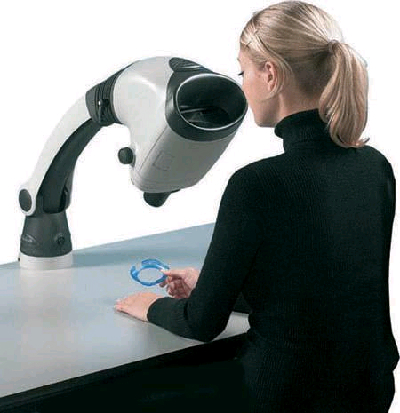

Jun 13, 2006 Enabling operators's eyes and hands to be completely inline, Mantis Macro maximizes hand-eye coordination, facilitating inspection and manipulation tasks. Head has freedom to be tilted by 30° and interchangeable turret provides smooth change of x2.5 and x5.0 objectives for flexibility when manipulating subject. Operators benefit from 40 LEDs to illuminate subject, providing as much as 10,000 hours of illumination.

Performance Motion Devices, Inc.    Lincoln, MA 01773

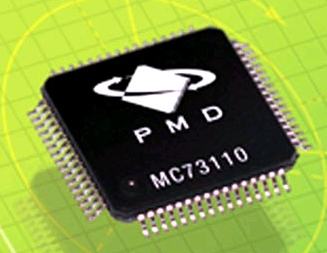

Jun 13, 2006 Providing math-intensive, field oriented control, single-axis Model MC73110 can be operated as standalone intelligent motion IC or via serial commands as programmable axis controller. Utilizing on-chip A/D converter, unit digitizes analog current feedback and can also perform Hall-based and sinusoidal commutation. Model MC73110 features PID velocity loop, PI current loop compensation, trajectory generation, encoder input, and Hall sensor input.

J. W. Winco, Inc.    New Berlin, WI 53151

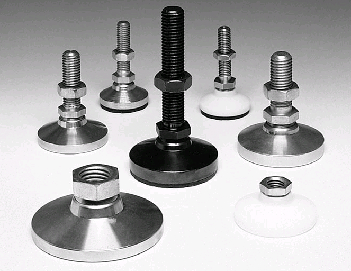

Jun 13, 2006 Made from carbon steel with gold iridite plated or black oxide finish, inch size Threaded Stud Type Level It Mounts have stud ball end machined from solid bar. Units swivel 7 ½° to all sides of centerline to adjust to uneven surfaces and are suited for leveling machine tools, electronic racks, and benches. Mounts can be ordered with non-skid elastomer pads as well as elastomer cup pads.

Thermo Electron - Informatics    Philadelphia, PA 19102

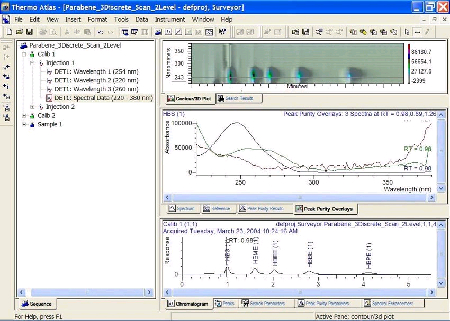

Jun 13, 2006 Built for enterprise applications, Atlas CDS(TM) v8.1 provides single solution that not only integrates data streams from multiple instruments manufactured by multiple vendors, but also integrates with LIMS that store summary results for each analysis. Tight integration with LIMS enables users to access critical data when faced with decision where QA/QC source data is needed immediately. Program can also import Beckman PeakPro(TM) and ThruPut Target(TM) data files natively.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

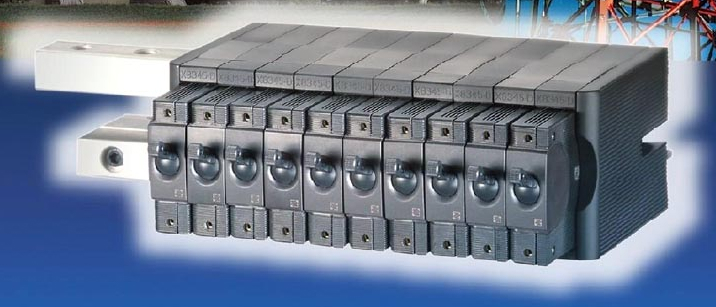

Jun 13, 2006 Model X8345-D01 2U-height power distribution system is designed for mounting 8345 plug-in hot-swap circuit breakers in 19 in., 21 in., and ETSI racks. Total load capacity is 600 A with max of 125 A per channel, with each channel offering group signalization. Hot-swappable systems can be extended or re-configured without powering down; live parts in plug-in area of load terminals are protected to IP20 against brush contact. Units are approved to UL489, UL1077, and EN 60934.
