W.A.C. Lighting Company    Port Washington, NY 11050
Jun 15, 2006 Offered in low- and line-Voltage systems, Specification Grade Recessed Precision Modules are designed with and without flanges, and can be interchanged with precise number and types of lamps needed to accomplish task at hand. Providing independent adjustable aiming of each lamp, units feature multiple lamps within singular recessed housing that is flush mounted to ceiling or wall. Attached to scissor-like suspensions that pull down, each fixture locks into position.

Sherwin-Williams Co. c/o Ultimate Lead Systems    Berea, OH 44017
Jun 15, 2006 Corothane® I Moisture Cure Coatings can be matched to wide range of colors in large and small batches. They include topcoats and zinc-rich primers that are designed for temperatures down to 20°F or high humidity applications. Providing abrasion and chemical resistance, single-component, VOC-compliant coatings are suitable for water tanks, clarifiers, and secondary containment.

Sherwin-Williams Co. c/o Ultimate Lead Systems    Berea, OH 44017
Jun 15, 2006 Macropoxy® 646 NSF Fast Cure Epoxy and Macropoxy® 846 NSF Winter Grade Epoxy are polyamide coatings formulated to meet toxicological and extraction test requirements of ANSI/NSF Standard 61. Macropoxy® 646 is suited for steel and concrete structures, while Macropoxy® 846 can be applied at temperatures as low as 35°F. Both are high solids and VOC-compliant. They can be brushed, rolled, or spray applied and are suited for use in water and wastewater treatment industries.

K-Tek    Prairieville, LA 70769
Jun 14, 2006 Available in 120 and 240 Vac, 24 Vdc, and loop power configurations, Resonator(TM) Vibrating Liquid Level Switches are designed for high viscosity applications to 20,000 cP. Providing different probe materials, RS80 switch features SS, while multi-option RS85 offers 316 SS, Hastelloy C-276, Hastelloy B, Monel, and Incoloy 600. Products feature 1-step, external calibration process and can handle process temperatures of -40 to 350°F and pressures from 0-2,000 psig.

Klein Tools, Inc.    Lincolnshire, IL 60069

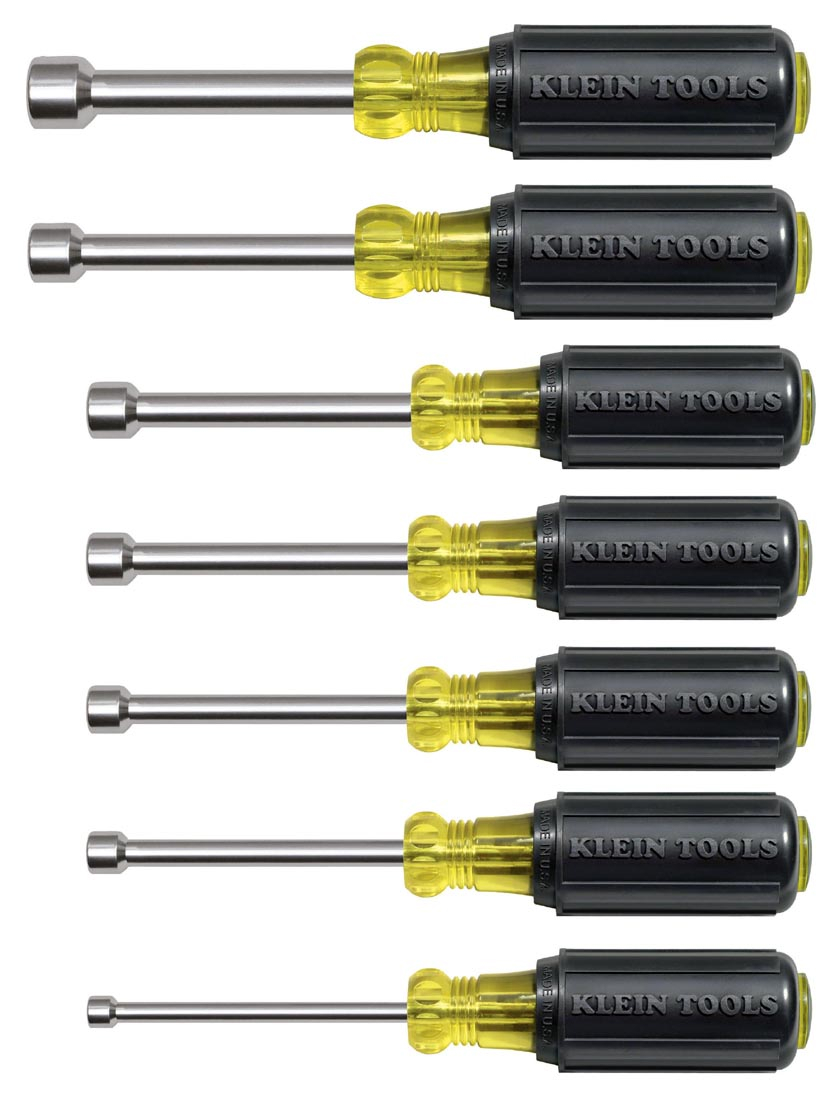

Jun 14, 2006 Cushion-Grip Magnetic-Tip Nut Drivers incorporate donut-shaped magnet in tip, allowing full engagement with nut to hold fasteners securely in place. Available in 1½-18 in. lengths, full hollow shafts let unobstructed pass-through on long-bolt applications and are suited for work on electrical and HVAC/R panels and stacked circuit boards. Drivers include corrosion-resistant chrome-plated shafts and cushion-grip color-coded handles for torque, comfort, and hex size identification.

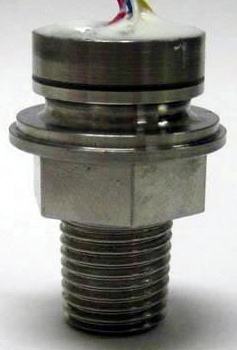

Sensor System Solutions Inc.    Irvine, CA 92618
Jun 14, 2006 Used in OEM applications such as refrigerant handling and recovery as well as other fields, Model 7400 is constructed with stainless steel diaphragm element and metal foil strain gauge. It withstands harsh environments with temperatures from -40 to +176°F and is equipped with a ¼-18 NPTM thread. Isolated from measured media, sensor is available in 100, 300, 500, 1,000, 3,000, and 5,000 psi pressure ranges and can be customized to suit OEM requirements.

Phihong USA    Fremont, CA 94539

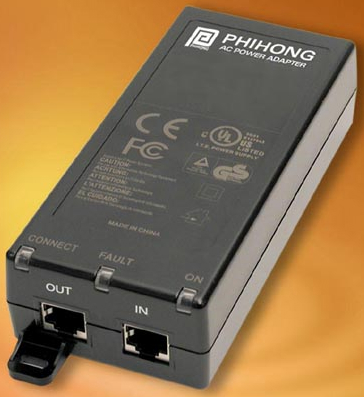

Jun 14, 2006 Suited for applications involving wireless and satellite broadband, POE60U Series single port injector provides detection, disconnect, and voltage control fully compliant with IEEE 802.3af standards. This gigabit-compatible Power-over-Ethernet (PoE) adapter features diagnostic LEDs, broken wire detect, and single source 4-pair power current sharing. Compact power supply measures 6.54 x 3.15 x 1.75 in. and provides full OCP and OVP protection.

ATS Automation    Cambridge, ON N3H4R7  Canada
Jun 14, 2006 Non-ablating VALIDATE System permanently marks fixed and variable information including text, logos, lines, and 2D bar codes into glass. Non-erasable, high-contrast mark provides first layer of protection against counterfeiting. It withstands abrasion as well as elevated temperature conditions. VALIDATE system integrates into existing fill/finish equipment and can be customized to suit production facility's needs.

Electro-Sensors, Inc.    Minnetonka, MN 55343 9108
Jun 14, 2006 Suited for real-time maintenance feedback and machine diagnostics, network-powered SpeedTalker DN (UI) is capable of measuring speed and direction when using bidirectional sensor. Product provides measured shaft RPM from up to 2 input channels along with status of up to 8 independent under/over speed threshold alarms over DeviceNet network. Along with electrically isolated universal differential pulse inputs, tachometer provides isolated 24 Vdc sensor power.

Electro Standards Laboratories    Cranston, RI 02921 3403

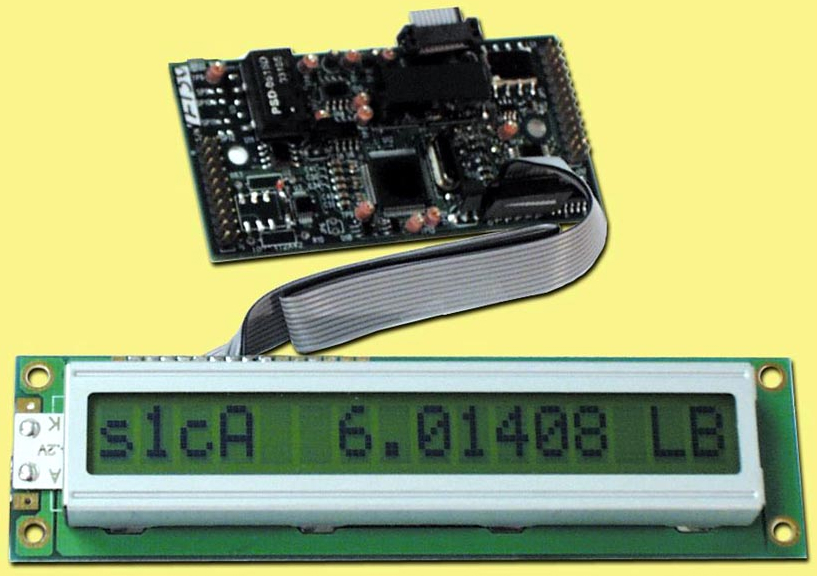

Jun 14, 2006 Embedded, digital Model 4327 CellMite(TM) connects directly to strain gage transducer and simultaneously generates serial output for connection to PC and ±10 V analog output for interface to DAQ systems. It has onboard storage for 3 calibrated sensors, each with integrated 6-point calibration and independent user-specified display setup parameters. Along with automatic TEDS-Tag(TM) sensor identification, unit features 16-character auto identifying display that provides direct readout viewing.

Axcell (Heyco Products, Inc.)    Toms River, NJ 08755
Jun 14, 2006 Featuring one-finger locking mechanism, Single-Panel-Thickness RDD Lockit(TM) fills electrical cord openings and provides strain relief against wire twisting and pulling for thin-walled furniture-mounted task-lighting units and other electrical products. Bushings, molded of high-impact polyamide nylon, conform to ASTM standard D-4066-PA111, have flammability classification of 94V-2, and withstand temperatures to 105°C.

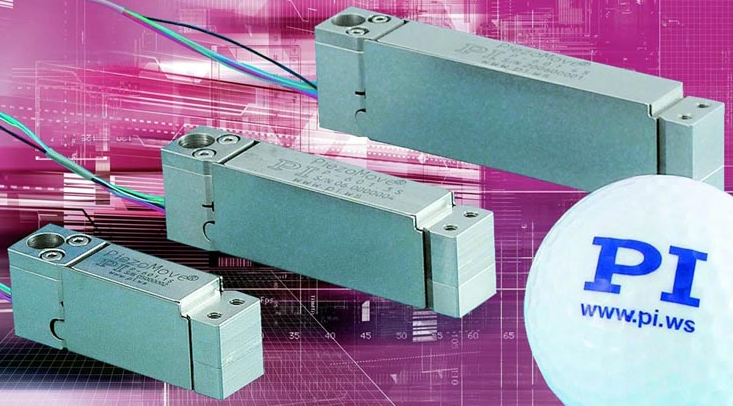

Physik Instrumente (PI)    Auburn, MA 01501
Jun 14, 2006 Available in 3 versions that provide up to 480 µm travel, PiezoMove® lever amplified Z-actuators feature internal frictionless flexure-guides. Stiff design, with resonant frequencies to 750 Hz, allows for millisecond settling times. Products are also available with integrated, absolute-measuring position sensors for closed-loop operation, with linearity to 99.8% and repeatability to 0.2 nm. PICMA® multilayer actuators feature cofired ceramic encapsulation.

AXIOMTEK    Taipei   Taiwan
Jun 14, 2006 Appropriate for industrial and multi-function applications, SHB100 supports Intel® Pentium® D, Pentium 4, and Celeron® D processors with 533, 800, and 1,066 MHz FSB speeds, respectively. Intel® 945G+ICH7R chipset integrates VGA function, and available interfaces include PCI Express x16 graphics or I/O, PCI Express x1 I/O, 4 Serial ATA II, and 4 USB 2.0 ports. Additionally, SBC features Intel 82573V Ethernet controllers as well as 2 DDR II DIMM sockets.

HBM, Inc.    Marlborough, MA 01752 3014

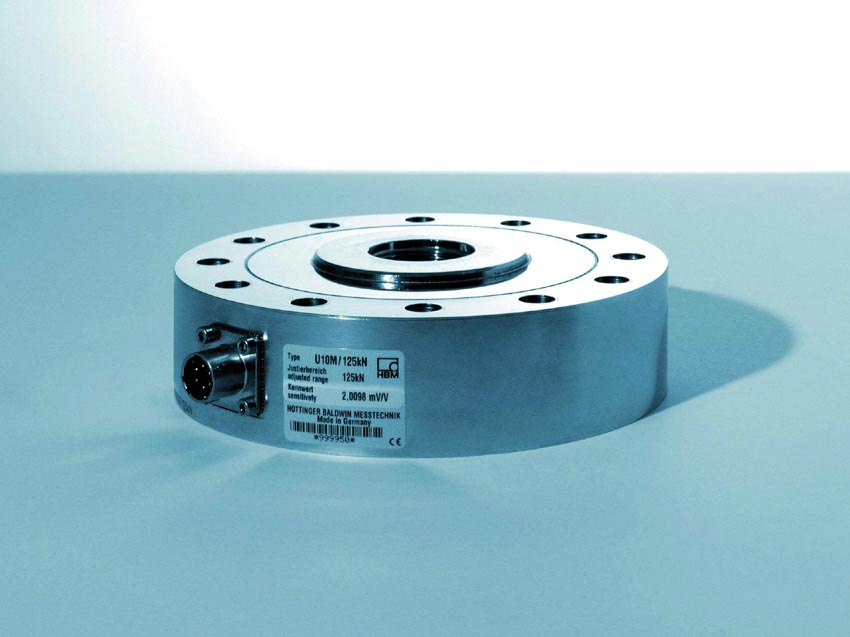

Jun 14, 2006 While used for static and dynamic component tests in test benches and test equipment, U10M specifically suits testing applications including double bridge, mechanical adapters, connector variants, or TEDS. Integrated compensating circuit reduces crosstalk between bending moments and lateral forces; bending moments are determined for each transducer individually. Rotationally symmetrical product comes in 9 ranges with nominal values from 1.25-500 kN.

FlexLink Systems, Inc.    Allentown, PA 18106

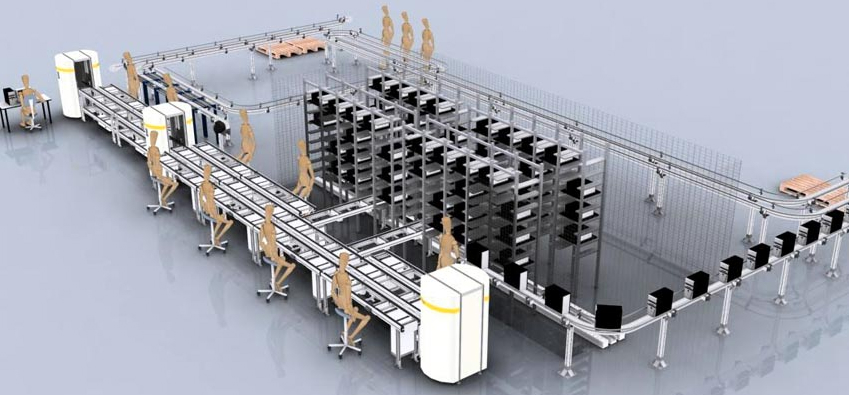

Jun 14, 2006 Intelligent automatic storage and retrieval system comes with production flow management software that operates in several different modes to handle production buffering, sorting, kitting, storing, and testing. It handles products weighing up to 60 kg to height of 4.5 m and has escort memory with read/write functionality that keeps track of products and processes. System can be reconfigured with minimal production interruption.

BI Technologies Corp.    Fullerton, CA 92835-1051

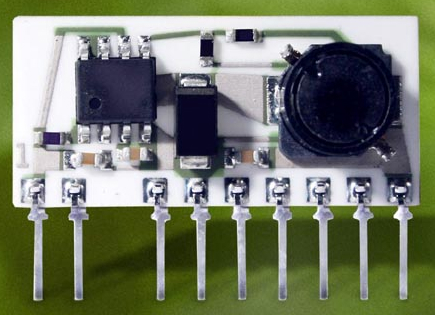

Jun 14, 2006 As 2 W device suited for use in -10 to +70°C environments, 831 Series fixed output POL converter lets design engineers add logic-level power for control circuitry in commercial electromechanical systems. It comes in 1 x 0.5 x 0.225 in. hybrid SIP configuration and uses ceramic base and hybrid technology to eliminate external heat sink requirements. Operating from 12-32 Vdc input, converter is offered with fixed output voltage of 3.3 or 5 V at up to 400 mA.

Vision Engineering Inc.    New Milford, CT 06776

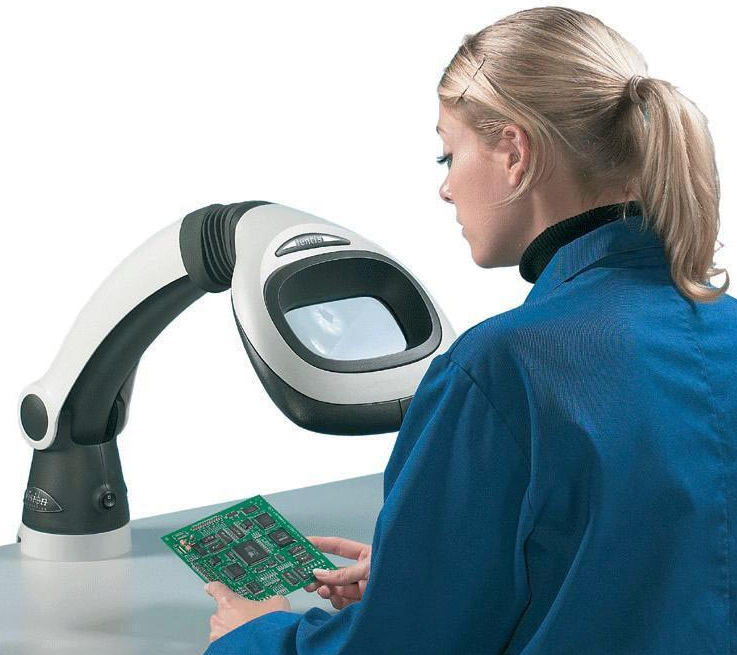

Jun 14, 2006 Designed to facilitate process of working under magnification, Lentis features optical lens that has minimal distortion across entire field of view. Multi-layer coating on lens minimizes any ambient reflection disturbance while inspecting or manipulating subjects. Pair of 4 W fluorescent tubes illuminate image under magnification of 2.5 diopters, providing working distances up to 9.84 in. and allowing for accurate manipulation and material rework.

Corning Cable Systems    Hickory, NC 28603-0489
Jun 14, 2006 Providing environmental protection, OptiTect(TM) Premier Sealed Local Convergence Point Enclosure allows centralized splitting architectures to distribute up to 144 fibers in sealed environment. It holds up to five 1 x 32 splitter modules with pre-terminated SC UPC or APC adapters. Unit is prestubbed with 100-ft 12-fiber feeder cable terminated inside enclosure to splitter input connector panel, and with 100-ft 144-fiber distribution cable terminated on distribution side of connector field.

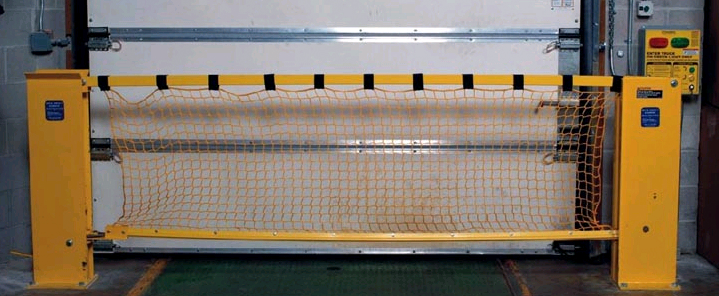

SPX Dock Products    Carrollton, TX 75006
Jun 14, 2006 Built to stop 10,000 lb load moving at 4 mph, manually operated APS Dock Impact Barrier minimizes occurrence of accidents resulting from fork trucks, pallet jacks, and pedestrians falling off dock when overhead door is open. Traffic-stopping barrier bar is constructed of 9/16 in. thick steel cable inside flexible fiberglass rail, which latches securely into place. Highly visible yellow nylon webbing provides additional visual barrier at dock.

SatCon Technology Corp.    Cambridge, MA 02142 1221

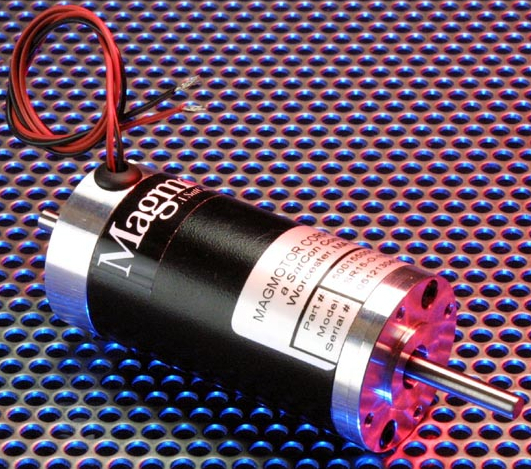

Jun 14, 2006 Featuring internal, long-life brushes and Neodymium magnets, SR15 Series has 1.5 in. dia design that produces continuous torque up to 25 oz-in. and peak torque up to 150 oz-in. It can accelerate rapidly with limited impact to system, and its dual ended shaft facilitates optical encoder installation. Various electrical and mechanical options are available, including windings for specific power requirements and custom mounting configurations.
