AeroGo, Inc.    Seattle, WA 98188 3909

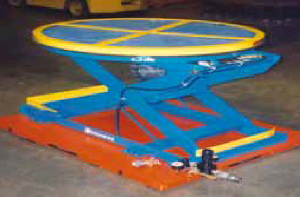

Jun 22, 2006 Combining Aero-Caster positioning with scissor lift table's vertical adjustability, Scissor Lift Tables provide continual, omnidirectional movement during assembly or repair projects. Aero-Caster is positioned beneath deck of lift table, and shop air is used to float lift table on nearly frictionless cushion of air. When air source is turned off or disconnected, lift table rests on landing pads. Tables with Aero-Caster platform feature pushing force of 3.0-5.0 lb/1,000 lb of load.

Revvo Caster Co., Inc., The    West Seneca, NY 14224
Jun 22, 2006 Featuring 2 in. dia polyurethane wheel and overall height of 2 ½ in., SL Series is suited for business machines and other specialized applications. Bearings are shielded to prevent dirt and grit from entering, while retaining lubricating grease. Casters offer load capacity of 350 lb, tread width of 1 1/16 in., and swivel radius of 2 in. Top plate has mounting holes to suit ¼ in. dia countersink head screws.

Adhesives Research, Inc.    Glen Rock, PA 17327
Jun 22, 2006 ARclear® 90854 and ARclear® 90684 provide temporary protection to surface of touch screens and flat panel display screens in high-use, abusive, or harsh environments. Cleanly removable adhesive films self-apply by wetting out onto smooth surfaces and can be repositioned repeatedly. While ARclear 90854 comes on clear, hard-coated film, ARclear 90684 comes on anti-glare, hard-coated film. Both can be diecut to fit specific display surface dimensions.

Master Bond, Inc.    Hackensack, NJ 07601
Jun 22, 2006 Formulated to react with UV light and atmospheric humidity, UV71DC is suited for applications involving complex product geometries. Single-component product cures to produce optically clear, flexible, non-yellowing, and chemically resistant adhesive, sealant, or coating. Employed over -80 to +400°F range, compound exhibits thermal shock resistance and adheres to substrates from glass and aluminum to polyester films and polycarbonates. Tensile strength is 110 psi.

Dickson Co.    Addison, IL 60101-4917

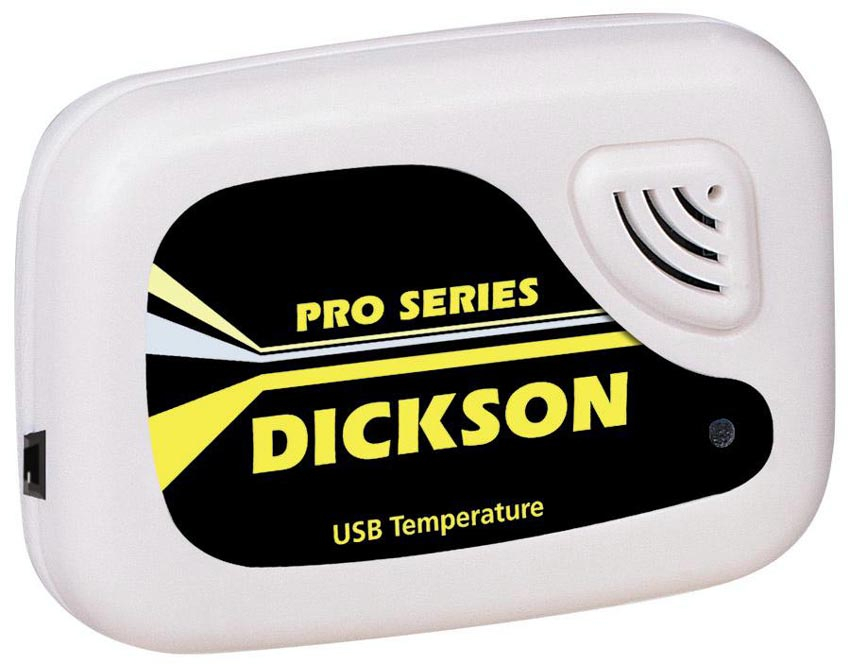

Jun 22, 2006 Along with built-in USB ports for downloading data, Dickson Pro Series Temperature and Humidity Data Loggers feature LED alarms and 1 sec sampling rates. Available models include single-channel SP125 and dual-channel TP125, which has internal sensors for reading air temperature and humidity. Also offered, dual-channel SP175 has internal sensor for reading air temperatures as well as external K-Thermocouple sensor for reading temperatures in hard to reach places.

Aellora(TM) Digital, A Markem Company    Keene, NH 03431
Jun 22, 2006 Designed for jetting solvent-less, hybrid UV-curable white or color inks, SureFire 65 prints high-resolution images on wide variety of materials. It can be configured for mono-color or multi-color printing and can be integrated to handle small and large format applications. SureFire 65 prints true 600 x 600 dpi image at up to 300 sq-ft/hr. Hybrid inks provide high opacity with single layer of ink and require only one exposure to UV-energy to cure all ink layers.

Bertsche Engineering Corp.    Buffalo Grove, IL 60089 6902
Jun 22, 2006 Able to handle parts up to 300 x 300 x 200 mm, multi-station iJet CNC High Pressure System completely washes, removes chip burrs, rinses clean, and dries 6 faces of parts. Four axis part handler transports part over series of single point horizontal and vertical rotary lance nozzles for single feature deburring and to manifold stations for multiple feature deburring and cleaning. System is available with 30, 50, or 75 hp pump system with water pressures up to 5,000 psi.

Rice Lake Weighing Systems    Rice Lake, WI 54868

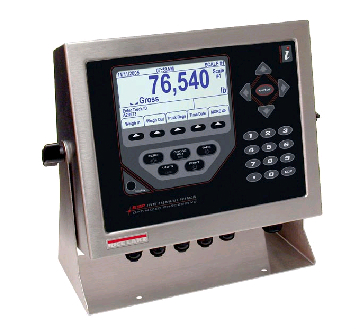

Jun 22, 2006 Featuring intuitive interface, programmable Model 820i automates formula selection, batch start up, data recall, or any frequently used process with push of button. It facilitates truck scale data management with 6 truck modes and keyed tares. PC-based iRite IDE software uses graphical flow charts, eliminating complicated code generation. Built-in software functionality includes programmability for alibi tracking and 25 definable print formats.

Steinmeyer Inc.    Bedford, MA 01730

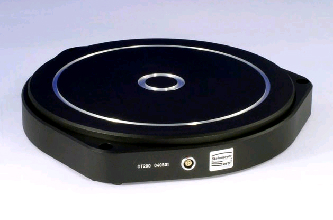

Jun 22, 2006 Measuring 205 mm long with overall height of 30 mm, Model DT 200-SM can handle loads up to 10 kg with positional accuracy of ±0.15° and repeatability of ±0.01°. It achieves speeds to 120°/sec and acceleration to 1,000°/sec². Unit is driven by internal stepper motor and features integrated motion controller card. Pre-loaded slim ball bearing provides rotational guidance. Mounting is accomplished using 3-point base.

Balluff, Inc.    Florence, KY 41042-0937

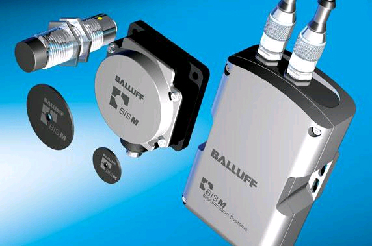

Jun 22, 2006 Operating in 13.56 MHz frequency, BIS M is specifically designed for continuously moving applications requiring large amounts of industrial data carriers. System consists of 3 read/write heads, 4 types of data carriers, and remote processors available in plastic or metal and compatible with Interbus, Profibus, DeviceNet, Ethernet/IP, or Modbus TCP interfaces. BIS M reads 64 bytes of data in 70 ms at velocity of 76 m/min, and writes 64 bytes in 200 ms at 30 m/min.

Panduit Corp.    Tinley Park, IL 60477 3091
Jun 22, 2006 Designed to minimize operator fatigue and repetitive motion injuries, Model PTH provides consistent installation of standard 50 lb through heavy 175 lb cross-section cable ties in less than 1 sec. It delivers flush cable tie cut-off that prevents damage to adjacent wire bundles and protects workers' hands and arms. Tension adjustment is located at rear of tool.

Columbia Marking Tools, Inc.    Chesterfield, MI 48047

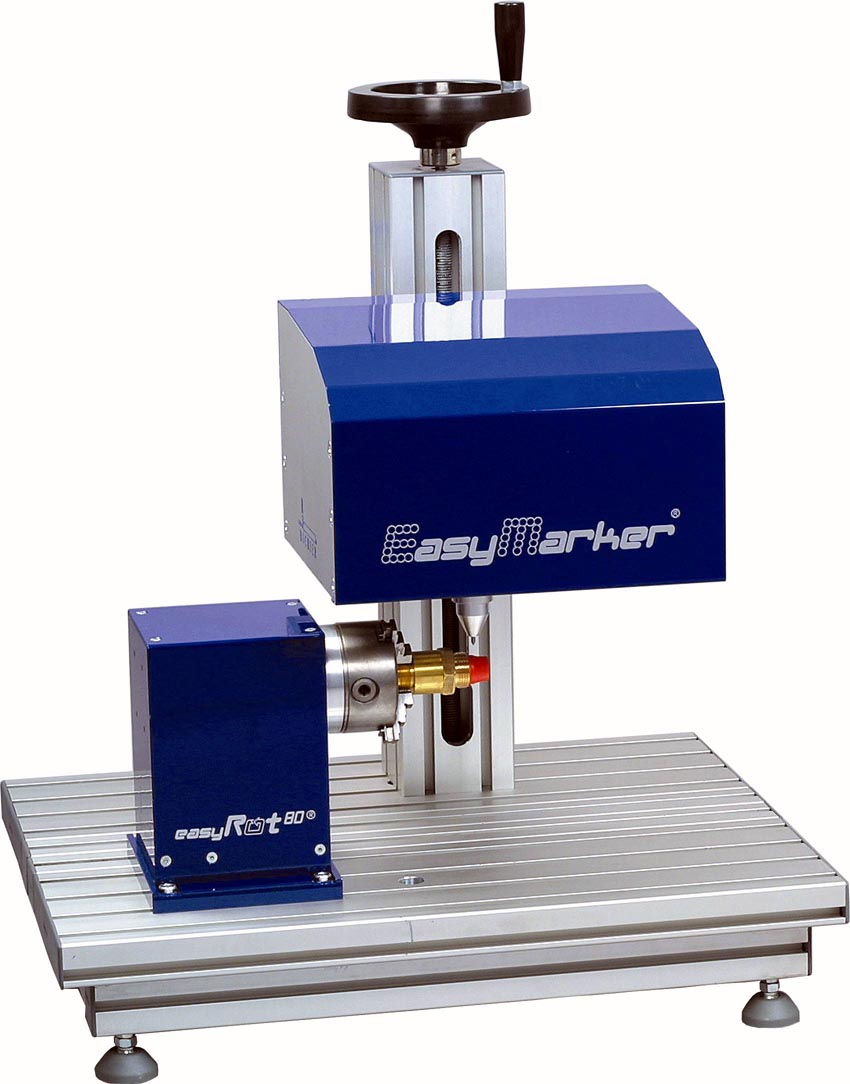

Jun 22, 2006 Equipped with 80-150 mm chuck driven by industrial stepper motor, part rotators allow peen, scribe, and laser marking on OD of round parts. Products mount directly to T-slots of EasyMarker(TM), PM Micro(TM), Handy Andy(TM), as well as DPS dot peen and scribe marking machines and systems. Available with high-speed DPS machines, optional servo drive delivers speeds up to 10 characters/sec. For high-production systems, rotators are fitted with automatic workholding devices.

Van Air Systems, Inc.    Lake City, PA 16423 2095
Jun 22, 2006 With minimal system pressure drop, Freedom Dryer Blast Pak Air-Drying System delivers moisture control in compressed air lines. It eliminates flash rusting, air-line contamination, freeze-ups, and clogged blast pots. Because it needs no electricity, product is completely portable and safe for use in hazardous areas. No maintenance is required, other than daily draining and occasional addition of desiccant.

Promess Inc.    Brighton, MI 48116 0748
Jun 22, 2006 Available in two models with max force capacities of 44.5 and 225 lbf, presses are designed for precision assembly operations in medical, electronics, automotive, and general manufacturing industries. Servomotor drives ball screw in press body to produce linear pressing force. Able to be fitted with additional sensors such as load cells or position probes, this arrangement can be monitored and controlled using encoder and CNC technology.

Promess Inc.    Brighton, MI 48116 0748

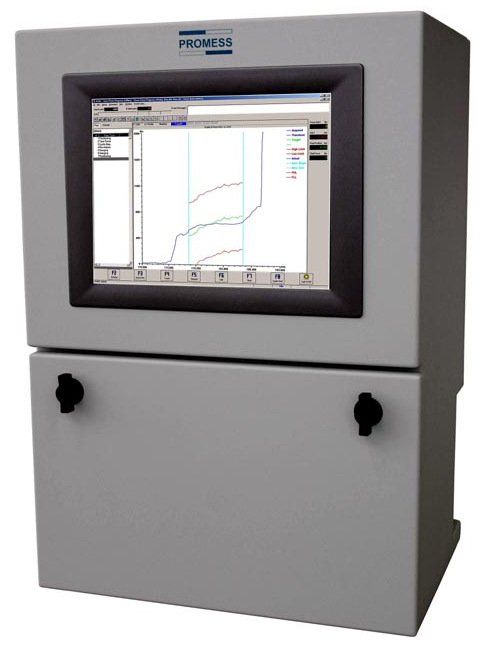

Jun 22, 2006 Pc-PRO provides complete monitoring and test system for assembly operations. Along with multi-channel non-synchronous monitoring and integral data acquisition, system offers range of sensors, data point storage, software, ability to monitor multiple windows, and multiple data analysis capabilities. Standard configuration includes shop floor rated industrial enclosure, mini-keyboard with trackball, and 12.1 in. color TFT-LCD touchscreen.

Promess Inc.    Brighton, MI 48116 0748

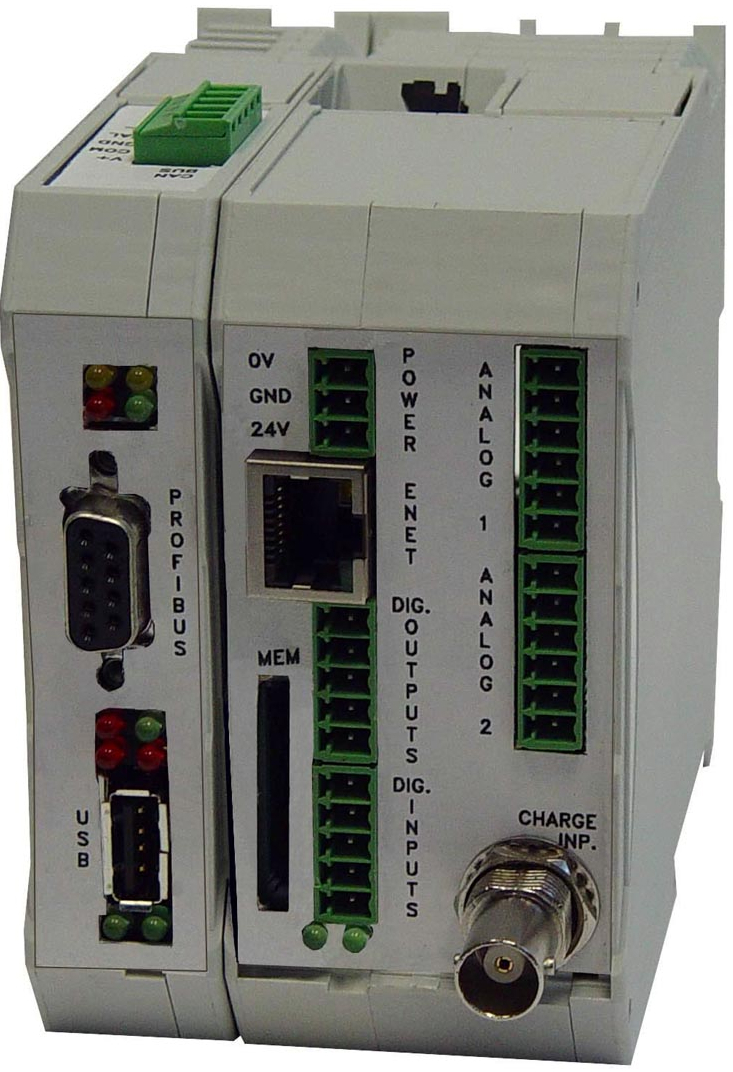

Jun 22, 2006 Single-station, 2-channel Promess PRO tests assemblies produced by press-fitting, staking, crimping, riveting, threaded fasteners, and other technologies. Equipped with proper sensors, stand-alone system can measure force, torque, angle, pressure, position, and any combination of above. Built around PC using Intel Pentium® processor, it monitors assembly operations, identifies non-conforming assemblies, and sorts production into range of tolerance classes.

Liekki Oy    Lohja FIN-08500  Finland
Jun 22, 2006 Highly-doped erbium double clad large-mode-area fiber Er60-20/125DC features high erbium concentration for efficient absorption, 20 μm core with 0.07 numerical aperture, and 125 μm octagonal-shaped cladding. Fiber can be pumped with 980 nm or 1,480 nm and demonstrates greater than 30% slope efficiency with 980 nm pumping with lasing bandwidth extending up to 1.6 μm. Applications include eye-safe fiber lasers and amplifiers as well as military and commercial lidar.

Boothroyd Dewhurst, Inc.    Wakefield, RI 02879 3574
Jun 22, 2006 Incorporating DFA v9.3 and DFM Concurrent Costing® v2.2, DFMA® 2006 (Design for Manufacture and Assembly) software guides engineers through process of simplifying product design then estimates assembly labor and part manufacturing costs. It isolates major cost drivers associated with part manufacture and finishing, and compares cost of automatic versus manual product assembly. Software contains industry-tested early cost models for broad range of material and manufacturing processes.

EMC Corp.    Tampa, FL 33607
Jun 22, 2006 Combining EMC Captiva InputAccel® document capture software with EMC Documentum technology, EMC Documentum® Archive Services for Imaging software provides single, unified archiving platform for collecting, retaining, securing and retrieving document images. Software converts paper documents to electronic images and enables secure electronic access. Applications include archiving enterprise reports, e-mail and SAP content in banking, insurance, healthcare, legal, and manufacturing industries.

Viking Pump Inc., A Unit Of IDEX Corp.    Cedar Falls, IA 50613 0008
Jun 22, 2006 LVP Series Vane Pumps operate at 200 gpm and have 200 psi thin liquid capability. Stainless steel casing is surface-hardened to 62 Rockwell C, and pump features chrome oxide coated shaft, silicon carbide bushings, and PEEK® vanes that offer high strength, low friction, and broad chemical compatibility. Positive displacement pump is available in metric-standard design, with DIN flanges, IEC motor mount, and metric-standard shaft seal options.
