Bentley Systems Inc.    Exton, PA 19341
Jul 18, 2006 ProjectWise V8 XM Edition comprises system of collaboration servers that helps distributed enterprises deliver infrastructure projects. Project framework enables users to find and reuse content across projects, while standards management tools optimize quality and consistency of work on all MicroStation- or AutoCAD-based projects. Load balancing optimizes performance during periods of high demand, and clustering provides fail-over security for mission-critical projects.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 18, 2006 With connections made using spring-loaded terminal strips, Terminal Type I/O speeds up wiring process and ensures that wires will not become loose due to vibration. Each module provides 24 inputs and 16 outputs, and each group can have maximum of 4 modules. Rated 24 V, products do not require distribution boards. Connection to CNC is made with high-speed I/O bus, FANUC I/O Link. Along with LED status indicators for each I/O device, modules feature optically isolated output circuit.

Brudi Bolzoni Auramo    Homewood, IL 60430
Jul 17, 2006 Using microprocessor-controlled system to adjust clamping force, ETX-G3S Intelligent Carton Clamp reduces product damage during load handling in industries that experience variations in clamping pressure. Parameters are pre-determined by end-user, and electronics are interlinked with hydraulic technology to ensure accurate control. Providing equalized clamping pressure, load configuration data is collected in real time through 3 sensor sets. Load capacities range up to 3,500 lb.

Camfil Farr Air Pollution Control    Jonesboro, AR 72401
Jul 17, 2006 Available in sizes to fit any cartridge collector, HemiPleat HE Filters provide efficiency of 99.999% on 0.5 micron particles and larger. Design holds pleats of filter open, making virtually all media surface available for filtration and allowing dust to eject from deep within pleats during pulse cleaning. Filters are suited for capture of toxic and other ultra-fine dusts, and for applications where process air is recirculated downstream of collector.

Flomerics Inc.    Marlborough, MA 01752

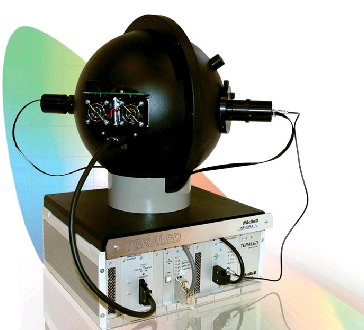

Jul 17, 2006 Peltier-based TERALED Tester can be used stand-alone for optical measurements or combined with T3Ster for thermal and radiometric measurement. Sphere measuring 300 mm dia hosts stabilized DUT fixture, reference LED, and radiometric detector with bank of filters. With 40 x 40 mm² mounting area, LED fixture is capable of sinking heat up to 10 W. Software automates measurement of emitted flux and efficiency or chromaticity coordinates as function of temperature and/or operating current.

FANUC Robotics America, Inc.    Rochester Hills, MI 48309 3253
Jul 17, 2006 Supported by R-J3iC Intelligent Controller, 6-axis Model P-250iA/15 offers maximum horizontal reach of 2,800 mm and coating speeds as high as 1,500 mm/sec. Accuflow(TM) closed-loop fluid delivery automatically maintains programmed flow rates for consistent material delivery, while Collision Guard(TM) monitors for unexpected interference to minimize machine and applicator damage. Robot offers payload capacity of 15 kg at wrist and additional 15 kg on outer arm.

Del Mar Photonics, Inc.    San Diego, CA 92130

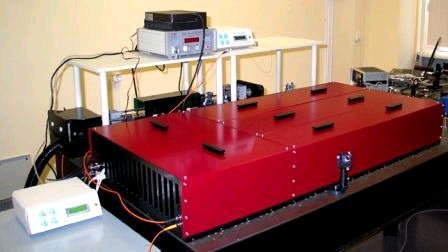

Jul 17, 2006 Equipped with Ti:sapphire oscillator, Cortes-800 consists of 3 chirped pulse amplification stages on single optical table. It achieves pulse energies greater than 1.5 J before compression in vacuum chamber. Active feedback and pulse shaping allow unit to produce sub 30 fs output pulses with peak powers greater than 40 terawatts. Wavelength is 795-820 nm at repetition rate of 10 ±0.5 Hz. Timing and control software make unit suited for study of high-energy laser-matter interaction.

Gardner Denver Nash    Trumbull, CT 06611

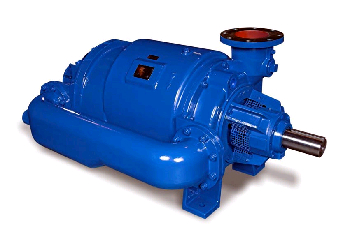

Jul 17, 2006 Available in ductile iron or stainless steel, 2-stage, liquid ring NASH TC 8 offers overall capacity of 725-1,200 cfm and vacuum to 0.8 in. HgA. It accepts single, double, and cartridge mechanical seals to meet process requirements. Unit features removable bearing bracket for maintenance, ISO and ANSI connections to meet global requirements, and air/water separation design. O-ring option makes pump suited for chemical processing industry.

Air Squared, Inc.    Broomfield, CO 80020
Jul 17, 2006 With completely sealed pumping section, semi-hermetic scroll Vacuum Pump/Compressor allows cooling of both scrolls. As compressor, unit develops up to 60 psig with 2 cfm displacement, while vacuum model develops up to 200 mtorr with displacement of 2 cfm. Seals are PTFE composite, and wetted surfaces are constructed of stainless steel, nickel, and hard anodized aluminum. Unit is suited for fuel cells, natural gas boosters, and pumping corrosive, radioactive, or hazardous gases.

Value Engineering Alliance, The    Cambridge, MA 02139-4772
Jul 17, 2006 DSP-powered PIATI(TM)_SBC incorporates 640 x 480 pixel resolution CCD sensor with progressive scan capability. This ECC200 Data Matrix decoder solution is configured via included PC-based program with GUI that facilitates identification and selection of parameters and options. GUI also supports selection and configuration of supplementary automatic identification tools. Along with image/data and program memory, solution also provides digital I/O and RS232 interface.

Macro Sensors    Pennsauken, NJ 08110 1334
Jul 17, 2006 Featuring through-bore design that makes sensor core accessible from both ends, single-ended SE 750 Series terminates through sealed axial connector that prohibits core from passing completely through coil assembly. Products operate over 0 to +160ºF range from 24 Vdc nominal, 15-24 Vdc +10%, or 30 mA nominal input. Offered in 9 ranges from 0.100-20.00 in., general-purpose ¾ in. DC-LVDTs provide max linearity error of less than or equal to ±0.25% of FSO.

ERICO    Solon, OH 44139-2631
Jul 17, 2006 Available in 2 and 4 in. sizes, electro-zinc plated CADDY® SLOT LOCK is UL®-Listed and meets Factory Mutual deflection requirements without need for additional spacers. Removable slotted crossbeam accelerates assembly time and minimizes deflection by capturing top and bottom legs and locking them in place under load. Notches in crossbeam prevent it from working loose, even under extreme vibration. Product also conforms with Federal Specification WW-H-171.

Thomas & Betts Corp.    Memphis, TN 38125
Jul 17, 2006 Constructed using flexible PVC cover with woven nylon web bonded to smooth and seamless flexible PVC inner core, Type A nonmetallic conduit retains original shape even after being compressed. It comes in sizes from 3/8-2 in. and operates over -20 to +60°C range. Type A liquid tight connectors feature ferrous construction with nylon-insulated throat and include Santoprene® sealing gasket with 316 stainless steel retaining ring that ensures NEMA LT seal.

Perpetuum Ltd.    Southampton   United Kingdom
Jul 17, 2006 Operational in industrial environments with vibration levels down to 25 mg, PMG7 converts kinetic energy from vibration of equipment running at mains frequency (50 or 60 Hz) into electrical energy. It is designed to power wireless and battery-free sensors, microprocessors, and transmitters for accurately monitoring condition of plant equipment and machinery. It generates up to 5 mW of energy, enough to power wireless transmitter sending up to 6 KB of data every few minutes.

Flexicon Corporation    Bethlehem, PA 18020 8006
Jul 17, 2006 Split Frame Unloader allows upper frame to be forklifted onto plant floor, loaded with bulk bag, and forklifted back onto subframe within several inches of ceiling. For discharging from bulk bags, product features Power-Cincher® flow control valve, Side-Flexer(TM) bag activators, and flanged discharge chute. Constructed of stainless steel and finished to sanitary standards, unloader is offered with load cells and programmable controls for automated weigh batching.

Optek Technology, Inc.    Carrollton, TX 75006-6905

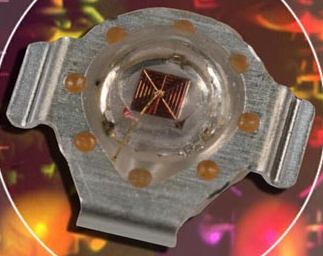

Jul 17, 2006 Featuring thermal resistance of 2°C/W, solid-state OVTL01LGA Series is comprised of single-packaged LEDs available in amber, blue, green, red, and white. Products offer 120° viewing angle through water clear lens and luminance values up to 38 lumens. Exhibiting spatial uniformity, devices each feature one 1 W LED chip mounted in 6.00 x 5.10 x 1.56 mm copper SMT package. Typical forward voltage characteristics range from 2.0-3.3 V, and reverse voltage is 5 V.

FiveCo    Lausanne 1015  Switzerland

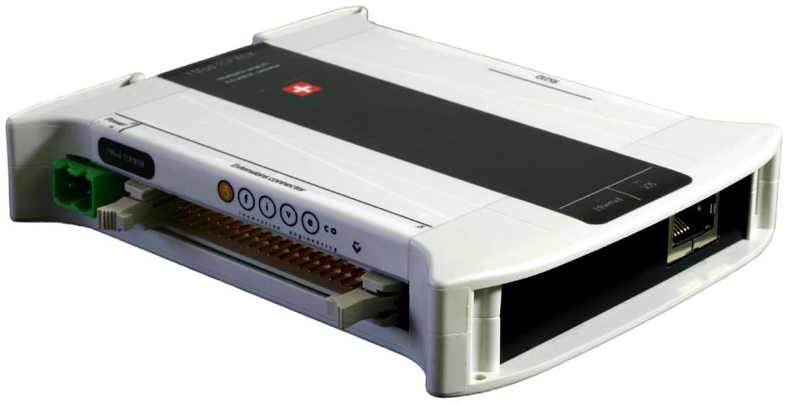

Jul 17, 2006 FMod-TCP BOX module integrates devices with TCP/IP networks in order to transfer data or teleoperate such devices, with no distance limit, through local network or Internet. In addition to embedded web site used for testing or configuration phases, product integrates digital I/O, analog digital converters, I2C bus, and RS232 bus into DIN rail-compliant box. It uses communication protocols based on Ethernet to facilitate interface and application development.

SICK, Inc.    Minneapolis, MN 55438

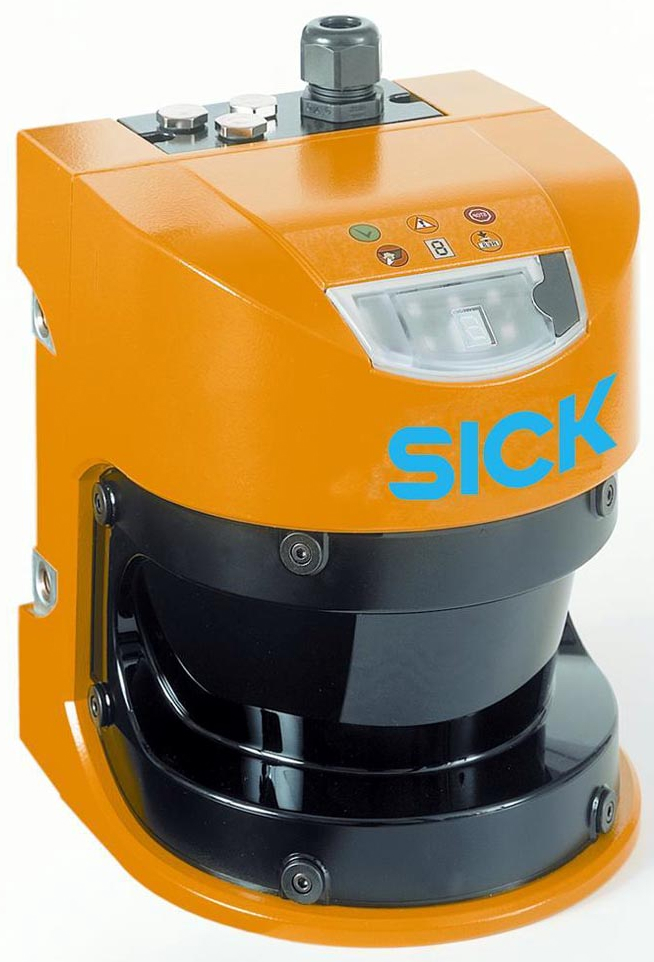

Jul 17, 2006 Providing 4 m safety field and 49 m warning field radius, S3000 Short Range features 190° scanning range and 4 levels of integrated functionality for up to 8 user-definable protection scenarios. Size and shape of fields can be defined via software. Adding features such as reflector mark detection up to 30 m and event-driven contour measurement data output up to 49 m, S3000 Professional CMS (Contour Measurement & Safety) meets navigation requirements in mobile vehicle applications.

Instron    Norwood, MA 02062-2643
Jul 17, 2006 Along with integrated software that facilitates setup and consistent calibration, advanced video extensometer (AVE) uses digital camera and real-time image processing to make strain measurements on material test samples. Non-contact measurement design ensures extensometer has no influence on specimen, eliminating possibility of damage. Solid-state unit is available with 3 fields of view and transverse strain measurement capabilities.

M/A-COM, Inc.    Lowell, MA 01853

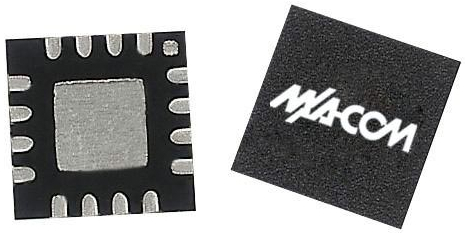

Jul 17, 2006 Packaged in 3 mm, 16-lead PQFN package, MAAPSS0095 is rated at 1.6 W and includes bias networks that can be controlled by analog signals to switch from active to stand-by modes. Exhibiting greater than 1 W DRM spectral mask linearity, MAAP-007649-000100 is 2 W HBT power amplifier with 800-1,000 MHz frequency range, with 19 dB gain, 15 dB OIP3/P1dB figure of merit, and 50% PAE @ P1dB. Both products are RoHS-compliant and fabricated on HBT GaAs process.
