Heidenhain Corp.    Schaumburg, IL 60173-5337

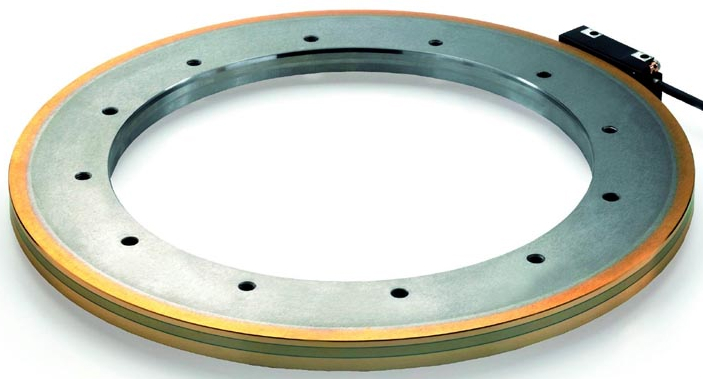

Jun 29, 2006 Equipped with movable faceplate, ERA 4000 series is offered with ODs from 52.65-331.31 mm and grating periods of 20, 40, or 80 microns. Low-profile ERA 4x80 version, mounted using centering collar method, offers accuracies from ±6.1 to ±2.8 arc sec. Weight reduced T profile version, ERA 4x81, is mounted using 3-point centering method and offers accuracies from ±8.6 to ±2.8 arc sec. Also available, ERA 4x82 uses 3-point centering method and offers accuracies from ±5.1 to ±2 arc sec.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Jun 29, 2006 Rated 500 W, LZSa500-3 features active power factor correction and accepts input from 85-265 Vac, 47-440 Hz. It is available with 24 V output, adjustable from 18-29.4 V, and can provide full load of 21 A output current from -40 to +60°C. Supplied in 4.25 x 4.75 x 10.25 in., RoHS-compliant package suited for harsh environments, product features remote on/off, user-adjustable over-voltage protection, remote resistance or voltage programming, and 200 kHz synchronization signal.

Hilti Inc.    Tulsa, OK 74121
Jun 29, 2006 Suited for cutting applications in reinforced concrete, concrete block, clay brick, and other masonry materials, Contractor Pro High Speed Diamond Blades are available in General Purpose Segmented, General Purpose Turbo, and Asphalt Segmented versions. Segmented blades are .125 in. thick and laser-welded for optimal bond strength. For clean cuts, turbo version helps prevent chipping when cutting stone, marble, or clay brick. Blades come with 20 mm arbor and 1 in. knockout.

Micropump, Inc., A Unit Of IDEX Corp.    Vancouver, WA 98684

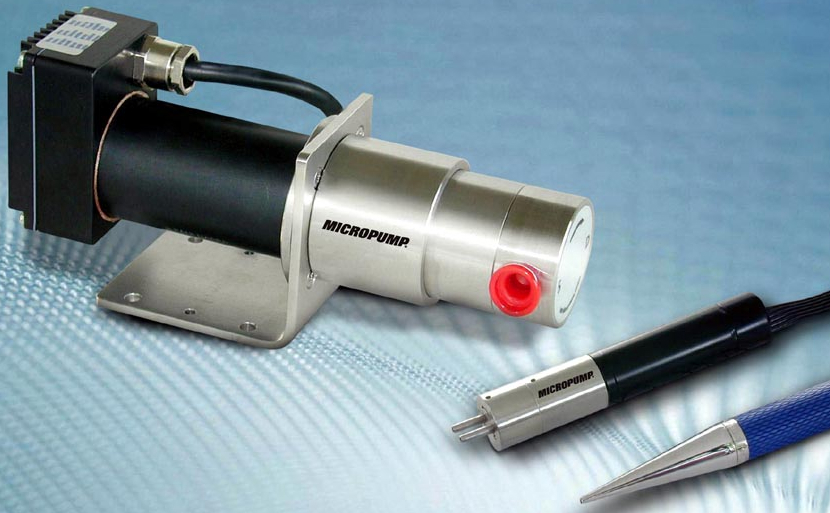

Jun 29, 2006 Offered in Low Pressure (Series ML) and High Performance (Series MH) configurations, micro annular gear pumps offer precise flow rate control to help conserve liquids and increase system efficiency. Gear tooth forming technology minimizes pulsations, and rotors provide tight flow rate control at differential pressures up to 1,160 psi. This allows pumps to dispense volumes as small as 0.25 µL and handle flow rates from 0.15-300 ml/min with accuracies within ±1%.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Jun 29, 2006 Suited for use on bench or in incubators, SSM3 produces gentle 3D gyratory rocking action for low foaming agitation, DNA extractions, staining, and de-staining procedures. Its 3° to 12° angle of tilt can be moved to any position by hand to optimize mixing of vessels. Along with digital speed control, unit features built-in timer, 9.25 in.² platform, and 5-70 rpm speed range. Optional SM3/1 tier system is available; each tier is held in place by magnets.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Jun 29, 2006 Designed for Citizen machines, QS toolholding system helps reduce insert indexing times and enables diameters to be machined multiple times without changing machine settings. Each system kit includes stop, 2 spring-loaded wedges, and one short toolholder with shank diameters from 0808-1616 mm. While single screw controls clamping and unclamping capabilities, insert edge position is automatically set up by contact between short holder and stop and does not require adjustments.

Labconco Corp.    Kansas City, MO 64132 2696
Jun 29, 2006 Refrigerated Benchtop CentriVap® processes heat-sensitive samples such as RNA and other proteins that are subject to degradation by heat supplied by friction. If desired, microprocessor-controlled 300 W heater speeds evaporation with constant heat up to 100°C in 1° increments. Quick-Start(TM) One Button Start up activates rotor, heater, timer, and vacuum pump, while Quick-Stop(TM) system stops rotor and vacuum pump and bleeds air into chamber. Memory stores up to 9 user-set programs.

Elma Electronic Inc.    Fremont, CA 94538

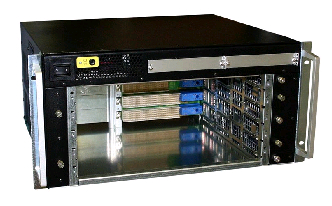

Jun 29, 2006 Featuring steel construction, 19 in. rackmount 5U AdvancedTCA Chassis utilizes 48 Vdc input and offers dual redundant fan trays, shelf managers, and A/C power supplies. Side-to-side cooling is achieved via plug-in fan tray with dual 170 cfm fans and PWM control on each side of card cage. N+1 version offers two 700 W or 1,200 W power supplies as well as optional dual shelf management integration. Full mesh, replicated mesh, and dual star topologies can be implemented on same backplane.

Metabo Corp.    West Chester, PA 19380 4243
Jun 29, 2006 Suited for concrete, masonry, or natural stone, Rotary Hammers are available with round shank, SDS-plus, SDS-max, and spline masonry carbide bits in 4-cutter and 2-cutter designs. Four-cutter unit features self-centering tip to optimize penetration and make clean holes. Dust extraction accessories allow tools to be hooked to vacuum that collects dust at point of origin, minimizing user's exposure to free silica. CODE! anti-theft system protects tools from unauthorized use.

Elma Electronic Inc.    Fremont, CA 94538

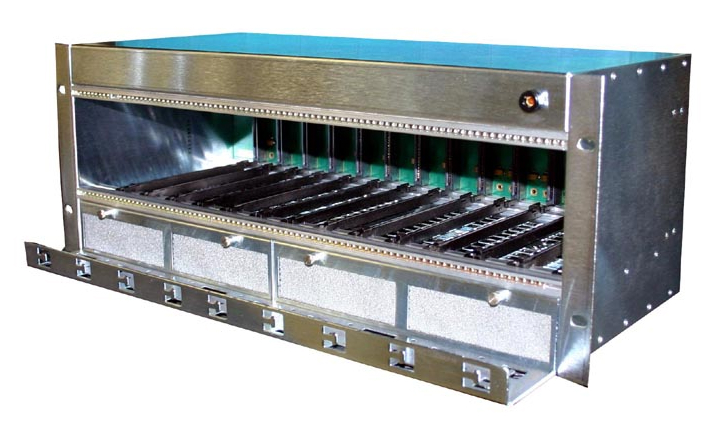

Jun 29, 2006 Targeted for storage arrays, firewalls, blade servers, and home entertainment centers, MicroTCA systems support up to 48 single width, half height AdvancedMC modules. MicroTCA chassis 4U subrack features front-to-rear cooling and 14-slot Single Star backplane. Compliant to MicroTCA.0 v1.0 specification, subrack contains 1 MicroTCA Carrier Hub and 1 power module. EMC shielding and airflow are controlled by honeycomb filter structures.

Bondhus Corp.    Monticello, MN 55362 9347
Jun 29, 2006 Comprised of 3 models, Bit Boy 370 Series includes fixed blade with magnetic holder, ratcheting blade, and removable blade versions. All feature push/twist cap, which pops up to allow access to bits without disconnecting cap from handle, eliminating lost caps and bits.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

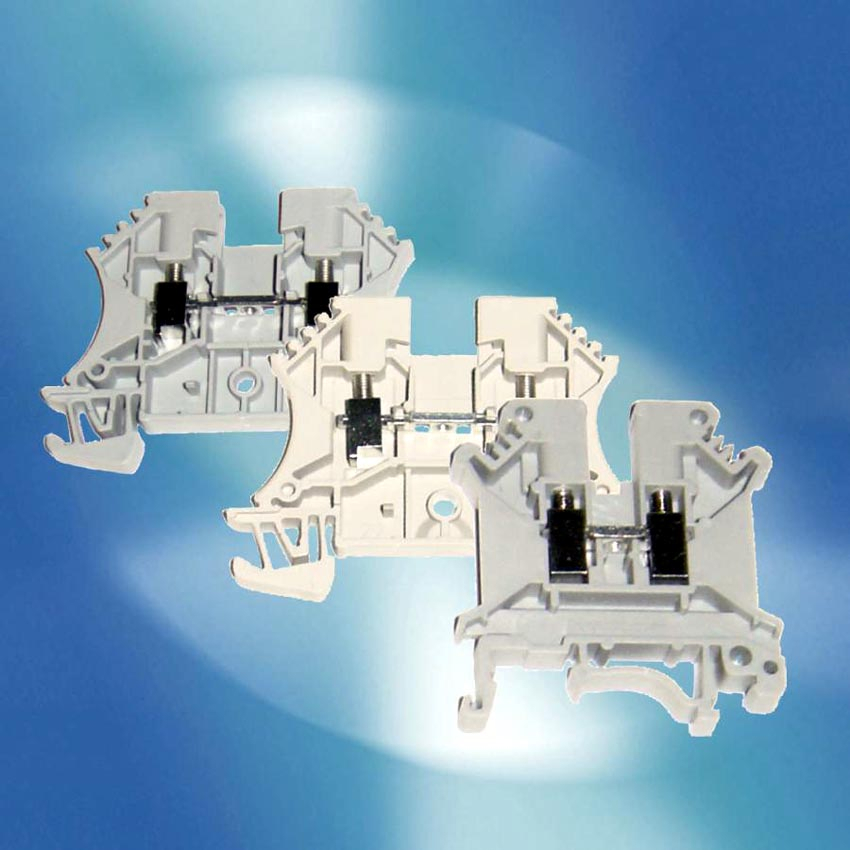

Jun 29, 2006 Molded from UL 94V0 material, UL recognized terminal block equivalents are identical to Allen Bradley 1492J series, Phoenix Contact UKN series, and Weidmuller WDU series, allowing customers to use in-stock accessories. All feature metal clamping bodies made of nickel-plated copper alloy and plated screws to prevent corrosion.

Cliplight Manufacturing Company    Toronto M3J2J1  Canada
Jun 29, 2006 Featuring ergonomic grip, wrist strap, leatherette holster, and hideaway hanging hook, 9 x 2 1/4 in., 9 oz Cliplight 24 LED light suits service and repair work in places with limited electric power. LED lamps produce 20° light throw and task light has 5 hr battery run time. Product includes 120 V battery charger with green (fully-charged) or red light (charging) status indicator. LED lamps blink to indicate end of battery life.

Cooper Power Tools    Lexington, SC 29071

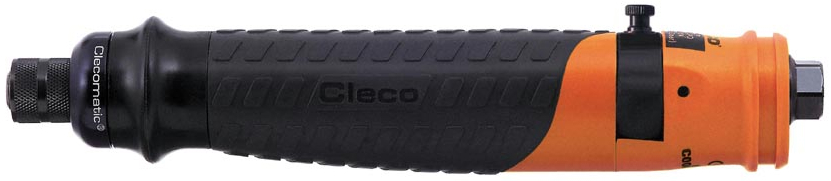

Jun 29, 2006 Suited for light- and medium-duty assembly, Cleco® 14 Series incorporates pushbutton reverse function on handle to facilitate process of backing out fasteners. Soft, oval-shaped, composite housing is offered with multiple handle configurations that minimize vibration and promote operator comfort.

Carborundum Abrasives Inc.    Worcester, MA 01615 0008
Jun 29, 2006 Offered in 4½, 5, and 6 in. diameters, Carbo GoldCut(TM) Wheels are used on right-angle grinders in welding and metal fabrication shops for general-purpose cutting applications. Clean bond is free of workpiece-contaminating sulphur, iron, and chlorine. Measuring .045 in. thick with 7/8 in holes to fit standard right-angle air and electric grinders, wheels are suited for cutting stainless steel and any application where material contamination should be avoided.

Advance: division of Philips Electronics North America    Rosemont, IL 60018-5603
Jun 29, 2006 SmartMate® ballasts, available in Dual Entry, Bottom, and Side Lead housing options, are designed for operation of one or two 13, 18, or 26 W compact fluorescent lamps (CFLs) or one 32 or 42 W, 4-pin CFL. Integral Quik-Start(TM) technology ignites CFLs in less than 1.0 sec, while IntelliVolt® technology enables operation at any input voltage from 120-277 V, 50/60 Hz. Along with low-profile design, products feature color-coded, poke-in connectors.

ORBIS Corp.    Oconomowoc, WI 53066
Jun 29, 2006 Offered 25, 34, and 50 in. heights, HD6248 series optimizes 53 ft trailer storage capacity. Structure is made of foam molded in high-density polyethylene, and product features 100% plastic runner system with no steel reinforcement. Fully recyclable at end of service life, containers offer multiple door configurations and self-standing sidewall on long sides. Also available, HD6448 containers measure 64 x 48 in. and come in same heights as HD6248.

Netgear Inc.    Santa Clara, CA 96054
Jun 29, 2006 ProSafe(TM) Wireless ADSL Modem VPN Firewall Router DGFV338 supports high speed WAN connectivity with built-in ADSL2/2+ modem and backup Ethernet WAN port providing failover support. Wireless access point with two detachable 5 dBi antennas provides LAN connection to 108 Mbps. VPNC compliant router includes Stateful Packet Inspection and Network Address Translation to safeguard network from external threats, while WPA-2 Enterprise encryption secures wireless access.

Bruker BioSciences Corp.    Billerica, MA 01821
Jun 29, 2006 Used together, ClinProTools(TM) v2.1 and flexImaging(TM) v2.0 let biologists and clinical researchers merge statistical analysis on MALDI-TOF profiling spectra with molecular images of tissue distributions of peptide and protein biomarkers. ClinProTools provides bioinformatics solution for biomarker panel analysis, biofluid profiling, multivariate data analysis of samples, classical statistics, and sample classification. It also features quality control functionality.

Bruker BioSciences Corp.    Billerica, MA 01821
Jun 29, 2006 Used for quantitative proteomics using isotope labeling, WARP-LC v1.1 supports all industry-standard label chemistries as well as customized labeling technologies. It offers full support for multiplexed quantification, irrespective of whether isobaric or non-isobaric labels are used. Platform offers median-based statistics with automatic outlier detection and validation of quantitative results. It also enables data LC/MS visualization with SurveyViewer and ProteinBrowser functionality.
