Microsemi    Irvine, CA 92614

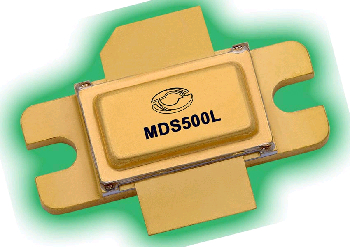

Jul 25, 2006 Providing 500 W of output power, extended length messaging Model MDS 500L offers 55% collector efficiency and 3:1 load mismatch tolerance for Mode-S applications in 1,030-1,090 MHz frequency range. Pulsing is rated at 32 µsec ON/18 µsec OFF x 48 repeated at 23 msec. Performance is based on bipolar silicon chip design that also provides max fast rise time of 80 nsec and Vcc of 50 V. Hermetic metal packaging supports avionics applications.

Microsemi    Irvine, CA 92614

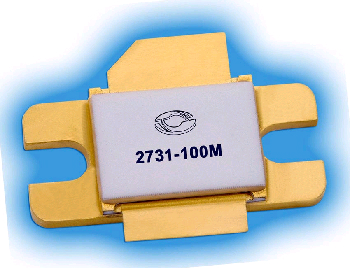

Jul 25, 2006 Housed in hermetically sealed package, class C Model 2731-100M provides 100 W peak power, 40% collector efficiency, and 8.0 dB power gain flatness. Unit performs over 2.7-3.1 GHz frequency range with 250 µs pulse width and 10% duty cycle. Providing VSWR 2:1 load mismatch and Vcc of +36 V, transistor is suited for air traffic control and military radar applications.

LoggerHead Tools LLC    Chicago, IL 60604-1003
Jul 25, 2006 With 4 serrated jaw surfaces and ability to distribute force 240° around work surface, 8 in. Bionic Grip(TM) automatically grips multiple sizes of nuts and bolts with open-ended head while Interlock(TM) mechanism stays locked under torque load. Distributed, balanced grip minimizes distortion when used on softer materials such as copper, plastic, and brass. Tool fits 13 sizes of hex fasteners, from ½-¾ in. and 13-20 mm, as well as ½-13/16 in. OD pipes and tubes.

Rite-Hite    Milwaukee, WI 53224

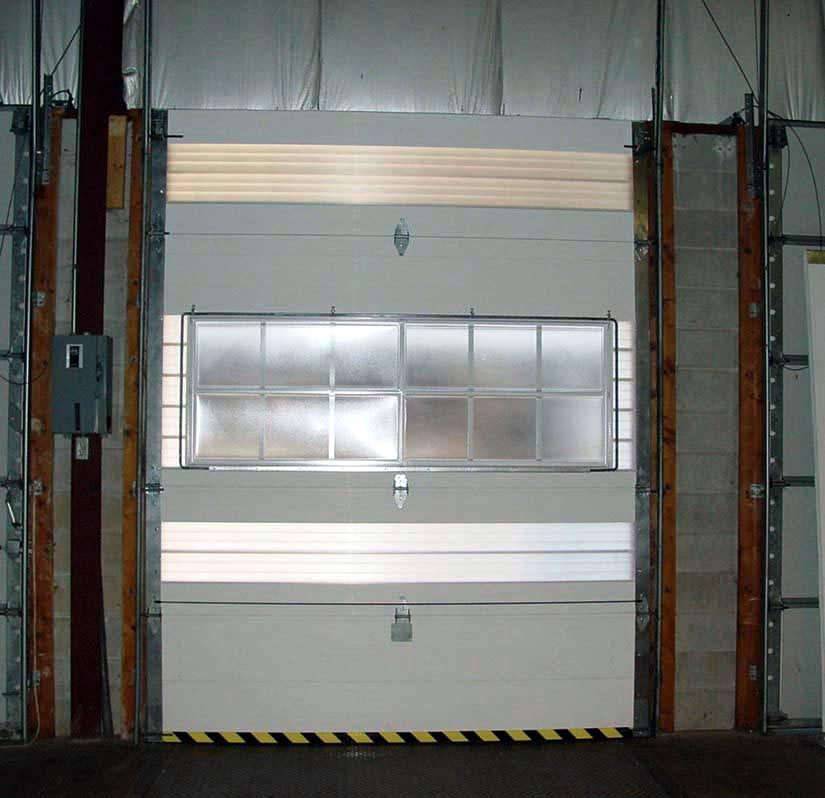

Jul 25, 2006 Made from extruded vinyl material, G-Flex Universal Door has integral support system that allows panels to withstand common bumps and fork truck impacts at loading dock. Interlocking design allows for configuring different sectional door heights, while optional Day-Lite Translucent Slats and 12, 18, or 30 in. high ventilation panels can be integrated into door to provide additional natural light and air flow. Door comes in 2 or 3 in. thicknesses and sizes up to 10 ft 2 in. x 12 ft.

Schreiner ProTech, a business unit of Schreiner Group LP    Blauvelt, NY 10913

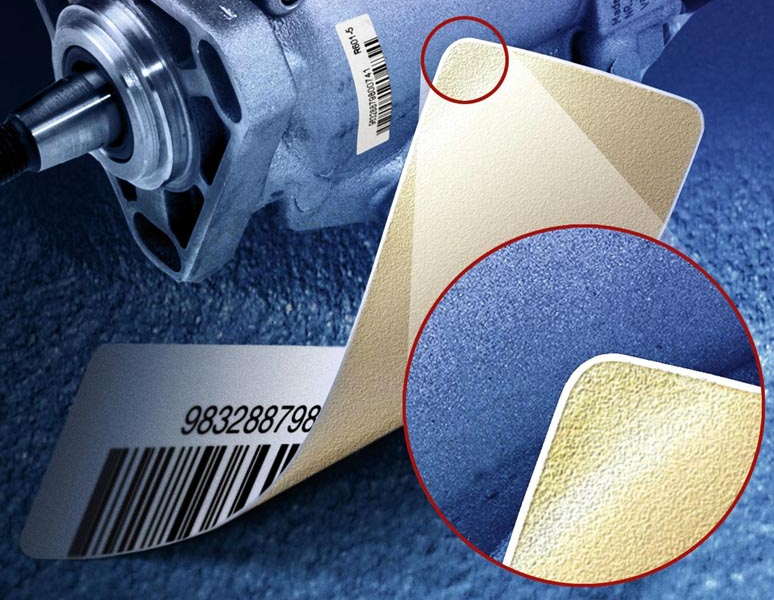

Jul 25, 2006 ProTech BleedStop labels adhere to rough product surfaces during manufacturing process without smearing adhesive on assembly line rollers. To prevent bleeding, area coated with adhesive is slightly smaller than label itself but large enough to ensure reliable adhesion. Product supports smooth processing of labels and nameplates with thick adhesive coatings, while eliminating need for other methods used to prevent adhesive bleeding.

Sakor Technologies, Inc.    Okemos, MI 48864-3547

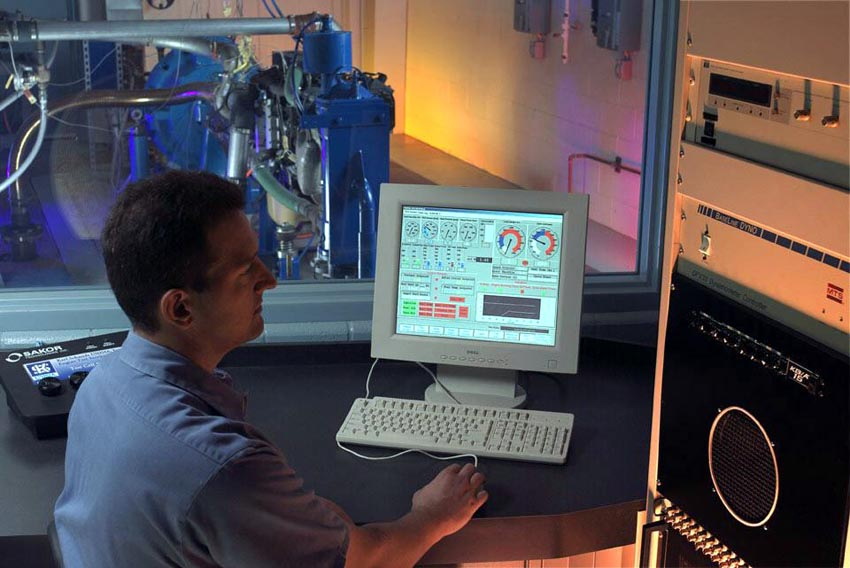

Jul 25, 2006 DynoLABTM PT Test Cell Control System v4.4 provides ability to create complex test sequences without need for specialized programming. Database logging subsystem can log multiple data streams and synchronize them with other data sources via Microsoft SQL server interface. System can integrate external devices, such as dynamometers, throttle actuators, spark and fuel controllers, combustion analysis systems, and emission analyzers into single, coherent test system.

LM-76 Linear Bearings    East Longmeadow, MA 01028
Jul 25, 2006 Able to move up to 41,000 lb, MAX RAIL Combined Bearings feature integrated 2 axis bearings, bearing flange plates, rails, and rail clamps. Available in 11 sizes with dynamic load ratings of 5,395-41,140 lbf radial and 2,248-18,434 lbf axial, bearing rails are offered in lengths to 19.7 ft. Protected from contaminates by steel labyrinth and rubber seals, bearings are supplied lubricated with grade 3 grease. Operating temperature range is 14-176°F.

J.W. Speaker Corporation    Germantown, WI 53022
Jul 25, 2006 Measuring 1 3/8 in. thick with overall size of 11 x 3 7/8 in., Model 267 LED Signal Lamp conforms to ECE regulations in both left- and right-hand drive countries. Horizontally mounted using 2 M6 bolts, lamp provides resistance to vibration and shock, low power consumption, and never needs bulb replacement. Lamp is designed for use in rugged environments, making it suitable for agricultural, construction mining, and recreational vehicles.

Positronic Industries, Inc.    Springfield, MO 65801 8247
Jul 25, 2006 Combination D-subminiature thermocouple contacts are for use in CBD series connectors. Type K, T, and E thermocouple contacts can be mixed with signal, power, coaxial, and high voltage contacts in single connector package. Crimp and PCB board mount terminations are available.

Admotec, Inc.    Lebanon, NH 03766 1500
Jul 25, 2006 E Series linear magnetic encoders consist of self-adhesive stainless steel backed magnetic tape and magnetoresistive sensor with resolution enhancing interpolator. Resolutions of 0.5-200 µm/edge can be chosen. Sensors feature CE approved IP67-rated aluminum housing with stainless steel bottom and 2 adjustable wipers at each end for cleaning while sensor moves. Encoder systems are suitable for textile, woodworking, packaging, plastics, machine tool, and marking machinery.

Robert Louis Company    Newtown, CT 06470
Jul 25, 2006 Developed for the HVAC and refrigeration industries, BoreMaster supplies instant ID measurement 6 in. into any bore with 0.375-1.250 in. diameter. Device is spring loaded in outward direction so measuring only requires insertion into bore, and ID is digitally displayed in inches and metric once probes are released. Delrin Wall Thickness clip, inserted into lower probe, allows accurate measurement of tubing wall thickness.

Titan Tool Co.    Fairview, PA 16415

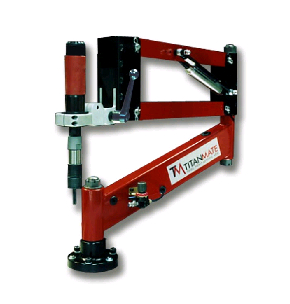

Jul 25, 2006 Featuring infinite adjustability, TITANMATE is designed to provide accurate tool installation; precise positioning; and smooth, fluid motion with wide range of operation. In addition to minimizing repetitive motion injuries and operator fatigue, arm absorbs dangerous torque reaction with features that promote safety and ergonomics.

Thermadyne Industries, Inc.    St. Louis, MO 63017

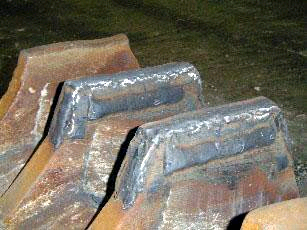

Jul 25, 2006 Available in both .045 and 1/16 in. diameters and packaged on 33 lb spools, Stoody 964 Wire can reach 64 Rockwell C hardness and not cross check when welding on mild steel, 300 Series stainless, and manganese steel alloys. Applications include farm implements, valve bodies, and trim and screw conveyors.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Jul 25, 2006 Available in various operating positions and mounting styles, Series ZCPR features Class B insulation system and silver cadmium oxide contacts. Relays assist in starting of single-phase motors, which employ start capacitors. Coil is energized by potential of start winding. When voltage is raised to pick up value, contact will open and disconnect start capacitor. Relays remain energized until start winding voltage is removed or decreases below drop out value.

EAO Switch Corp.    Milford, CT 06460
Jul 25, 2006 Part of RoHS-compliant Series 44 Industrial Controls, black-and-white On/Off Switch features illuminated central lens to indicate status of equipment. It can be supplied with or without engraved I and O symbols, and with either matte gray or chromium-plated case. Sealed to IP65 standards, product includes screw terminal connections, lamp block, and self-cleaning, slow make switching element. Illumination is provided by LEDs or Ba9s (T-3¼ bayonet base) lamps.

Rockwell Automation    Milwaukee, WI 53204

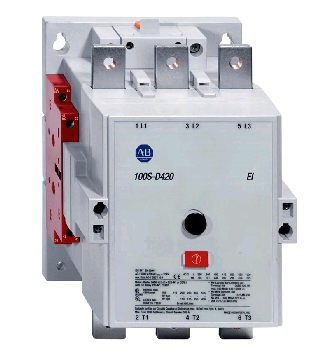

Jul 25, 2006 Featuring gold-plated bifurcated control contacts, Bulletin 100S and 104S Safety Contactors are designed to meet demands for low power applications. While optimized for 24 Vdc operation, units can perform down to 5 V/3 mA. They include mechanically linked or mirror contact performance, red housing for identification, permanently mounted auxiliary contract block, and protective cover to help prevent manual operation or product tampering.

Herkules Equipment Corp.    Walled Lake, MI 48390 1662
Jul 25, 2006 Titan Series A1050 Lift improves ergonomics by raising pallets or containers to optimal height, from 7-29 in., so workers do not need to strain and bend while loading or unloading material. Air Bag(TM) technology provides direct 1:1 lift ratio, eliminating need for mechanical linkage to lift load. Offered in 3 models with 1,000, 2,000, or 3,000 lb load capacity, this 100% air-operated material handling scissor lift features smooth and stable motion.

Hilscher North America Inc    Lisle, IL 60532

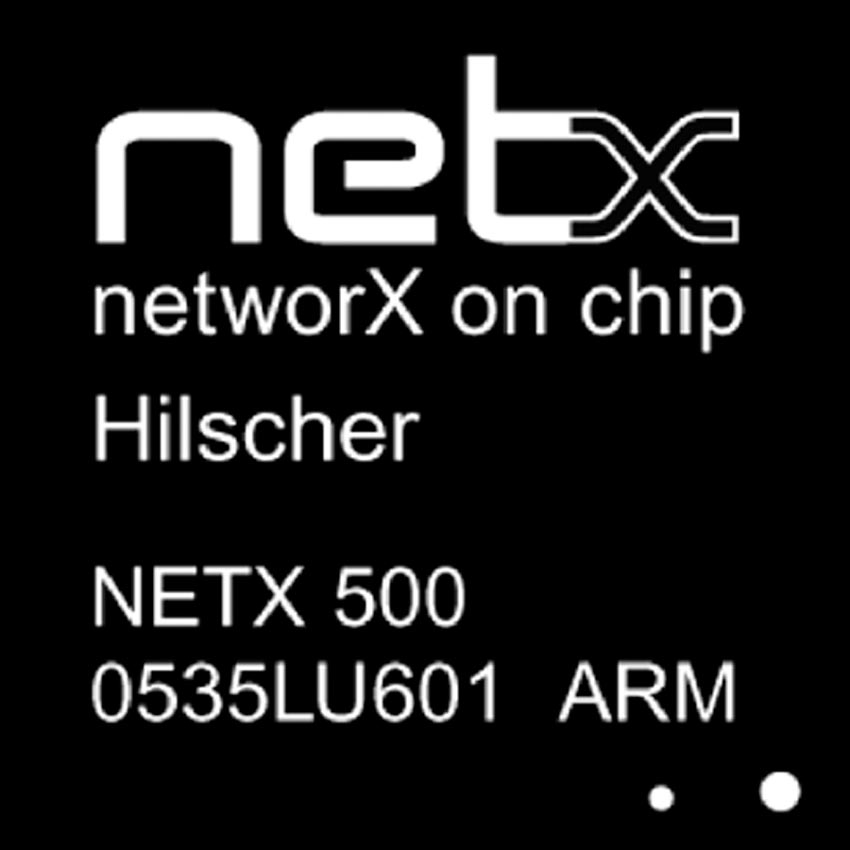

Jul 25, 2006 With available network stacks, netX System on Chip (SoC) can be Master or Slave for Ethernet and fieldbus technologies in industrial control products that require built-in network connectivity. Product can also be used as network co-processor, leveraging protocol stacks and interfacing to host via dual port memory, USB, or serial. Along with various peripherals, SoC features processors that can be programmed to interface to virtually any network physical layer and protocol.

Harvatek International    Santa Clara, CA 95054
Jul 25, 2006 Available in all colors utilizing AlInGaP and InGaN technologies, high-brightness Series HT-F199 measures 1.6 x 0.8 x 0.25 mm and is based on lead frame architecture for optimized optical, thermal, and electrical performance. Units produce typical luminous intensities of 20-25 mcd at 5 mA for blue and 60-65 mcd at 5 mA for white. Consistency in color and brightness is achieved by wide 120° viewing angle and narrow forward voltage binning of 0.1 V per bin.

Woodhead Industries Inc.    Deerfield, IL 60015
Jul 25, 2006 Metal halide 400 W High Bay Light provides output of 36,000 initial lumens at 4,200° Kelvin color rendering. When properly installed and mounted 15 ft above 40 x 40 and 60 x 60 ft bays, light meets OSHA 1926.56 requirements for minimum illumination of work areas. Multi-voltage style unit features Type O lamp and mogul socket to prevent insertion of non-compliant style lamps. Heavy-gauge welded and plated guard provides lamp protection in abusive environments.
