Phoenix Contact    Harrisburg, PA 17111 0100
Jul 03, 2006 Featuring 802.11i/WPA2 security with AES-CCMP and 802.1x security measures, 802.11 a/b/g wireless industrial radios support 2.4 and 5 GHz bands. Embedded software allows any network PC with Web browser and proper identification to configure these devices. Wall- and DIN-rail-mount radios support Access Point, Client, and Bridge/Repeater modes. Built-in RS-232 and RS-422/485 device servers allow integration of serial devices onto wireless Ethernet network.

BellSouth Corp.    Atlanta, GA 30309-3610
Jul 03, 2006 Intended for small businesses, Online Backup enables users to choose data files they wish to protect and send them securely to remote server where they are encrypted and updated daily. In event of PC failure, customers can visit designated BellSouth Web site to choose files they need restored. BellSouth® PC 2 Go^SM Remote Access enables users to access files or work in programs stored on host computer from anywhere with Internet connectivity.

NRX Global Corp.    Toronto M5H 3S5  Canada
Jul 03, 2006 Extending enterprise-wide creation and management of asset master data in multi-site projects for existing facilities, NRX Asset Hub v4.0 enables collaboration with external systems to manage data collection for equipment and plants being built and commissioned. It provides off-line digitization of plant equipment and warehouse materials; identification, collection, tracking, assessment and conversion of plant content; and visual approach to managing BOMs and data.

Patton Electronics    Gaithersburg, MD 20879
Jul 03, 2006 Triple-port ipRocketLink(TM) Model 3087 delivers bridged or routed network-access for sync-serial and packet-based user applications concurrently over single G.SHDSL line. It features 2 fully integrated user ports - 10/100 Ethernet port and V.35, X.21, or T1/E1 synchronous-serial port - in addition to G.SHDSL broadband-access port supporting rates to 2.3 Mbps. Data from both user ports can be routed or bridged over G.SHDSL line using frame-relay or PPP connection.

Docter Optics Inc.    Mesa, AZ 85210
Jul 03, 2006 Designed for 1/3, ½, 2/3, and 1 in. image formats, Tevidon® lenses feature glass multi-element designs and are mounted in metal housings with standard C-mount thread. They have variable focusing and iris diaphragms with manual lockable or click stop adjustment. Available in focal lengths from 4-45 mm, lenses offer speeds from f/1.5-f/5.6 and are color-corrected for wavelengths from 400-1,000 nm.

Applied Analytics, Inc.    Concord, MA 01742
Jul 03, 2006 Fiber optic UV VIS diode array process spectrometer, OMA-405, suits applications requiring monitoring of single- and multi-component concentrations. With no moving parts, product fits 19 in. rack and is controlled via embedded Windows XP industrial computer with touchscreen interface. Stream composition is obtained through continuous measurement and analysis of spectrum using 1,024-element diode array in wavelength range of 190-800 nm with resolution of 1 nm.

Renishaw, Inc.    Hoffman Estates, IL 60192

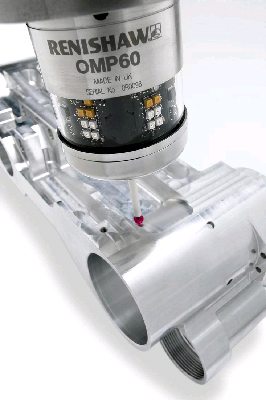

Jun 30, 2006 Equipped with 360° infrared optical transmission system with range up to 6 m, Model OMP60 can be operated in any spindle orientation. With miniaturized electronics, unit measures just 63 mm dia x 76 mm long. Probe is programmable through trigger-logic, which eliminates need to access probe internals and damage due to coolant and debris ingress. Using AA batteries, probe is sealed to IPX8 standard and is resistant to false triggering induced by shock and vibration.

3M    St. Paul, MN 55144

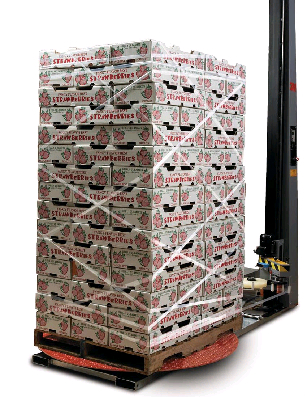

Jun 30, 2006 Consisting of Scotch® Stretchable Tape and 3M(TM) ST1000 Stretchable Tape Wrapper, Stretchable Tape Load Containment System helps prevent loads from tipping, vibrating, and shifting. Tape is automatically stretched and wrapped in selected pattern, even around bottom of pallet when necessary to prevent lateral shifting of load. Providing 40 lb/in. tensile strength at 650% stretch, tape facilitates ventilation, preventing corrugated degradation from condensation.

Samtec, Inc.    New Albany, IN 47151 1147
Jun 30, 2006 Intended for low profile panel-to-board and cable-to-board applications, Micro RF081 and RF113 feature 0.81 mm and .045 in. OD, respectively. Series RF113 is available with MHF1 micro RF connectors, while Series RF081 comes in 2 sizes: MHF1 for 2.5 mm mated height and MHF3 for 1.5 mm mated height. Both offer SMA bulkhead connections on second end in standard and reverse polarity for panel-to-board/antenna applications.

Humphrey Products    Kalamazoo, MI 49003

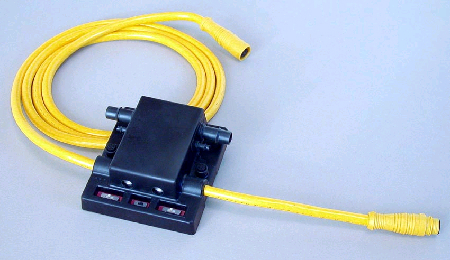

Jun 30, 2006 Incorporating 2 pneumatic valves and Independent Intelligent Control(TM) into single module, Dual-Zone GEN2(TM) System is intended for pneumatically powered accumulation conveyors, as well as sequential and proportional control applications. Instead of central computer or PLC, module contains its own programmed logic to control both valves independently. It communicates directly with other modules, and makes independent decisions based on individual program instructions.

Pilz Automation Safety L.P.    Canton, MI 48187
Jun 30, 2006 PMCprimo and PMCtendo provide and extend programmability of PLC and servo motors in machines and systems for packaging, printing, material handling, and other industrial applications. PMCprimo 16+ controls more than 100 synchronic axes of motion, while PMCprimo Drive controls drive-based machines designed for 1-9 axes of motion. PMCtendo AC is a dynamic brushless electric servomotor, and PMCtendo DD is a programmable servo drive suited for electric commutated motors.

AMETEK Technical & Industrial Products    Kent, OH 44240
Jun 30, 2006 Featuring precision-honed stators and ground rotors for tight air gap, MAE® HS34 Stepper Motors include 3 models with step resolutions of 1.8° in full-step mode. Top-to-bottom insulation system allows motors to withstand internal temperature to 130°C. Holding torques of 770, 1,062, or 1,416 oz-in. can be achieved, depending on model. All models are available in standard NEMA34 mounting configuration and are manufactured according to EN 60034-1:1995-02 specifications.

Parker Hannifin Corp., Tube Fittings Div.    Columbus, OH 43228
Jun 30, 2006 Available in variety of configurations, Prestolok Push-to-Connect Fittings feature nickel-plating, forged brass body in tees and elbows, and optimized tube retention design. Swivels have minimized drop length and swivel torque. Working pressure is vacuum to 150 psi within temperature range of 0-200°F. All male pipe threads come standard with pre-applied white acrylic sealant, and all fittings have standard green release buttons.

Advantech Automation Corp.    Cincinnati, OH 45240
Jun 30, 2006 Offering 1,280 x 1,024 resolution, 17 in. Model FPM-3171G features NEMA4/IP65 compliant front bezel, anti-reflective screen with tempered glass, 3M touch screen sensors, and hard anodic coating to prevent panel abrasion and acid corrosion. Multi-scan function supports SXGA, XGA, SVGA, VGA, and text mode. Providing luminance up to 300 cd/m², monitor is suited for panel, wall, rack, VESA arm, and desktop mounting.

Thermo Electron - Informatics    Philadelphia, PA 19102
Jun 30, 2006 Built with inductive user interface, SampleManager LIMS(TM) v9.0 incorporates SOA and offers purpose-built functionality and workflows. It supports Microsoft's open, industry standard development tools as well as single-use technology, VGL. Code and services can be re-used, and services can be implemented on case-by-case basis. Suited for global enterprises, software features multi-level specification checking and Web result entry.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2006 Housed in 3 x 3 mm DFN-10 package, step-down switching regulator, Model LT3481, operates within VIN range of 3.6-34 V, making it suited for load dump and cold-crank conditions found in automotive applications. Internal switch, rated at 3.2 A, can deliver up to 2 A of continuous output current to voltages as low as 1.26 V. Converter features user programmable switching frequency from 300 kHz to 2.8 MHz, external synchronization, power good flag, and soft-start capability.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2006 Featuring low-noise, 1 MHz operation, LTC3203-1/B/B-1 step-up charge pumps accept input voltages from 2.7-5.5 V, have 2 user-selectable conversion modes (1:1.5 and 1:2), and produce output current to 500 mA. While LTC3203B provides adjustable output voltage, LTC3203-1 and LTC3203B-1 have user-selectable fixed output voltage options of 4.5 or 5 V. Model LTC3203-1 features automatic Burst Mode® operation and LTC3203B and LTC3203B-1 utilize constant-frequency architecture.

Anadigm®, Inc.    Tempe, AZ 85284
Jun 30, 2006 Operating at 3.3 V, RangeMaster5(TM) enables design and maintenance of combination HF and UHF reader. I and Q filtering capability lets product be programmed to remove spurs, harmonics, and unwanted modulations. Comprised of 2 dynamically programmable analog signal processors and one RFID State Machine, 3-chip set can be customized to read various RFID tags with different modulation types and frequencies. Product fully supports current HF standards and UHF protocols.

Linear Technology Corp.    Milpitas, CA 95035
Jun 30, 2006 Supplied in 3 x 3 mm DFN, dual-channel LT3487 switches at constant 2 MHz and operates from 2.3-16 V supply. Internal 750/900 mA 30 V switches can deliver up to 45 mA at 15 V and 90 mA at -8 V from single Li-Ion cell, providing bias for CCD imagers. Schottky diodes are integrated into IC, while output voltages can be set with one resistor per channel. Along with internal sequencing circuitry, product features intelligent soft-start and short circuit protection.

THK America, Inc.    Schaumburg, IL 60173 5340
Jun 30, 2006 Featuring one-piece outer and inner ring construction with mounting holes on both rings, Type RU requires no precise housing preparation or special fixturing. Sizes range from 20-350 mm ID and 70-540 mm OD with roller pitch circle diameters from 41.5-445.4 mm. Applications range from industrial robots to video arcade machines such as virtual skiing games.
