Weed Instrument Co., Inc.    Round Rock, TX 78680
Jul 19, 2006 Designed to multiplex CEMS 4-20 mA and 0-10 Vdc output signals at coal-fired power stations, Fiber Optic Converters monitor sulphur dioxide, nitrogen oxides, and particulate matter. Providing bi-directional communications, Series 2Mxx sends and receives up to 8 analog or digital signals over pair of fiber optic cables. Conversion of analog signals to fiber overcomes application issues such as EMI/RFI, lightning strikes, and ground loop problems.

Hamamatsu    Bridgewater, NJ 08807 0910

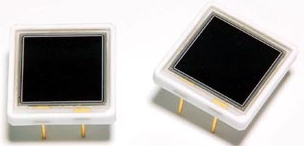

Jul 19, 2006 Featuring 10 x 10 mm active area, S8664-1010 silicon APD (avalanche photodiode) is suited for design into analytical instruments for low-light-level measurement. Detector's spectral response range is 320-1000 nm, with peak wavelength at 600 nm. At 600 nm, quantum efficiency is approximately 85% and gain is 50. Featuring high sensitivity in visible spectrum, high gain, low noise, and low capacitance, unit comes in ceramic housing with epoxy resin window.

FOX IV Technologies, Inc.    Export, PA 15632
Jul 19, 2006 Based on Printronix T5000 thermal tabletop printer, 7000 series is designed for print and apply applications that could evolve into RFID applications. While model 7000 has 4.1 in. print width, model 7600 has 6.6 in. print width. Each machine offers 203 or 300 dpi resolution with direct thermal or thermal transfer operation. Perfect ZPL emulation makes these products suited for environments utilizing Zebra XiIII series tabletop printers.

ITWRansburg Electrostatic Systems    Toledo, OH 43612
Jul 19, 2006 With quick disconnect feature, robot-mounted RMA-303 Direct Rotary Atomizer speeds atomization exchanges. High-wear cartridge valves feature one-piece needle and stem design with replaceable fluid seat. Change-outs are facilitated through color-coded tubing bundle. Regardless of substrate or application, color match or clear coat cup technology, along with dual shape air passages, provides flexibility from large panels to cut-ins.

DDP Supply    El Segundo, CA 90245

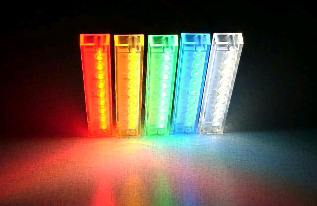

Jul 19, 2006 Environmentally sealed LED Lamp Assemblies are manufactured to meet color and brightness levels required for each application. They consist of LED arrays and potted mounting lenses, making them impervious to moisture and dirt. Set of transistors allow arrays to operate at any voltage within desired range. Arrays include options such as standard 5 mm high intensity, 20° InGaN white LED. When spaced properly in array, 320° LEDs can illuminate small emergency keypad.

Rex-Cut Products, Inc.    Fall River, MA 02720

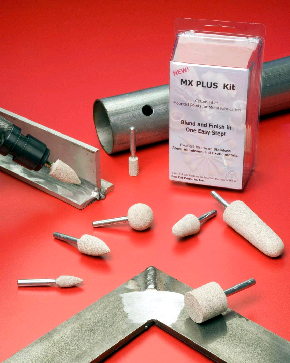

Jul 19, 2006 Providing 7 shapes of cotton-fiber mounted points, MX Plus Kit can be used on stainless steel, aluminum, and exotic metals. It is suited for blending and finishing coarse scratches left by carbide burrs and other aggressive products. Featuring heavy grain content of aluminum oxide abrasives and choice of coarse, medium, and fine grits in latex bond, mounted points are on ¼ in. spindle in 1-A3, 1-A5, 1-A12, 1-A25, 1-B52, 1-W177, and 1-W220 shapes.

Siemens AG    Munich D-80333  Germany
Jul 19, 2006 Designed for chemical and pharmaceutical industries, Siprocess enables microtechnology-based reaction of up to 3 reactants to manufacture product in liquid phase. Up to several tons of desired substance can be manufactured each year. Stainless steel modules, each 15 cm wide, comprise process system and cover all functions required for chemical synthesis: proportioning, mixing and reacting, sampling, and control of pressure and temperature.

Krohne, Inc.    Peabody, MA 01960-3803

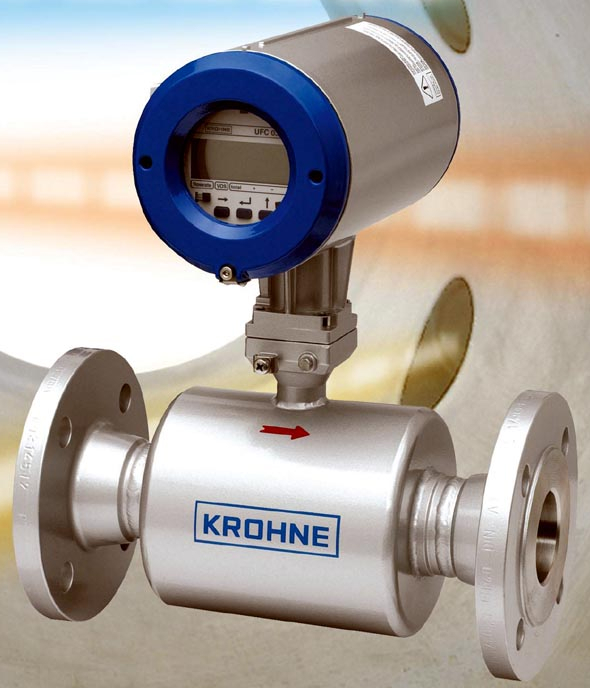

Jul 19, 2006 For tube diameters greater than 8 in., inline UFM 3030 measures liquid hydrocarbons, acid and caustic liquids, non-organic substances, as well as organic chemicals. It has no moving parts and features unobstructed flow path design with smooth surface finish to prevent material build up. Unit features Digital Signal Processing (DSP), batching function, and optional pressure and temperature inputs for corrected volume or calculated mass flow measurements.

Clean Air Products Clean Air Systems Div.    Minneapolis, MN 55445 1828

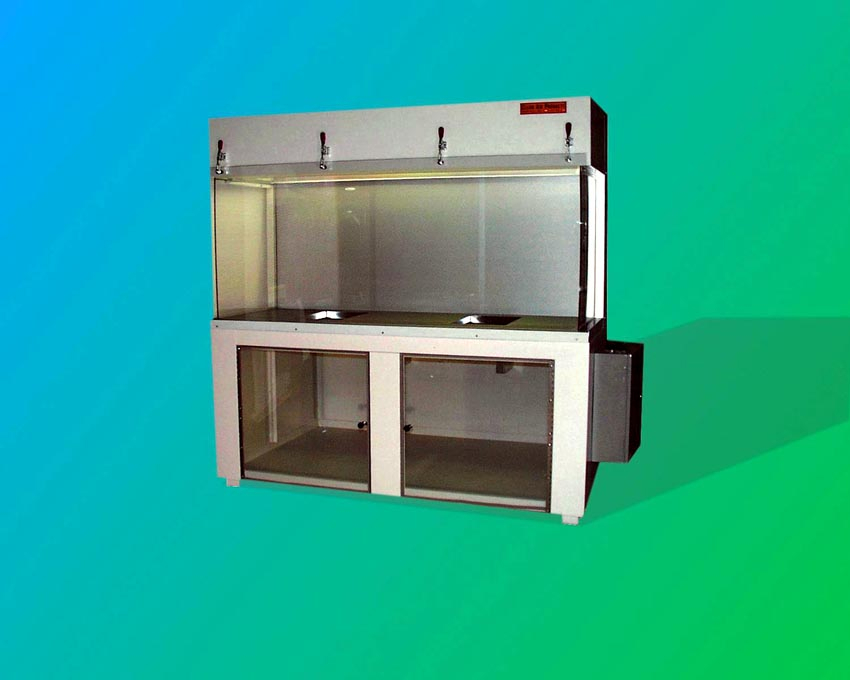

Jul 19, 2006 Series 305 clean bench features stainless steel table top with white painted-steel shell, front access, and interior lighting, with models for Class 100 or Class 10 environments available. Table is 2-1/2 in. over nominal 3, 4, 5, 6, 8 increments x 21.5 x 30 in. standard. Overall cabinet width, depth, and height will depend on size of unit chosen. HEPA-filtered air flows outward from cabinet, and top and bottom front grills recirculate air and provide ±½°F temp control.

Lloyd Industries Inc.    Montgomeryville, PA 18936
Jul 19, 2006 Fiberglass plenum box with ceiling radiation damper is designed as 1 and 1.5 in. thick rigid ductboard with registers/grilles or drop duct applications. Available in I, J, and K models with standard sizes ranging from 8 x 4 to 16 x 16. J and K models are offered in either R4.2 or R6.0 insulation thickness. All ceiling radiation dampers hold ARL approval for 1 hr fire resistance rating for use in UL Fire Resistance Rated Wood Truss Assemblies.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Jul 19, 2006 H Series tilt trucks are designed with dual reinforcing braces set near upper rim and mid-section to strengthen key load bearing areas. Trucks are set on full perimeter, powder coated steel underframes atop four industrial strength casters and nest when empty. Developed for collection and transfer of laundry, linens, waste, recyclables, and other materials, trucks are molded in polyethylene offering structural strength and immunity to rain, snow, sunlight, and cleaning chemicals.

MTS Sensors Group    Cary, NC 27513

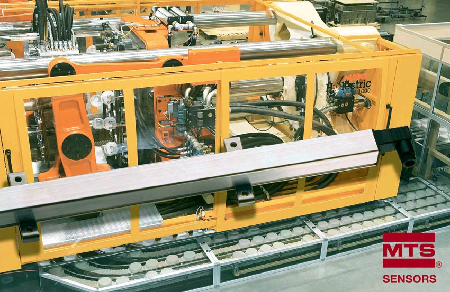

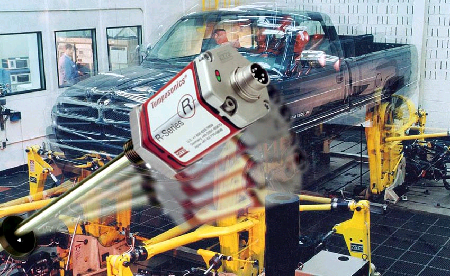

Jul 19, 2006 Capable of continuous operation at external vibration levels of 15 g and surviving shock levels of 100 g, Temposonics® G-Series and R-Series can withstand 30 g vibration without interruption of normal operation. Incorporating double-shielded design, R-Series includes 30 Vdc polarity protection and over-voltage protection to 36 Vdc. EMI immunity and environmental ingress protection make sensors suited for harsh sawmill, steel rolling mill, die cast and punch press applications.

MTS Sensors Group    Cary, NC 27513
Jul 19, 2006 Featuring magnetostrictive technology, D-Series provides measuring range of 50-1,500 mm and direct position output of 0-10 V. Sensors are capable of linearity better than 0.01%, repeatability of 0.005%, and position update rate of 1.5 kHz. Each is equipped with waveguide sensing element, conditioning electronics for output position data, and protective IP67-rated housing that accommodates modular electronic interface with active signal conditioning.

TDK-Lambda Americas Inc.    San Diego, CA 92154

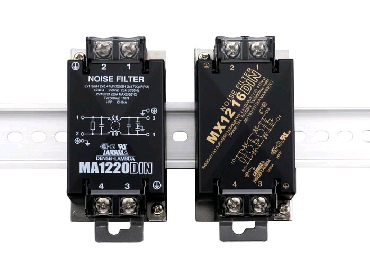

Jul 19, 2006 Available in current ratings of 6, 10, 16, 20, and 30 A, Series MA and MX are rated for 250 Vac or 250 Vdc input with max earth leakage current of 1 mA. Single-stage MA Series attenuates frequencies in 150-500 kHz band, while 2-stage MX filters attenuate frequencies over 150 kHz to 30 MHz band. Housed in 2 x 3.6 x 1.6 in. package, all units feature hinged cover and barrier strip design that combines convenience of captive screws with safety of ring tag terminals.

Superior Manufacturing Group    Chicago, IL 60638

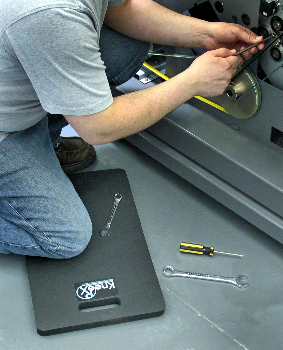

Jul 19, 2006 Developed for employees required to kneel while working, Knee RX is made from nitrile/PVC foam blend for resistance to oils and greases. Silicone-free material is non-conductive and self-extinguishing. Measuring 1 in. thick, mat provides comfort and keeps users clean while working on dirty surfaces. It is available in standard version as well as heavy-duty version with laminated rubber bottom surface for additional comfort. Both are suited for indoor/outdoor applications.

Precision Alliance, The    Fort Mill, SC 29708

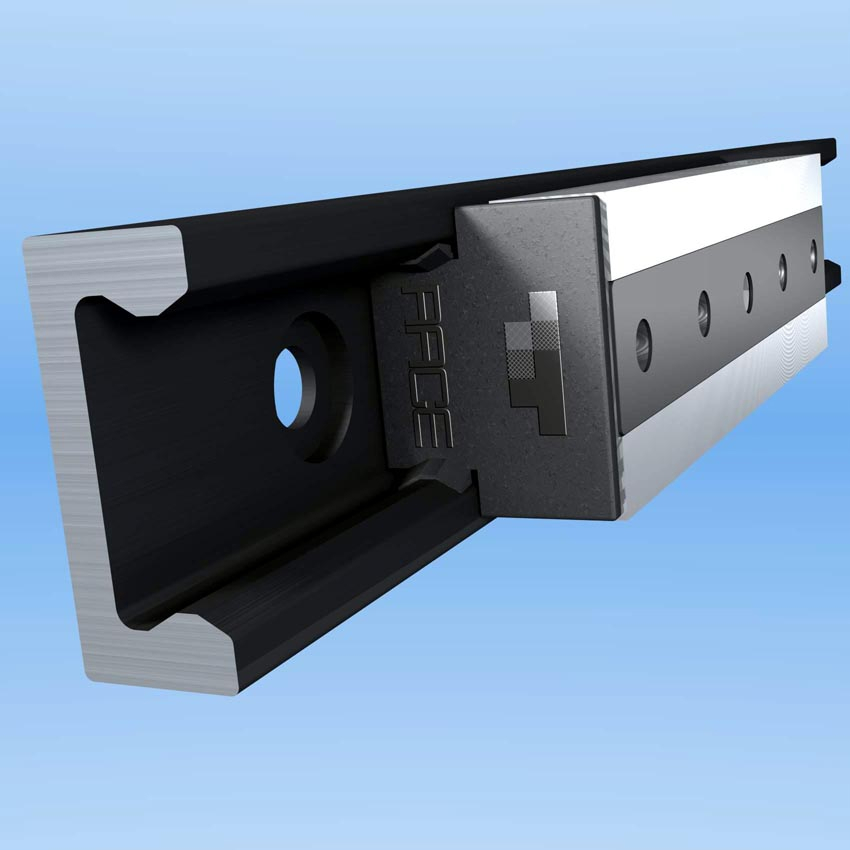

Jul 19, 2006 MONORACE(TM) linear bearings carry payloads ranging from 50-5,000 lb over 4.0 m or more, are built from extruded steel, and are contamination tolerant. Bearing-rail interface compensates for mild rail misalignments, allowing use on low precision surfaces such as welded steel frames, sheet metal housings, and aluminum extrusion based frames. Able to be sized for any application, bearings come in 18, 28, and 43 mm wide and with standard or extended sliders.

Ashcroft Inc.    Stratford, CT 06614
Jul 19, 2006 Ashcroft® PowerFlex(TM) dual function pressure gauge features 4-20 mA and voltage outputs, CE ratings, and 1% BFSL accuracy with electronic temperature compensation from -20 to 85°C. Pressure range from 30-5,000 psi is available. Type X1005 features 2 in. dial and Type X2001 includes 2.5 or 3.5 in. dial.

THK America, Inc.    Schaumburg, IL 60173 5340
Jul 19, 2006 Type GLM20 Linear Motor Positioning Actuator System features water-cooled linear motor and optical linear encoder on lightweight extruded aluminum base. Complete 1-axis system operates at speeds to 4 m/sec and 2 G, achieving accuracies of 1 micron or better while operating at 53 dB. Providing 3,000 N of continuously useable linear force, unit can achieve 4,500 N peak-linear-force. Multiple sliders are installed on single-axis base to allow individual control.

Danfoss VLT Drives    Loves Park, IL 61111
Jul 19, 2006 Offering 98% efficiency, VLT® AQUA Drive includes automatic sleep mode, Automatic Energy Optimization, and flow compensation. It is available in NEMA/UL Type 1, 12, or 4X enclosure. Initial ramp feature allows pump to quickly accelerate to minimum frequency while eliminating excessive wear and damage. Empty Pipe Fill mode enables controlled filling of pipes to prevent water hammering, bursting pipes, and blown sprinkler heads from excessive pressure surges.

Cyl-Tec, Inc.    Aurora, IL 60506
Jul 19, 2006 High-pressure gas cylinders are made from 4130X Chrome Moly Steel. All size 300, 250, and 220 cylinders are manufactured by Billet Pierce process, while medical D through 150 size cylinders are manufactured by spinning process. Cylinders 80 cf and larger come with plain or embossed neckring and cylinder cap. Acetylene cylinders, aluminum cylinders, valves, caps, and neckrings are available.
