Lubrizol Corp.    Wickliffe, OH 44092 2298
Aug 11, 2006 Based on active polymer technology, ADDCO® LoMist D reduces mist from coolant used in metalworking applications by up to 60%. After treatment, fewer aerosols form, preventing fluid from breaking up and floating through air. Product has no adverse impact on production, parts quality, microfinish, or wastewater treatment. ADDCO LoMist D can be used in most soluble oils, semi-synthetic fluids, and synthetic fluids.

APEM Components    Haverhill, MA 01835
Aug 11, 2006 Comprised of single- and double-pole models, 3500 series is offered in various electrical configurations and carries electrical life of 10,000 cycles at 15 A, 28 Vdc. Molded-in terminal inserts and silicone membrane seal provide for IP67 front panel sealing. Available with screw, wire lug, or quick connect terminations, switch has standard chrome- or nickel-plated toggle actuator that measures .236 in. dia x .688 in. long. Locking actuator styles are available.

Elan Digital Systems Ltd    Fareham Hampshire PO15 5SJ  United Kingdom
Aug 10, 2006 With U132 USB-to-PCMCIA Cardbus Adapter, installation involves loading of software, plugging adapter to USB port, and inserting 3G card. High-speed connection can be established via standard connection wizards, and power is supplied via USB port. Adapter is suited for embedded applications including vending machines, electronic billboards, and any remote equipment that requires wireless communication for updating data or monitoring.

Alarm Lock Systems, Inc.    Amityville, NY 11701-2801
Aug 10, 2006 Designed for facilities with up to 150 users, A-Series Keypads each operate up to 3 outputs and can be used to trigger door strike, electromagnetic door lock, or any other relay-activated device. Authorized door open time can be programmed from 1-99 sec. Indoor Model A-100 features stainless steel faceplate and mounts in single-gang electrical box, while sealed Model A-100WP, with stainless enclosure, is vandal-resistant and suited for harsh outdoor environments.

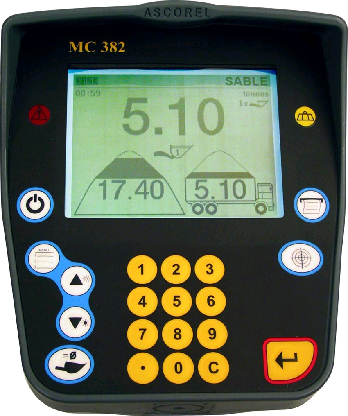

ASCOREL    PONT EVEQUE   France
Aug 10, 2006 Designed to help carry out accurate loadings of trucks, Model MC 382 can also be programmed to store up to 10 references such as trucks, client, or products. Display unit is water-, dust-, and vibration-resistant with screen dimension of 320 x 240 pixels. Model MC 402 has same functionalities and also communicates via radio, GSM, or USB, and analyzes data using PCS software for Windows. It can store detailed parameters of more than 100,000 loads.

Beswick Engineering Co., Inc.    Greenland, NH 03840
Aug 10, 2006 Designed for incorporation into manifold assemblies, miniature Cartridge Needle Valve allows precise flow control due to 56 threads/in. adjustment and 3° taper of needle. Adjusted flow remains stable, even during temperature fluctuations as needle and valve seat are both stainless steel. With max inlet pressure of 300 psig, valve controls flow from 0-1 scfm at 50 psig. Metal-to-metal seal provides positive shut-off down to negative pressure/vacuum of 25 in. Hg.

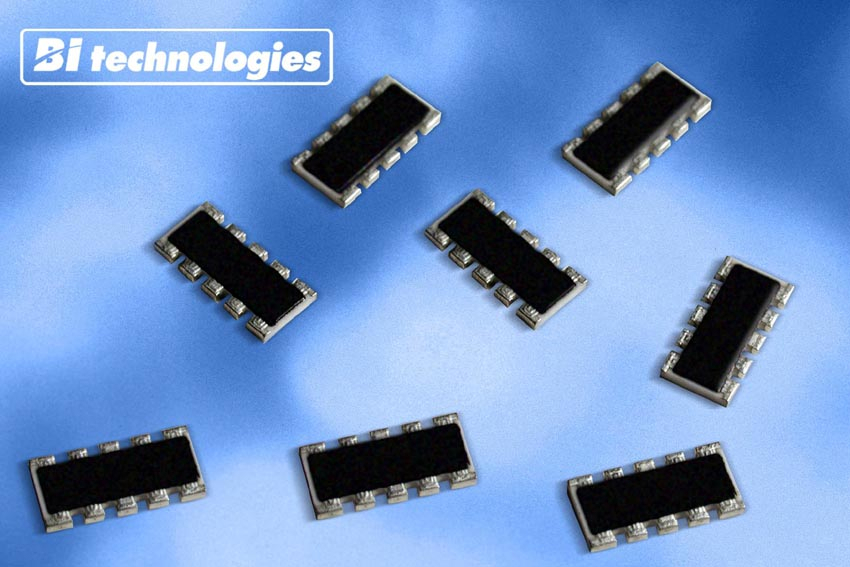

BI Technologies Corp.    Fullerton, CA 92835-1051
Aug 10, 2006 Replacing up to 16 discrete components, Resistor-Capacitor (RC) Series thick film-on-ceramic chip networks are ESD-resistant and do not require diode protection. RC chips feature 63 mW/resistor (250 mW packaging rating), resistance range of 20W to 1MW with standard tolerance of ±20%, and capacitor dielectric of X7R with tolerance of ±20%. Available as 1206 size single chip and 5 configurations in 10 terminal 2512 array.

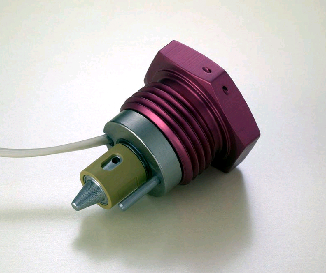

CeramTec North America Corp.    Laurens, SC 29360
Aug 10, 2006 Featuring copper conductor, .250 in. Power Plug Feedthrough and Cable Assembly handles up to 25 kV and 100 A. It is available in weldable, ConFlat®, and ISO flange-mounted installation configurations of 1-4 pins. Cable assembly utilizes custom plug or boot to mate to feedthrough and 6 AWG tin-plated copper conductor cable with silicone insulation. Feedthrough has temperature capability of -269 to 450°C, with leak rate of less than 1 x 10^-10 atm-cc/sec.

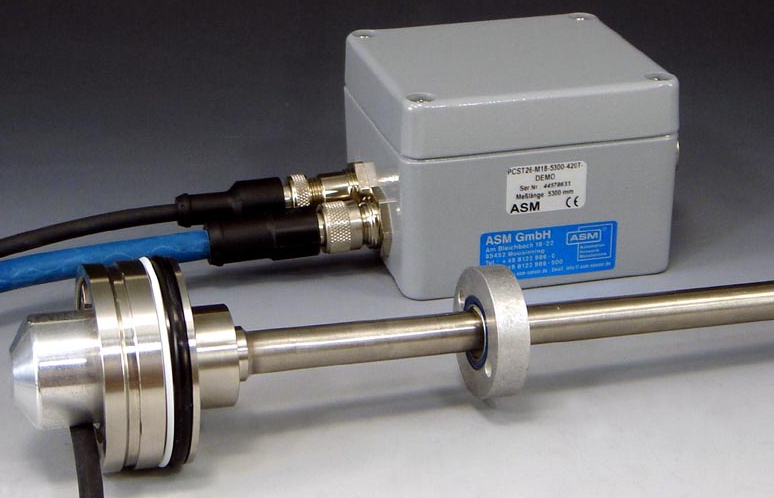

ASM Sensors, Inc.    Elmhurst, IL 60126
Aug 10, 2006 Featuring compact stick design with separate sensor electronics and IP69K protection, magnetostrictive POSICHRON® PCST26 series is designed for use inside mobile hydraulic cylinders. Absolute, contact- and wear-free measuring system comes with 0-10 V, 4-20 mA analog outputs or optionally with digital pulse output Start/Stop or synchronous serial interface. With linearity up to ±0.02% FS and repeatability of 0.001%, series is available with measurement ranges up to 5,750 mm.

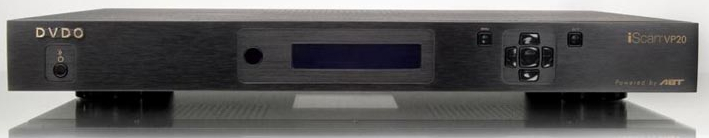

Anchor Bay Technologies    Campbell, CA 95008
Aug 10, 2006 Suited for digital panels and projectors, DVDO iScan(TM) VP20 is 1080p-capable video processor with VRS Precision Video Scaling II(TM), VRS RightRate(TM), and VRS AutoCUE-C(TM) imaging technologies. Product features 9 video inputs, each of which has separate picture controls. For audio switching and routing functionality, product offers 7 digital audio inputs and one analog that can be assigned to any of video inputs. Product processes analog and digital, SD and HD signals.

Techno Sommer Automatic    New Hyde Park, NY 11040
Aug 10, 2006 Featuring corrosion-resistant, stainless steel design, Model GGL3060 is sealed according to IP69K standards, allowing it to withstand high-pressure and high-temperature wash-down. Jaws swing open to full 180°, and angular design of gripper provides up to 24 lb-ft gripping torque. Unit meets DIN 1672-2 guidelines for hygienic food production machinery.

Lee Company, The    Westbrook, CT 06498 0424
Aug 10, 2006 Available in single coil configuration, 3-way High Flow Solenoid Valve uses 7.8 W at 28 Vdc and features operating pressure of 3,000 psi with minimum flow of 4.0 gpm. Use of Multi-Seal enables hydraulic portion of valve to be extremely compact. Sealing technology eliminates conventional O-rings and back-up rings, and facilitates port layout by allowing 2 ports to be sealed in same axial plane.

AlazarTech Inc.    Lachine, QC H8T 3H2  Canada
Aug 10, 2006 Occupying one half-length PCI slot, 16-bit Model ATS660® uses FPGA-based digital electronics for control and data processing. It offers 2 simultaneous analog inputs that can each be sampled at rates up to 125 MS/s, providing signal-to-noise ratio in excess of 73 dB. Each channel can have up to 128 Megasamples of on-board acquisition memory buffer. Dual Port Acquisition Memory allows transfer of acquired data to PC memory without having to stop acquisition session.

Onicon, Inc.    Clearwater, FL 33765
Aug 10, 2006 Comprised of inline flow meter/integral BTU computer combination, System-30 measures thermal energy in chilled water, hot water, and condenser water systems. NIST-traceable meter features max operating pressure of 400 psi and liquid temperature range of 32-200°F. Semiconductor-based temperature sensors provide delta T accuracy within 0.15°F. Optional communications interface delivers energy, flow, and temperature data to control system through single network connection.

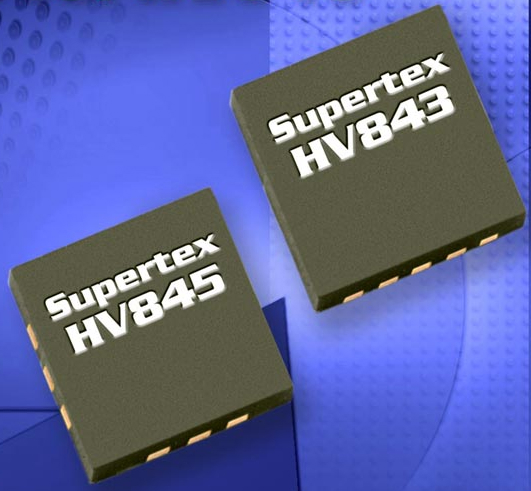

Supertex Inc.    Sunnyvale, CA 94619
Aug 10, 2006 Designed to light up dual display cellular phones and portable instrumentation, HV843 and HV845 feature independent input control for lamp selection and 180 Vp-p output. High-brightness, low-noise products drive 2 electroluminescent (EL) lamps with combined area of 3.5 in.² from 2.0-5.8 V input. Both use single inductor and minimal passive components. Model HV845 also has 2 independent common output pins that further minimize dc offset in 2-segment EL lamp.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Aug 10, 2006 With isolation spacing of 10 mm and dielectric strength of 5,000 Vrms, Series AZ761, AZ762, and AZ743 feature switching capabilities up to 16 A in single pole configuration and 8 A in double pole configuration. AC coil power is 0.76 Va, with DC coil power at 400 mW. Featuring Class F insulation and seated height of 15.7 mm, relays have complete UL, CUR, and VDE approvals, and are suited for HVAC and white goods applications.

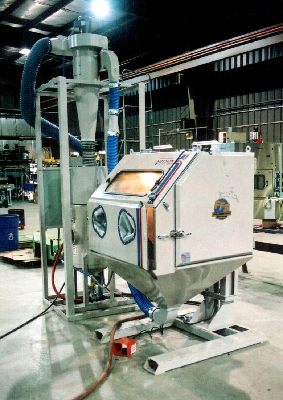

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Aug 10, 2006 Equipped with direct pressure media delivery module, Model 8-AH is suited for situations in which more than one person may use same cabinet on regular basis. Steel base is fitted with electrically operated jackscrew that raises and lowers entire blast enclosure. Extra large armholes with shoulder-length gloves allow uninhibited movement during use. Media and dust extracted from cabinet are pneumatically conveyed through ducting to cyclone separator and media reclaimer.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 10, 2006 Teflon®-filled acetal bearings (A 7Z43 Series) and oil-impregnated sintered bronze bearings (A 7Z40 Series) are both self-lubricating. Offered in 6 sizes with IDs from .189-.501 in., A 7Z43 Series carries max radial loads from 28-320 lb and runs at max speeds from 3,300-13,000 rpm. Available in 6 sizes with bearing IDs from .126-.501 in., A 7Z40 Series offers max radial load ranges from 65-600 lb and max speeds from 5,100-20,000 rpm.

IKA Works, Inc.    Wilmington, NC 28405-7419
Aug 10, 2006 Accommodating 2-15 mL hermetically sealable disposable sample tubes, ULTRA-TURRAX® Tube Drive offers protection and security for infectious sample materials, toxic, and high-odor substances. Single drive unit can safely disperse, stir, and grind, with no possibility of cross-contamination. Device can be used individually, or configured in series, for applications in medicine, diagnostic laboratories, food testing, and research.

Ross Controls    Troy, MI 48083
Aug 10, 2006 SERPAR® Crossflow Double Valves incorporate L-G and E-P monitoring systems, which provide redundancy through 2 separate, dissimilar monitors to meet CSA Z142 requirements for safety circuit performance. Actuating solenoids are wired independently through DPDT switch in E-P monitor. Available in sizes 8, 12, and 30 with port sizes from ½-2 in., valves mount inline via removable flanges, and are available with or without manual overrides.
