Bel Fuse, Inc.    Jersey City, NJ 07302 4419

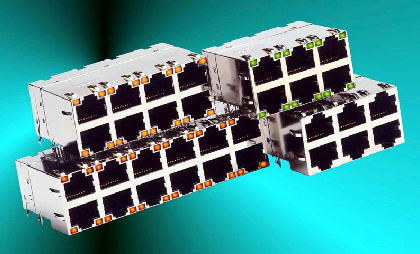

Aug 14, 2006 Intended for computer and telecommunication networks, Compressor SMT MagJack® Series is comprised of 2-tier stacked lineup of 6-, 8-, 12-, and 16-port devices with compressed profile of 0.785 in. Incorporated magnetics provide isolation and EMI suppression necessary for 10/100/1000 Base-T applications into shielded body of connectors. RoHS-compliant units feature 350 µH minimum open-circuit inductance with 8 mA bias current, and operating temperature of -40 to +85°C.

Analytical Technology, Inc.    Oaks, PA 19426

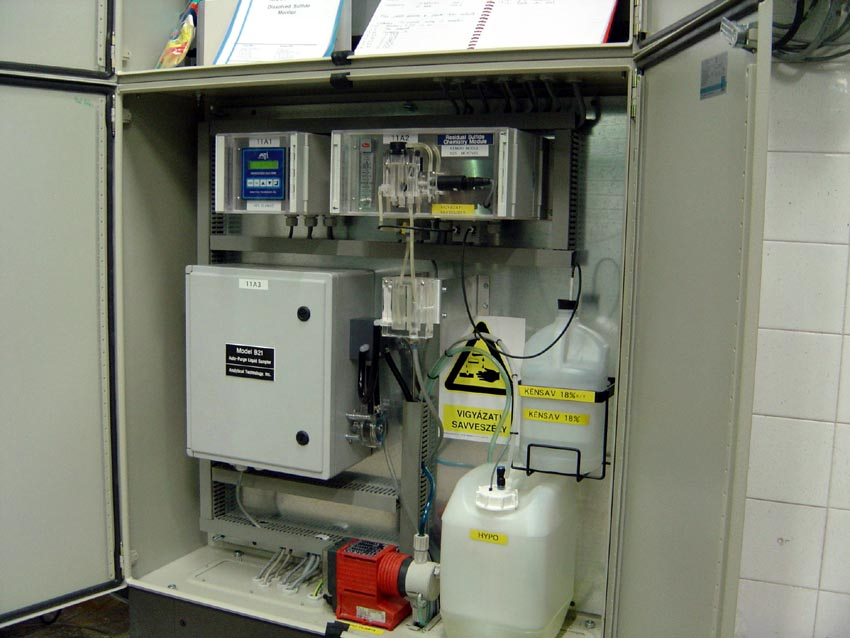

Aug 14, 2006 Using polagraphic H₂S gas sensor isolated from sample, A15/81 operates continuously in water and wastewater streams with minimal adjustment. System measures down to parts-per-billion levels. Only gas stream containing stripped H₂S reaches sensor, creating system that functions regardless of sample quality. Stable gas sensor requires only monthly zero and span checks.

Anderson Power Products    Sterling, MA 01564
Aug 14, 2006 Along with integral coding key that lets user configure unique mating of up to 6 individual connectors, RoHS-compliant PowerMod® HP (high power) B series connector features touch-safe female housings, cable strain relief, and integral positive latches. It is rated up to 450 A and utilizes Sterling contact technology. Able to accommodate wire sizes from 1/0-4/0 AWG and 50-95mm², connector is rated for circuit interruption and provides minimum of 500 mating cycles.

Apollo Display Technologies LLC    Ronkonkoma, NY 11779
Aug 14, 2006 With one user PC via connection to LAN or USB interface, ARTISTACONTROLCENTERLITE controls multiple displays simultaneously showing similar or different content. Software automatically recognizes up to 6 Artista kits, which include ArtistaNET(TM) or ArtistaUSB(TM) display controller; 6 TFT LCDs; all necessary inverters, cables, and power supplies; and client PC. Program allows for creation and playing of individual play lists for each display using one PC.

Palmer Wahl Instrumentation Group    Asheville, NC 28804
Aug 14, 2006 Used for monitoring electrical and mechanical systems, Heat Spy® HSI3000 employs 160 x 120, uncooled microbolometer array and trigger-activated Class II laser. Ergonomic, handheld unit also features 3.5 in. color LCD with LED backlight. Dual measurement cursors, movable anywhere in image, provide temperature readings at each cursor location and indicate real-time differential temperature measurement between 2 points anywhere along 14 to 482°F range.

Binks ITW Industrial Finishing    Glendale Heights, IL 60139

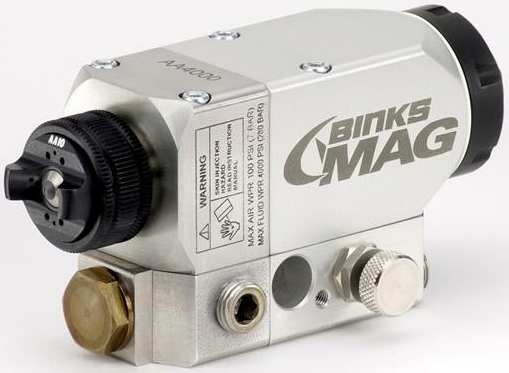

Aug 14, 2006 Used in wood and metal industries, MAG AA UV Spray Gun employs carbide needle, leak-resistant carbide seat, and solvent-resistant O-rings. It supports atomization of various coating viscosities and features stainless fluid passages for water- and solvent-based materials. While wood industry applications include cabinets, flooring, milled products, and doors, metal industry applications include aircraft parts, brake shoes, and hydraulic cylinders.

ERICO    Solon, OH 44139-2631
Aug 14, 2006 Installed vertically or horizontally on racks, ceilings, and walls, CADDY® CATCR50 plastic, low-voltage cable support is designed for use with CAT 5e and higher, fiberoptic, and coaxial cable. Rounded edges avoid over-bending and kinking of cables, and closure has locking teeth that retain bundled cable in one-piece support. UL®-recognized for air-handling spaces, product requires nail, screw, push pin, or pop rivet for complete installation.

Hirschmann Engineering USA, Inc.    Schaumburg, IL 60173
Aug 14, 2006 Run from dedicated PC, Cell Master v5.0 real-time Cell Management System prepares, organizes, and executes work in automated CNC machine environment for toolmaking, moldmaking, and job shop machining. Windows-based program controls robot, machine tools, and scheduling, enabling jobs to be rearranged, added, or deleted without interrupting machine tools. System supports all types of machining and allows use of multi-Axis robots or lading devices in single or multiple machine cell.

Krohne, Inc.    Peabody, MA 01960-3803

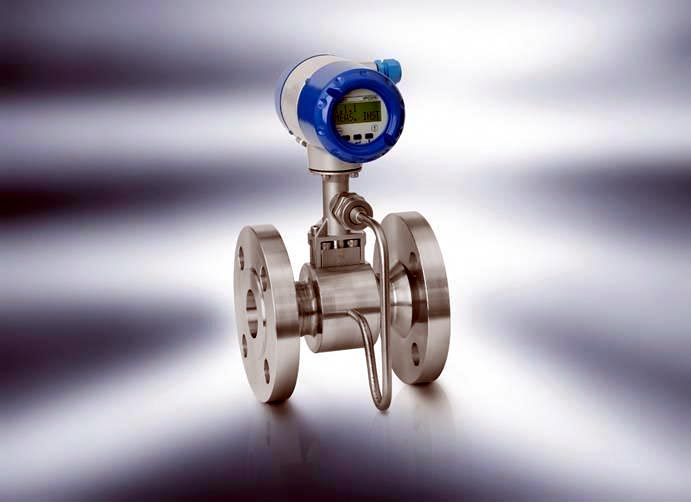

Aug 14, 2006 Loop-powered OPTISWIRL 4070 C multivariable flowmeter combines vortex flow sensor with built-in temperature and pressure compensation for measuring volumetric and mass flow of conductive and non-conductive liquids, gases, and vapors. Intelligent Signal Processing System allows stable readings while eliminating external perturbations. Device features stainless steel structure resistant to corrosion, high pressures, and temperatures. Optional pressure sensor is available.

Lista International Corp.    Holliston, MA 01746

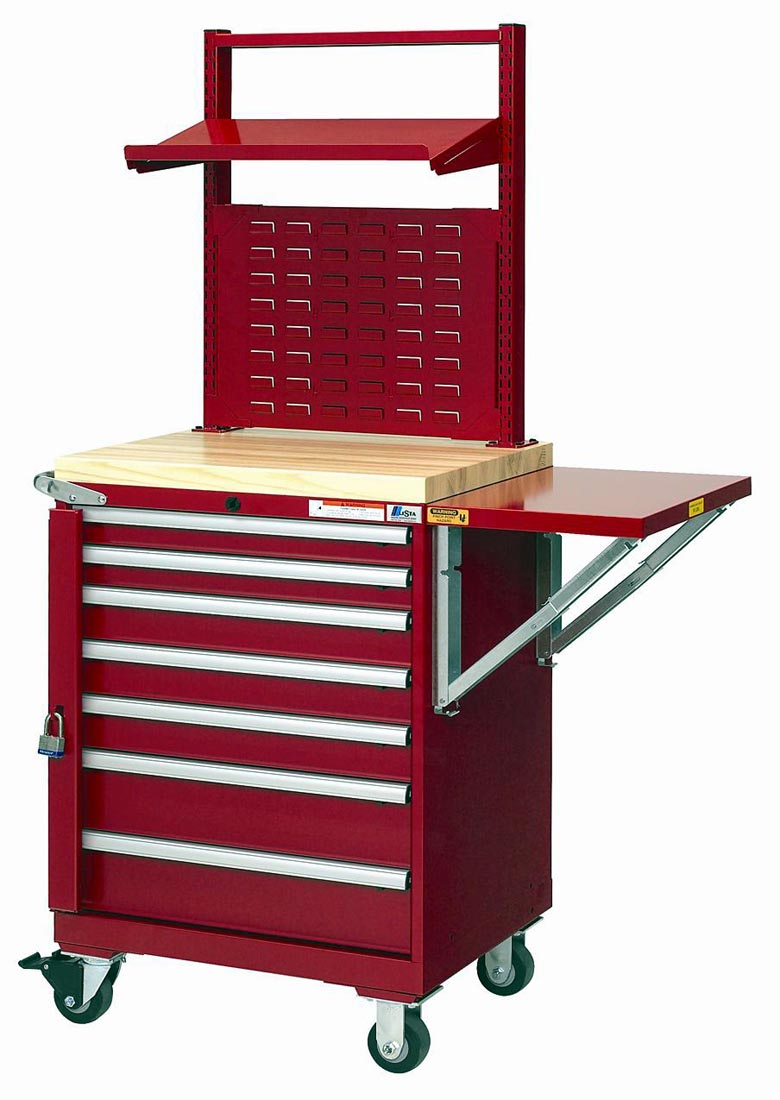

Aug 14, 2006 With 28.25 x 22.5 in. footprint, multi-use mobile cabinet features Nexus System of upright frames with notches in front and back for mounting accessories, such as shelves and louvered and pegboard panels, on either side. Unit includes butcher block worksurface and folding shelf that can fold flat when not in use. Cabinet can be equipped with cylinder lock, keypad lock, or hinged lock bar for use with padlock.

Bacou-Dalloz Hearing Safety Group    San Diego, CA 92154
Aug 14, 2006 Available in corded and uncorded versions, Howard Leight® AirSoft® Earplugs provide noise reduction rating of 27, and are made of TPE for comfort during long-time wear. Design incorporates series of noise-blocking fins within pocket. As pocket compresses in ear canal, fins interweave to create noise-blocking barrier optimized to wearer's ear canal. Earplugs include fourth flange, which provides tight seal in ear canal, and is tapered with round edges for comfort.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407
Aug 14, 2006 Suited for use with paper and cardboard, I-Mark(TM) single-line Model SX 7 features character size of ½ in., while 2-line Model SX 16 provides 1.5 in. characters. Able to print on top or sides of cartons, printers integrate controller, printhead, and ink system into one unit that plugs in. They include icon-based menu and hot keys, low-ink warning indicator, and pressurized ink canister, which eliminates need for external ink pump.

Matthews International Corp., Marking Products Div.    Pittsburgh, PA 15206 4407
Aug 14, 2006 Using piezo-electric element technology, non-contact Model IP 7000 operates at line speeds up to 4.6 ft/s, and can print up to 32 lines of text, logos, scannable bar codes, and other symbols at 200 dpi H/187 dpi V. Print height range is 2-100 mm per printhead. Re-circulating auto prime feature eliminates need for daily maintenance. With Ethernet capability, users can upload changes via laptop by connecting to printer controller, or transmit messages from office PC through LAN.

Nook Industries, Inc.    Cleveland, OH 44125
Aug 14, 2006 EGZ belt-driven modular linear actuator travels up to 10 m/sec for externally supported loads because carriage adjusts to prevent binding of carriage bearings. Lateral v-guides permit misalignment in external supports. Custom travel lengths up to 76.2 m are offered, and extrusions range in width/height from 30-80 mm with dynamic capacities from 180-1,800 N. Actuators provide framework for single axis, XY, and XYZ gantry solutions for precision and commercial applications.

Adaptaflex Limited    Coleshill Birmingham B46  United Kingdom
Aug 14, 2006 Non-metallic UL1696 nylon flexible tubing system is designed for protection of electrical cabling to meet harmonized UL1696 standard. Lightweight and flexible, system features push and twist Adaptalok fittings for liquid tight performance. System is fire resistant and suited for use on machinery, machine tool, process plant, production equipment, and public buildings.

JM Science, Inc.    Grand Island, NY 14072
Aug 14, 2006 Used in lab or field, Horiba OCMA-350 checks for residual oil on semiconductor parts which have been cleaned and measures oil on any industrial surface. It features removable sampling cell and records time and date of measurement along with each data set. Data evaluation function analyzes readings, determines when value has stabilized, and displays stable value. Messages on LCD screen indicate any electrical malfunctions, irregularities in measurement, and deterioration of parts.

RNR Plastics, Inc.    Raynham, MA 02767
Aug 14, 2006 CSTEP-2 hand press features contoured ergonomic handle with cushioned grip and deep throat that is 5 in. from mandrel. Benchtop machine is offered with self-piercing dies and accommodates grommets from #0 (1/4 in.) to 5.5 (11/16 in.) ID. Industrial-duty, cast iron machine can be used in fabricating awnings, banners, signs, tarpaulins, tents, boat covers, belts, clothing, and furniture.

Venture Lighting International, Inc.    Solon, OH 44139
Aug 14, 2006 Producing 60,000 initial lumens, Uni-Form MP 575 metal halide lamp utilizes tipless, formed-body arc tube technology. Arc tube follows shape of arc stream, improving thermal characteristics and eliminating cold spots on lamp, enabling uniform light output. Lamp and ballast system ensures improved warm-ups and restrikes, light control, and precise cut-off angles. Rated for 20,000+ hr, system offers reduced light pollution.

Wilson Tool International Inc.    White Bear Lake, MN 55110
Aug 14, 2006 Offering 10 punch profiles (120-220 mm) and 17 dies (6-50 mm), WT press brake tooling line is available for Trumpf-style and LVD-style press brakes. Featuring HRC-70 surface hardness, line is heat-treated with Nitrex(TM) High Endurance Surface Enhancement, adding lubricity, lowering friction coefficient, and providing corrosion resistance. Tools are precision ground to ±.01 mm on all critical dimensions, and include push button for vertical loading and unloading of tool setups.

Thomas & Betts Corp.    Memphis, TN 38125
Aug 14, 2006 Series 35 Conduit Bodies are made of zinc-plated iron with aluminum acrylic coating to offer impact and corrosion resistance. Featuring tapered and NPT-threaded hubs, bodies and covers make bends in rigid conduit systems, connect and change direction of rigid conduit runs, and provide access to branch conductors for splicing. Suitable for use in concrete, conduit bodies and covers come in ½-4 in. sizes in types C, LB, LL, LR, and T, and in ½-2 in. sizes in types TB and X.
