Acrilex, Inc.    Jersey City, NJ 07305 1122

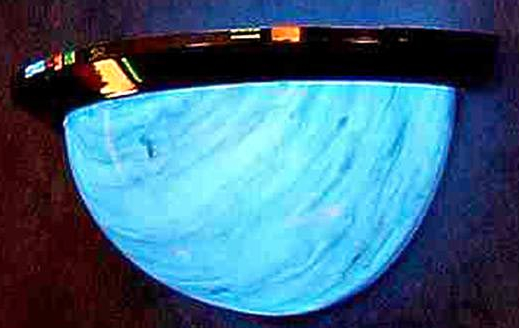

Jul 24, 2006 Suited for security lighting applications and use with CCD video surveillance cameras, Acriglo® glow-in-the-dark acrylic provides 1 ½-2 hr of illumination without back-up power source during loss of electricity. It charges completely by luminosity emitted during normal operation, and glow emitted from fixture provides lighting capacity equivalent to moonlight. Sheets are available in thicknesses from 1/8-3/8 in. and can be configured to meet specification requirements.

Acrosser Technology    Cypress, CA 90630

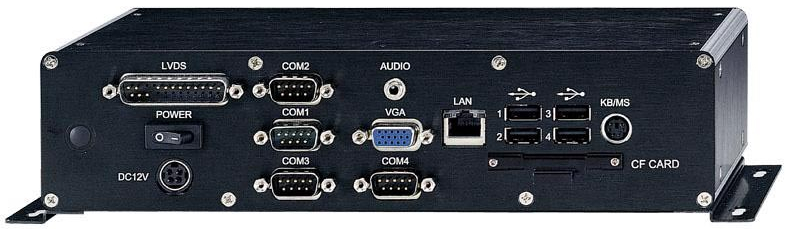

Jul 24, 2006 Powered by 500 MHz AMD Geode LX800 (GX3) embedded processor, AR-ES0631 provides one LAN, 4 USB 2.0, 4 COM, and Audio I/O in 10.1 x 4.61 x 2.64 in., dust-proof, aluminum chassis. It also integrates AGP 4X 2D Graphics Controller, Compact Flash, and PCI 104 Expansion Interface. Anti-shock drive bay accepts 2.5 in. HDD, and LVDS output works with 18/24 bit LCD. Front and rear I/O panels, dimension, hardware, and operating system can be configured to order.

C & D Technologies    Mansfield, MA 02048-1151

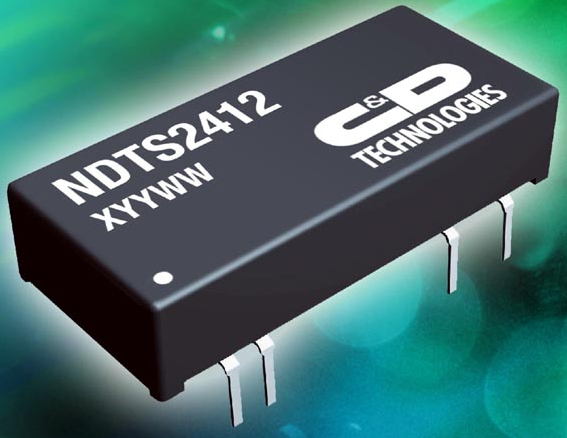

Jul 24, 2006 RoHS-compliant NDTS (single output) and NDTD (dual output) series produce max output power of 3 W at 85ºC without heatsinking. Supplied in 32.36 x 14.66 x 7 mm, fully encapsulated, 24-pin housings, devices have 2:1 input voltage range and utilize flyback oscillator design with isolated feedback. Products have continuous short circuit protection and 1 kVdc isolation. Specified over -40 to +85ºC range, they feature internal SMD construction and use UL94V-0 approved package materials.

Emerson Process Management    Austin, TX 78754
Jul 24, 2006 Daniel Model 3804 liquid ultrasonic meter measures changes in fluids such as crude oil, distillate fuels, and petrochemicals with ±0.15% accuracy over 10:1 flow range. Accuracy is ensured by 4 pairs of mounted transducers and glass matching layer for acoustical coupling and waveform detection. Transducers can be replaced without emptying or depressurizing meter. Software features Customer Ultrasonic Interface software for configuring and viewing data, and Ethernet compatibility.

Arcom Control Systems    Overland Park, MO 66085

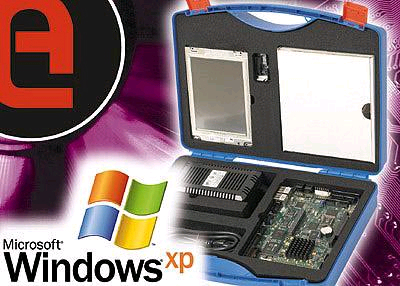

Jul 24, 2006 Featuring licensed XP Embedded OS pre-loaded onto industrial-grade 1 GB CF card, Embedded Development Kit is based on SBC-GX533 embedded PC board with 400 MHz AMD Geode(TM) GX 533 1.1 W processor. Fan-less, RoHS-compliant board is fitted with 512MB DDR memory, 32MB Flash memory, onboard graphics, dual 10/100BaseTx Ethernet, 4 USB ports, 4 serial ports, and analog touchscreen interface. Kit enables users to design multimedia PC applications to run on embedded devices.

AVX Corp.    Myrtle Beach, SC 29578

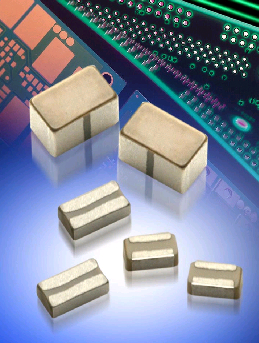

Jul 24, 2006 Available in 0204-1206 case sizes, LGA Decoupling Capacitor utilizes vertical orientation for internal electrodes, allowing I/O terminals to be located on bottom of capacitor so signals feed directly into vias. Controlled gap between opposing polarity terminals on bottom of capacitor minimizes effective current loop width. Fine Copper Termination employs electromechanical methods to form external metal terminations onto pre-determined areas of any of 6 sides of device.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Jul 24, 2006 Replacing conventional angle brackets or threaded right-angle blocks, PEM® ReelFast® R'ANGLE® Fasteners mount to edge or interior of PC boards prior to solder reflow process. Upon permanent installation in PC boards as thin as .040 in., surface-mount fasteners provide reusable threads in sizes #2-56 through #8-32 and M2-M4 for mating screws. Featuring flat top for vacuum pickup, RoHS-compliant units can mount board to chassis, chassis to board, or component to board.

Thomas & Betts Corp.    Memphis, TN 38125
Jul 24, 2006 Suited for making connections in corrosive or high-moisture environments, Sta-Kon® Heat-Shrink Terminal Kit includes ring terminals and butt splices, as well as ratchet crimp tool, wire stripper, and butane torch. Terminals and splices are self-insulated with heat-shrinkable, cross-linked polyolefin and internally coated sealant. Terminals feature brazed seams to prevent separation of terminal during crimping and internal serrations for increased pullout resistance.

Linear Technology Corp.    Milpitas, CA 95035
Jul 24, 2006 Supplied in 3mm x 3mm DFN package, LTC4080 integrates USB-compatible battery charger that can charge single-cell Li-Ion battery up to 500 mA without overheating device or surrounding components. IC also incorporates 300 mA standalone linear buck converter that features selectable mode operation and synchronous rectification to achieve efficiencies up to 96%. It operates from 2.7-5.5 V input and has corresponding output range of 0.8 V to VBAT.

Schurter, Inc.    Santa Rosa, CA 95403

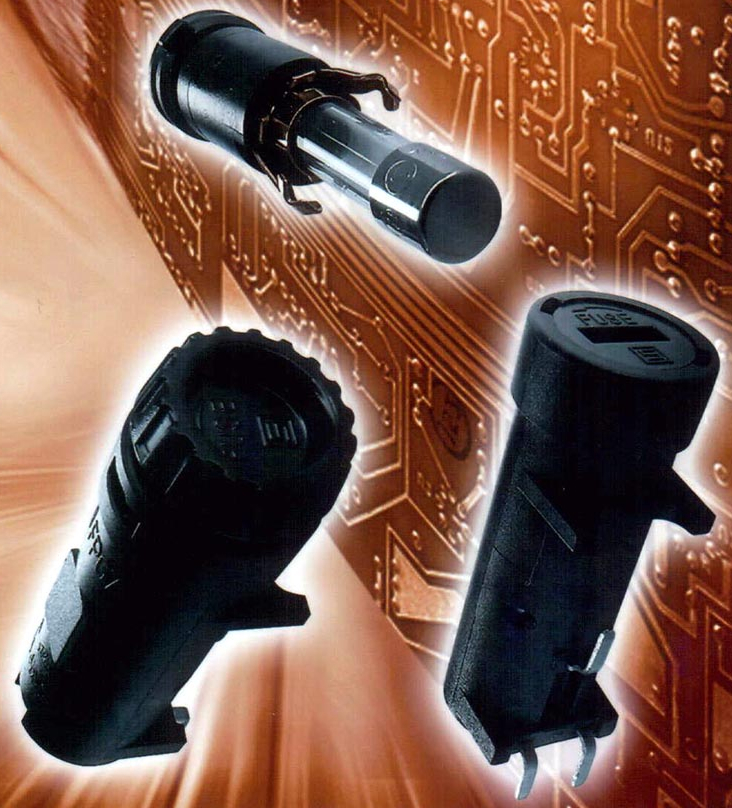

Jul 24, 2006 Made of RoHS-compliant, heat-resistant materials compatible with reflow solder processes, FPG7 is suited for multi-port protection of stacked PCBs where horizontal access to fuses is essential. It accepts 5 x 20 mm cartridge fuses and includes fuse carrier with screwdriver slot or fingergrip knob. While UL-approved for 16 A @ 250 Vac and VDE-approved for 10 A @ 250 Vac, product has rated power acceptance of 2.5 W @ 10 A in 23°C ambient air.

IPM, Inc.    Kent, WA 98032
Jul 24, 2006 Constructed to combat effects of isocyanate crystals that form on pump surfaces when changing drums that contain 2-component coatings using isocyanate in hardener component, OP-232C limits crystal formation to non-critical areas; rods and packings remain free of crystals. Quick release bung adapter facilitates drum changes, and hoses can remain attached to further limit crystal formation. Construction features allow periodic cleaning of critical pump passages.

Cortec Corp.    St. Paul, MN 55110
Jul 24, 2006 Formulated with soybeans, EcoLine(TM) Bearing, Chain, and Roller Lubricant features 86% bio-based content and incorporates blend of non-toxic, multi-metal Vapor phase Corrosion Inhibitor (VpCI(TM)) chemistry. Rust preventative lubricant will not change metal surface properties. Formulated to resist sling-off, it forms thin, tight, layer on metal surface, completely sealing off metal against moisture or air. It provides protection for up to 24 months in aggressive environments.

FastPic Systems    Westbrook, ME 04092

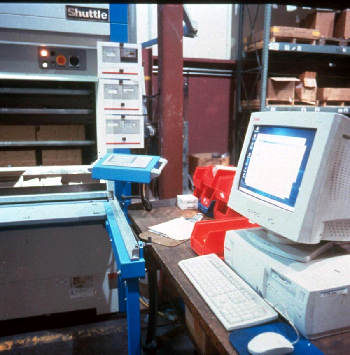

Jul 24, 2006 FastPic4 inventory management and control software works with Activant Prophet 21 WMS file format to give users access to real-time inventory and order status through detailed management reports. Any transaction can be recorded and uploaded to Activant Prophet 21 system. Program can manage shelving and rack, pick-to-light, horizontal carousels, and vertical storage devices, as well as multiple workzones where several different types of storage and retrieval systems are used.

Martinson-Nicholls, Inc.    Willoughby, OH 44094
Jul 24, 2006 Used indoors or outdoors, Warmer Winter Heated Floor Mat keeps commercial and industrial entranceways clear of snow, ice, and tracked-in water throughout winter on 24/7 basis. Non-slip, low-profile surface ensures safe traversal on building walkways, loading docks, and ramps. Offered in standard and custom-fitted sizes, self-drying mat employs 24 V, self-regulating, 25 W/ft² heat output and features corner grommets.

FCI    Etters, PA 17319

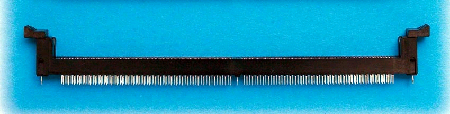

Jul 24, 2006 Offered with through-mount leads for solder termination, 240-position Series 10052286 provides mechanical voltage keying and end latches that minimize overall profile. Nominal 18.3 mm VLP memory module installed in sockets achieves combined vertical height of less than 21.5 mm. Solder tail options support use on .062-.093 in. thick motherboards. Applications include blade servers, sub-1U routers, telecom racks, and embedded systems.

AIM Joraco, Division of Automated Industrial Machine, Inc.    Smithfield, RI 02917
Jul 24, 2006 Featuring straight pneumatic cylinder, Direct Air Press offers 6 in. stroke, providing 500-5,000 lb constant force in both C- and H-frame configurations manufactured from steel plate. Ram styles include internal- or external-threaded 1 in. models and version with hole for shank mount. Press is suited for manual and semi-automatic assembly of bushings, posts, inserts, and fasteners.

Optek Technology, Inc.    Carrollton, TX 75006-6905

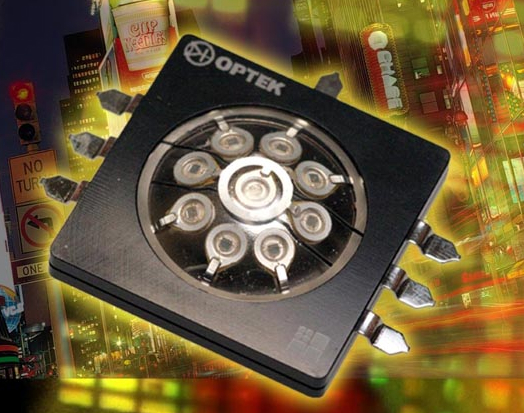

Jul 24, 2006 OVTL09LGM Series Lednium LED assemblies combine red, green, and blue LEDs in 10 W, package with 120° viewing angle. Assembly features 221 lm luminous flux with typical on-axis intensity of 68 cd. DC forward current/peak pulsed forward current is 1.05/3 A, respectively, and typical forward voltage is 8.6 V with 15 V reverse voltage. Featuring -50° to +80°C temp range, LEDs suit architectural and entertainment lighting as well as exterior and interior signage and display applications.

Scapa North America    Windsor, CT 06095
Jul 24, 2006 Supplied with 60 lb kraft release liner, Unifilm® U741 bonds materials such as plastics, Lexan®, ABS, and polypropylene. Aggressive 3 mil acrylic transfer adhesive provides consistent, lasting bond upon lamination and is suited for bonding decals and nameplates. High-tack adhesive, resistant to water and ambient humidity, can also be used for general-purpose product assembly and for laminating to foam for gasketing and NVH applications.

SciLabware (formerly Barloworld Scientific)    Staffordshire ST15 0SA  United Kingdom
Jul 24, 2006 SRT1 Roller Mixer features 5 rollers that rotate at 33 rpm and rise and fall 16 mm. Rollers are 340 x 30 mm and can load 22 lb maximum. Units can be used in incubators up to 60ºC, humidity to 80%, or in cold rooms down to 4ºC. Suited for mixing viscous substances and liquid-solid suspensions where minimum aeration is required. Stainless steel drip tray collects accidental spillages. For bottles up to 135 mm dia, one or more rollers can be removed for improved grip.

Fisnar Inc.    Wayne, NJ 07470
Jul 24, 2006 Designed to handle materials with viscosity under 10,000 cps, VD510 diaphragm valve features stroke adjustment knob for fine-tuning shot sizes and spring-assisted valve closure for immediate shut-off. Design separates wetted parts from driving parts, making it suited for dispensing volatile substances that would otherwise cause erosion. Weighing 2.7 oz, 3.1 in. high valve is suited for stand-alone bench dispensing or machine integration.
