Bradley Corp.    Menomonee Falls, WI 53051
Nov 21, 2005 Equipped with capacitive sensing technology, Aerada(TM) 1200 Series CS instinctively detects user's presence from any angle of approach, providing hands-free operation. Omni-directional detection zone surrounds entire spout, rather than sensor window, ensuring consistent activation. Faucet also includes water-conserving, 0.5 gpm vandal-resistant flow outlet. All mechanical and electrical components are concealed in water-resistant housing.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136

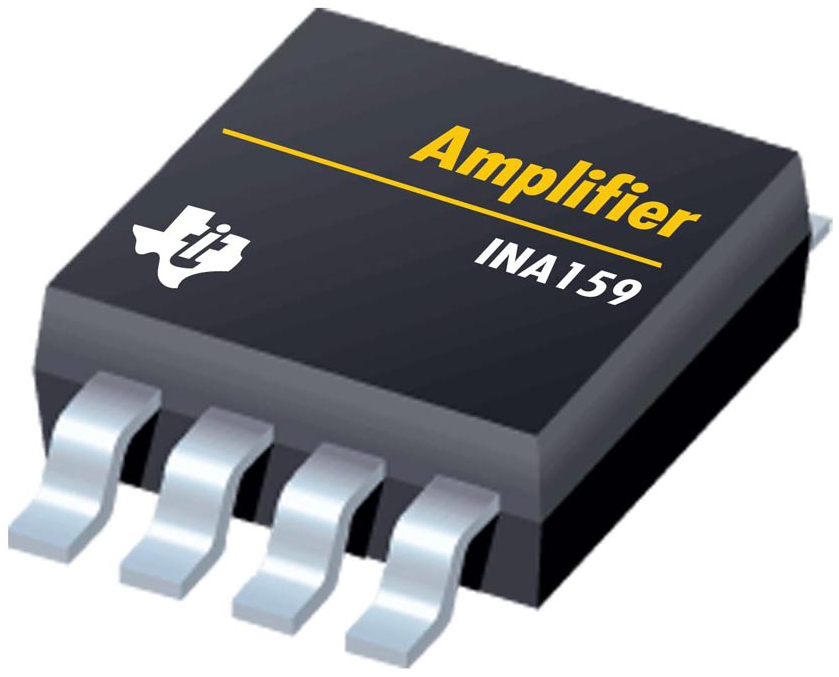

Nov 21, 2005 Manufactured in MSOP8 package, INA159 level-shifting difference amplifier has gain of 0.2 and is designed to interface ±10 V signals to single supply ADCs. Split reference connection simplifies biasing at one half supply or reference and eliminates need for additional op amp. Included amplifier is suited for driving up to 14-bit ADCs. Along with 1.5 MHz bandwidth and 15 V/µs slew rate, product has single supply voltage range from 2.7-5.5 V.

Patterson Avenue Tool Co.    Long Grove, IL 60047

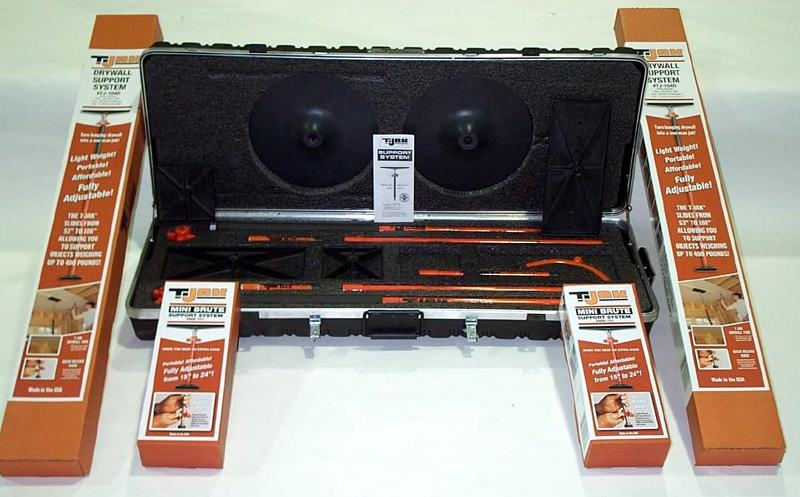

Nov 21, 2005 Weiging 42 lb and featuring wheels for mobility, T-JAK,reg. Pro-Pak facilitates transport of tools to and from jobsite for commercial cabinet and fixture installers, carpenters, counter top installers, plumbers, and electricians. It includes assortment of T-JAK tools, such as drywall support system and Mini Brute Support System, packed into rugged carrying case.

Stackpole Electronics Inc.    Raleigh, NC 27604

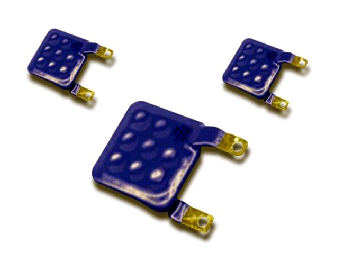

Nov 21, 2005 Available in standard sizes from 23-60 mm, single layer Series ZOV handles up to 80 kA of current and more than 4,100 W. Offered in round, square, and dual or triple stacked models, units feature epoxy coating, rigid terminations, or metallized blocks. Flat to slightly positive temperature coefficient for clamping voltage ensures that device will clamp at stated clamping voltage and prevent part from failing due to current overload.

Spartan Scientific Inc.    Boardman, OH 44512
Nov 21, 2005 Designed with aluminum body, 2- or 3-way Model 3835 features glass-filled nylon encapsulated coil with internal yoke, mini spades or flying leads, and class H insulation. Power consumption ranges from .9-10 W, variable with orifice size and pressure rating. Two-position, direct pilot solenoid valve is available in normally open and normally closed configurations and features full compliment of elastomers including Viton, Nitrile, EPDM, and Chemraz.

Elma Bustronic    Fremont, CA 94538

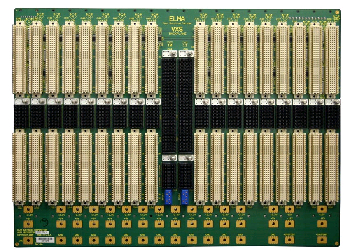

Nov 21, 2005 Featuring 2 hub slots and 18 payload slots, 7U Dual Star VXS VME Switched Serial Backplane is designed with low-dielectric Nelco PCB material and comes in 18-layer controlled-impedance stripline design. Unit is fully backwards-compatible to VME/VME64x. It utilizes 6.4 Gbps connector across P0 section of VME64X backplane, allowing use of switched fabric signals. Height of backplane allows room for power taps for 3.3, 5, ±12 V, and GND.

Lista International Corp.    Holliston, MA 01746

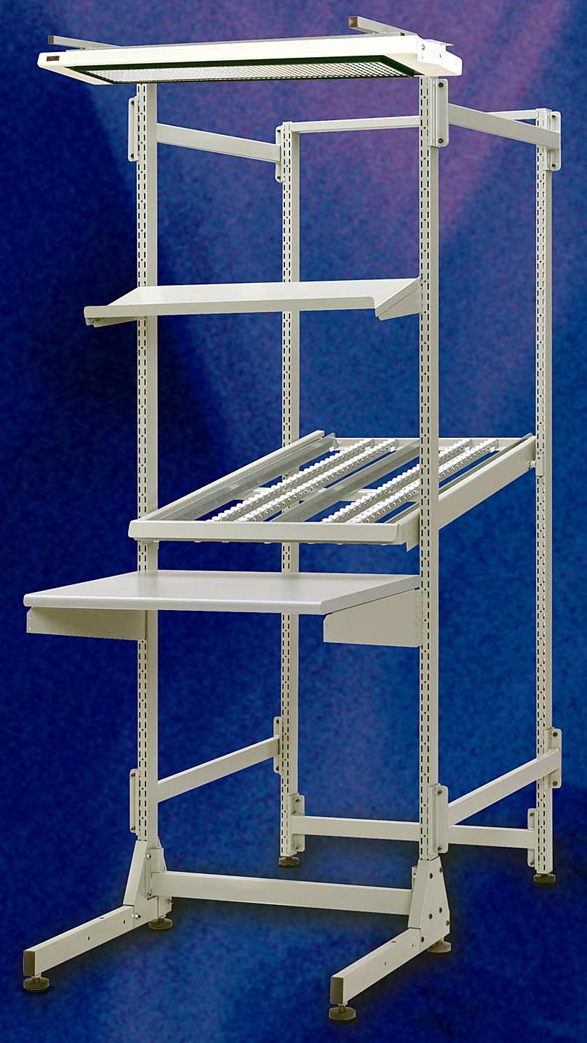

Nov 21, 2005 Nexus(TM) Flow Rack uses gravity to deliver parts, components, and cartons for picking, kitting, or assembly in material handling applications. It accept any Nexus System accessory, including shelves, lights, power, and articulating arms. By adding worksurface and casters, Flow Rack becomes mobile workstation. Product measures 86¼ in. high x 48 in. deep and is available in 30, 36, 42, 48, and 60 in. widths.

Pass & Seymour/Legrand    Syracuse, NY 13221
Nov 21, 2005 Measuring 4.25 x 4.25 x 1.25, Shallow 4-Inch Square Box is classified for 2 hr wall fire resistance and suited for masonry-furring strip style walls. Dual No. 8 screws facilitate RC1, RC2, or 4SBC mud ring installation, while 4 Auto/Clamps® eliminate need for separate cable clamps. Height Site alignment guide helps center device on reference mark. With 18 in.³ volume, product accepts 9 No. 14, 8 No. 12, or 7 No. 10 wires and can be used with ½ or 3/8 in. wallboard.

Memorytime Inc.    Portland, OR 97239
Nov 21, 2005 Wall-mounted Lite-A-Switch(TM) LED Night Light uses 6 LEDs to provide enough illumination to navigate in unfamiliar rooms. Design allows secure installation to any existing light switch or outlet plate. Available in blue, green, pink, and white, night light helps minimize energy use and injuries. In addition to hotel room, Lite-A-Switch can be installed in poorly lit halls or entranceways.

Scand LLC    Minsk   Belarus
Nov 21, 2005 Featuring cross-browser support for use on sites and web applications that run under different OS, dhtmlxMenu v1.0 lets web developers design and edit DHTML menus. Software has XML support to build menus dynamically from XML file or database, and menu appearance can be changed without requiring web page to be reloaded. Users can create pop-up or drop down menus of any configuration, and client-side API allows changing of menu state with external JavaScript code.

ELTIMA Software GmbH    Berlin   Germany
Nov 21, 2005 Offering support for Flash MX and ActionScript v2.0, SWF to FLA Converter for Mac OS lets Flash designers convert SWF files back into FLA format in one click. Mac OS tool exports whole SWF movie in FLA format and utilizes algorithms that extract all Flash objects from SWF file and store them in FLA file, which can be edited in native Flash environment. Program also permits users to change Flash objects, modify text or hyperlink, and replace sounds or images.

AW-Company    Franksville, WI 53126
Nov 21, 2005 Fuel Monitoring System consists of 2 JV-KG positive displacement flow meters, 1 for supply line and 1 for return line, as well as Model FEM-03A2 flow monitor that displays flow rate and net fuel consumed. Featuring all metal construction, flow meter measures flow rates as low as 4 cc/min and offers pressure rating to 5,000 psi. Remote reporting is enabled by 4-20 mA output. System is adaptable to compressors, diesel and gasoline engines, and boiler systems.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Nov 21, 2005 Measuring 0.58 mm thick with area dimensions of 4.3 x 4.1 mm, KMX Series attaches to board via 4 gull-wing terminals. Normally open, switches close with audible click, which is certified for 250,000 cycles. Units are available with or without actuator built-in to assembly, and incorporate ground pin for ESD protection. Gold and silver contact plating options are supported, and devices are RoHS-compliant. Applications include PDAs, smart phones, MP3 players, and cameras.

Automated Packaging Systems Inc.    Streetsboro, OH 44241
Nov 21, 2005 Autobag AB 145 is capable of bagging at speeds up to 45 bags/min in semi-automatic fill and seal operation. Package size changeovers can be accomplished in less than 2 min, and AutoTouch(TM) control screen facilitates access to job set-up, storage, and recall. Designed with all electronic controls in single location for fast plug-in replacement, system is suited for high productivity applications where counters, scales, and other infeeds are not required.

Gagemaker    Houston, TX 77287-7709
Nov 21, 2005 Windows-based CERTIFI client-server program helps customers manage and control gage calibration processes and documents. It automates crucial activities associated with calibration, tracking, and reporting of measurement information in manufacturing or machine shop environment. High-speed connection via USB port streamlines data input from MIC TRAC calibration center directly to CERTIFI calibration screens.

Trek, Inc.    Medina, NY 14103 9710
Nov 21, 2005 Infinitron(TM) electrostatic voltmeter with hand-held probe provides contacting voltage measurements with virtually no transfer of electric charge to or from measured object. It measures site-specific voltage during handling and processing to identify and rectify problems that could result in harmful ESD events. Measurement range is 0-±100 Vdc or peak ac at ±0.1% accuracy. Resistance greater than 10¹⁶ ohms provides infinite impedance loading and lack of charge transfer.

Dynasonics, Div. Of Racine Federated, Inc.    Racine, WI 53404
Nov 21, 2005 Clamp-on Doppler Series DFX measures flow in pipe sizes larger than 1/8 in. and flow rates from 0.15 to greater than 30 fps. Intelligent software algorithms monitor incoming signal quality and flow meter performance, making adjustments to nullify changing liquid conditions. Digital mixer circuit is immune to measurement errors caused by electrical noise and other ultrasonic products. Systems include NEMA 4X enclosure, isolated output modules, and backlit LCD.

NetBurner, Inc.    San Diego, CA 92121
Nov 21, 2005 Based on Freescale Semiconductor ColdFire(TM) 66 MHz, 32-bit MCF5213 processor, Mod5213 is mounted onto 40-pin DIP and comes equipped with IDE, Project Manager, and fully preemptive RTOS. IDE integrates compiler, linker, and debugger supporting both C and C++. Fully static ColdFire core provides flexible power management with standby of 130 µA and full-speed operating current below 50 mA. With operating temperature of -40 to +85°C, Mod5213 performs in harsh environments.

Cobar Solder Products    Londonderry, NH 03053
Nov 21, 2005 Intended for Pb-free and N2-free processing, SAC-XM7S remains stable and active during extended heating at elevated temperatures and does not require nitrogen blanket. It is available in most common SAC-alloys, including anti-Tombstoning type, and in several powder classes.

Carr Lane Manufacturing Co.    St. Louis, MO 63119
Nov 21, 2005 Made of steel or stainless steel, CL-200-LPA, CL-300-LPA, CL-400-LPA, and CL-500-LPA feature lock that automatically engages when clamp is closed and remains locked until manually disengaged by pressing lever before opening. This safety lock prevents latch clamp from being accidentally opened by bumping handle. Available in 4 sizes with holding capacities from 700-7,500 lb, all latch-action clamps have threaded U bolt for adjustability and matching latch plate.
