Logic Beach, Inc.    La Mesa, CA 91942

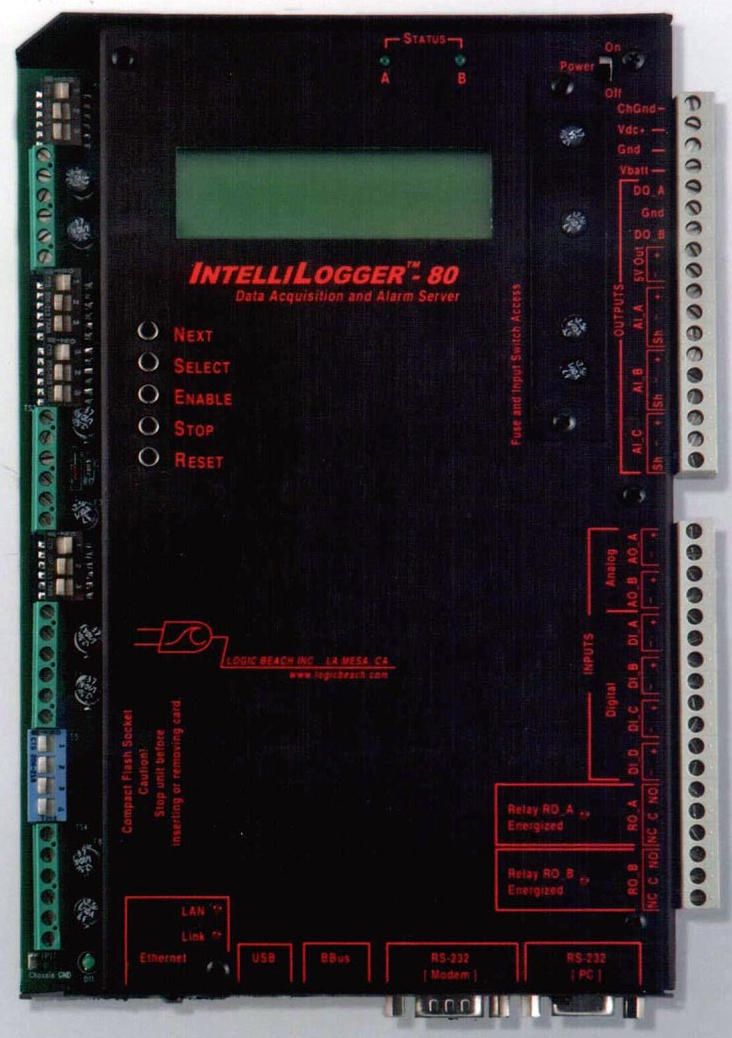

Aug 01, 2006 Self-contained, portable IntelliLogger(TM) models IL-20 and IL-80 provide network-enabled methods of data collection and retrieval for remote, browser-based monitoring. Instrument utilizes HyperWare-II(TM) icon-based, drop-and-drag programming environment and has built-in Ethernet and Web serving capabilities. Automated, wide-spread dissemination of collected data is accomplished via features that allow for Web presented data and control, data FTP actions, and e-mail of alarms and data.

Precision Linear Systems, Inc.    Cupertino, CA 95014
Aug 01, 2006 Model DF01 is comprised of solid-state temperature sensor and 4-20 mA loop-powered transmitter manufactured on same flexible circuit substrate and connected together by traces on flex. Sensor and transmitter are calibrated and set over their full operating temperature ranges at test, -50 to +150°C and -25 to +75°C respectively, which lends to model-dependent system accuracies of ±0.3, 0.5, or 0.8°C. Sensor is ready to be inserted and sealed into sensor tube.

Cablofil Inc.    Mascoutah, IL 62258

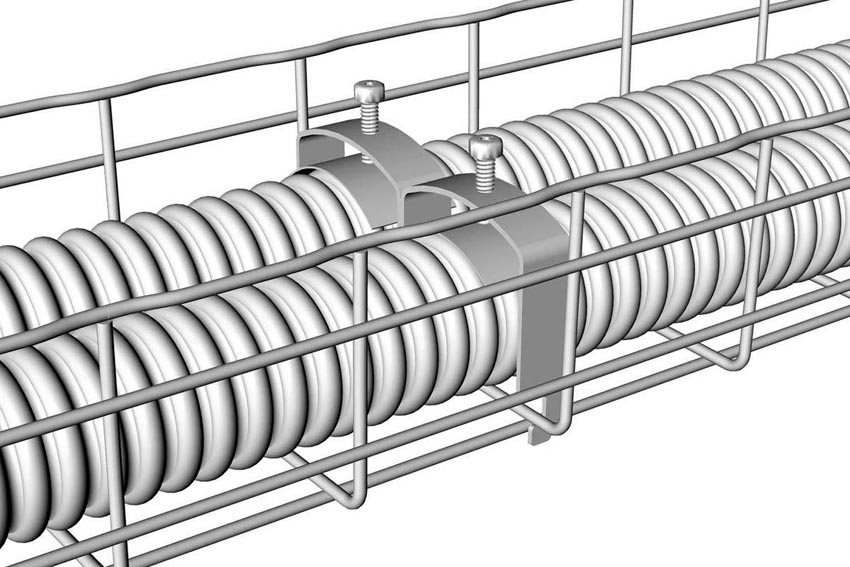

Aug 01, 2006 Featuring one-piece construction, cable clamp secures large- and small-diameter power cables to wire cable tray in demanding applications such as vertical plenums in high-rise structures. Universal bolt head requires no special tools and can be attached using one hand. Available in 8 sizes to accommodate cables from .25-4.25 in., product has Electrozinc (EZ) finish and lets installers reconfigure wiring without disassembling tray.

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Aug 01, 2006 Operated via 4-button interface, dockable GasBadge® Pro with HCN sensor option is suited for use in precious mining, gold plating, food and beverage, and hazardous materials industries. It can be adapted with interchangeable smart sensors to monitor unsafe levels of oxygen or any one of 9 other toxic gases. Audible, vibrating, and visual alarms indicate when set ranges are exceeded, and backlit LCD displays gas and concentration level. Product logs up to one year of survey data.

Tyco Electronics/Raychem.    Menlo Park, CA 94025-1164
Aug 01, 2006 Incorporating PolySwitch(TM) PPTC overcurrent technology with MOV component, thermally protected 2Pro(TM) provides current limiting during overcurrent events and voltage clamping during overvoltage events. Hold current is greater than 120 mA, and voltage clamp at 1 mA is ~270 V. Featuring resettable functionality, RoHS-compliant device is suited for use in cordless phones, VoIP gateways, data modems, set-top boxes, security systems, analog linecards, and ISDN linecards.

Lumberg, Inc.    Midlothian, VA 23113

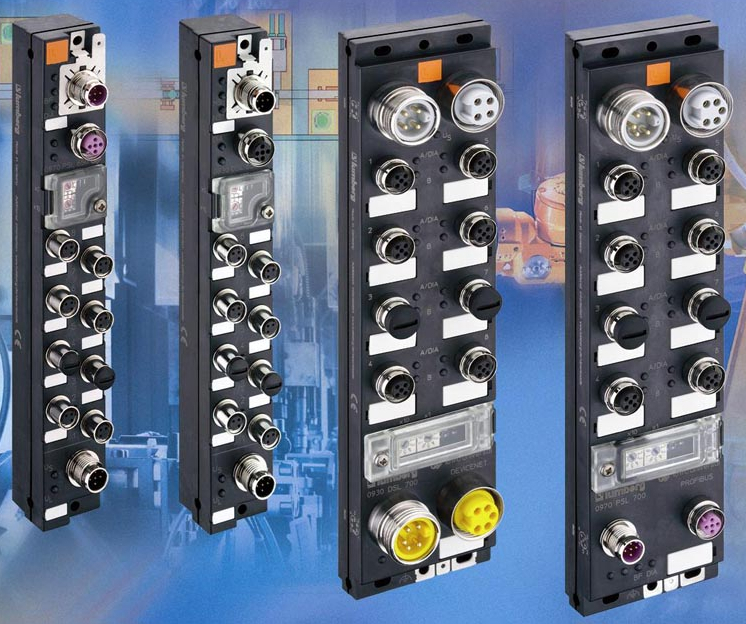

Aug 01, 2006 LioN Series, comprised of LioN-S and LioN-M housing styles, can be used in any combination of inputs and outputs without any configuration. LioN-S has Pico (M8) I/O and Micro (M12) power and bus connectors and is offered in 8-channel versions, while LioN-M has Micro (M12) and Mini (7/8 in.) power connectors. Both offer short circuit diagnostics, optimized spacing between ports, diagnostic LED, and un-potted design for shock and vibration resistance.

LEDtronics, Inc.    Torrance, CA 90505

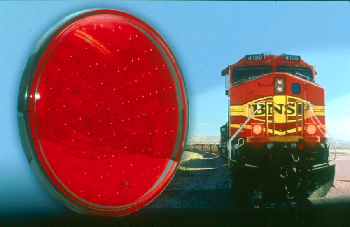

Aug 01, 2006 Featuring round dome-shaped fixture, PAR46 Series Lamp Marker Lights exceed SAE requirements and standards to provide safe, bright light to many industrial applications. Sealed housing is resistant to moisture and dust, making lights suited for outdoor use and harsh environments. Available in 25-38 Vdc or 10-85 Vdc Red, or 10-85 Vdc White, units generate negligible amount of heat, reach peak intensities up to 350 cd, and use only 3.80 W of power.

Fluke Corp.    Everett, WA 98203
Aug 01, 2006 Designed to measure ac voltage and current, Fluke 902 HVAC Meter also incorporates 80BK DMM temperature probe. Meter clamps to 750 MCM dia wire and has integrated low pass filter to detect voltage output of variable frequency drives. Allowing technicians to troubleshoot and repair heating, ventilation and air conditioning systems, meter can be used to capture flue gas temperature, conduct flame rod testing, and measure start and run motor capacitors.

Montel Inc.    Montmagny, QC G5V3S5  Canada

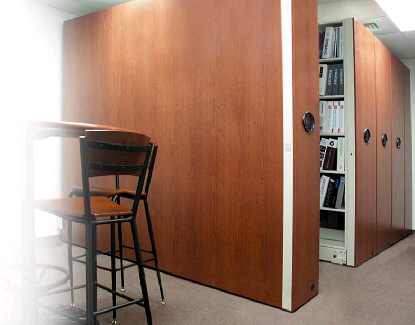

Aug 01, 2006 Optimizing space utilization and accommodating growth, WIRED(TM) High Density Storage System includes PowerTrack(TM) ground embedded wire tracks to conceal wiring in floor, as well as ePulse(TM), which allows Montel to remotely manage and monitor system. Extensive colors and finishing materials are available to blend with interior design. Additional features include recessed infrared proximity sensor, automatic overhead aisle lighting, and automatic battery back-up override.

Advance Lifts, Inc.    St. Charles, IL 60174

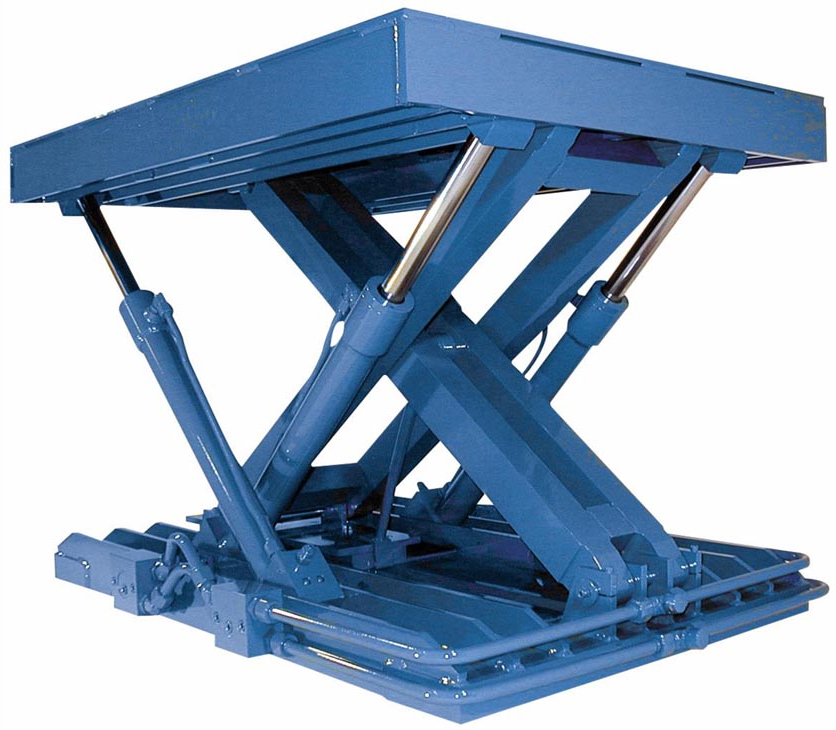

Aug 01, 2006 Machine tool lift table employs lift structure that utilizes sliders to maximize contact area while minimizing stress and wear. Double-acting cylinders, connected directly to platform corners, optimize load support and minimize deflection. Equipped with PLC proportional valve that eliminates shock at start and stop of cycle, 10 hp continuously running power unit provides speeds up to 40 fpm. Operating system provides accuracy and repeatability of ±¼ in. between 2 points.

Rubbermaid Commercial Products LLC    Winchester, VA 22601
Aug 01, 2006 Compact Housekeeping Carts feature dual access locking security hood and double locking doors that keep cleaning and other supplies concealed and secure. Carts are constructed of structural web plastic and non-rusting aluminum, and have curved ergonomic comfort grip handles to facilitate maneuverability. Storage options include removable pails, caddies, and storage bins.

Specialty Auto Parts U.S.A, Inc. / PROFORM    Roseville, MI 48066
Aug 01, 2006 Universal Camshaft Installation Handle features flexible material to provide comfort during installation, and includes 5 adapters for use with most V6 and V8 engines. Tool helps eliminate dings or scratches on cam bearings.

LEM Holding SA    Plan-les-Ouates CH-1228  Switzerland
Aug 01, 2006 Fixed onto car battery cable, DHAB Hall-effect sensor features dual measuring ranges for ±20 and ±80 A and ±50 and ±600 A current range. Design enables full-range current measurements to be taken in combination with measurements at lower currents. Sensors have sealed housing and no potting is required. Meeting ISO-TS and RoHS standards, sensors come in panel and cable-mount versions.

Agilent Technologies, Inc.    Santa Clara, CA 95051

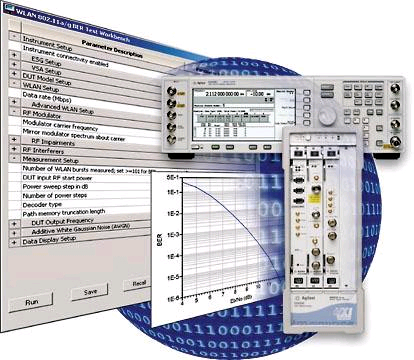

Aug 01, 2006 Connected Solutions Workbench makes RF hardware measurements such as swept EVM, CCDF, and BER analysis possible for prototype hardware. It includes pre-configured test setups that support wireless standards such as Mobile WiMax and WLAN 802.11a/b/g, UltraWideband, and 3GPP. System runs independently in PC environment and provides functions to automate tests and to perform signal creation, parameter sweeps, signal recovery, signal measurement, and data handling.

Norplex Micarta    Postville, IA 52162
Aug 01, 2006 MC844G pure black thermoset composite features flexural strength of 20,000 psi, 48,800 psi compressive strength, and maximum operating temperature of 130°C. Constructed of black paper substrate and black phenolic resin, material is designed for architectural and construction applications requiring pure black surface. Composite develops patina with age and use, and can be used in functional and decorative parts for musical instruments.

Advanced Thermal Solutions Inc.    Norwood, MA 02062
Aug 01, 2006 Measuring 9 mm in height, Model EX2 is suited for use inside enclosures where space is limited. Case-to-ambient thermal resistance is 1.8°C/W within air velocity of 600 fpm. Unit can be securely attached to component with double-sided, thermally conductive adhesive tape. No mechanical hardware is required.

Harting KGaA      Germany

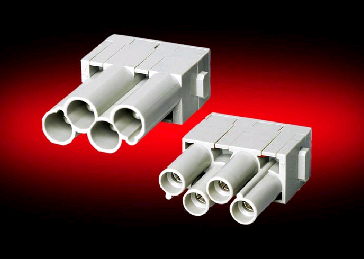

Aug 01, 2006 Accommodating 4 Han C® contacts with crimp termination, Han® CC Protected Module is suitable for 3-phase plus neutral power transmission systems. Finger protected male and female contacts enable safe connector solutions in applications where power could be present on both male and female side of connector, such as frequency converters, power ring circuits, or battery charging circuits.

Harting KGaA      Germany
Aug 01, 2006 Utilizing up to 8 D-Sub crimp contacts, Han® High-Density-Quintax Connector can be used for many applications with shielded cables, including redundant MVB bus system. With one Han-E® crimp contact in coaxial position, Han® E-Coax Connector features impedance of 50 Ohms and is suited for use with large diameter coaxial cables.

Harting KGaA      Germany

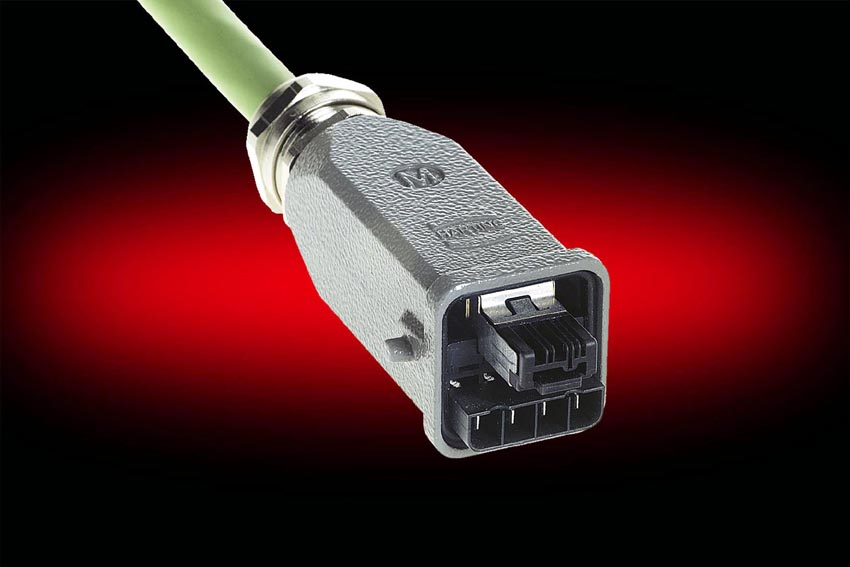

Aug 01, 2006 Metal RJ Industrial Hybrid Connector integrates data lines and power supply into one connector for hybrid Ethernet networks. Connector features 4 power contacts designed with HARAX® rapid termination technology, which allows stranded wires of up to 1.5 mm² to be connected. Geometry of device maintains separation between data and power contacts for installation.

Linear Technology Corp.    Milpitas, CA 95035
Aug 01, 2006 LTC2914 voltage monitor IC contains undervoltage (UV) and overvoltage (OV) inputs and allows specific UV and OV trip threshold configuration with ±1.5% accuracy of monitored voltages. Buffered reference output and 3-state input polarity-select pin allow monitoring of 2 separate negative voltages. Featuring input glitch filters that eliminate noise and 70 µA quiescent current, IC is suited for telecom/network equipment, storage servers, and desktop and notebook computers.
