Cummins Power Generation Americas    Minneapolis, MN 55432

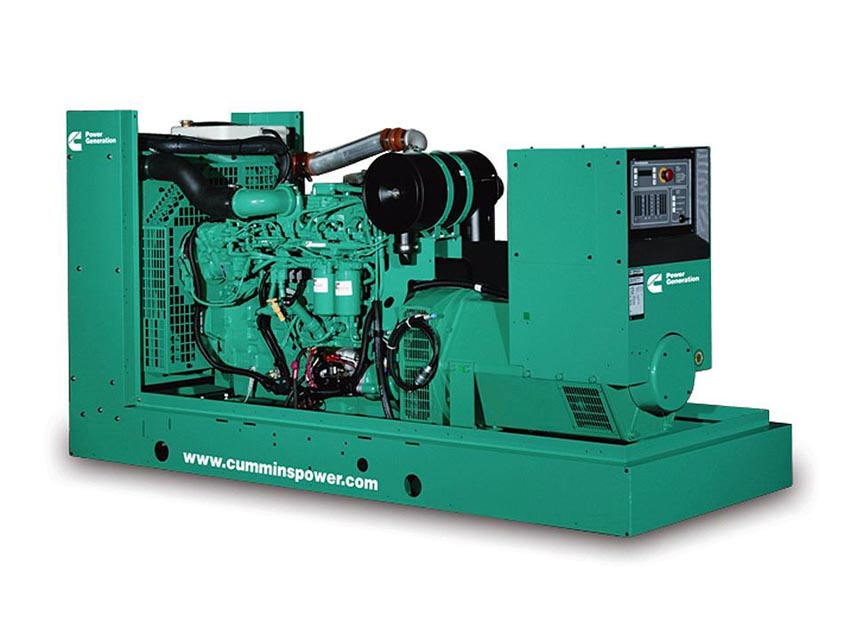

Nov 22, 2005 Based on Cummins 9 liter inline 6-cylinder diesel engine, DSHA low-emissions generator sets operate at 60 Hz and are intended for standby and prime power use. Model DSHAA is standby-rated at 150 kW and prime-rated at 135 kW, Model DSHAB is rated standby/prime 175/160 kW, and Model DSHAC is rated 200/180 kW. Series also features PowerCommand® digital control system with automatic remote start/stop, frequency/voltage regulation, message display, and auto shutdown.

RIDGID    Elyria, OH 44035

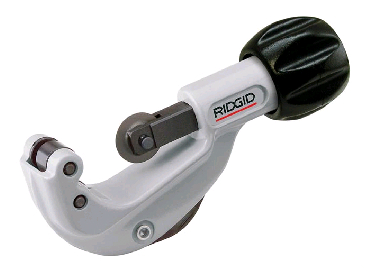

Nov 22, 2005 RIDGID® Models 150 and 150-L can cut close to flare on copper, aluminum, brass, and stainless steel tubing. Model 150 cuts up to 1-1/8 in. OD tubing, while Model 150-L offers additional capacity of up to 1-3/8 in. OD tubing. Enclosed feed-screw design prevents clogging or jamming. Quick-change X-CEL ball-detent wheel pin enables users to change cutter wheels by hand and eliminates lost fastening clips, while ergonomic X-CEL knob gives users firm grip.

Kontron Modular Computers GmbH      Germany

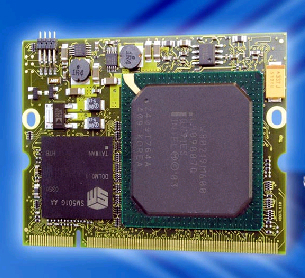

Nov 22, 2005 Available with starter kits for Windows CE and Linux, X-board is equipped with 400 or 600 MHz Intel® 80219 PCI processor with 128 MB DRAM and 32 MB Flash. It combines Intel® XScale® core with integrated PCI bus bridge and smart peripheral interfaces on surface area of 2.6 x 1.9 in. Module includes AC97 Audio CODEC, 16 MB graphics memory, CRT and LCD TFT display support with 1,280 x 1,024 pixel resolution, and all interfaces needed for mobile multimedia devices.

Cablofil Inc.    Mascoutah, IL 62258
Nov 22, 2005 Gripple Wire Cable Hanging Support attaches directly to FAS (Fast Assembly System) Profile, securely suspending wire cable tray from any overhead structure or ceiling deck. Gripple cable brake adjusts quickly and securely without requiring special tools. Suited for use with any width cable tray, system comes with 100 or 200 lb, 10 ft cable and 3 attachment options. Trapeze Clip accessory lets installers hang multiple levels of trays for complex applications.

Juki Automation Systems    Morrisville, NC 27560
Nov 22, 2005 Suited for SMT manufacturers, IFS-X system uses RFID technology as primary communication method between feeder and assembly machine to track components from initial receipt through placement. Traceability is conducted by intelligent feeders, which store component data such as part number, quantity, and lot number. Date and time board was assembled are also traced. Through automated part recognition, closed-loop system minimizes setup time and prevents human errors.

IRC, Advanced Film Div.    Corpus Christi, TX 78411
Nov 22, 2005 Providing self-passivating tantalum nitride thin film technology on silicon substrates, wire bondable WBC Series features absolute tolerance ranges down to ±0.1%, with absolute TCRs to ±25 ppm/°C. Resistance range to 400 kΩ allows for surge protection in high power applications. Units are available in 0202 and 0303 chip sizes. Center-tapped 0303 chips can be used in feedback circuits of amplifiers, where ratio matching and close tracking between 2 resistors is critical.

ITT Industries, Cannon    Santa Ana, CA 92705-5612
Nov 22, 2005 Comprised of shell and insulator with 5 A copper alloy contacts, Grommet D rectangular connector system features silicone rear grommets and interfacial sealing, allowing operation when immersed in water or corrosive liquids. Connector withstands high voltages with average flashover ratings of 1,000 V from sea level to 20,000 ft and 500 V from 50,000-70,000 ft. Densities range from 9-50 pins, with high-density versions available from 15-78 pins.

Immerge Technologies, Inc.    Harrisonburg, VA 22802

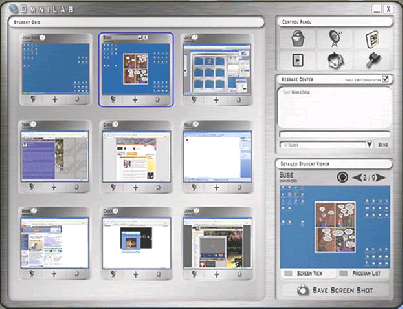

Nov 22, 2005 OmniLab instructional tool helps teachers conduct productive classes by providing observe, present, and communicate features. Teachers can monitor student screens from their workstation or blank screens to capture student attention. With click of button, teacher's screen can be broadcast to all student screens, providing means to display presentations in rooms not equipped with projector. Students can direct private questions to teacher using text-messaging function.

AXIOMTEK    Taipei   Taiwan
Nov 22, 2005 Suited for displaying media content in POI/POS/KIOSK/HMI applications, PANEL2127-810 is powered by Intel® Pentium® or Celeron® M processor and features SVGA LCD rated at 400 nits. It utilizes Intel 855GME chipset with max 64 MB graphic memory and supports DualView and PATA/SATA hard disk. Along with PCI interface for expansion, computer comes with USB 2.0, RS-232/422/485, RS-232, parallel, and 10/100Base-T Ethernet ports. CD-ROM/combo drive is available.

Danfoss VLT Drives    Loves Park, IL 61111
Nov 22, 2005 Engineered to meet water and wastewater application demands, VLT® 8000 AQUA series is comprised of models rated from 125-600 hp, 380-500 Vac and 50-400 hp, 525-690 Vac. Products provide variable- or constant-torque operation at 98% operating efficiency. Available in 2 frame sizes with Chassis/IP00, NEMA1/IP21, or NEMA12/IP54 enclosures, drives have modular construction, built-in Class A2 RFI filtering, and integral disconnect with option of fuses.

BI Technologies Corp.    Fullerton, CA 92835-1051
Nov 22, 2005 Available in J-hook SMT packaging, 3 mm multi-turn Model 43 is RoHS-compliant and suited for applications involving cellular base stations, night vision systems, set-top boxes, and portable test and measurement equipment. Cermet trimming potentiometer has resistance range of 10 Ω to 2 MΩ, with standard tolerance to ±20% and absolute TCR values to ±100 ppm/°C. It offers power ratings to 0.125 W at 70°C and has -65 to +150°C operating temperature range.

BI Technologies Corp.    Fullerton, CA 92835-1051
Nov 22, 2005 Constructed with nichrome resistors on ceramic substrates, Thin Film Resistor Networks are available in QSOP, SOIC, PDIP, and BGA packages. Resistive element is protected from moisture by passivation material. Networks provide resistor tolerances to ±0.025% and resistor ratio tracking tolerances to ±0.01%. Available in standard isolated, bussed, ladder, and voltage divider circuit configurations, units have absolute TCR values to ± 25 ppm/°C with TCR tracking to ±1 ppm/°C.

Extrusion Dies, Inc.    Chippewa Falls, WI 54729

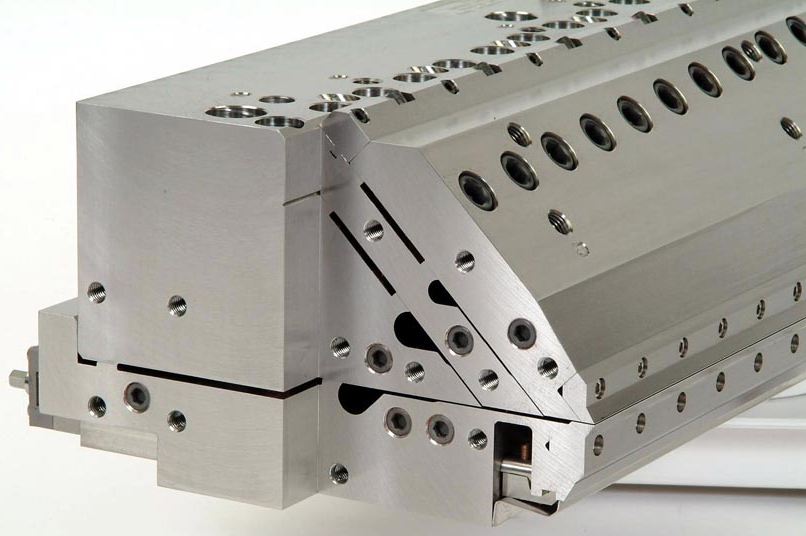

Nov 22, 2005 Suited for proximity coating of fluids onto web substrates, dual- and triple-manifold Ultracoat® dies replace multi-stage processes with single-pass coating. They enable converters to use single die to apply 2 or more coatings simultaneously, avoiding oxidation and contamination coatings can undergo between stages. Product is used in process that pre-meters coating fluid at constant rate and is fully enclosed to reduce issues with airborne emissions.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838

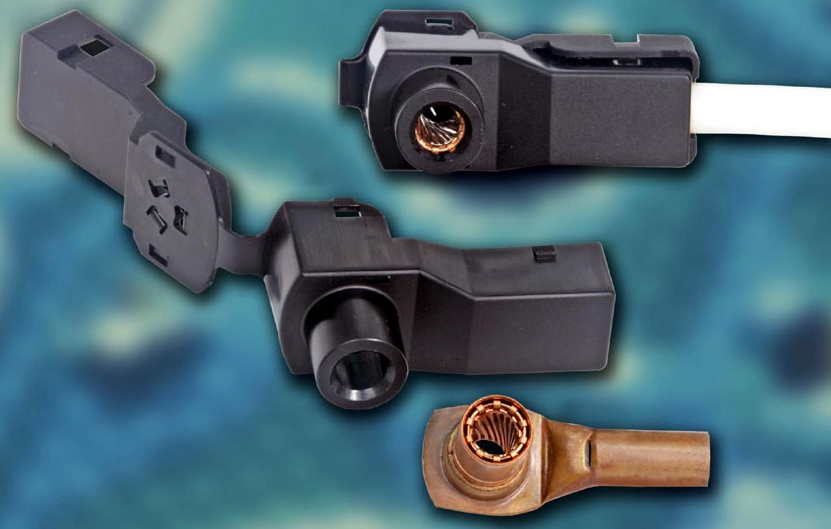

Nov 22, 2005 Plastic SurLok features 2 locking mechanisms that ensure secure connection to maintain voltage and amperage levels. Head of pin locks into place once mated to socket and snaps into inside of plastic cap. Industry standard color codes are used to specify required wire size. Featuring RADSOK® contact technology, products come in 4 sizes with 3.3-10.3 mm contact rated from 70 A with 8 AWG to 350 A with 2/0 AWG respectively. Each has tapped tail termination.

FCI Electronics    Etters, PA 17319 9769

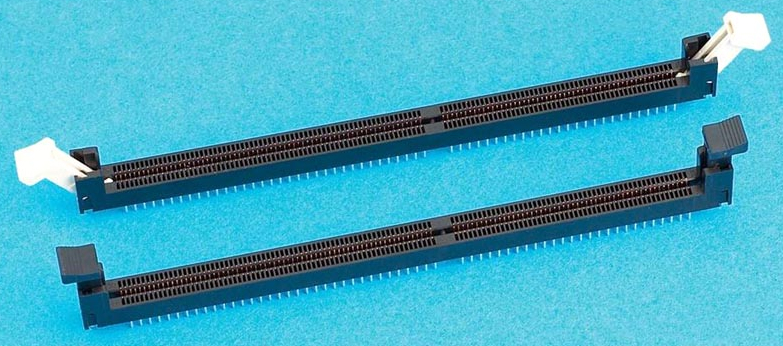

Nov 22, 2005 Vertical memory module connectors accept DDR2 FB-DIMM (Fully Buffered Dual In-Line Memory Module) assemblies and have card-edge contact design that protects against stubbing. Enabling data rates to 4.8 Gbps, interface utilizes serial differential signaling. Sockets provide mechanical voltage keying and end latches for module retention and ejection. Designed to JEDEC Socket Outline SO-003, 240-position connectors feature through-mount leads for solder termination.

International Fiber Systems Inc.    Newtown, CT 06470
Nov 22, 2005 Along with Gigabit Ethernet transmission capability, EtherNav(TM) D7608 features mechanisms to monitor, configure, and manage VLAN. Console interface, using RS-232 interface, allows for local network control from PC, while web-based GUI enables remote configuration control. Mechanically and environmentally hardened unit features up to 9 optical 10/100 FX fast Ethernet ports. It supports SNMP v2C, Rapid Spanning Tree Protocol, and is RFC1213-compliant.

International Fiber Systems Inc.    Newtown, CT 06470
Nov 22, 2005 EtherNav(TM) DEV7100 Series allows single baseband NTSC video, camera control data, and audio signal to be IP-encoded and transported on 10/100 Base-T Ethernet network; output can be 10/100TX electrical, 100 FX optical, or baseband video output connection. Controlled with Symnet software, monitoring and remote PTZ control can be accessed from central monitoring station or any computer with Internet connection. Unit also functions as encoder and decoder.

Norstat Inc.    Mansfield, OH 44903

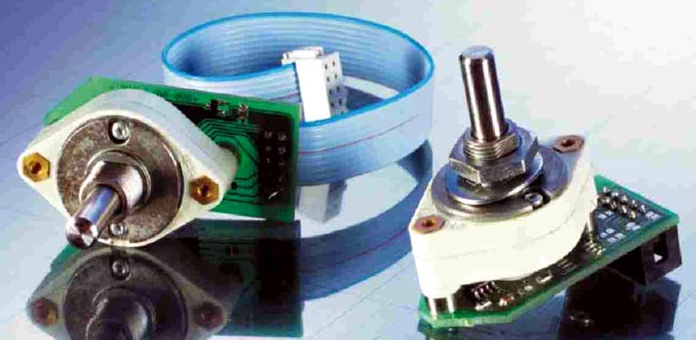

Nov 22, 2005 Featuring wear-free operation with magnetic scanning, ECBS has no contacts that slide over its PCB. Internal electronics evaluate output signals, allowing switch settings to be combined with outputs to suit end-user requirements. Available with 16, 24, or 32 divisions, switch can be precisely adjusted to suit variety of applications. It can also be equipped with adjustable limiter. Connections are made via ribbon cable or plug-in connector.

YesTech Inc.    San Clemente, CA 92673
Nov 22, 2005 Offering zoom magnifications up to 2,400x, YTX-3000 HXR x-ray system incorporates open-tube transmission target x-ray source with integral high-voltage power supply and computer-controlled motor drives. Unit also integrates 4- or 5-axis sample manipulator and 15 x 20 in. x-y travel for samples up to 5 lb. Suited for SMT and semiconductor manufacturers, product delivers programmable motion with 360° rotation and 30° tilt via its control module.

SICK, Inc.    Minneapolis, MN 55438
Nov 22, 2005 Configured for one- or 2-direction operation, C4000 Palletizer can be placed where material needs to enter and exit machine, but person needs to be detected. It incorporates pattern recognition technology and is offered with 30 or 40 mm resolution. For applications requiring muting capabilities, C4000 Eco and Basic Plus Safety Light Curtains are guard-only units designed for point-of-operation safeguarding. Available resolutions are 14 and 30 mm.
