Midwest Tool & Cutlery Co.    Sturgis, MI 49091
Aug 10, 2006 Designed with hot drop-forged blades, long-cut Power Cutter(TM) Model P6716AS cuts fully from pinch to point, even on difficult-to-cut materials such as sheet metal and heavy weight, industrial-grade rubber and hose. Power ratio of 8:1 facilitates cutting by minimizing hand pressure needed, while soft grips comfort users hand. Snip is suited for cutting vinyl, rubber, screen, carpet, and metal ducting.

Zilker Labs, Inc.    Austin, TX 78746
Aug 10, 2006 Housed in 6 x 6 mm package, single-chip 3 A Model ZL2105 integrates synchronous step-down converter, featuring synchronous power MOSFETs, with key power management functionality. Full circuit digital power management capabilities require less than 2 sq cm of board space. Digital-DC(TM) product is fully configurable with pin-strap connections, resistor selection, or via device's on-board serial port using PMBus(TM) command set.

Pentek Inc.    Upper Saddle River, NJ 07458
Aug 09, 2006 Featuring four 125 MHz ADCs, dual Virtex-4 FPGAs, and 768MB DDR2 SDRAM, Model 7142 provides complete software radio transceiver functions suitable for IF or RF communication systems. Built-in clock/sync bus supports multi-module synchronization and provides dual on-board oscillators for independent input and output clock rates. XMC I/O delivers data streams over Gigabit serial fabrics. Module comes in PCI, 3U and 6U cPCI form factors, as well as PMC conduction-cooled version.

AXIOMTEK    Taipei   Taiwan

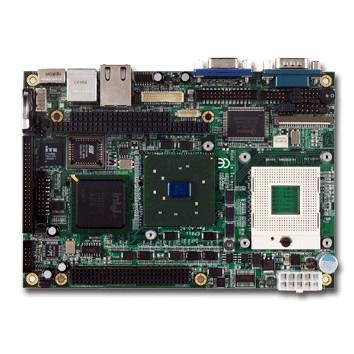

Aug 09, 2006 Including both PC/104 for 16-bit ISA and PCI104 for 32-bit PCI interfaces, EP811 SBC supports laptop Intel® Pentium® M and Celeron® M CPUs running at 400 MHz. Board features Intel® 852GM with ICH4 chipset. With 4.53 x 6.50 in. form factor, SBC allows PC-style connectors for I/Os and is shock and vibration resistant. Offering dual display function, board includes 10/100 Mbps Ethernet, CompactFlash(TM) Type II with DMA mode, 4 USB 2.0 ports, AC-97 Codec Audio, and digital I/O.

HED, Inc.    Hartford, WI 53027

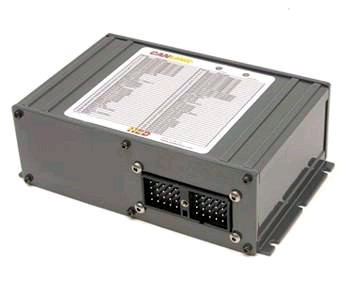

Aug 09, 2006 Capable of operating as stand-alone modules or as master controllers, general purpose CANLink® Models CL-413, CL-420, and CL-421 can each be configured to precise combination of input and output types application may require. Model CL-413 is equipped with 39 inputs and 22 or 24 outputs, while Model CL-420 features 19 inputs and 10 outputs, and Model CL-421 provides 18 inputs and 12 or 14 outputs.

Fox Electronics    Fort Myers, FL 33905 5022

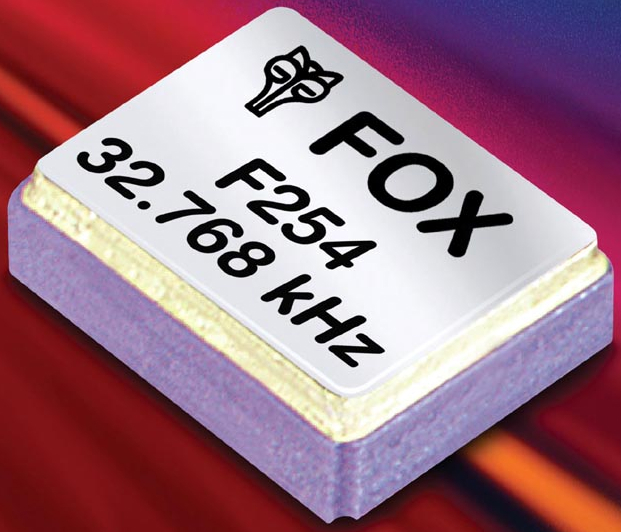

Aug 09, 2006 RoHS-compliant F254, which measures 2.5 x 4.0 x 0.9 mm, keeps track of time and date in devices where space is limited. This 32.768 kHz HCMOS surface-mount oscillator requires 1.5 µA input during full operation and 250 nA during standby. Operating over -40 to +185°F range, product offer frequency tolerance of +5 ±20 ppm and frequency stability of -120 +10 ppm over -4 to +158°F range. Symmetry is 40/60%, and output load is 15 pF.

ON Semiconductor, LLC    Phoenix, AZ 85008

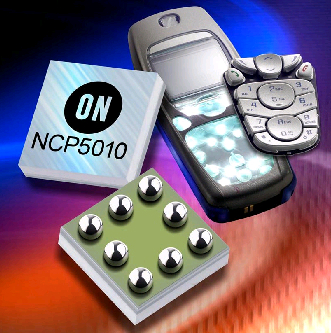

Aug 09, 2006 Delivering up to 84% efficiency and 1 µA shutdown current, inductive Model NCP5010 operates from 2.7-5.5 V and supplies up to 22 V to power series of 2-5 LEDs. Charge pump Models NCP5604A and NCP5604B drive either 3 or 4 LEDs, respectively at up to 25 mA of current per LED. Providing up to 90% efficiency and less than 1 µA quiescent current, devices operate on input voltages from 2.7-5.5 V and feature short-circuit and overvoltage protection.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 09, 2006 Supplied in 8-pin DIP, VO3150 combines high-speed optocoupler and 0.5 A MOSFET/IGBT driver in one package. Its 1.0 V max low-level output voltage eliminates need for negative gate drive, and output voltage closely matches positive supply voltage. Able to operate without exhibiting upward voltage drift, product has switching frequency above 16 kHz and isolation voltage of 5,300 Vrms with min of 15 kV/µs and typ of 30 kV/µs common mode rejection at VCM of 1,500 V.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 09, 2006 Available in 5 case sizes, Hi-Rel COTS Tantamount® T83 Series Capacitors feature capacitance range of 0.1-330 µF, voltage range from 4-35 V, and operating temperature of -55 to +125°C. Option of low ESR values, which extends down to 0.1 ohm at +25°C and 100 kHz allows efficient filtering in critical DC-to-DC conversion applications. Surface-mount units are suited for avionics and military systems such as radar, missiles, and other weapons systems.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Aug 09, 2006 Measuring 3.550 x 3.775 in., Model USB-CTR-15 features 5 fully undedicated 82C54 counter/timer chips, each with 3 independent, software-programmable, 16-bit counters. True USB 2.0 device offers plug-and-play operation, enabling users to add portable counter/timer capabilities to any PC or embedded system with USB port. Unit is suited for event counting, frequency measurements, position measurement, pulse counting, PWM, and pulse generation.

Flowserve Corp.    Deer Park, TX 77536
Aug 09, 2006 Measuring 1.42 in. in dia and 3.54 in. long, Guardian 3000 keeps processor and graphics chips cool in high-end PCs. This overhung centrifugal, nonmetallic, magnetic-drive, seal-less pump is powered by integral brushless 12 Vdc motor and features form factor necessary to fit microcomputer and other electronic package applications. Impeller diameter is under 1 in.

Samtec, Inc.    New Albany, IN 47151 1147

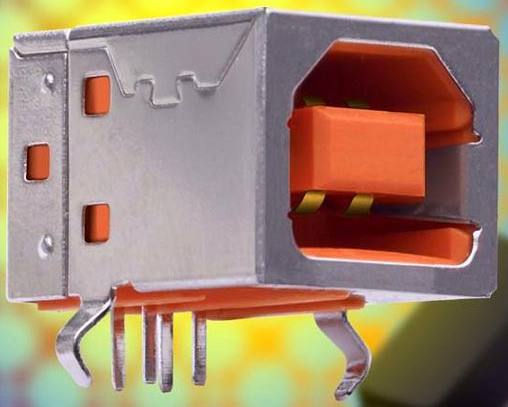

Aug 09, 2006 Available in SMT and through-hole designs with choice of right-angle or vertical top-entry orientation, USBR Series complies with class 1, Div II minimum withdrawal requirement of 15 N. Connectors have orange color-coded insulator to differentiate from standard withdrawal force connectors (USB Series) available with white or black plastic. A Type and mini USB interfaces, as well as standard (USBC Series) and custom cable assemblies, are available.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Aug 09, 2006 With 50-1,500 mm measuring range and 0-10 V direct position output, D-series sensor suits linear positioning applications and requires no recalibration after initial installation. It utilizes Temposonics® magnetostrictive sensing technology and is capable of linearity better than 0.01% and repeatability of 0.005%. Along with position update rate of 1.5 kHz, sensor features waveguide sensing element, conditioning electronics for output position data, and protective IP 67 housing.

FCI    Etters, PA 17319

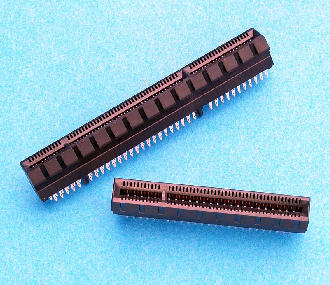

Aug 09, 2006 Targeted for use on 2.36-4.19 mm thick PCBs, 98-position Series 10055293 supports up to x8 PCI Express connection, while 140-position Series 10055295 provides internal storage interface for up to four x1 ports of SATA/SAS and sideband signals in addition to x8 PCIe link. Press-fit connectors utilize eye-of-needle-compliant section for termination to backplane. ExpressModule adapters are designed for closed chassis insertion and removal while chassis is under power, without damage.

Dassault Systems USA    Woodland Hills, CA 91367
Aug 09, 2006 Version 2.3 ABAQUS for CATIA V5 aids in deployment of analysis workflows and simulation technology across product development organizations. It utilizes technology from ABAQUS v6.6 and CATIA V5 R16 to enhance its own capabilities in contact modeling, connections, and usability. Scalable simulation solutions and open framework facilitate performing multidisciplinary analysis within PLM process. Software also permits use of same FEA methods and models within CATIA V5.

Technotrade International, Inc.    Manchester, NH 03103-3343

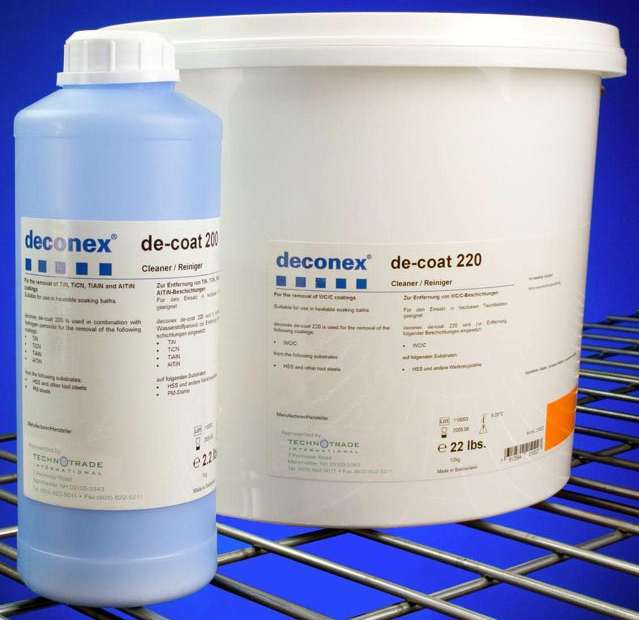

Aug 09, 2006 To allow re-coating, Deconex® De-Coat Metal Coating Strippers remove specific types of coatings on carbides, carbide composites, HSS, PM, and other tool steels while protecting integrity of base materials. They are suited for use in cold- or hot-process baths, applications include forming tools, drill bits, end mills, hobs, cutting inserts, pins, punches, and bushings. Extending useful life of wear-resistant parts, concentrated strippers feature 3-5% dilution typ.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Aug 09, 2006 PEMSERTER® Series 2000® is suited for installing all types of self-clinching fasteners permanently in thin-metal sheets. Featuring PLC that accommodates custom programs, automatic fastener-installation press system offers job search and recall mode as well as 300 job storage capacity. Unit is Ethernet-capable and expandable to interface with other systems. With 24 in. throat depth, unit performs at cycle rates up to 2,750 strokes/hr while delivering 400-16,000 lb of ram force.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Aug 09, 2006 Supplied in 3 x 3 mm package, bq24060 enables portable digital electronics to charge safely from battery charge cradle or ac adapter. Single-cell Li-Ion linear charger features thermal fold-back regulation and low dropout (LDO) power management. Along with integrated 1-A power FET and current sensor, it offers complete, 3-phase charge management capability. Product withstands up to 26 V input and integrates reverse-blocking protection scheme to prevent battery drainage.

Wulftec/M.J. Maillis Group    Ayer's Cliff, QC J0B1C0  Canada

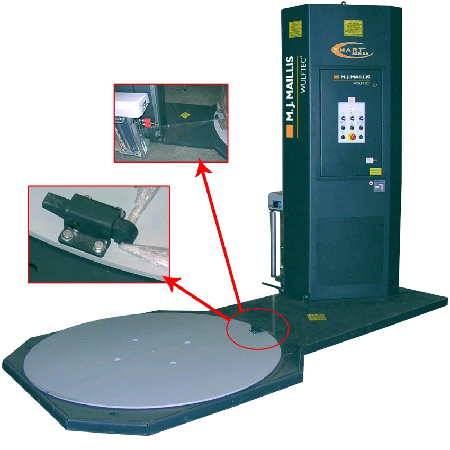

Aug 09, 2006 Suited for most semi-automatic turntables, SMART(TM) Start Manual Clamping System holds film in place so that it is ready to wrap for next cycle. User just cuts film after wrap cycle and inserts it in clamp. With SMART Start system, operator only has to get off forklift once per cycle.

Delavan Ag Pumps, Inc.    Minneapolis, MN 55403

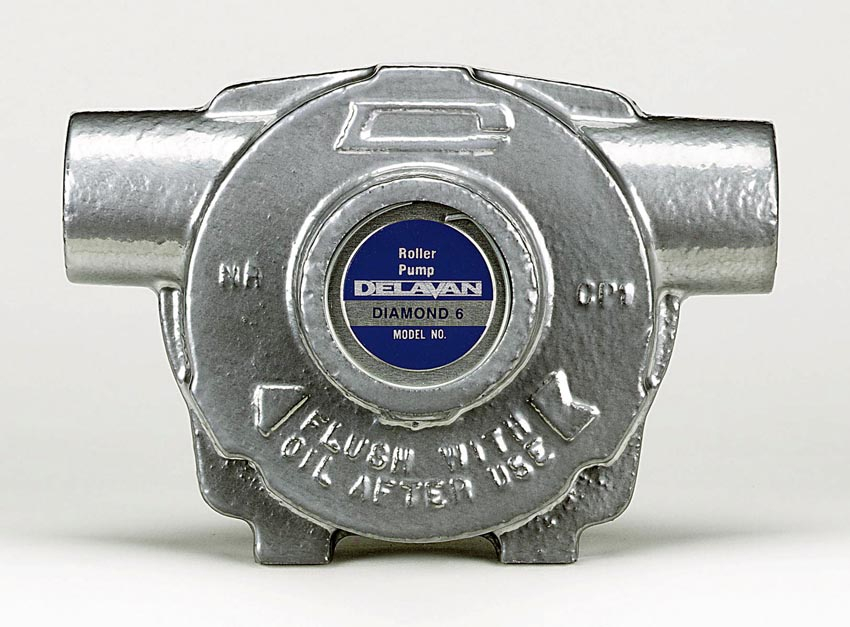

Aug 09, 2006 Featuring durable special alloy body and end plate, Diamond Series(TM) 6600 Roller Pumps resist chemicals, such as herbicides, and have 416 stainless steel shafts with extra-fine finish to minimize seal wear. Positive seal between end plate and pump body is provided by Buna-N seal ring. Pumps have maximum flow output of 19.6 gpm at 1,000 rpm and handle fluid temperature to 140ºF. Standard rotation is clockwise, with counterclockwise optional.
