Belden    Richmond, IN 47375

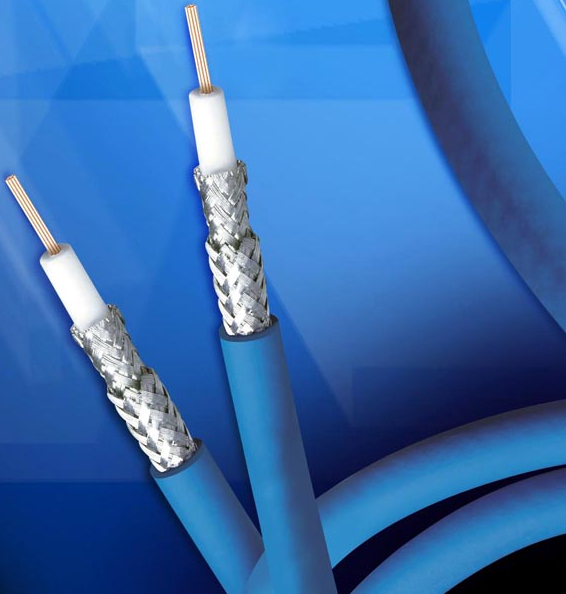

Aug 11, 2006 Designed for patching applications, Brilliance RG-6/U Type Precision Video coaxial cable (1694F) handles analog and digital signal transmissions and is 100% sweep tested for return loss to 3 GHz. Physical and electrical characteristics withstand repeated pulling, bending, and flexing of cable without risk of developing discontinuities that could degrade cable performance or cause breakage. Cable has 19 AWG bare copper (compacted) stranded center conductor.

Value Engineering Alliance, The    Cambridge, MA 02139-4772

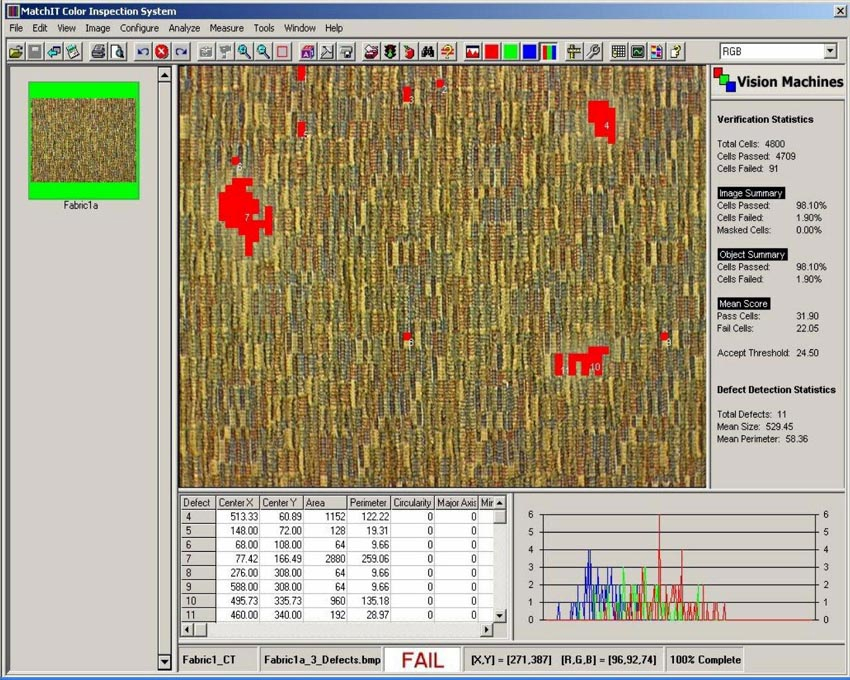

Aug 11, 2006 By comparing images of items or scenes of interest to their respective stored reference images, HueView(TM) enables inspections to be done based on color, texture, or user-selectable combination of both. WinTel-compatible software application works on multicolored, patterned, and textured items, supporting image acquisition using FireWire cameras, TWAIN, and analog camera/framegrabber combinations. It incorporates learning capabilities and requires no follow-up data analysis.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 11, 2006 Available in bore sizes from .250-.750 in., S90BF9 Series 24 Vdc anti-backlash brakes are supplied with individual keyways. Series includes 7 flange-mounted brakes, which offer static torque ratings from 5-125 lb-in. and nominal resistance from 43-128 ohms. Supplied in packages with ODs from 1.250-3.270 in., brakes feature max wattages from 5-15 W.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

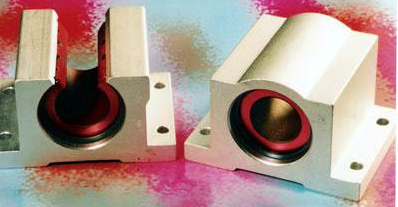

Aug 11, 2006 Comprised of 54 pillow blocks, S61P_C and S61P_Z Series feature self-aligning, Frelon®-lined anodized aluminum bearings. They are available in inch and metric sizes designed to fit shafts from .250-1.25 in. and 8-30 mm. Open and closed models with precision and standard tolerances are available. Wear rates are affected by surface finish, shaft hardness, length of travel, contamination, and lubrication.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

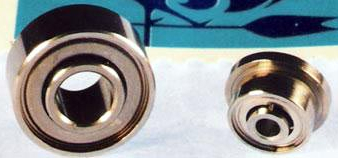

Aug 11, 2006 Made to exacting tolerances of 440C or DD stainless steel, ABEC 3 bearings, offered as A 7Y55 Series, come in no shield and double shield configurations. They address engineering problems where elimination of shims or other spacers is desirable in maintaining proper spacing of bearings away from large-diameter components. Comprised of 34 models, series offers ODs from .1562-.6250 in. and fits shaft diameters from .0469-.3125 in. Series offers .0002 or .0005 in. radial play.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 11, 2006 S98CA6 Polyclutch Series slip clutches feature multiplate design that enables units to apply correct torque. Available in various models with torque ranges of .3-32 oz-in. up to 16-1,200 oz-in., miniature clutches are targeted for controlling tension on paper, film, and wire. They accommodate ¼, 3/8, and ½ in. shaft dia, and housings range in length from 1.06-2.87 in. and in dia from 1-2.75 in. Two smallest units have zinc plated steel housings, while larger 4 are aluminum.

FlexLink Systems, Inc.    Allentown, PA 18106

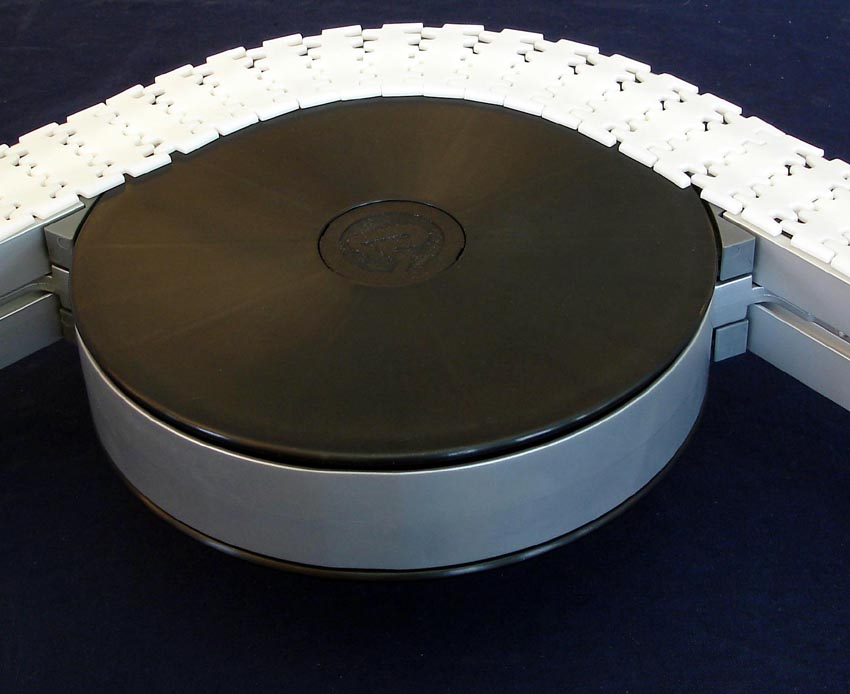

Aug 11, 2006 Available in 30, 45, 90, and 180° executions, Wheel bends feature flat top design for items to pass through tight bends. Safety is provided by finger and product protection in chain inlet and outlet, and by covering between top and lower wheel. Covered side faces and self draining lower wheel ensure no dust or liquid remains inside. Equipment is easily attached to wheel bend inner side face via interior nut slot, while outside T-slot allows attachment at any position.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Aug 11, 2006 Ranging from .63-3.00 in. dia x 1.05-2.30 in. long, spring-wrapped Series S9940Y accepts shafts from .1248 to 7/8 in. dia and features limit torque from 9-480 oz-in. Units can be used as tensioning mechanisms in film transports, tape drives, or coil winding equipment. For transmission overload protection, clutches serve as limit stop to prevent jam-up or sudden shock loads. Units operate clockwise or counterclockwise and can have same or different CW and CCW torque values.

Technobox, Inc.    Mount Laurel, NJ 08054

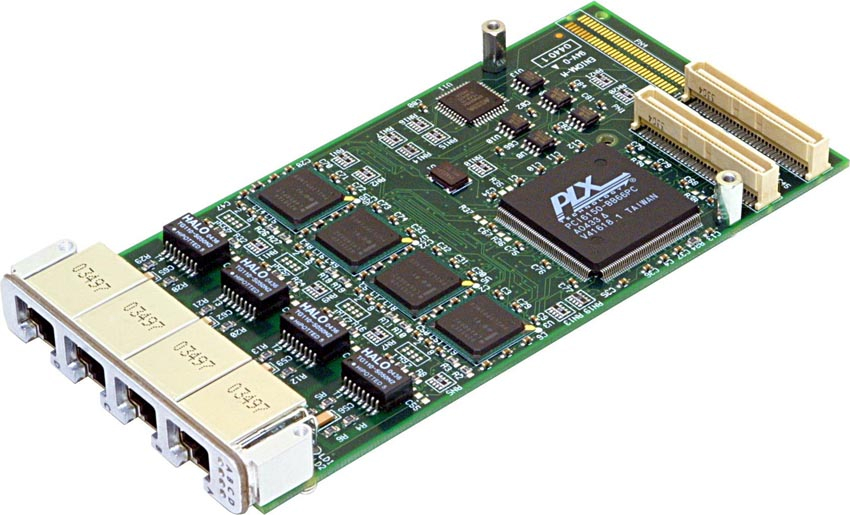

Aug 11, 2006 PCI Mezzanine Card (PMC), Quad 10/100-TX Mbps Ethernet Adapter with Front Panel I/O (Part No. 4435), supports 4 Ethernet connections over twisted pair media. Built around Intel 82551ER Ethernet controllers that provide integrated media access controller and physical layer, 4435 offers full-duplex operation at 10 Mbps or 100 Mbps. Connection to 32-bit, 66 MHz PCI bus is via PLX 6150B bridge, allowing each 82551ER to appear as independent controller on primary side of bridge.

imRAC Inc.    Worcester, MA 01610

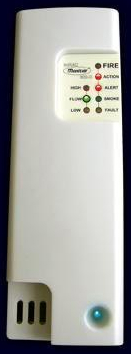

Aug 11, 2006 Monitair(TM) 3rd Generation (3G(TM)) Aspirated Smoke Detector (ASD) utilizes 2 opposing light sources with wide difference in wavelength to discriminate dust and steam from particles of combustion, minimizing occurrence of false alarms. Along with adjustable sensitivity, product offers analog (4-20 mA) and relay outputs for interface to PLC or Fire Alarm Control Panels. Duct detector version, also available, utilizes one-piece sampling Mono-Probe(TM).

Lantech Inc.    Louisville, KY 40299-2316

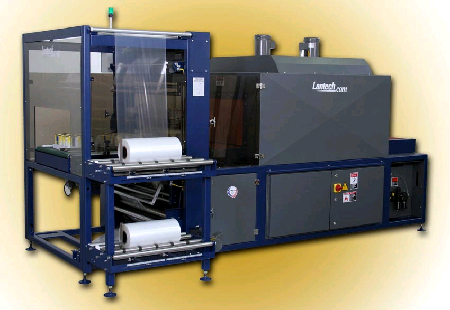

Aug 11, 2006 Combining ConvectAir(TM) shrink tunnel and wrapping module on unitized frame less than 12 ft long, Model SB-2030 shrink wraps up to 30 transport packs/min with consistent placement. Belt-fed system accommodates products up to 24 x 12 in. to any practical length. Cradle-type film delivery system facilitates loading from side without mandrels, while positive film feed via nip roller allows flying splices from end of one roll to start of next to virtually eliminate film waste.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192

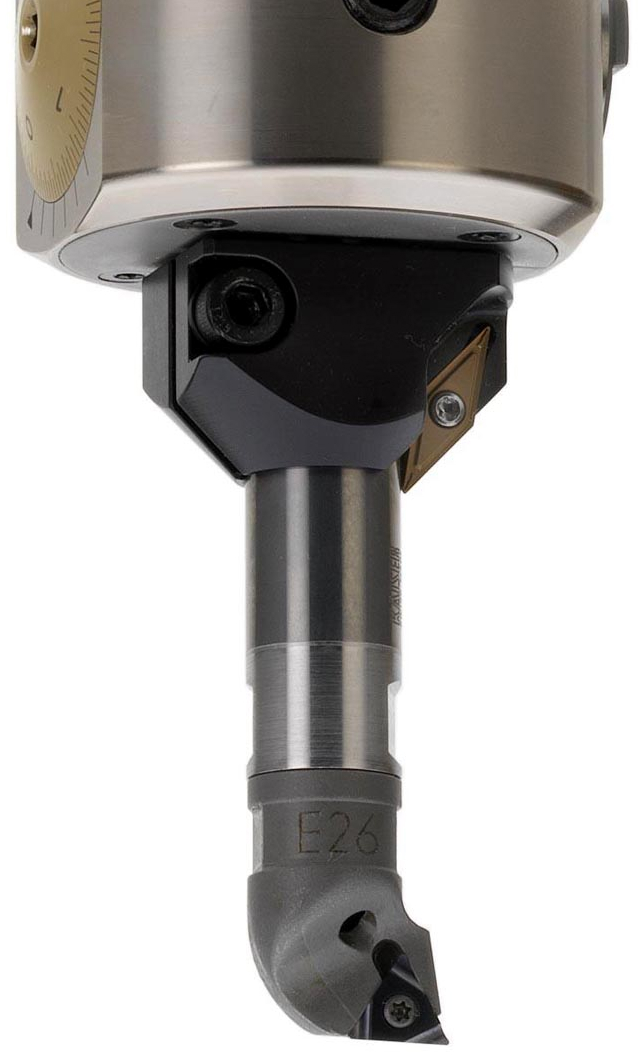

Aug 11, 2006 Small-diameter boring tools of 112 series are available with chamfer rings for sequence chamfers on bore diameters from .496-1.248 in. Existing tools can be retrofitted to perform additional fixed 45° chamfer in same boring operation. Chamfer ring slides over boring bar and locks into place with one screw. Made from aluminum, rings are designed for 12 mm and .625 in. dia boring bars and have minimal affect on tool balance.

MULE LIGHTING, INC.    Providence, RI 02905
Aug 11, 2006 In addition to color generated by LEDs, LED-ColorFLEX(TM) Tubes contain color specific dyes that enhance color brightness in daylight hours as well as night. UV-protected tubes can bend up to 180°, contain no harmful gases, and can be custom cut and shaped on-site. LED lamps used for illumination require as little as 1.92 W of energy/ft. Completely sealed and impervious to shock or vibration, LED-ColorFLEX is suited for outdoor use and areas subject to vibration.

esd electronics, Inc.    Hatfield, MA 01038

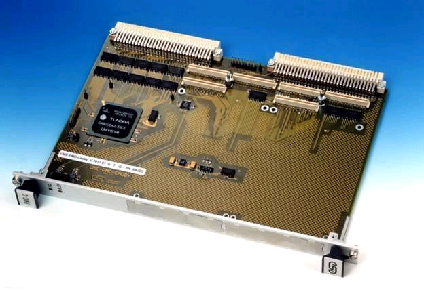

Aug 11, 2006 Using UNIVERSE CA912042 VME-PCI bridge for VMEbus connection, PMC-CADDY can operate as slave or master on VMEbus, and can carry up to 2 PMC modules of normal size or 1 double-sized module. Board operates with data width of up to 32 bits, with 32 address signals on VMEbus. VMEbus interrupt can be applied to any of 7 interrupt-request lines. Every plug-in unit of PMC-CADDY has I/O connector, which applies I/O signals of PMC modules to VMEbus connector P2.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

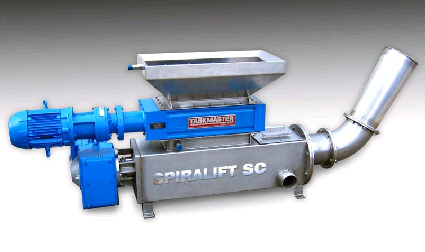

Aug 11, 2006 Featuring stainless steel tank enclosure and hopper, SPIRALIFT SC8500 takes screenings discharged from bar screen and washes, grinds, compacts, de-waters, and discharges them into container for disposal. It utilizes 2 hp auger as well as 5 hp grinder with 8 x 20 in. opening and cutter cartridge technology, which replaces individual cutters and spacers with one-piece cartridges. PLC-based control system monitors and integrates entire system.

Weidmuller, Inc.    Richmond, VA 23236

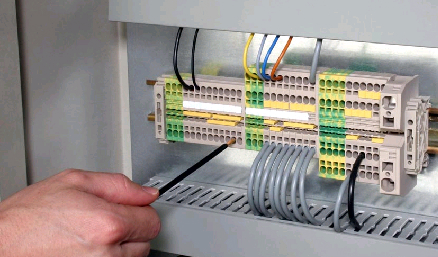

Aug 11, 2006 Covering cross section of 2.5-16 mm², Models PDU 2.5/4, PDU 6/10, and PDU 16 have wiring ranges of 20-10, 14-8, and 14-4 AWG, respectively. Solid core wires, once stripped of insulation, are inserted into terminal point until they hit stop; no tools are required to make connection. Push-in direct connection technology ensures vibration-resistant and gas-tight fit. Made from Wemid thermoplastic material, blocks withstand continuous operating temperatures to 248°F.

FCI    Etters, PA 17319

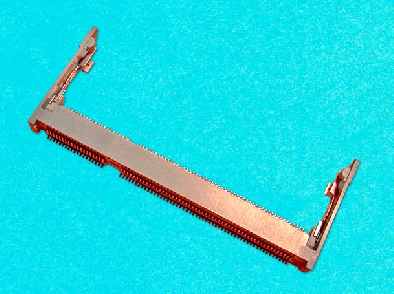

Aug 11, 2006 Suited for communications equipment and peripheral devices, 144-position, 0.8 mm pitch Series 10062086 measures 5.2 mm tall and provides 3.3 mm separation between top surface of host board and installed module. Horizontal sockets employ mechanical voltage keying to differentiate between versions that accept 2.5 V DDR or 1.8 V DDR2 memory module assemblies. Compliant with JEDEC-defined 16b/32b Socket Outline, sockets are designed for surface-mount solder termination.

North Atlantic Industries, Inc.    Bohemia, NY 11716

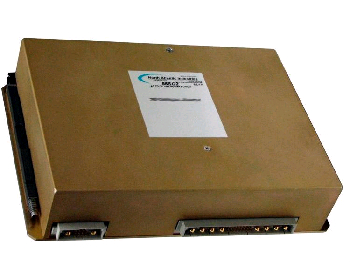

Aug 11, 2006 Providing 4 outputs used in VME systems, Model 56SQ2 delivers 300 W of power at full load, with operating temperature of -55 to +85°C measured at thermal seating plane. Unit operates from 110-242 Vac, 47-440 Hz, and can be configured for single-phase or 3-phase source, which provides outputs of +5 Vdc, +3.3 Vdc, ±12 Vdc, and +5 Vdc standby. Manufactured to NAVMAT component derating guidelines, power supply is suited for military and aerospace programs.

RIDGID    Elyria, OH 44035

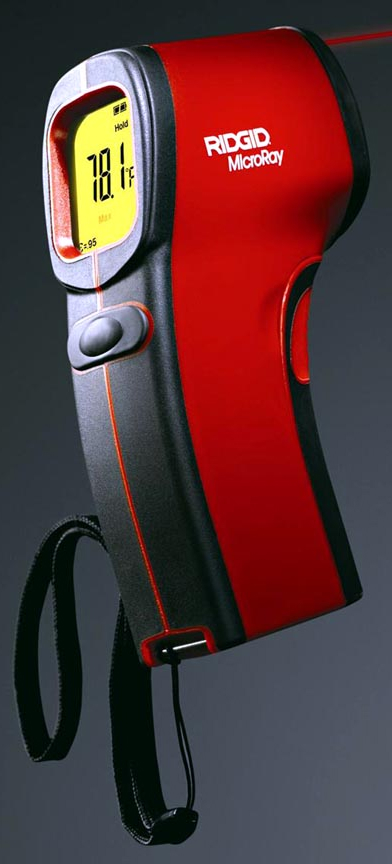

Aug 11, 2006 Using class II laser, non-contact RIDGID® MicroRay(TM) IR-100 offers trigger activation for immediate temperature measurement. Smart measuring feature lets users adjust emissivity setting via menu bar to match type of material being measured. Able to measure 2 in. spot on heating vent from 2½ ft away, unit offers sensitivity reading from -22 to +932°F within ±1.5% of accuracy (2.7°). It also provides Max and Min differential reading option, audible alarms, and backlit LCD.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 11, 2006 Pb-free, hardwired drop-in network module, NM7010A-LF, adds Ethernet capabilities to microprocessor systems. It combines W3100A (TCP/IP hardwired chip), Ethernet PHY (RTL8201), MAG-JACK (RJ45 with transformer), and other glue logic. Up to 4 independent connections can be supported simultaneously, with dynamic buffer allocation for each channel, which enables sustained loop-back performance of 8 Mbps. Complete Ethernet-I2C interface comes with 16 KB data buffer embedded.
