FCI    Etters, PA 17319
Aug 11, 2006 Suited for communications equipment and peripheral devices, 144-position, 0.8 mm pitch Series 10062086 measures 5.2 mm tall and provides 3.3 mm separation between top surface of host board and installed module. Horizontal sockets employ mechanical voltage keying to differentiate between versions that accept 2.5 V DDR or 1.8 V DDR2 memory module assemblies. Compliant with JEDEC-defined 16b/32b Socket Outline, sockets are designed for surface-mount solder termination.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Aug 11, 2006 Providing 4 outputs used in VME systems, Model 56SQ2 delivers 300 W of power at full load, with operating temperature of -55 to +85°C measured at thermal seating plane. Unit operates from 110-242 Vac, 47-440 Hz, and can be configured for single-phase or 3-phase source, which provides outputs of +5 Vdc, +3.3 Vdc, ±12 Vdc, and +5 Vdc standby. Manufactured to NAVMAT component derating guidelines, power supply is suited for military and aerospace programs.

RIDGID    Elyria, OH 44035
Aug 11, 2006 Using class II laser, non-contact RIDGID® MicroRay(TM) IR-100 offers trigger activation for immediate temperature measurement. Smart measuring feature lets users adjust emissivity setting via menu bar to match type of material being measured. Able to measure 2 in. spot on heating vent from 2½ ft away, unit offers sensitivity reading from -22 to +932°F within ±1.5% of accuracy (2.7°). It also provides Max and Min differential reading option, audible alarms, and backlit LCD.

Saelig Co., Inc.    Pittsford, NY 14534
Aug 11, 2006 Pb-free, hardwired drop-in network module, NM7010A-LF, adds Ethernet capabilities to microprocessor systems. It combines W3100A (TCP/IP hardwired chip), Ethernet PHY (RTL8201), MAG-JACK (RJ45 with transformer), and other glue logic. Up to 4 independent connections can be supported simultaneously, with dynamic buffer allocation for each channel, which enables sustained loop-back performance of 8 Mbps. Complete Ethernet-I2C interface comes with 16 KB data buffer embedded.

ERICO    Solon, OH 44139-2631
Aug 11, 2006 Designed to meet requirements of NEC® Article 410.16-C, CADDY® IDS series accommodate 1½ and 1¾ in. tall ceiling substructures (T-grids) in order to provide separate means of support for fixtures. Products have static load limit of 65 lb, and optional barrel nuts are available for low-profile track lighting. Packaged with all mounting hardware included, products do not require any tools for installation.

IQinVision    San Clemente, CA 92672

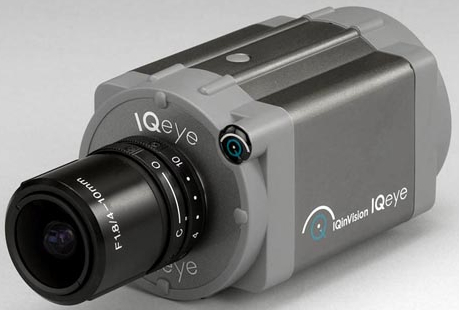

Aug 11, 2006 Available in 1, 2 and 3 megapixel models, IQeye700 series high-definition (HD) network cameras provides simultaneous high-resolution and low-bandwidth TCP/IP streams. Each camera is IEEE Power-Over-Ethernet (PoE) ready and includes Public View Port(TM), CF slot for on-camera storage, and LIGHTGRABBER II. Products are also available with IQrecorder On-Camera Network Video Recording Software and IQauthenticate On-Camera Digital Image Authentication.

Fluke Corp.    Everett, WA 98203

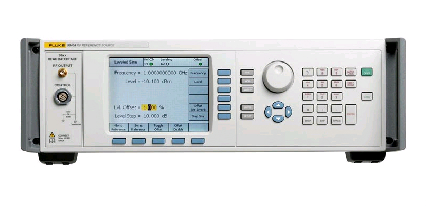

Aug 11, 2006 Designed to calibrate RF test equipment, Model 9640A provides frequency coverage from 10 Hz to 4 GHz with best level accuracy of ±0.05 dB. It outputs pure sinusoidal signal with low harmonic and spurious content, helping eliminate differences between wideband/narrowband and peak/rms sensors without additional external filters. Unit offers signal leveling and attenuation within 50 ohm leveling head, and displays calculated UUT error for calibration certificate documentation.

Saelig Co., Inc.    Pittsford, NY 14534

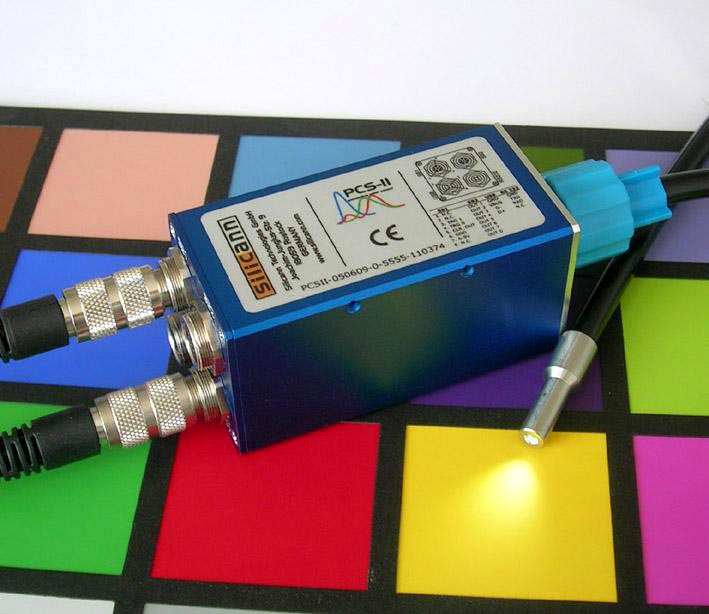

Aug 11, 2006 Able to recognize up to 255 user-defined colors, PCS-II perceptive color sensor offers color control, recognition, classification, and measurement operational modes. USB-connected sensor is illuminated by white LED with adjustable brightness, and relative accuracy is better than DE=0.5. Integrated photodetector uses filter curves that correspond to visual responses. Other functions include color grouping, ambient light suppression for luminous objects, and master-slave operation.

Fluid Components Intl.    San Marcos, CA 92069 5115

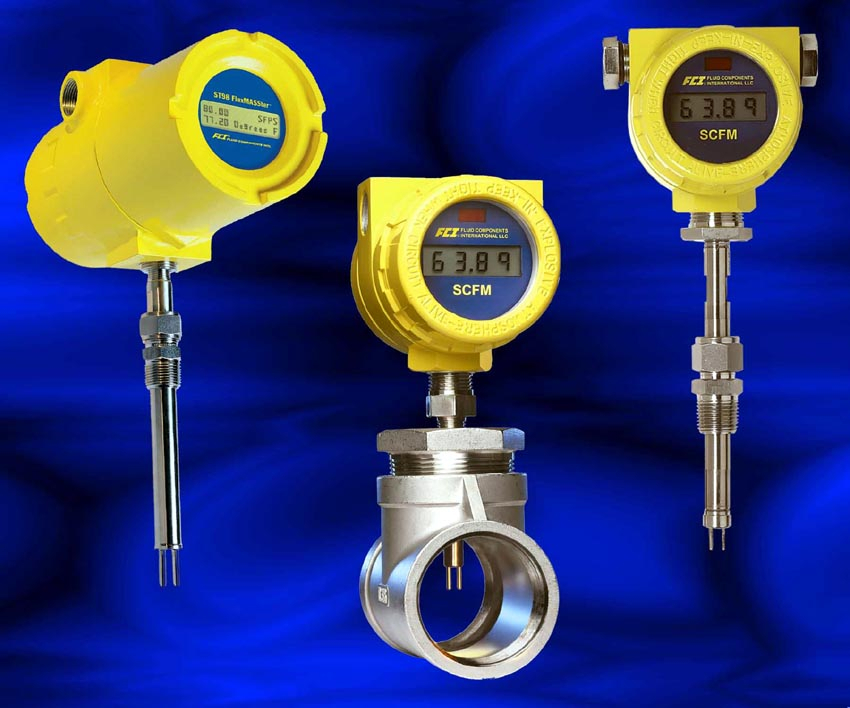

Aug 11, 2006 ST Series Flow Meters incorporate thermal dispersion type mass flow sensing element. ST98 offers IP66 rated enclosure, operates over 0.21-172 NMPS flow range, and is capable of Profibus communications. Designed for line sizes from 6-51 mm, ST75 direct mass flow meter has flow range span of 0.07-1,425 NCMH. ST50 insertion-style mass flow meter for air, compressed air, or nitrogen flow measurements is designed for line sizes from 51-610 mm and operates over flow range of 0.23-122 MPS.

Creform Corp.    Greer, SC 29652-0830
Aug 11, 2006 Custom built using plastic coated steel tubing, metal or plastic joints, and hardware accessories, Stackable Shipping Racks can incorporate only necessary features to complete task. To limit handling operations and minimize risk of part damage, racks offer multi-task material handling, from being loaded with parts at supplier's facility, conveyed to shipping dock, placed and stacked on over-the-road transport, to off-loading at receiving docks.

Newstripe, Inc.    Aurora, CO 80011

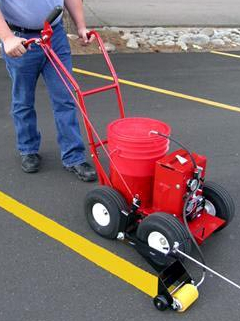

Aug 11, 2006 Featuring 100% transfer efficiency, Rollmaster 5000(TM) does not create any over spray, enabling use within 3 in. of obstacles. Integral peristaltic pump, driven by battery-powered, 12 V gear motor, squeezes paint through delivery hose so that paint does not come into contact with any pump component. This, along with disposable paint roller and hose, results in cleanup times of less than 5 min. Noiseless unit does not generate gas or exhaust fumes and comes with on-board charger.

OTEK Corp.    Tucson, AZ 85714

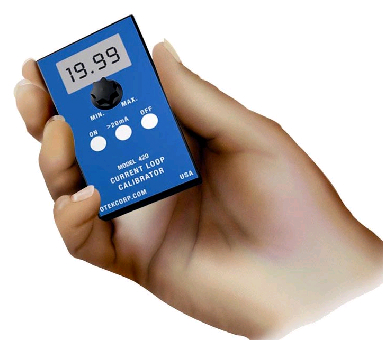

Aug 11, 2006 Packaged in 4 x 2.5 x 4 in. housing with belt clip, Model 420 is designed for calibration/test of DPMs, PLCs, transmitters, sensors, or any other device requiring 4-20 mA current loop signal. Powered by 9 V battery, unit operates down to 6 V and can drive up to 300 ohm loads or sustain up to 7 V burden of load. It features dual full-scale range of 19.99 and 25.0 mA, 10-turn potentiometer, and 3½ digit display that will only turn on if loop is closed.

Hoffman    Anoka, MN 55303 1778
Aug 11, 2006 Available in double-hinged models with 3-part design, ProTek(TM) Type 12/4 Wall-Mount Cabinets provide front and rear equipment access. They accommodate and protect multiple pieces of 19 in. network equipment, and can be left or right hinge mounted. Type 4 models are available with solid door for complete physical and visual protection, while Type 12 models are available with solid door or window door, made with scratch-resistant safety glass.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004

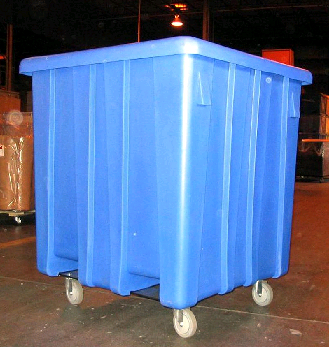

Aug 11, 2006 Rotationally molded in single piece of polyethylene, Ship Shape(TM) P-333 safely accommodates payloads approaching 50 cu-ft and 700 lb on standard 44 x 44 in. footprint to cube out trailers. Reusable, weatherproof unit resists scratches and dents and is suited for indoor and outdoor applications. It is virtually immune to degradation from chemical contact, sunlight, salts, solvents, and other substances that attack wood, corrugated, and metal containers.

Selco Products Co.    Reno, NV 89521-5908
Aug 11, 2006 Incorporating microprocessor-based technology, Model 2698 delivers ON/OFF cooling control of temperatures from -40 to +50°F, or cooling control of temperatures from -32 to +285°F. Model 2699 provides ON/OFF temperature and humidity control, and features up to 3 outputs with multiple relays, or ability to drive external SSR. Both include 2- or 4-digit push-button display panels, bi-color LED indication, and options for user panel remote control and adjustment of differential.

Advantech Co. Ltd    Irvine, CA 92618
Aug 11, 2006 Featuring Intel E7520 chipset and 6300ESB I/O controller, PCE-7210 optimized server board leverages Intel Xeon/Xeon LV processors up to 3.6 GHz with 2 MB L2 cache and 800 MHz FSB. This SHB Express (PICMG 1.3) System Host Board provides 2 PCIe x8 and one PCIe x4 connections, offering up to 10 GB/s of bandwidth to SHB Express backplane. Another PCIe x4 is linked to Broadcom BCM5715C dual-port Gigabit LAN chip, and board supports up to 8 GB dual-channel DDR2-400 ECC registered RAM.

Fluke Corp.    Everett, WA 98203

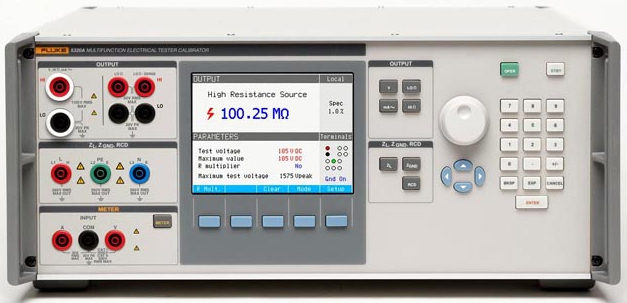

Aug 11, 2006 Fluke 5320A simplifies calibration processes by incorporating functionality required to calibrate and verify 9 types of electrical test tools in one instrument. Along with 3 standard interfaces for remote control, product supports MET/CAL® Plus Calibration Measurement Software for automating calibration process and managing calibration laboratory inventory. Color display has GUI that shows users how to make terminal connections between unit-under-test and calibrator.

Roll-A-Way Conveyors, Inc.    Gurnee, IL 60031 1212
Aug 11, 2006 Roll-A-Way Conveyors are available with black-coated rollers consisting of solid rubber bonded to steel roller. Overall diameter is 1.9 in. and rolling capacity is 290 lb. Used with ¾ in. micro, 1 3/8 in. durable, and 2 in. heavy-duty rollers, white poly-covered models are non-marring and suited for applications with stainless or aluminum products. Orange polyurethane roller covers work with 1.9 and 2.4 in. steel rollers and are suited for delicate applications.

Automation Engineering Incorporated    Wilmington, MA 01887

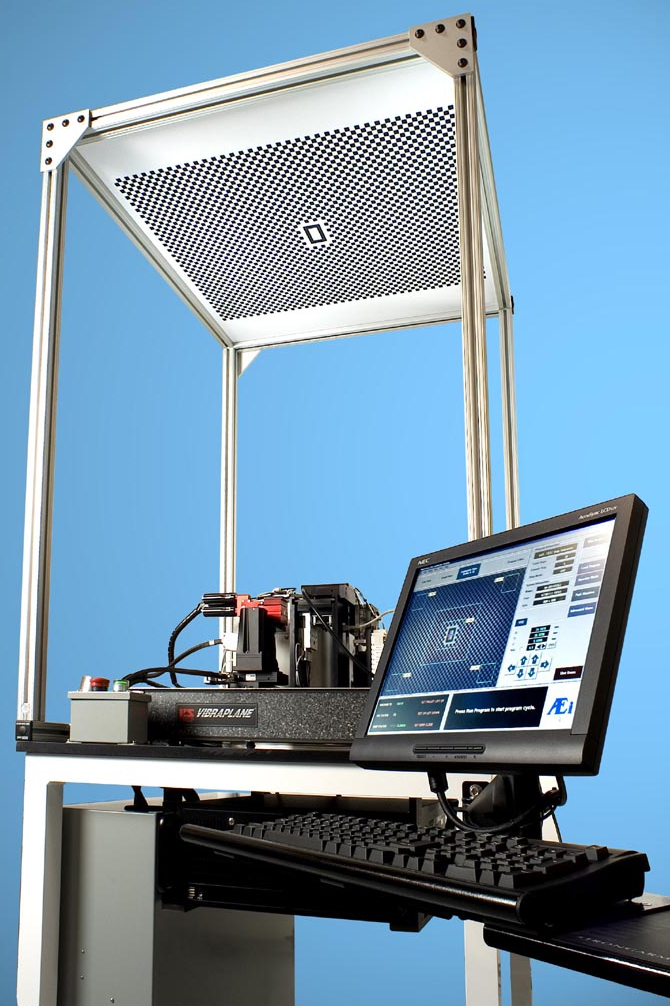

Aug 11, 2006 CMAT© (Camera Module Assembly and Test) stations enable digital camera OEMs to produce different models on same equipment and production lines with minimal changeover. Automated alignment and test stations assemble lens to camera sensor on PCB in up to 6 degrees of freedom. With support for automated assembly of various digital camera sensors and lens housing designs, stations are built to order for optimal performance. Included software provides variety of quality tests.

Labconco Corp.    Kansas City, MO 64132 2696

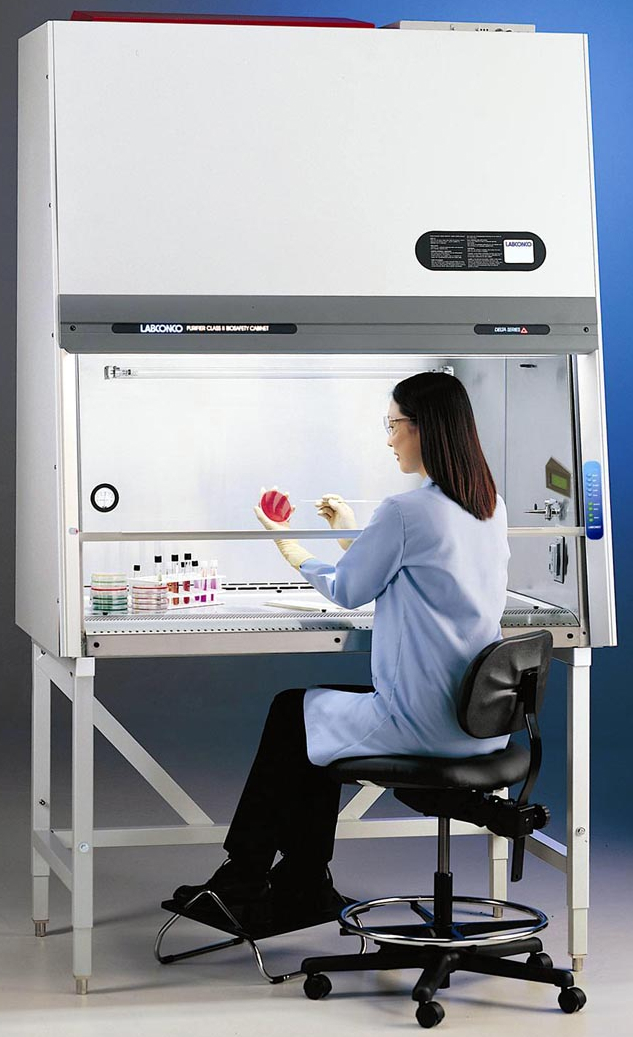

Aug 11, 2006 Purifier® Digital Delta® Series Safety Cabinets provide personnel, product, and environmental protection for agents requiring Biosafety level 1, 2, or 3 containment. Smart-Start(TM) System lets users program start up and shut down procedures. Available in 3-6 ft benchtop models, cabinet incorporates blower, electrical receptacles, fluorescent or UV lights, and LCD. Supplied RS 232 port connects to user-supplied PC, and RS 485 port communicates with building monitoring system.
