Clean Air Products Clean Air Systems Div.    Minneapolis, MN 55445 1828

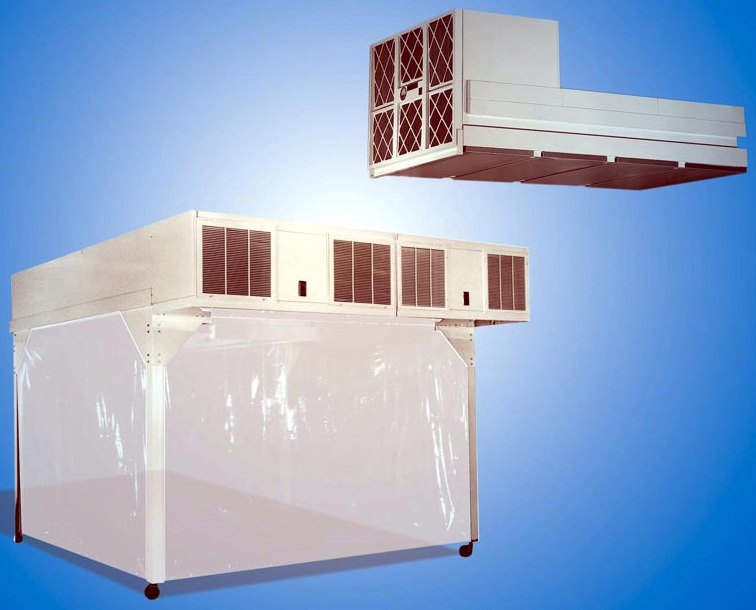

Aug 15, 2006 Available in various configurations, Series 150 Vertical Flow Plenum Sections create modular systems that meet cleanroom application needs. Full ceiling, HEPA filter plenum sections provide filtered laminar flow air to clean areas. Series 151 have blowers on end and freestanding 551 series have legs added. Both can be building suspended with or without curtains. Units with blowers on top are Series 152, or freestanding Series 552 with legs added.

Cognex Corp.    Natick, MA 01760 2059
Aug 15, 2006 IP67-rated In-Sight vision sensors are offered with In-Sight® Explorer v3.3 software, which includes non-linear calibration, communication, and other tools that minimize integration time when deploying vision in robotic guidance and inspection applications. Software comes with robot drivers, sample code, and PatMax®, which locates unfixtured parts. This lets system integrators use vision tools for part location, identification, inspection, and measurement on robot of choice.

Snap-On Tools, Inc.    Kenosha, WI 53143

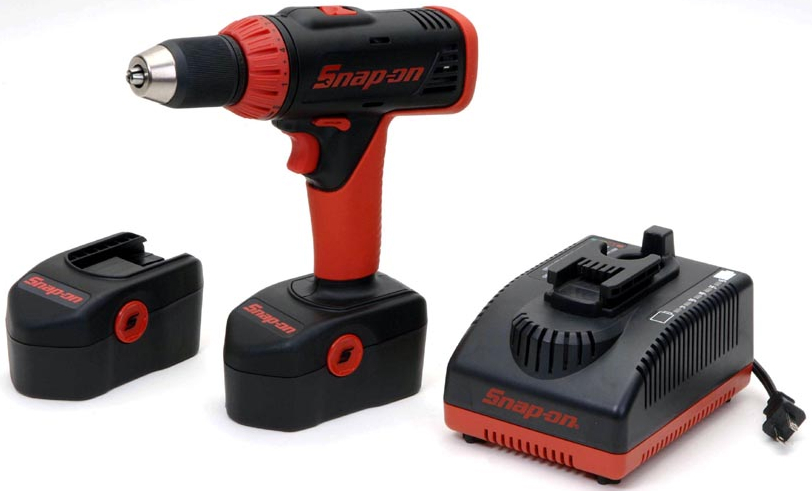

Aug 15, 2006 Designed to drill holes and drive fasteners for various jobs, 18 V model CDR4850 is built with industrial-strength gear train, heat-treated alloy gears, and glass-filled nylon housing. Its 22-position clutch lets users dial in desired torque up to 450 lb-in., enough to drill through steel, while airflow system helps keep motor cool. Other features include single sleeve, keyless chuck; dual rail slide-on battery pack; and VersaVolt Battery System.

Anver Corp. - Anver.Com    Hudson, MA 01749

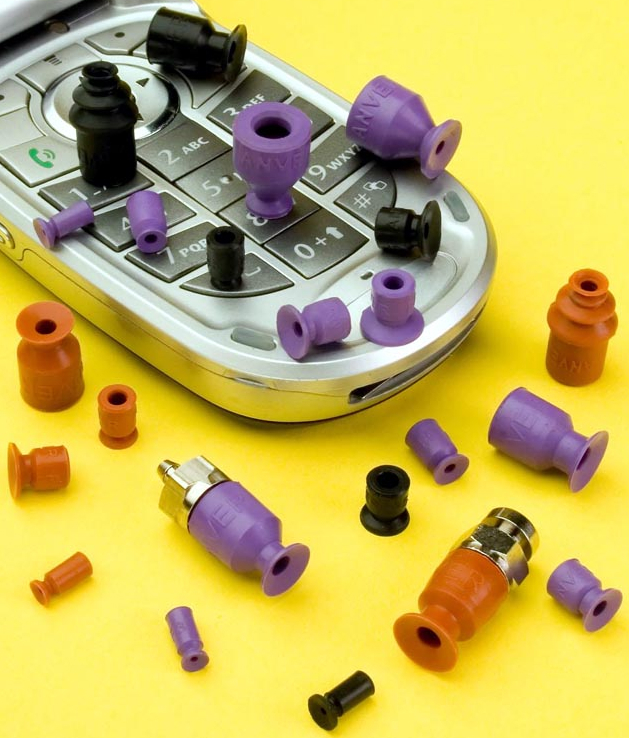

Aug 15, 2006 Offered in 3-8 mm ODs in 0.5 mm increments, Anver Miniature Vacuum Suction Cups have surface areas optimized for small robotic end-of-arm-tooling applications. They are manufactured from variety of materials and designed to match specific assembly requirements with regard to heat, static control, or surface sensitivity. Suitable for mounting on 1 mm fittings, products are offered in red silicone, non-marking Nomathane(TM), and electrostatic-dissipative Nomastat(TM).

ETCO Incorporated    Warwick, RI 02888 1501

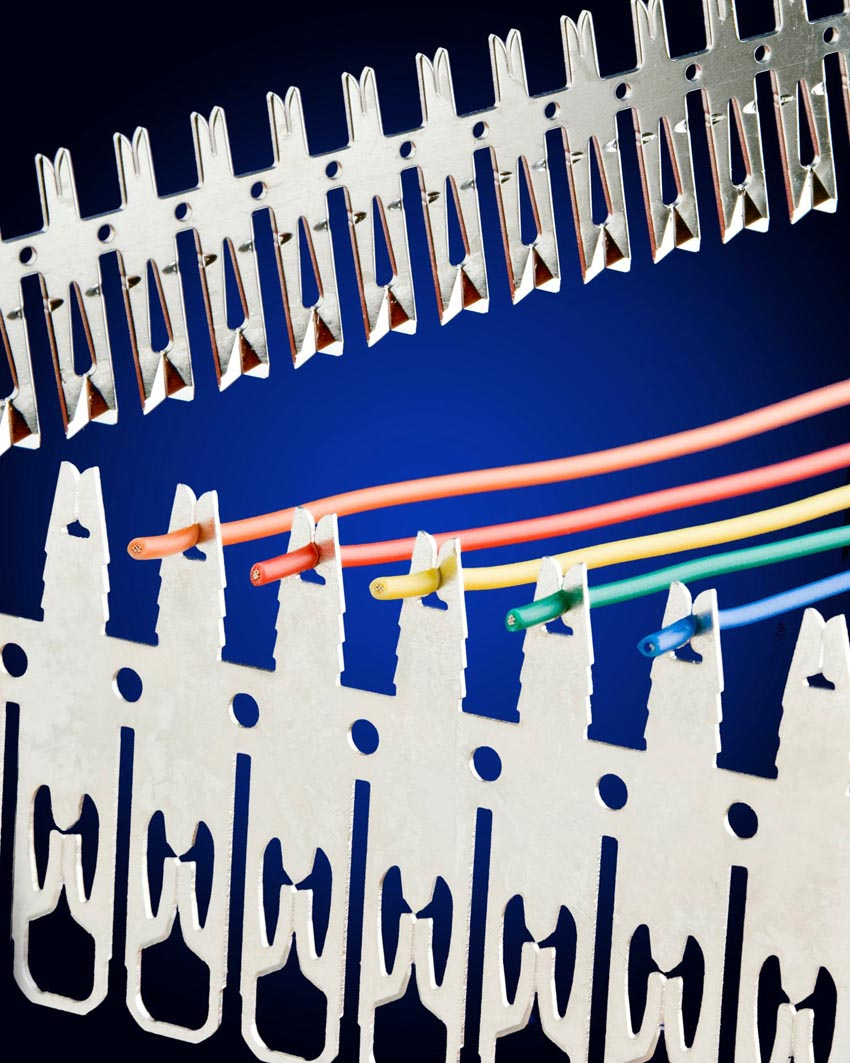

Aug 15, 2006 Custom ETCO IDC (insulation displacement connection) Terminals promote accelerated assembly of 30 or more wires into one terminal by integrating set of blades into connector design that cut through wire insulation. Suited for solid wire applications from 18-28 Ga, connectors utilize preloaded internal contacts for wire attachment, create gas-tight contacts, and eliminate need for wire stripping and crimping. Supplied as strip, products can be made in sizes from .001-.032 in. thick.

Meller Optics, Inc.    Providence, RI 02940
Aug 15, 2006 Laser Research zinc sulfide (ZnS) Optics feature high transmission with minimal scatter and are designed for broad wavelength applications. Typically supplied with broadband A/R coatings, these water-clear, multi-spectral optics are suited for use in IR imaging and military FLIR systems. Chemically inert and non-hygroscopic products, offered in ¼-4 in. dia sizes from 1-8 mm thick, have surface accuracies to ¼ wave and 40-20 scratch-dig per MIL-PRF-13830.

Saia-Burgess Inc.    Vandalia, OH 45377-0427
Aug 15, 2006 Featuring integral return spring, Series B16-L and B17-L latching open frame solenoids provide max force of 25 oz and max stroke of 0.18 in. in housing less than 1 in. long and 0.6 in. wide. Offered with 10, 25, and 50% duty cycles, units are available with 3, 6, 12, or 24 Vdc input voltages, with optional input voltages to 120 Vdc. Two plunger cone configurations are available. Solenoids are designed for security systems, office automation, and medical devices.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

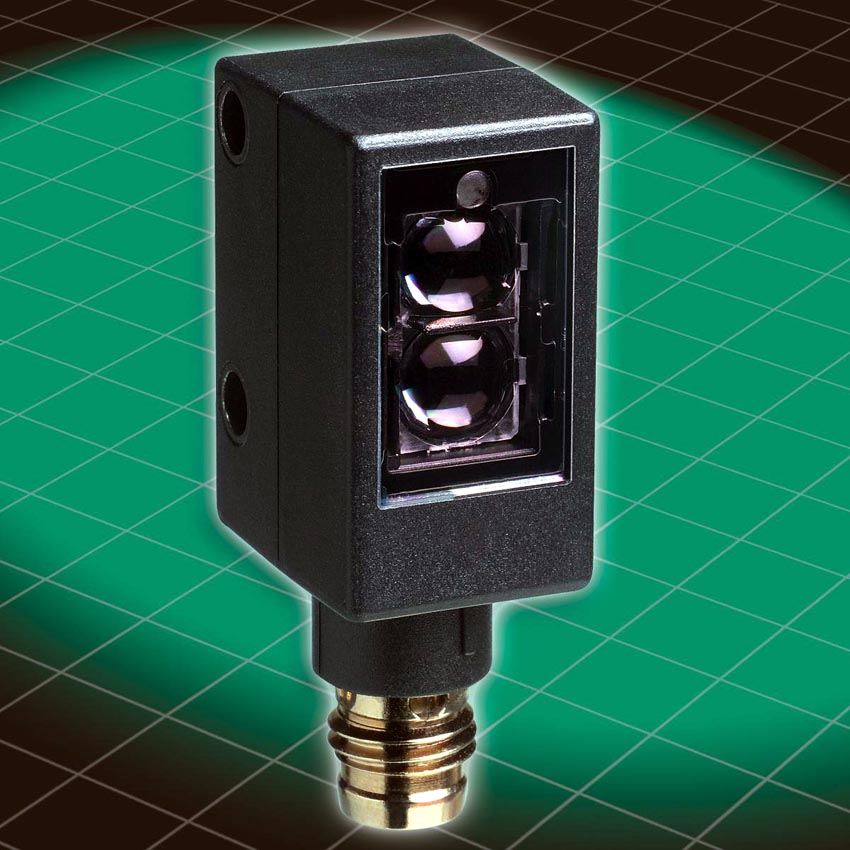

Aug 15, 2006 Providing sensing range to 2.5 m, ML8 Series Photoelectric Sensors eliminate setting adjustments by unauthorized users. Suited for conveyor applicatons, miniature 31 x 11 x 23 mm sensors include 40 klux ambient light immunity. High-intensity LEDs indicate sensor output, with diffused and polarized retro-reflective sensing modes available. Slotted holes and red LED transmitter facilitate mounting and alignment. Sensors are available with integral M8 or pig-tailed M12 connectors.

Scientific Technologies Inc.    Fremont, CA 94555

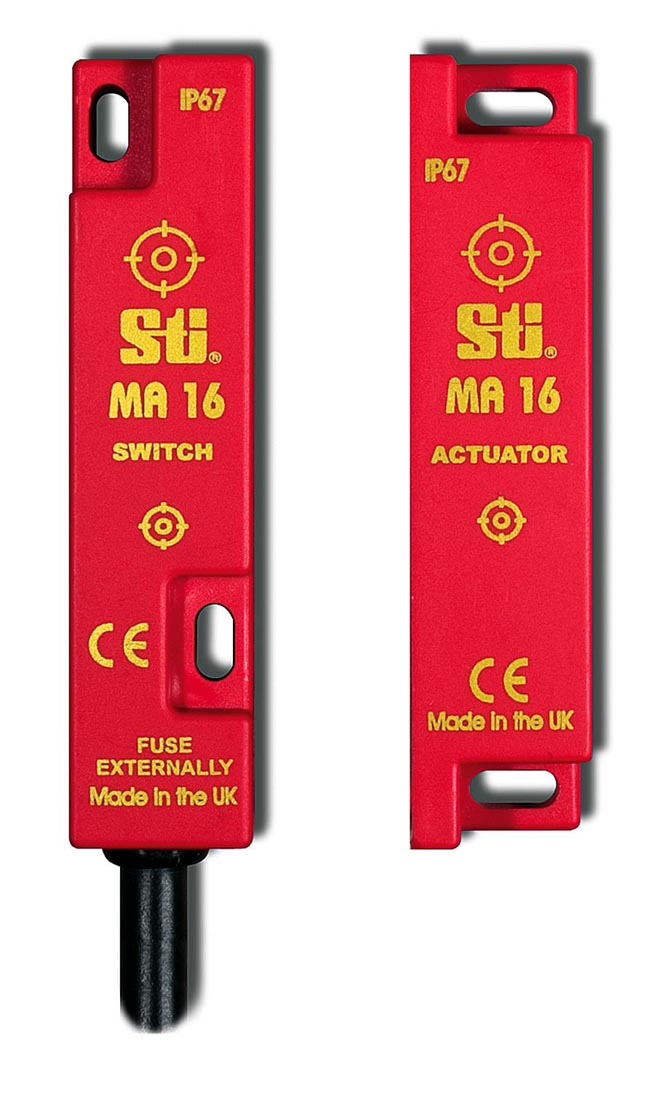

Aug 15, 2006 MA16 Series safety interlock switches feature NEMA 6 enclosure providing minimum of 1 million actuations, with guard door misalignment to 10 mm, in dirty and water washdown environments. Switches are available in selection of contact configurations with various cable lengths or terminal strip terminations.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 15, 2006 Series ML4.2 background suppression photoelectric sensors provide optimal background suppression sensing capabilities in compact 14 x 18 x 33 housing. Color insensitivity is less than 10%, so targets are detected regardless of color. All models feature tamper-proof fixed sensing ranges, cross-talk immunity, and technology allowing 4 automatically selected output configurations. Glass lens and anti-static housing make this series suited for printing and paper environments.

Dimetix AG    CH-9100 Herisau   Switzerland
Aug 15, 2006 Operating in temperatures as low as -40°C, DLS-B distance measuring device measures to 500 m with ±1.5 mm precision. Device works on natural and reflective surfaces, and includes serial, analog, and digital interfaces for SPS, IPC, or PC connection. Able to execute programmed functions independently, unit can be connected to external display via RS232 or RS422 interface. Software enables diagnostic, test, start-up, and configuration capability.

Photofabrication Engineering Inc.    Milford, MA 01757

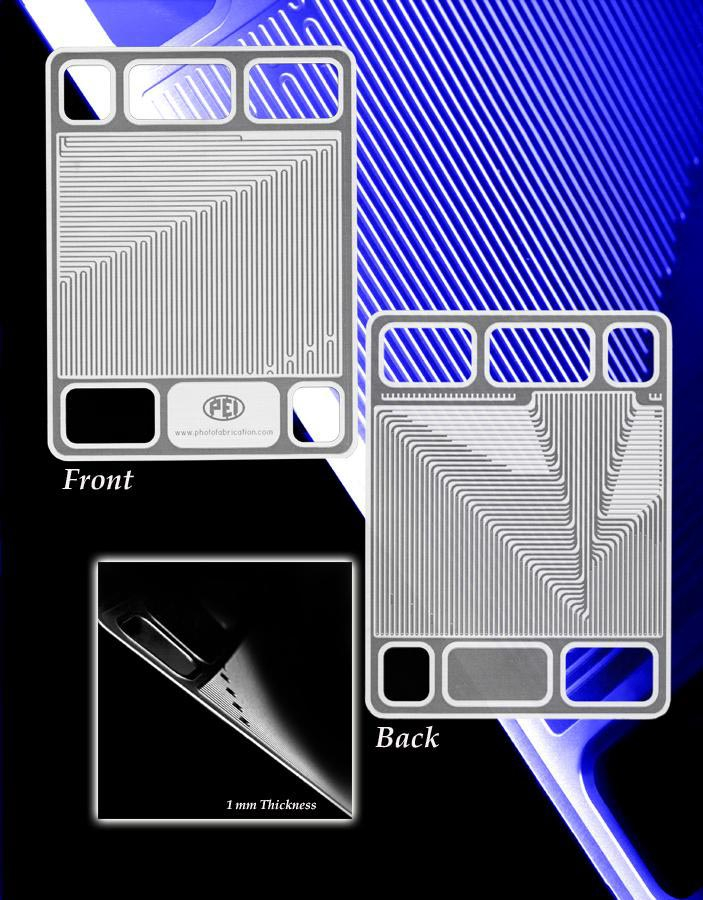

Aug 15, 2006 Photochemically-etched fuel cell plates are available in stainless steel, pure titanium, and other non-corrosive metals. Lightweight, impact-resistant plates can be stacked or layered, and come in thicknesses from 0.5-100 mil with features as small as 4 mil on 0.010 in. centers. Plates can be fabricated in various shapes and sizes with round or hexagonal holes, ovals and slots, and customized with customer's logo.

E+E Elektronik GmbH    Engerwitzdorf A-4209  Austria

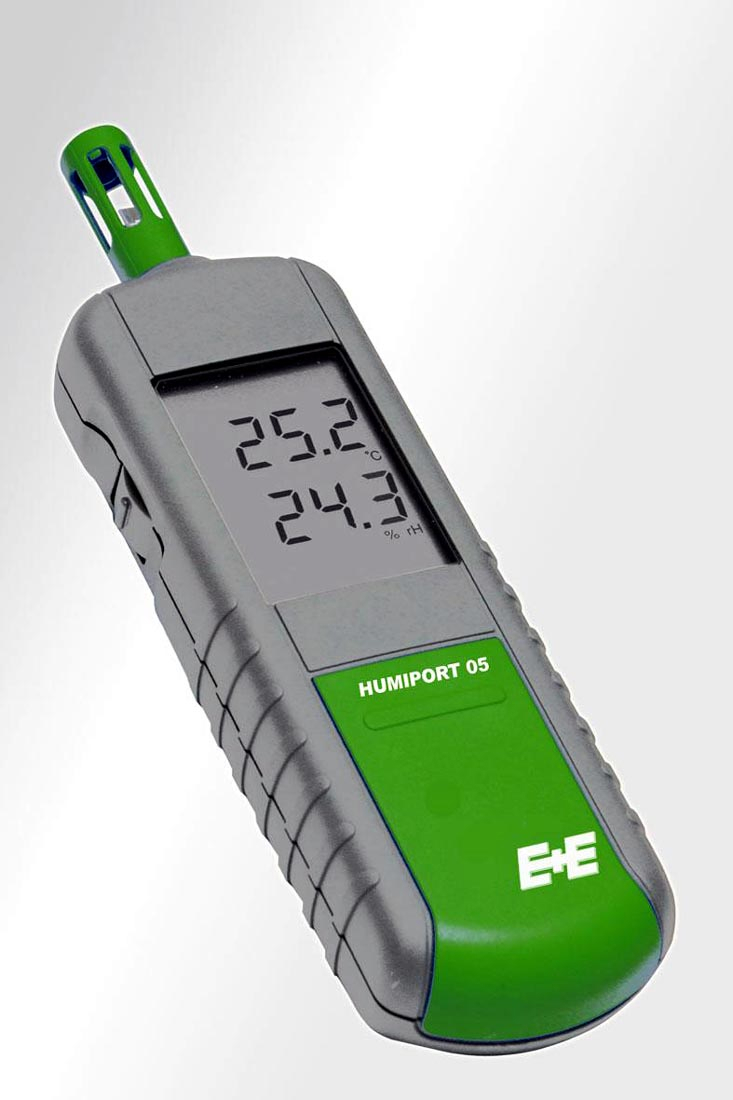

Aug 15, 2006 Hand-held HUMIPORT 05 provides measurement of relative humidity from 5-95% and temperature from -4 to 122°F. Dew point, absolute humidity, and mixing ratio can also be shown, and unit provides one-hand operation with thumb wheel switch. Measured values can be displayed as SI- or US-units, with MIN/MAX, AVG indication, and HOLD-function features provided. Device is suited for monitoring of buildings, switching cabinets, museums, and storehouses.

Dart Controls, Inc.    Zionsville, IN 46077

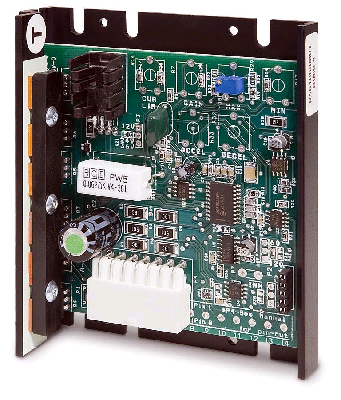

Aug 15, 2006 Available in open or closed loop versions, Models 700BDC, 701BDC, and 703BDC operate at 11-40 Vdc input and 5 A continuous load current. Model 703BDC has additional features that include adjustable accel/decel and bi-directional speed pot control capability. All controls can be provided with pluggable connector and fixed settings for OEM applications.

C-Tech Industries    Camas, WA 98607

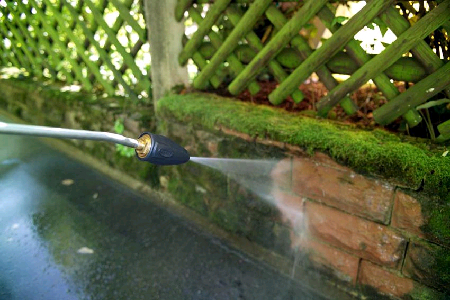

Aug 15, 2006 Attaching to wand of most hot or cold water pressure washers, Revolution Nozzle blasts surfaces with spinning spray action. Unit is rated for up to 4,350 psi at 185°F and spins at 4,000 rpm to provide cleaning action of wide-coverage, fan-spray nozzle along with deep-cleaning impact of pencil-jet or 0° nozzle. Revolution has wear-resistant ceramic head and bearing ring and is shrouded by housing protector.

Power Factor 1    Santa Clara, CA 95054

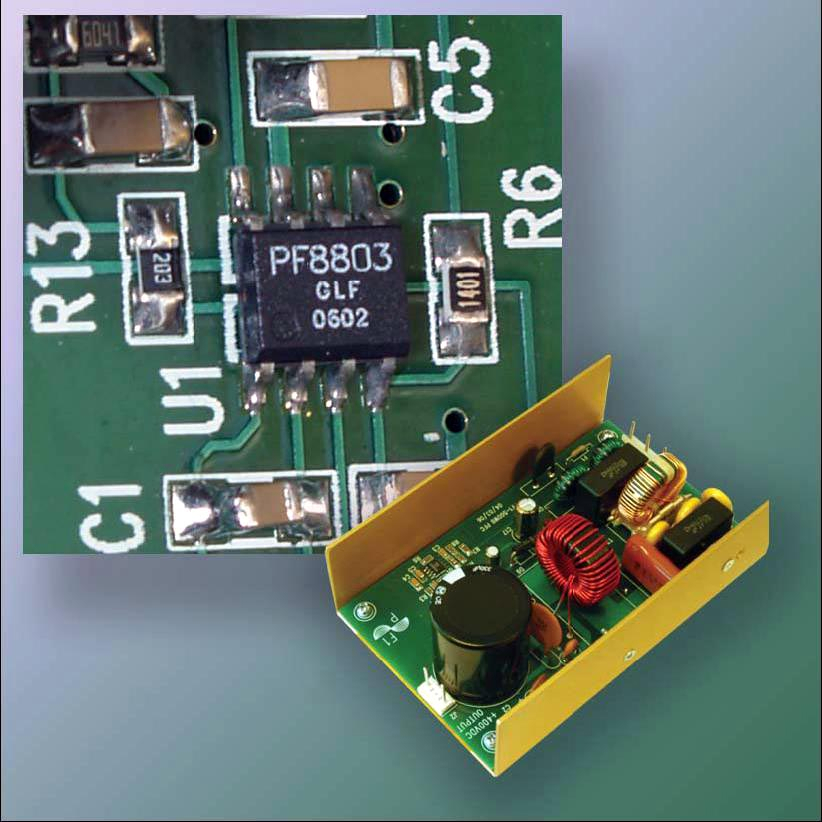

Aug 15, 2006 Offered in 8-pin SOIC & DIP package options, PF8800 Series DCM/CCM provide power factor correction (PFC) preregulation for power supplies from 75-1,000 W, and feature Discontinuous Mode operation to 500 W or Continuous Conduction Mode to 1,000 W. Addressing challenges in creating power supplies with active PFC, controllers feature reduced Harmonic Distortion and component count while gaining more than 95% efficiency. Devices can be configured for DCM or CCM operation.

Thermo Electron Corporation: Chromatography & Mass Spectrometry    San Jose, CA 95134-1991

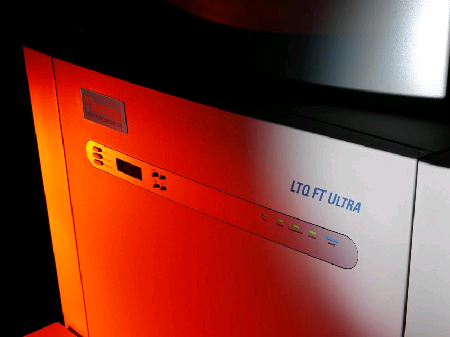

Aug 15, 2006 Hybrid FTICR Mass Spectrometer, LTQ FT Ultra(TM), analyzes complex matrices and large molecules with resolution in excess of 750,000. Ultra Cell ICR cell design optimizes sensitivity and widens dynamic range to exceed 4,000. System can be equipped with ECD and IRMPD fragmentation techniques, which can be used on LC timescale. Powered by Xcalibur(TM) software, spectrometer can be configured with layered application software including ProSightPC(TM), SIEVE(TM), MetWorks(TM), and BioWorks.

vps ID Systeme GmbH (formerly vps Video Print Systeme GmbH)    Ettlingen D-76275  Germany
Aug 15, 2006 Suited for corporate access applications, Identity and Card Management System (icms) provides scalable, customizable system for managing large populations of chip-based employee credentials. Open-architecture solution interfaces with various systems and serves as information hub for all card-related applications. In addition to creating new employee cards and managing their lifecycles, software handles cards featuring biometric identification, digital signature, and PKI capabilities.

Rudolph Technologies, Inc.    Flanders, NJ 07836
Aug 15, 2006 Inspection tool-set, comprised of NSX(TM) and B20(TM) Systems, features backside color processing capability and auto-die classification. NSX Systems offer frontside inspection, B20 Systems offer backside inspection, and Harmony ASR(TM) (all-surface review) Software offers defect analysis and management. Combined with brightfield and darkfield capabilities, B20 Systems use color processing capability to increase sensitivity to subtle color defects such as chemical stains and micro arcings.

VISTAGY Inc.    Waltham, MA 02451
Aug 15, 2006 Powered by EnCapta®, Airframe Design Environment(TM) enables aerospace engineers to capture non-geometric information related to parts or fasteners, as well as automate airframe-specific design and manufacturing processes to create 3D digital product definitions of airframe components and assemblies. Program supports model-based definition initiatives and offers functionality for capturing data, materials, and methodologies specific to airframe design.
